Poignée electronique avec lecteur de badge
including the door contact, enables direct connection to the intelligent port of the RAMOS Optimax or RAMOS Plus main monitoring unit.
Product introduction

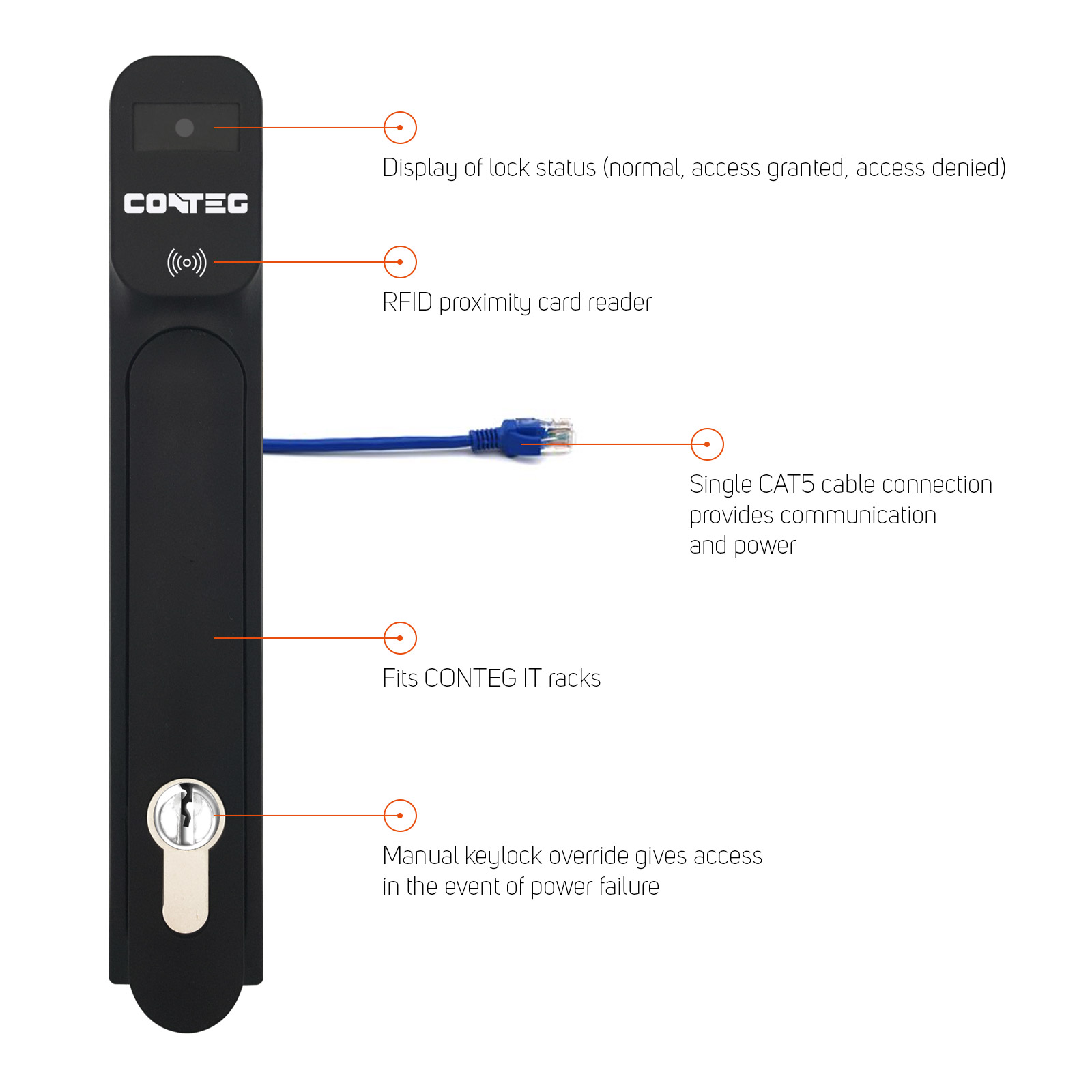

The electronic handle with a built-in reader including a door contact enables connection directly to the intelligent port of the RAMOS Optimax or RAMOS Plus main monitoring unit. This handle is intended for CONTEG cabinets with a 25x150mm handle cut-out. It is possible to control up to 8 handles with RAMOS Optimax and up to 4 handles with RAMOS Plus without the need for additional hardware.
The electronic handle is also compatible with doors equipped with a multi-point locking mechanism. 2 EM cards are included with each handle.
Order code: RMS-ACS-EL1
Information
Key features
| Nom de la ligne de produits1 |
Electronic handle with card reader |
|---|---|
| LED Indikátor |
Color RGB LED |
| Ideal for |
RAMOS Plus and RAMOS Optimax |
| Podporovane karty |
EM cards with a frequency of 125kHz 26bit, K4100/EM4100/EM4200/T5577 |
| Power |
Powered by RAMOS Optimax or RAMOS Plus smart port (main monitoring unit only) |
| Čteci dosah |
0-3 cm |
| Otevírání zámku |
Remote opening and closing from the main monitoring unit via web interface, SNMP and CONTEG Pro Server application |
| Napětí |
5V DC |
| Spotřeba |
Standard 0.35 mW, 70 A in operation up to 1.75 W, 3500 mW |
| Operating humidity |
10% - 90% |
| Included in the package |
2 EM cards |
| Operating temperature |
from -25 °C to +75 °C |
