Cadre de séparation d'air
Passive air flow control elements direct the air flow inside the cabinet and create separate zones. Their application is a prerequisite for effective cooling.
Product introduction

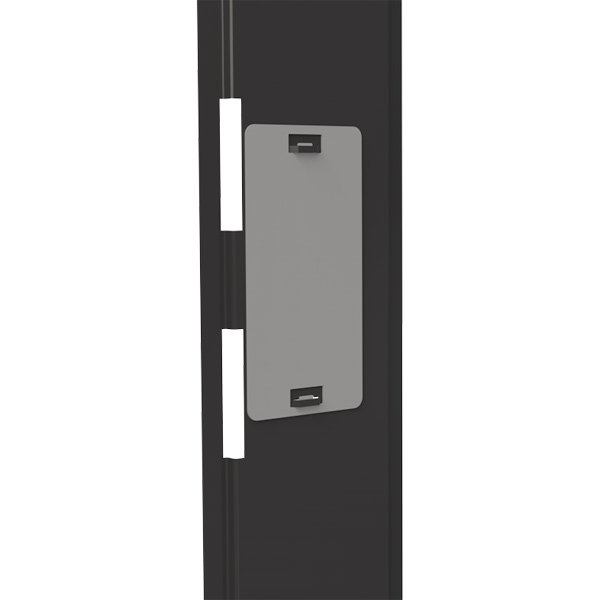

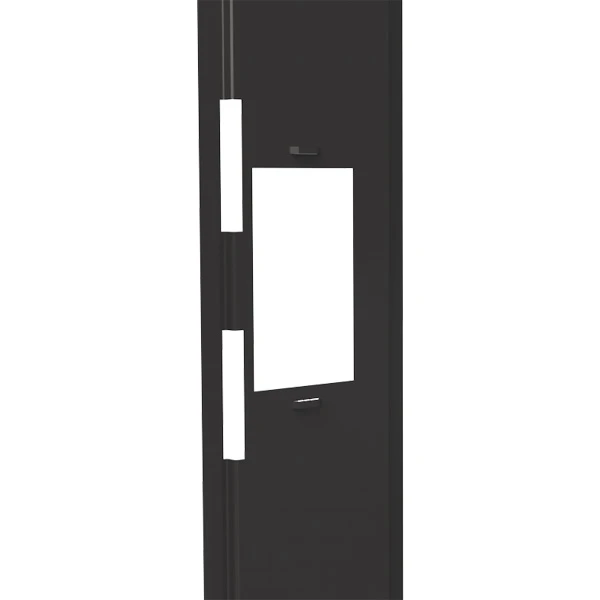

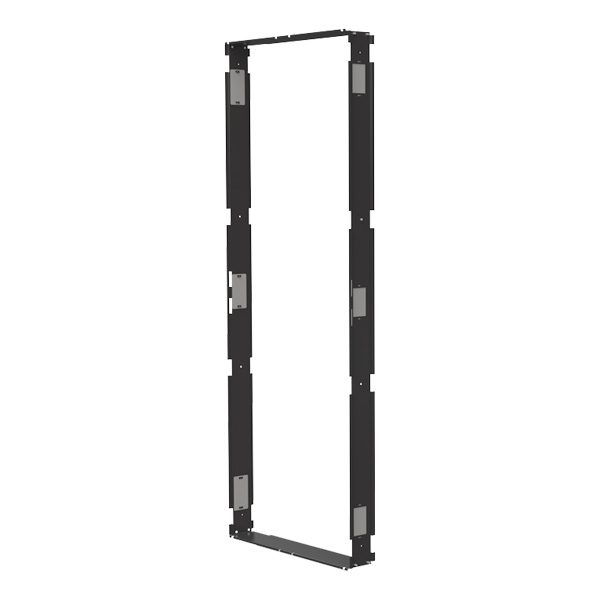

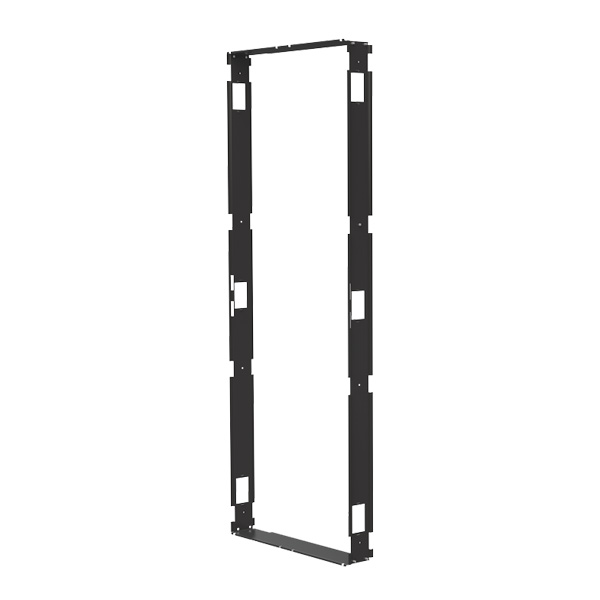

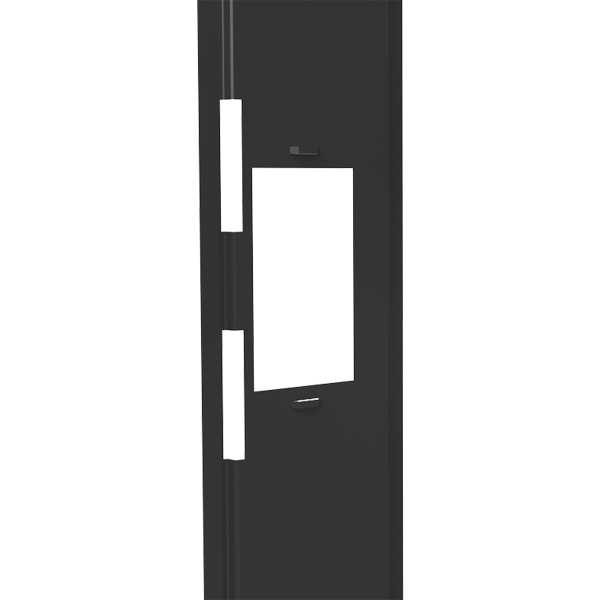

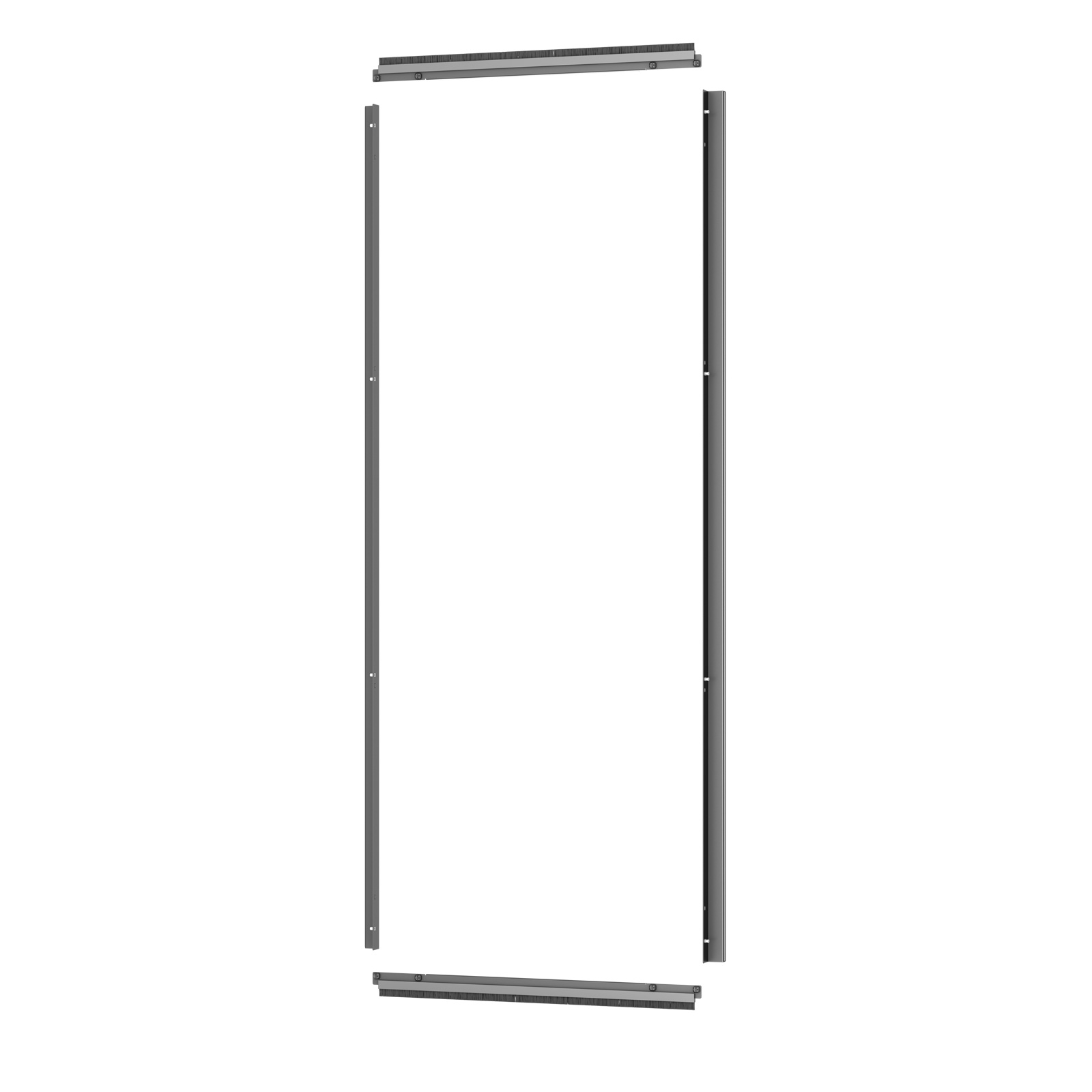

The separation frame is used to create a cold zone in front of the installed equipment, which increases the cooling efficiency, as the fans of the installed equipment (e.g. servers) suck in cold air that does not mix with warm air. A modified version of the separation frames allows easier installation of cabinets in a row and their connection. This version is also compatible with the new DP-DR-UNI-Q quick-connect kit. If you use both products together, it is possible to leverage separation frames pre-installed by the manufacturer or integrator. Cabinets can be linked in a row without tools by a single person.
800mm wide ROF or RDF cabinets must be equipped with HVMP/HVMF or C or P-type rails (with plugs) for the proper functioning of the separation frame.

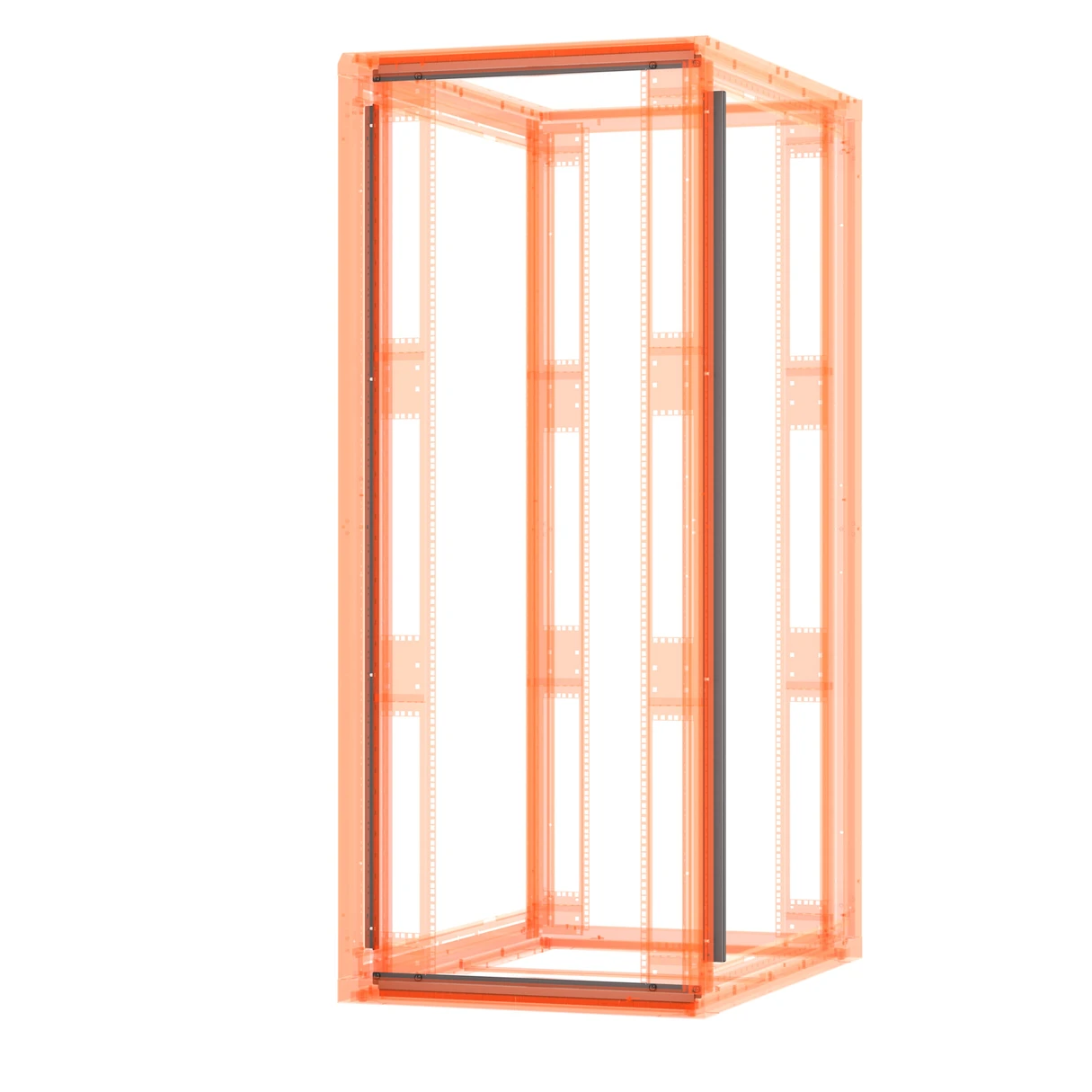

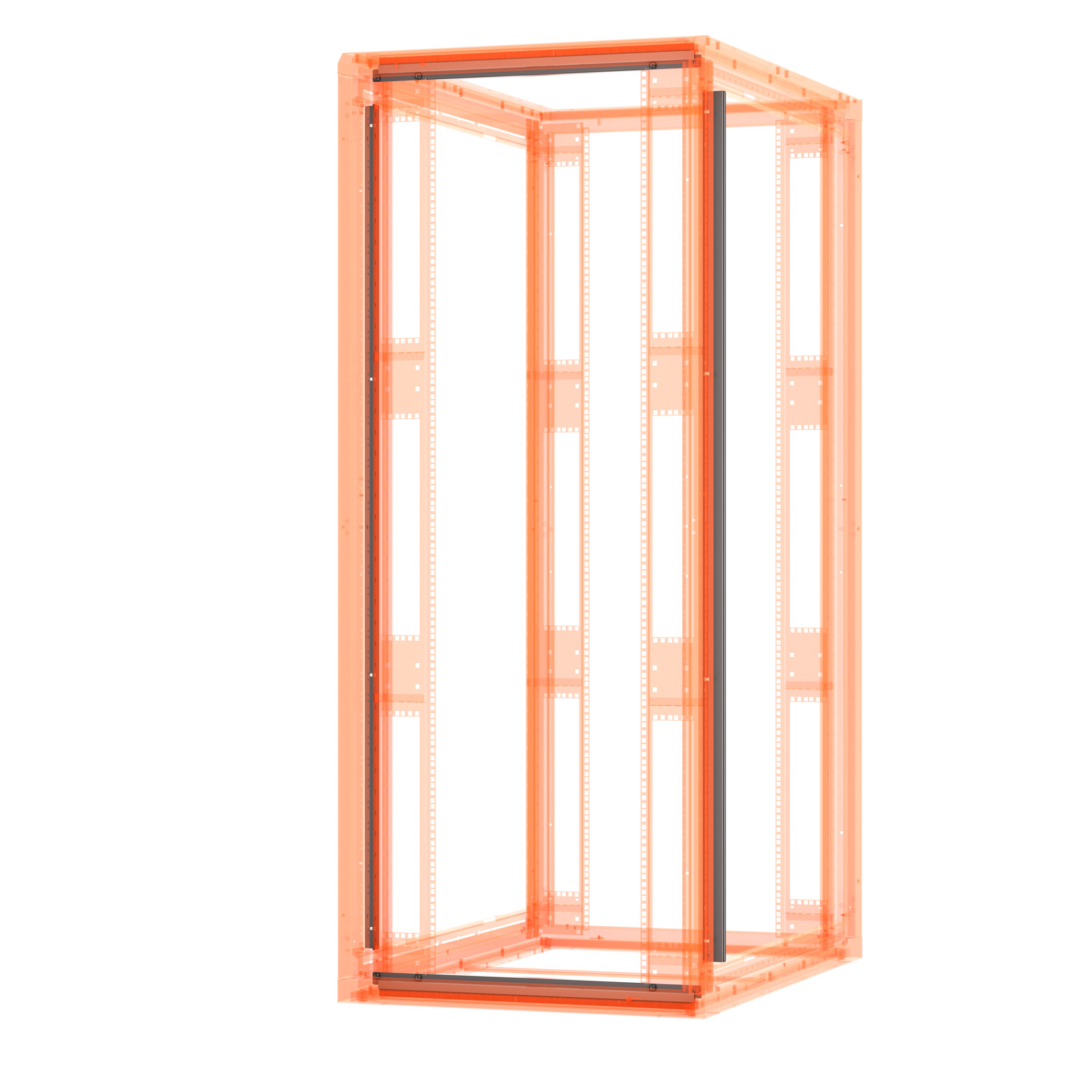

The frame is designed for use in ROF, RDF, RSF series cabinets with widths of 600 and 800 mm and heights of 42, 45 and 48U
Installs in the space in front of 19"" vertical rails
Frame width (zone depth) 150 mm
Ordering codes: DP-RSF-CW, DP-ROF-CW
Information
Key features
| Product line name |
Separation frame |
|---|---|
| Color design |
RAL powder color (standard RAL 7035 or 9005) |
| Included in the package |
Set 1: 2x vertical part, 2x horizontal part |
