Wired cable channels are used for cable routing in PREMIUM and iSEVEN series rack cabinets.

Product introduction

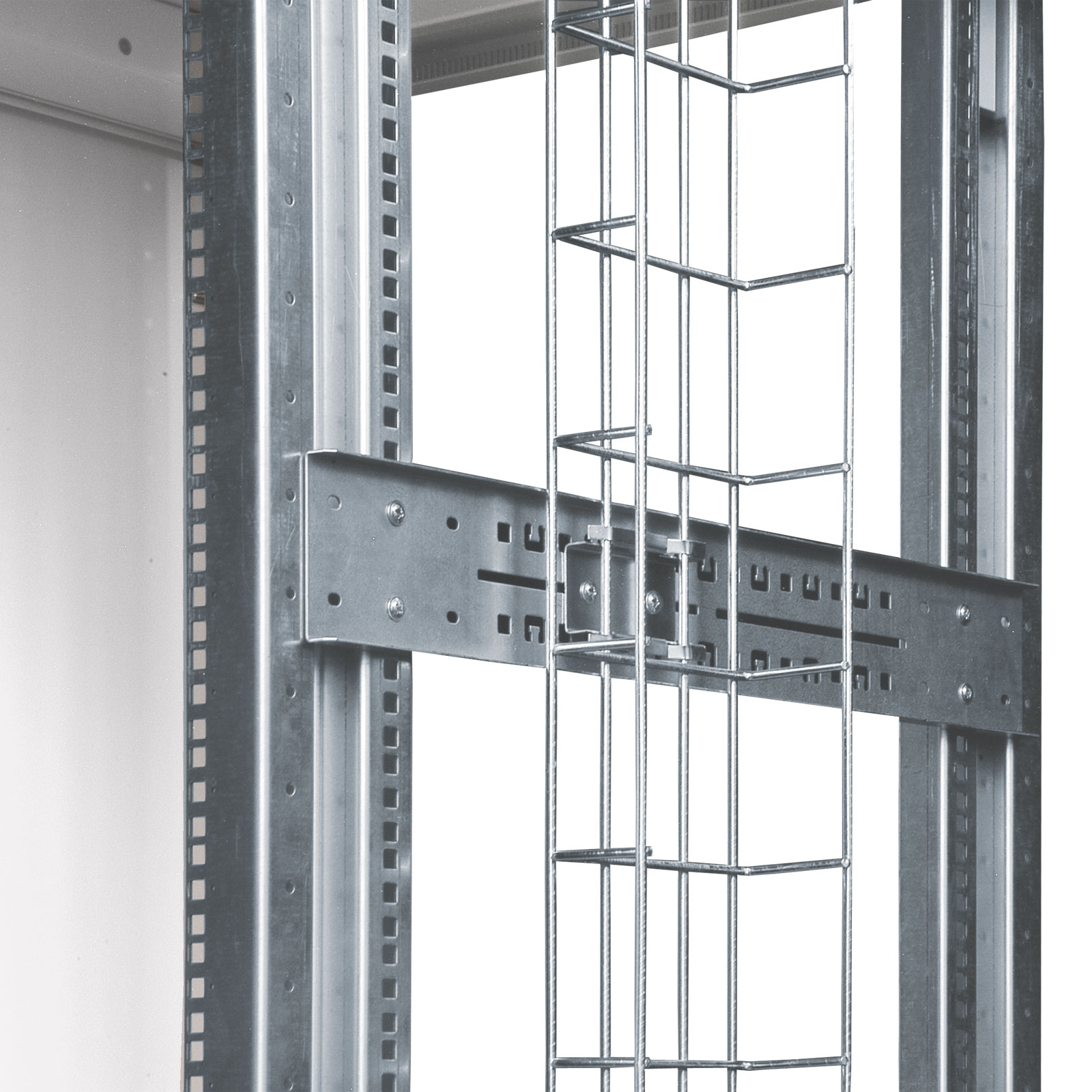

Wired cable channels are used for routing cables in PREMIUM and iSEVEN series rack cabinets in the space between the front and rear 19" rails. Two types available - 30 mm and 60 mm of depth. Please pay attention to the method of attachment of different types of channels (see details in downloadable documentation).

Information Pour télécharger

Information

Key features

Product line name	Wired cable channel
Technical information	140x30mm (wxh): can be installed between the horizontal brackets and the side panel 140x60mm (wxh): can be installed on the inside of the horizontal brackets 300x60mm and 400x60mm (w x d): can be installed on the inside of the horizontal brackets Sizes for cabinets with a height of 15U to 48U Mountable on vertical brackets, HVMS-H horizontal brackets are required for 18U, 21U and 27U cabinets; for RI7 and RM7 cabinets sizes 42U and 45U Clips are included

Product line name

Wired cable channel

Technical information

140x30mm (wxh): can be installed between the horizontal brackets and the side panel
140x60mm (wxh): can be installed on the inside of the horizontal brackets
300x60mm and 400x60mm (w x d): can be installed on the inside of the horizontal brackets
Sizes for cabinets with a height of 15U to 48U
Mountable on vertical brackets, HVMS-H horizontal brackets are required for 18U, 21U and 27U cabinets; for RI7 and RM7 cabinets sizes 42U and 45U
Clips are included
