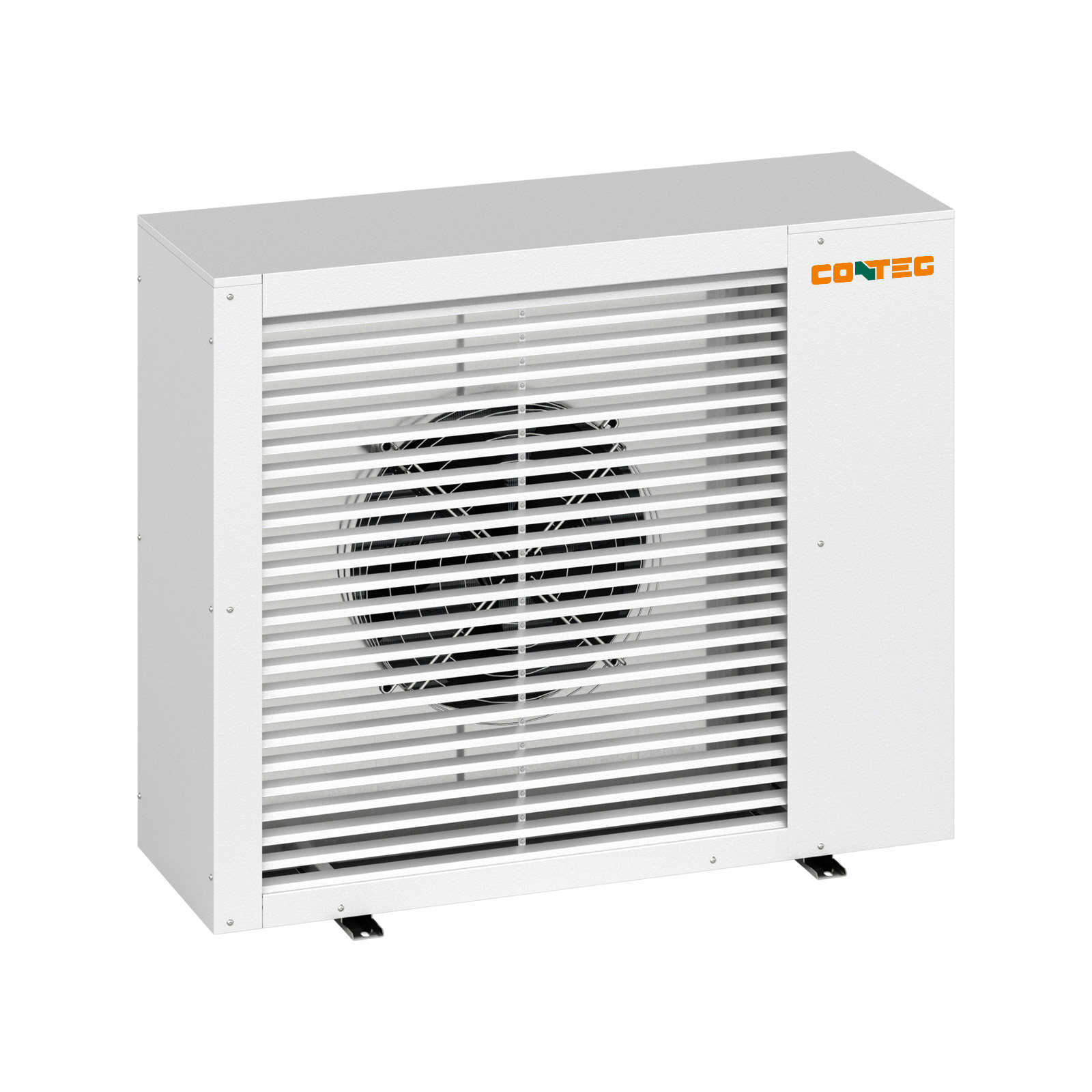

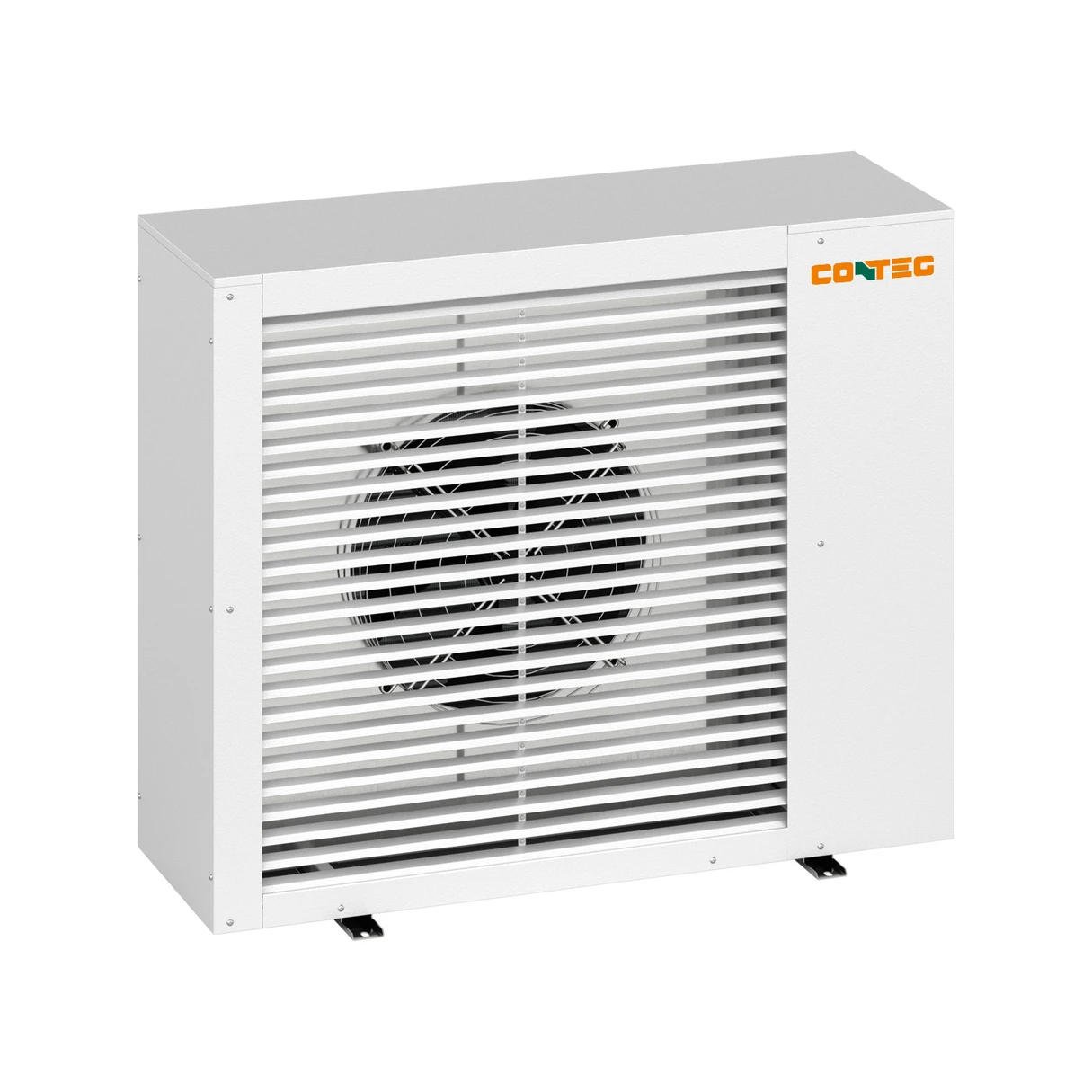

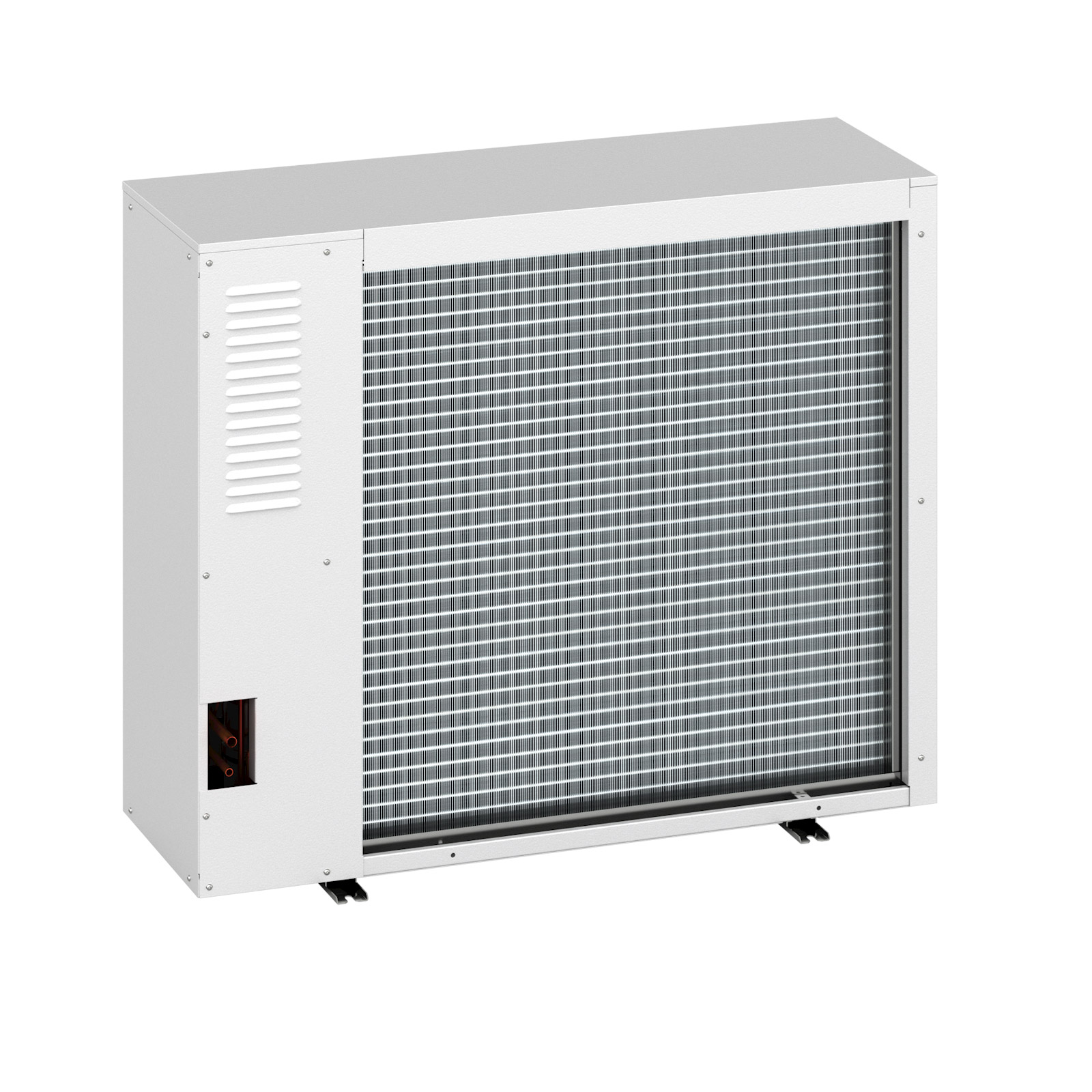

CoolOut
The CoolOut outdoor condensing unit is specially designed for heat removal from data centers. The unit meets very high requirements for accuracy, stability and durability that are essential for data center operations.
Product introduction
CoolOut units are outdoor condensing units designed for precise compressor cooling. These units are equipped with an inverter-controlled rotary DC compressor with a cooling capacity of up to 8.1 kW.
Thanks to the hot gas bypass technology, the cooling output can be adjusted up from 11% of the total cooling output, regardless of the outdoor conditions. A combination of a specially designed condenser, EC fans, and an optional dynamic condensing pressure control system minimizes the power consumption of the cooling unit as well as the level of emitted noise.
A built-in controller with special CONTEG SW software takes care of the operation of the unit and the correct functionality of all its components. The controller also ensures communication with the indoor unit over the Fieldbus protocol. Basic operating parameters of the outdoor unit can be monitored on the indoor unit. The design of the condensing unit allows its attachment to the floor or the wall. The CoolOut units are extremely user-friendly and simple to set up and operate. First start and operation is very easy.
Key benefits of the product
- Advanced communication and cooling control based on instructions from the data center
- Very low consumption thanks to high-quality EC fans and active condensation pressure control
- Inverter controlled BLDC compressor
- Wide range of cooling performance regulation starting from 11%
- Versions available for extreme ambient temperatures
- Robust frame and casing made of high-quality non-corrosive materials
- Ready for communication with a monitoring system (SNMP, Modbus TCP, Modbus RS485)
- Operating parameters can be supervised from the indoor unit
- Easy to install and maintain
- Remote servicing option with the PGDx service display connected
- Specially designed for precise cooling
- Linear electronic expansion valve
Information
Key features
| Product line name |
CoolOut |
|---|---|
| Height (mm) |
996 (including brackets for attaching the condensing unit)
|
| Width (mm) |
1200
|
| Depth (mm) |
400
|
| Note |
Order code: AC-ODX-07-0XXXXXX and AC-ODX-07-SXXXXXX |
| Ideal for |
Wide range of environmental conditions |
| Power |
230/1/50-60 V/f/Hz |
| Refrigerant regulation |
linear expansion valve |
| Weight (kg) |
78 kg (AC-ODX-07-0XXXXXX); 99 kg (AC-ODX-07-SXXXXXX) |
| Compressor control |
BLDC Invertor |
| Connections |
Dual power supply |
| Operating conditions |
-20 to +47 °C (AC-ODX-07-0XXXXXX); -20 to +55 °C (AC-ODX-07-SXXXXXX) |
| Power regulation |
Smooth 11 - 100% |
| Nominal cooling capacity |
8.1 kW |
