Déflecteur de flux d'air

Product introduction

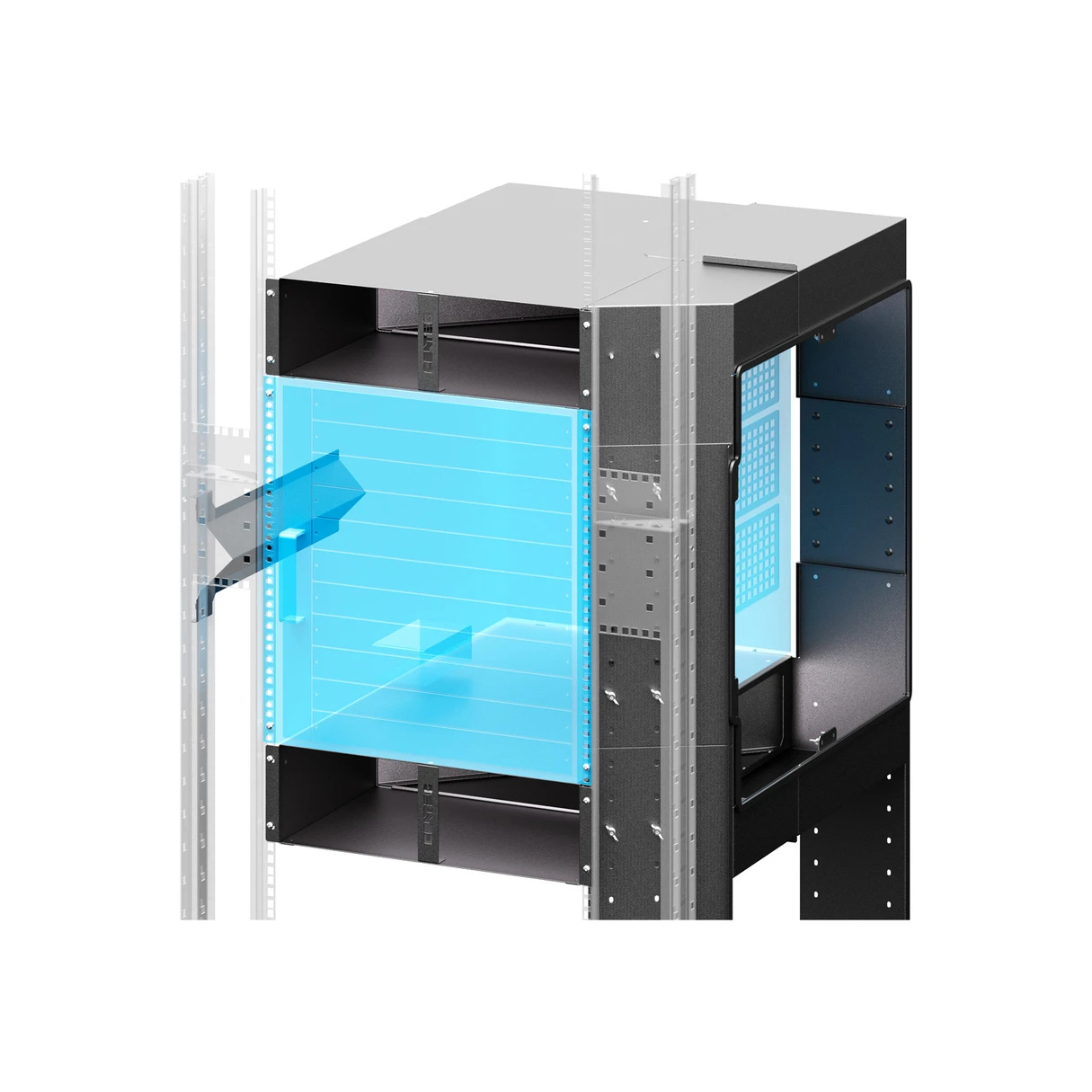

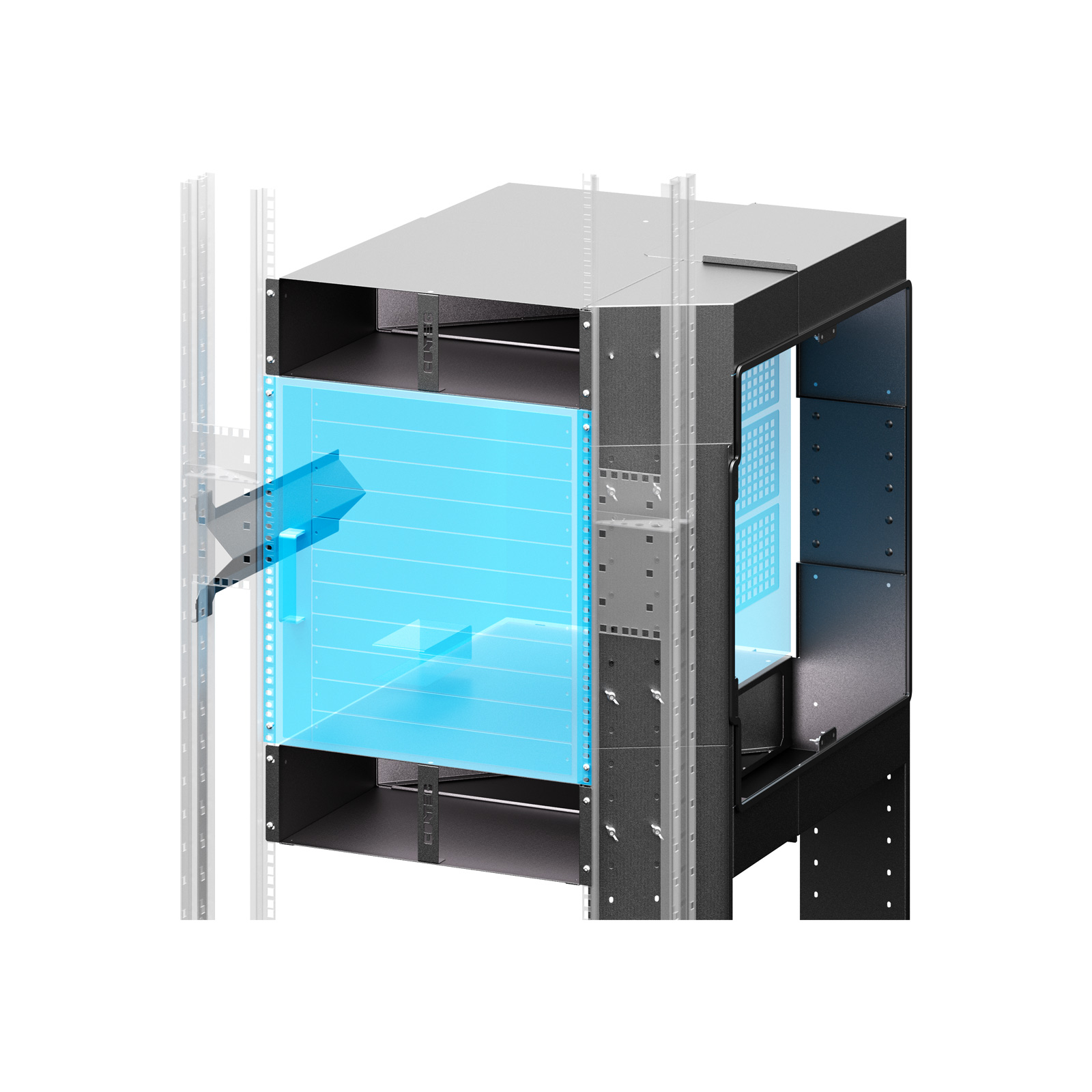

Cold air inlet deflector for side access to network elements is a flexible deflector compatible with any network chassis where side-to-side air flow is required. It is suitable for all types of rack cabinets with a width of 800 mm with type A rails. The deflector is designed for chassis heights from 5 to 25U and depths ranging from 450 to 710 mm. 3U of space above and below the chassis is required for proper airflow. A wedge deflector located on the exhaust edge of the chassis ensures proper airflow by driving the exhaust air into two directions, up and down. The deflector can be easily adjusted during installation on site according to the size of the chassis. Compatible with both type A rails and a separation frame.
Order code: DP-AFD-STS-S5

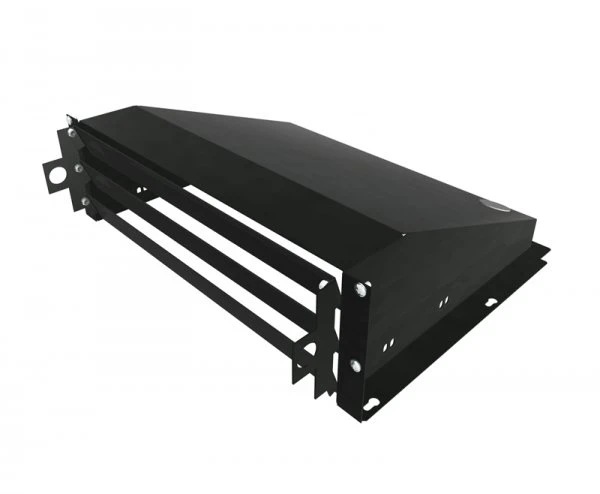

The deflector directs the flow of cold air to the cold zone in the front part of the cabinet (provided cold air is supplied through a double floor and enters through the lower frame of the cabinet). Deflectors are available in two designs – for RSF/RDF series cabinets and for ROF. The ROF version is designed for cabinets with widths of 600 and 800 mm and depths of 800, 1000 and 1200 mm. The deflector can be equipped with a ventilation unit with three fans. This solution actively blows air into the cold zone. The version for RSF/RDF cabinets does not take up any space in 19"" rails and is easily installed in the bottom cover of RSF/RDF cabinets with a width of 600 or 800 mm.
Order code: DP-AFD-ROF, DP-AFD-RSF
