Gestion des câbles standard

Guides-câbles verticaux en plastique

Binding ducts are designed to be installed on 19" rails and intended for placement and horizontal routing of cables in rack cabinets.

Product introduction

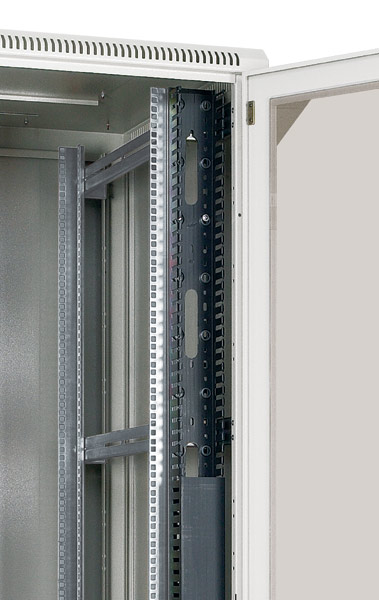

Binding channels are used for vertical cable routing in PREMIUM and iSEVEN series rack cabinets with a width of 800 mm.

Information Pour télécharger

Product line name	Vertical binding channels - plastic

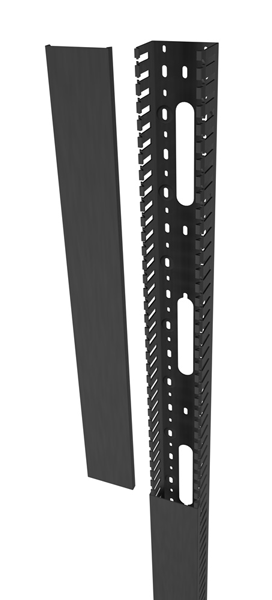

Technical information	For cabinets 15-48U high Plastic duct 80 x 60 mm for cable management Oval holes in the bottom of the ducts allow cables to pass from front to back Ducts 33U or more in length have split lids for easier handling They are to be installed on the front vertical rails using a vertical binding panel holder (HVMF) – ordered separately Color: powder paint RAL 9005
