Boîtiers universels pour l'électronique

Minibox+

For use in a wide range of use cases, from small test rigs to heavy duty installations.

Fiche technique En savoir plus

Où nous trouver ?

Product introduction

Minibox+ basic and multifunctional universal aluminum boxes for electronics. Suitable for use cases ranging from small test equipment to heavy duty installations, such as machine/motor control or automatic passage control.

Information Pour télécharger

Information

Key features

Nom de la ligne de produits1	Minibox+
Technical information	DESCRIPTION Easy and cost-effective drilling options with programmable CNC punching machines Fifteen sizes from 55 to 4,400 cm3 of internal volume Aluminum construction makes it easy to shield the device against EMI/RFI Two-piece construction joined with self-tapping screws, except for the smallest size (31040101) where the lid and base snap together Basic unit includes: base, lid, 4 self-tapping screws MATERIALS AND SURFACE TREATMENT Made entirely from 1mm thick aluminum, natural anodized finish, outer surface coated with a removable transparent protective film OPTIONAL Custom drilling, screen printing, special dimensions

Nom de la ligne de produits1

Minibox+

Technical information

DESCRIPTION

Easy and cost-effective drilling options with programmable CNC punching machines

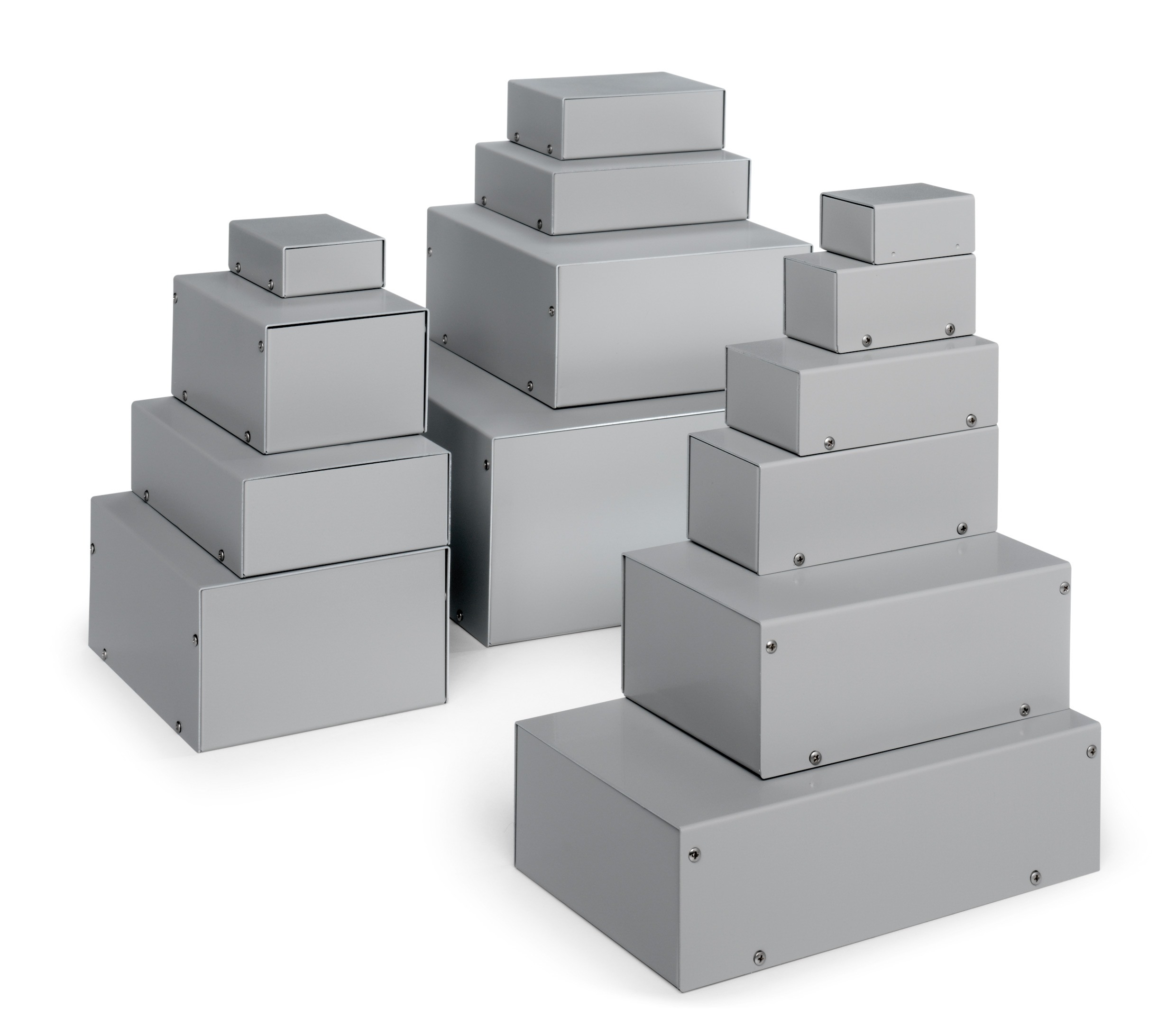

Fifteen sizes from 55 to 4,400 cm3 of internal volume
Aluminum construction makes it easy to shield the device against EMI/RFI

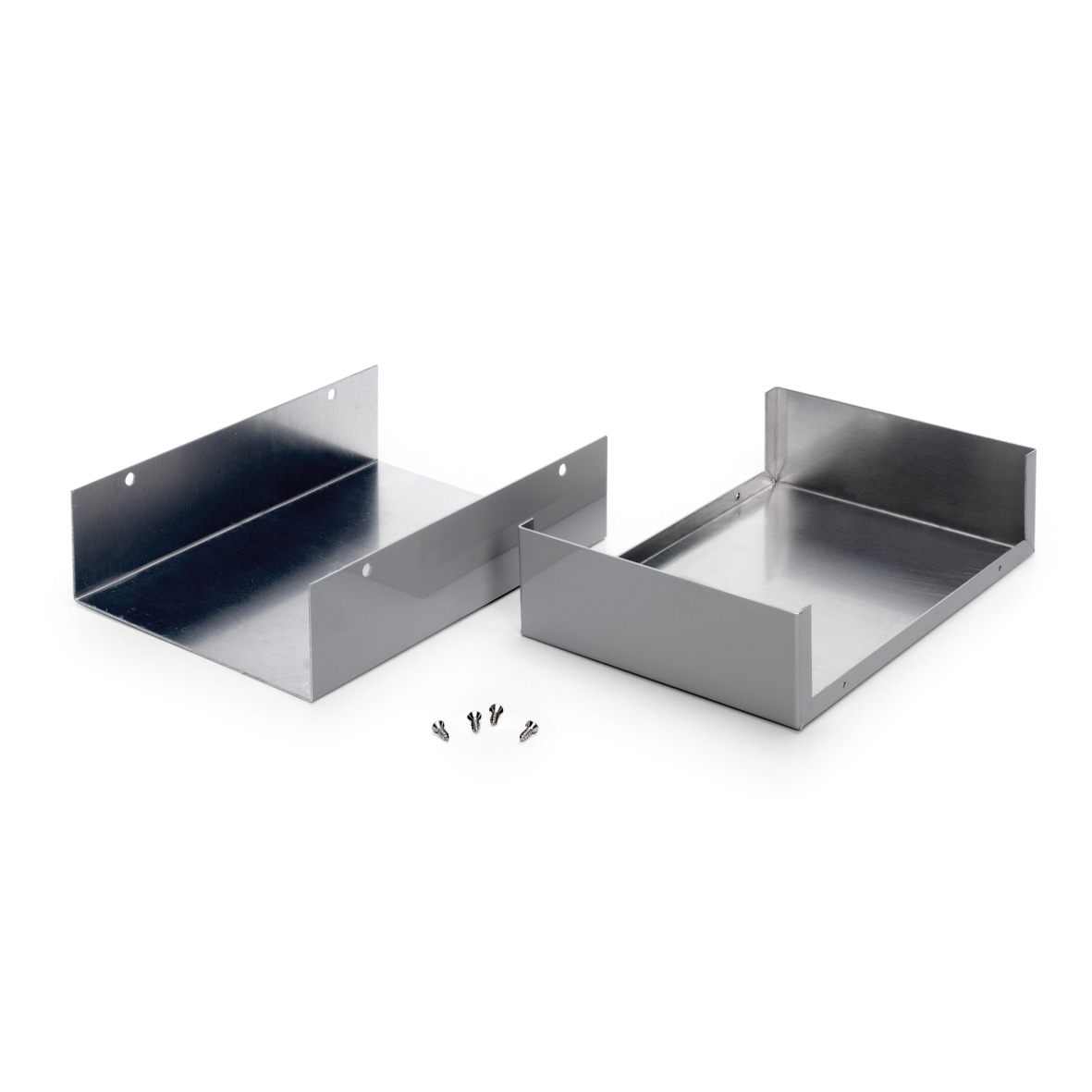

Two-piece construction joined with self-tapping screws, except for the smallest size (31040101) where the lid and base snap together
Basic unit includes: base, lid, 4 self-tapping screws

MATERIALS AND SURFACE TREATMENT

Made entirely from 1mm thick aluminum, natural anodized finish, outer surface coated with a removable transparent protective film

OPTIONAL

Custom drilling, screen printing, special dimensions
