OPTIMAL Cable Management

Pour panneaux de brassage d'interconnexion

The OPTIMAL cable management board is suitable for interconnection patch panels for metallic or optical cabling. Typical use cases include cross-connect point solutions or Fiber-to-desk solutions.

Fiche technique En savoir plus

Où nous trouver ?

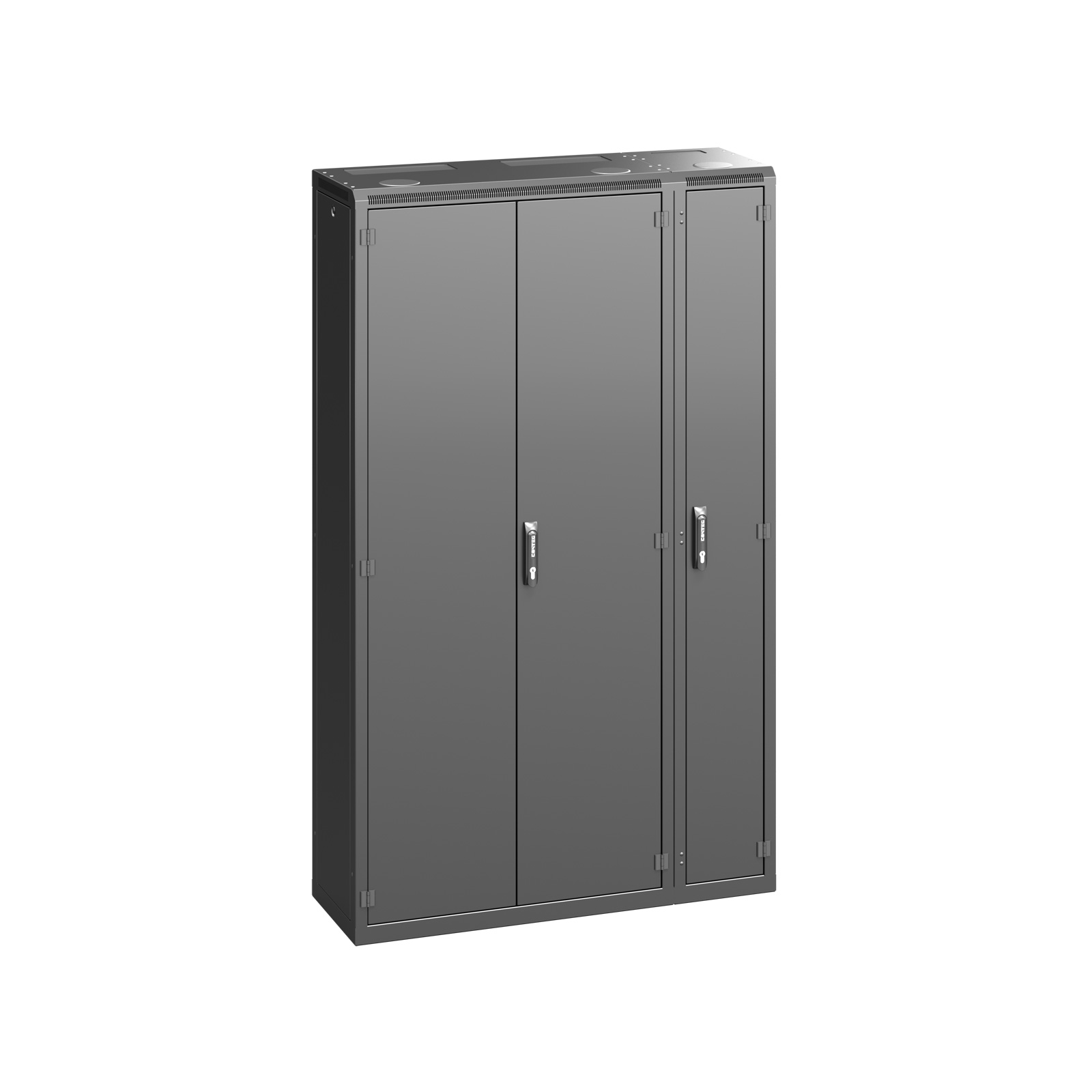

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-main-web

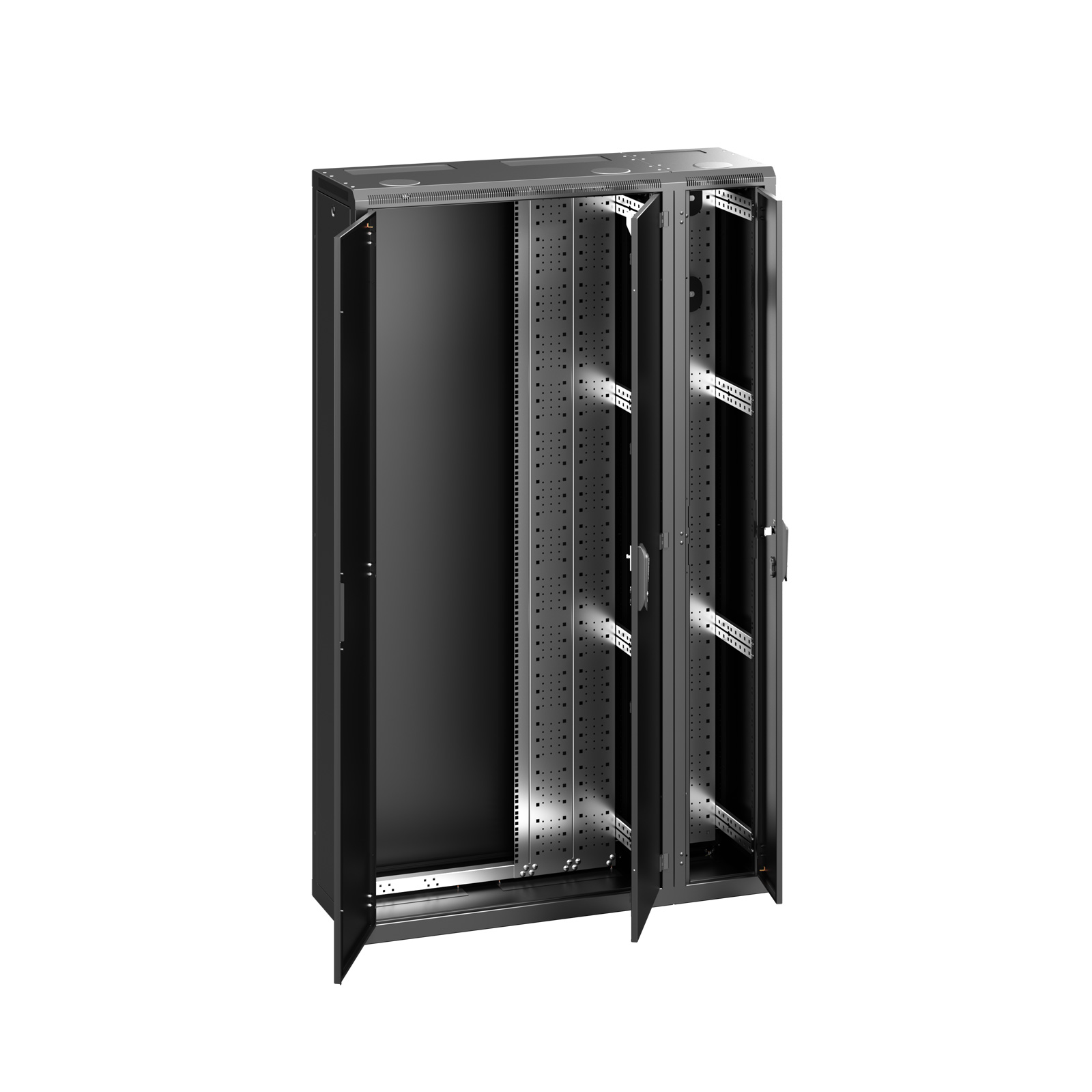

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-main-open-doors-web

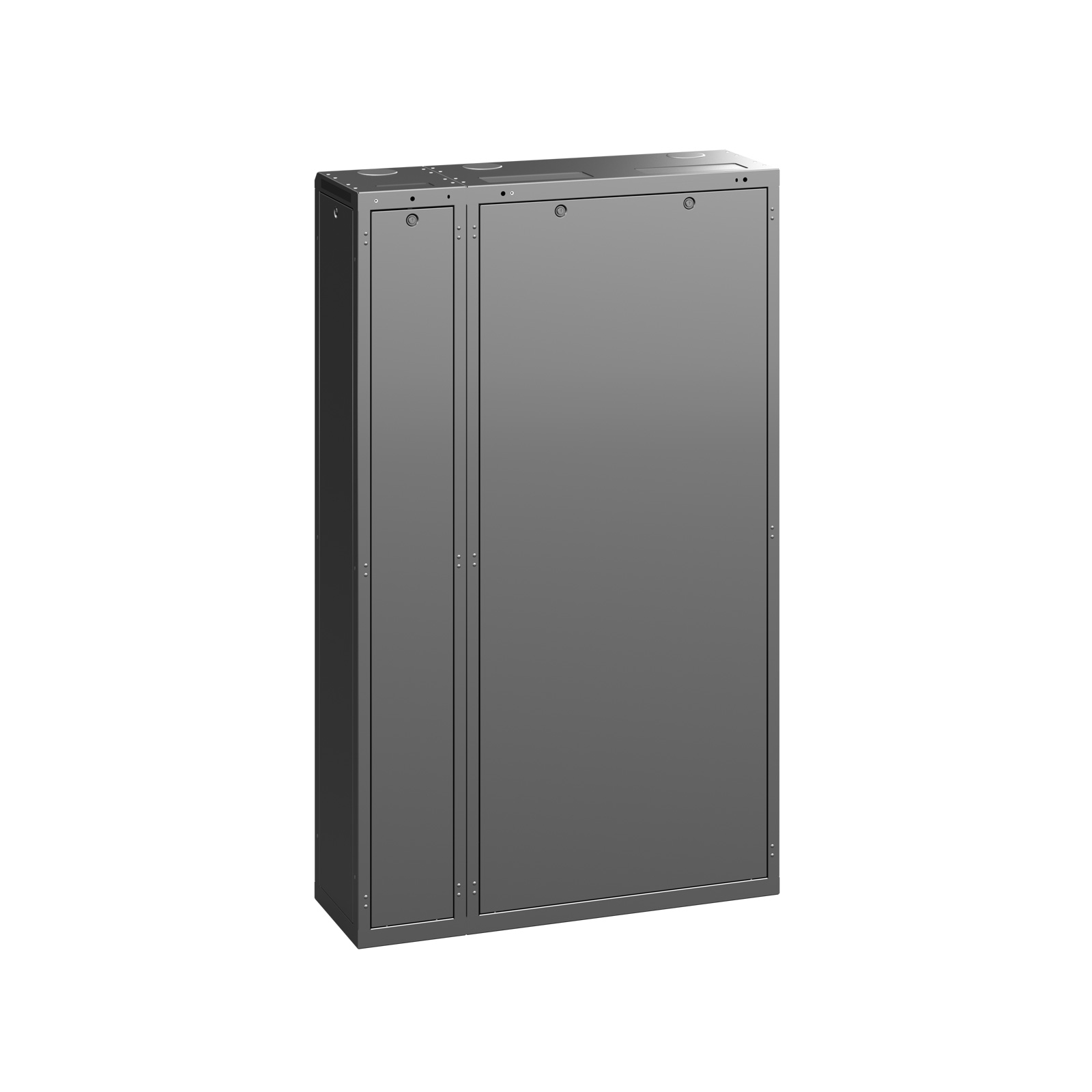

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-right-back-web

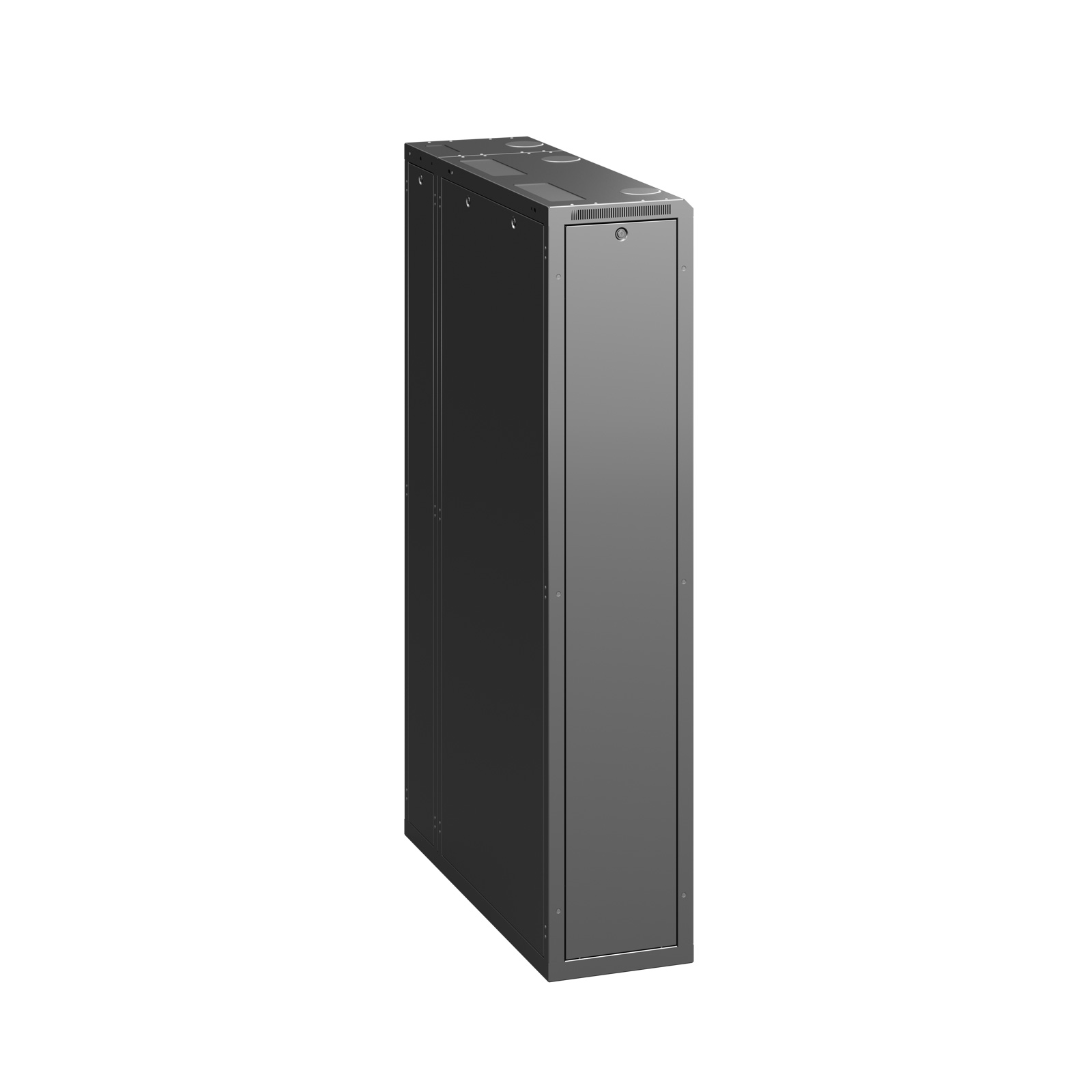

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-back-left-web

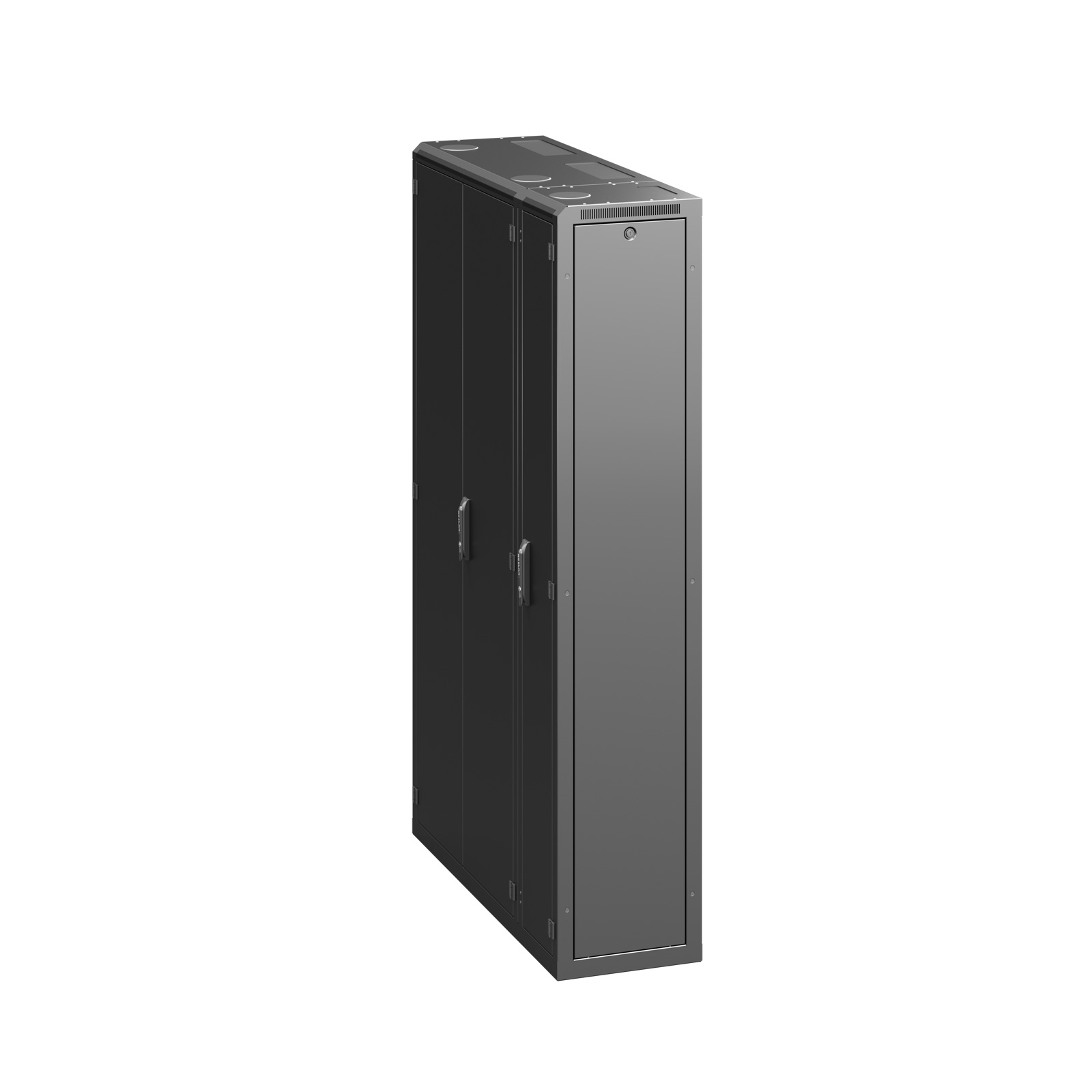

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-front-right-web

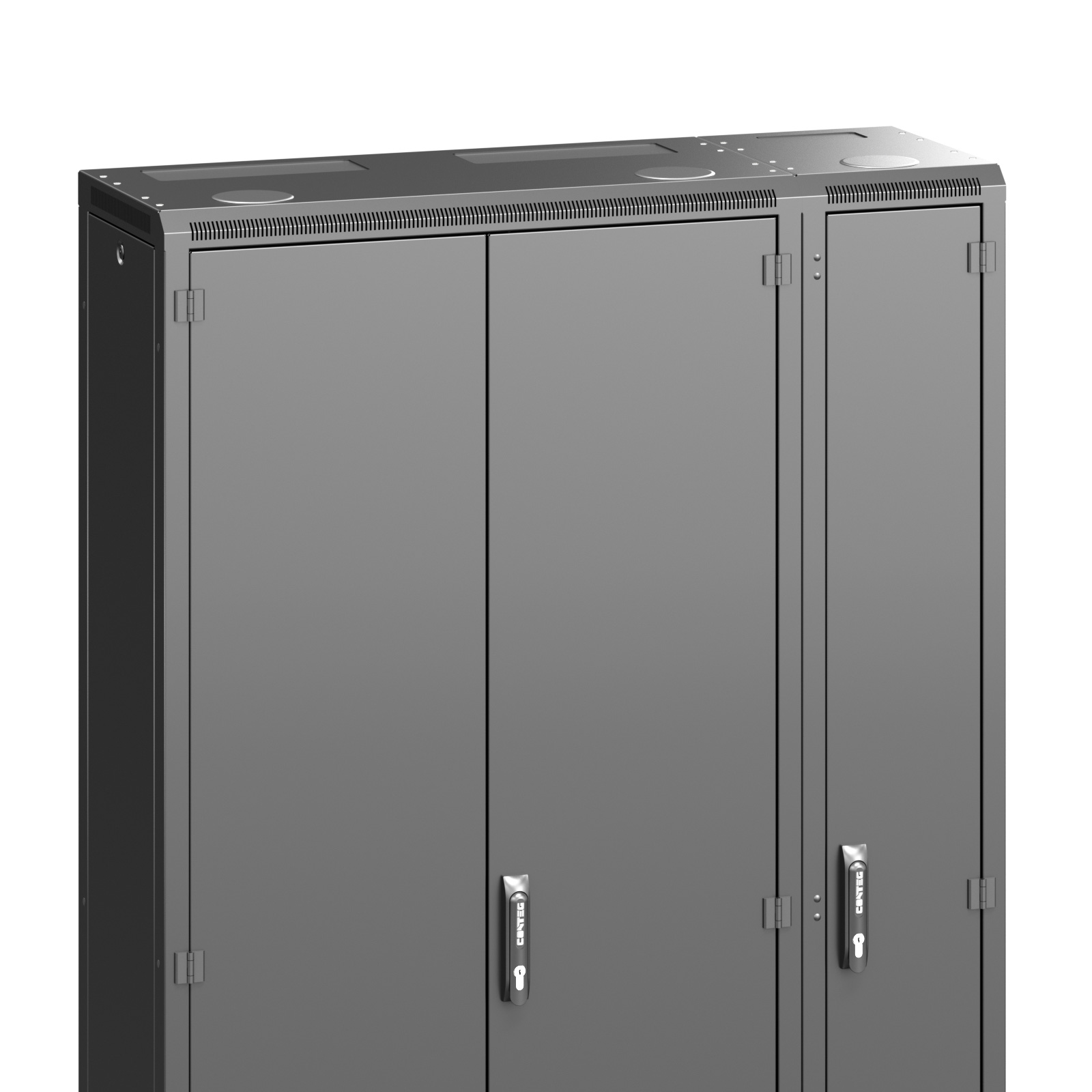

Optimal-cable-management_ROF-CS-42-30_40-SVYUA_a_ROF-CS-42-90_40-CWYUA-handle-hinges-web

Product introduction

The OPTIMAL cable management cabinet is designed to support configuration with horizontal links or consolidation point topology according to ISO/IEC 11 801, TIA-942 and TIA-568 B standards. This solution is recommended for telecommunication rooms where active components and connection panels need to be separated.

Key benefits of the product

A unique system for high-density cable routing or a consolidation point
Flexible arrangement of internal components

Information Pour télécharger

Information

Key features

Nom de la ligne de produits1	OPTIMAL cable management
Hauteur (U)	42, 45
Largeur (mm)	900
Profondeur (mm)	300, 400
Load capacity (kg)	400
Front door	Metal front door, vertically split; multi-point lock with DIN insert
Side panels	Side and back panels with lock
Popis	Free standing, anchoring to the wall recommended (screw holes ready); optionally, two cabinets can be connected back to back Adjustable placement of 19"" structures – front to back and left, center or left Pair of cable management brackets, placement in combination with 19"" rails The cable management brackets can be equipped with binding accessories: Cable organization reel - HDWM-FSS-50 (4 pcs included), HDWM-FSS-100o Plastic eyelets, VO-xxxo Metal eyelets - VO-Wx-xx/xx The top and bottom covers have cable inlets covered by metal and plastic covers. The total usable depth of the installed equipment is 264 mm If the 19"" rails are in the front position, the following applies: The usable depth to the back is 254 mm (for 300 mm); and 354 mm (for 400 mm deep ROF-CS); depth may vary depending on the type of cable management accessory used The usable front space is limited by the multi-point lock and may be from 10 to 15 mm (depending on the specific installation position)
IP rating	Max. IP30
Rozšíření	Cable management expansion cabinet: Height: 42 or 45 U Length: 300 mm Width: 300 or 400 mm IP rating: max IP30 Load: 200 kg Main cable management cabinet can be expanded Expandable space for patch cord cable management The cable management bracket can be equipped with binding accessories: Cable organization reel - HDWM-FSS-50 (2 pcs included) or HDWM-FSS-100, Plastic eyelets - VO-xxxo, Metal eyelets - VO-Wx-xx/xx The top and bottom covers have cable inlets covered by metal and plastic covers.
