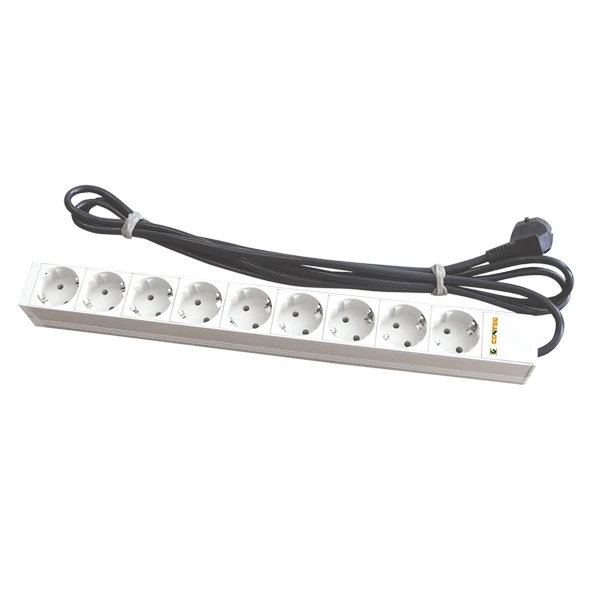

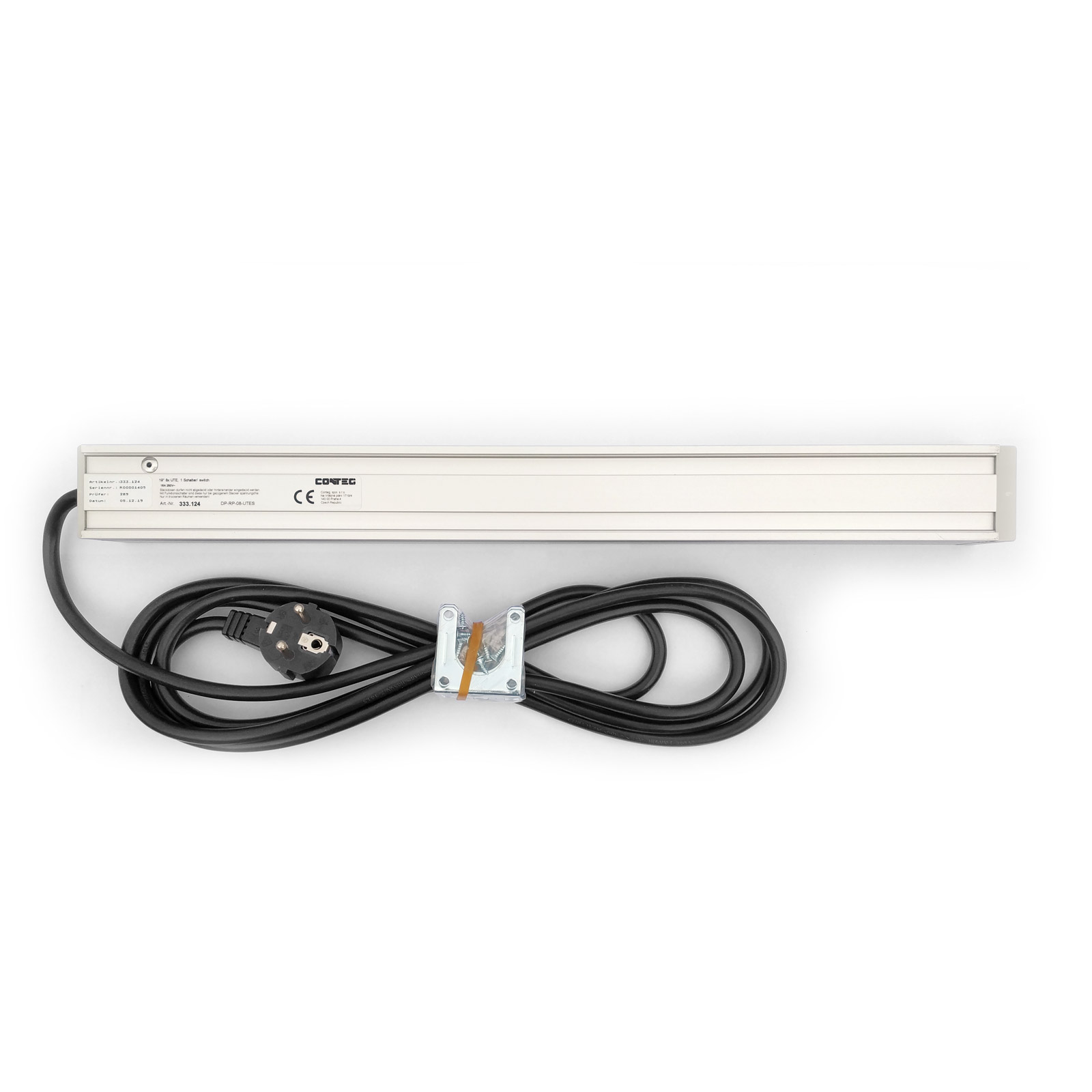

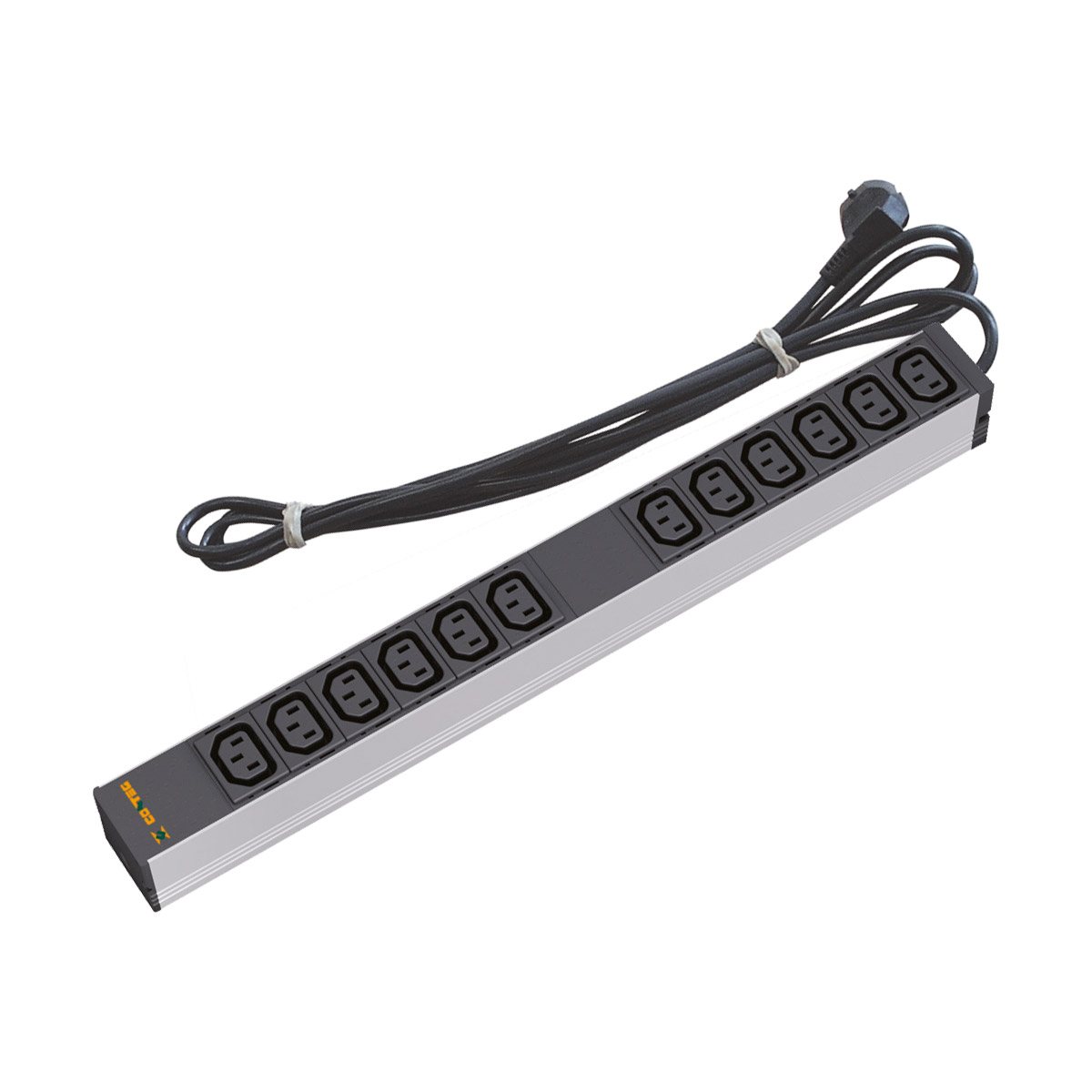

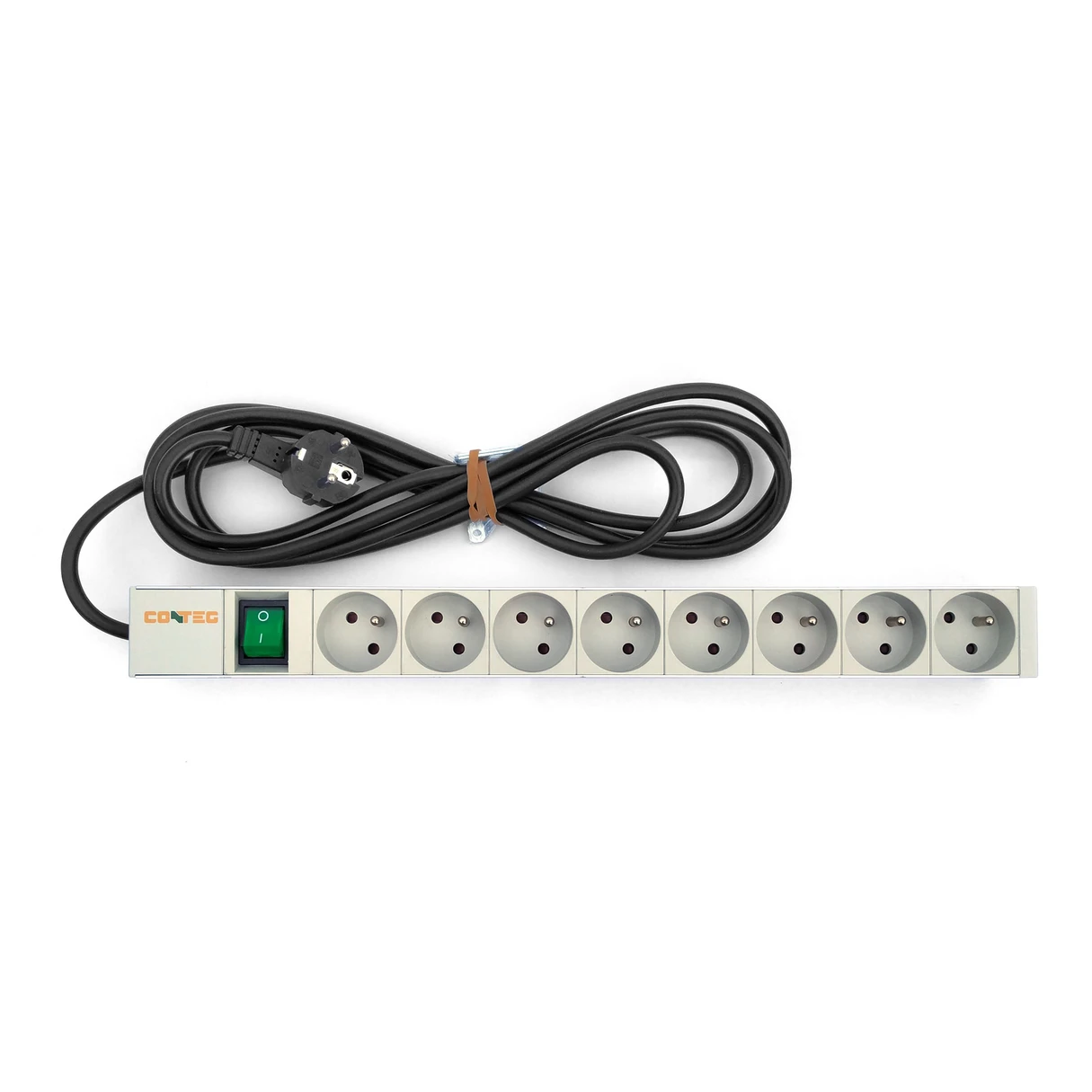

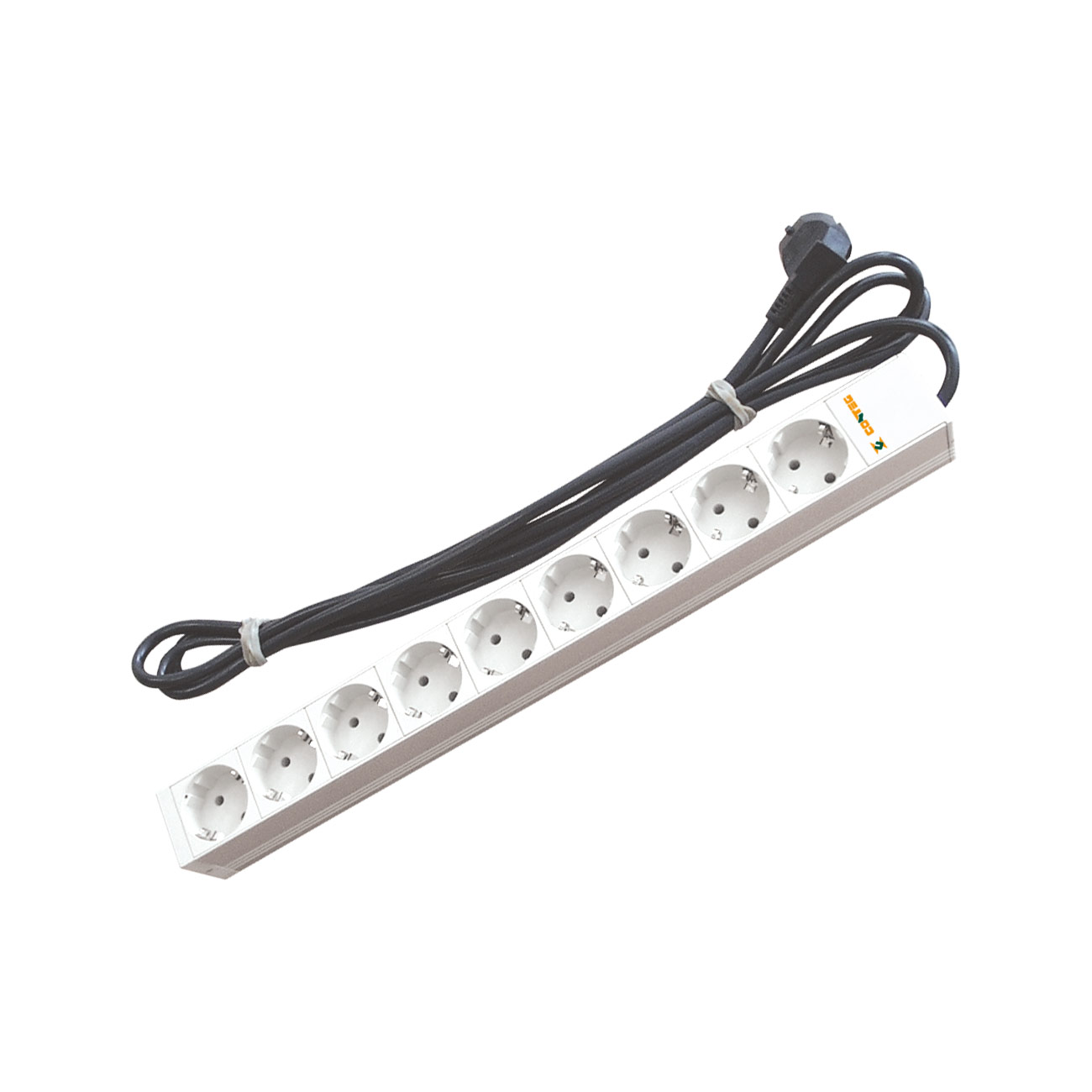

Basic power panels are used for power supply and its distribution to individual IT devices in cabinets.
Basic power panels are used for power supply and its distribution to individual IT devices in cabinets.

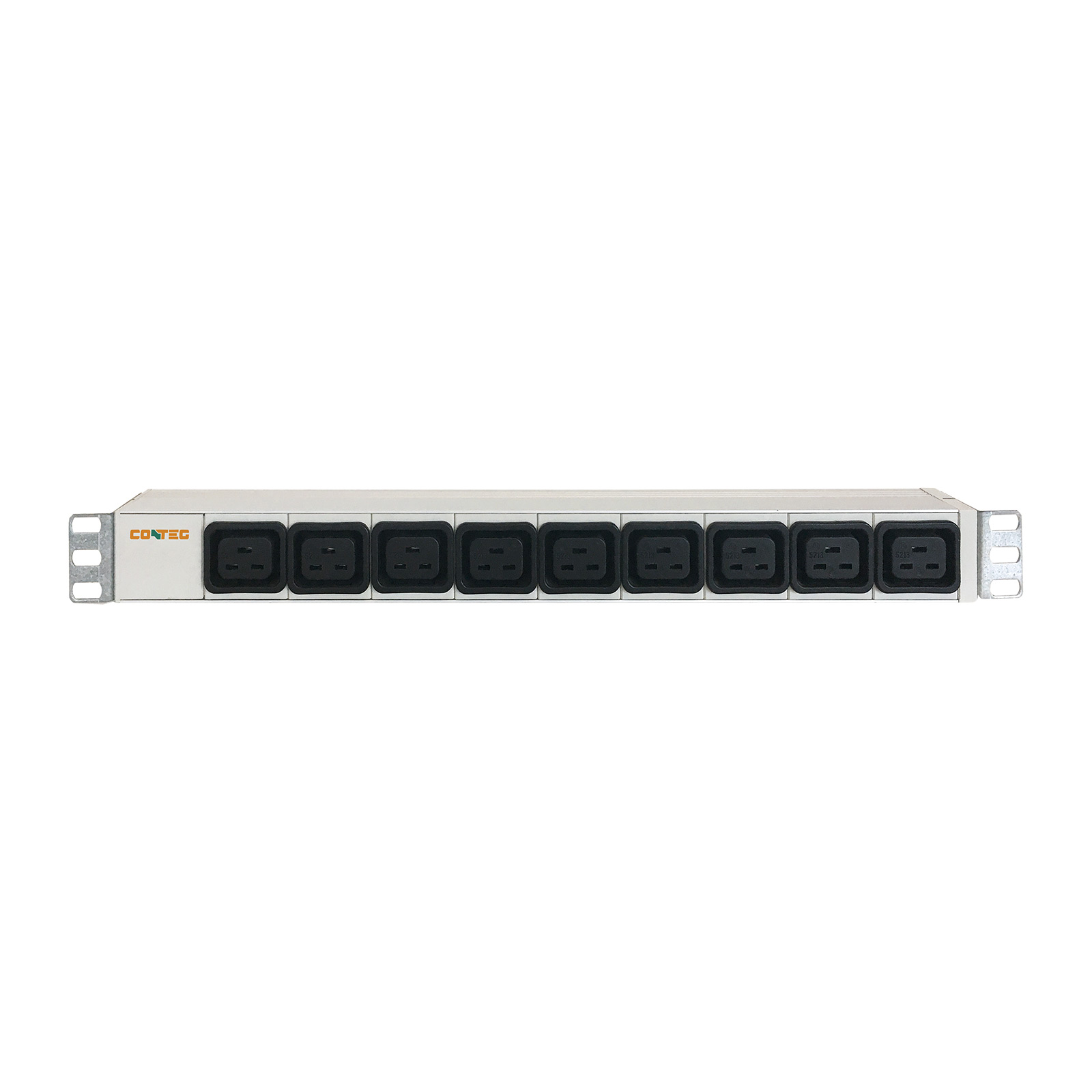

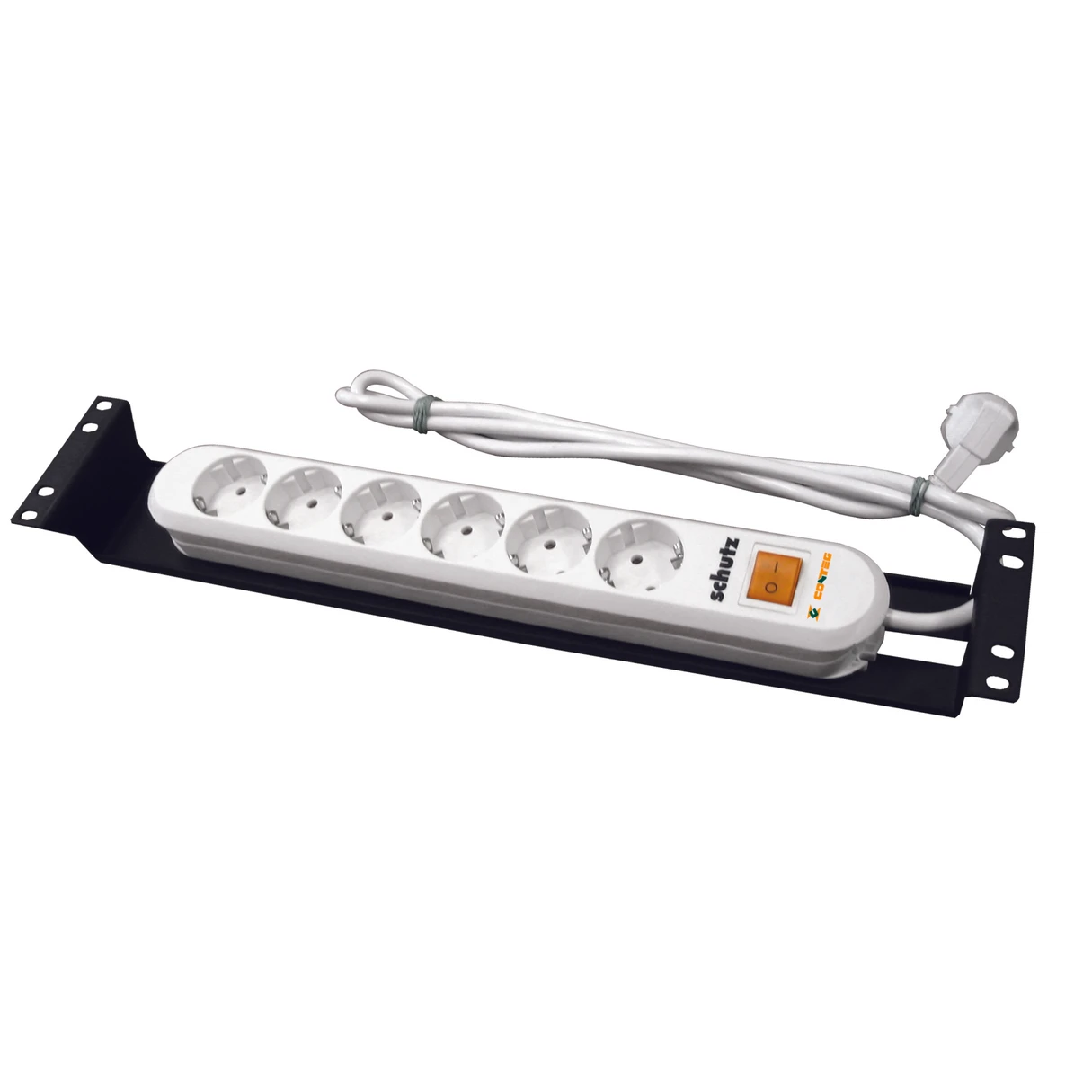

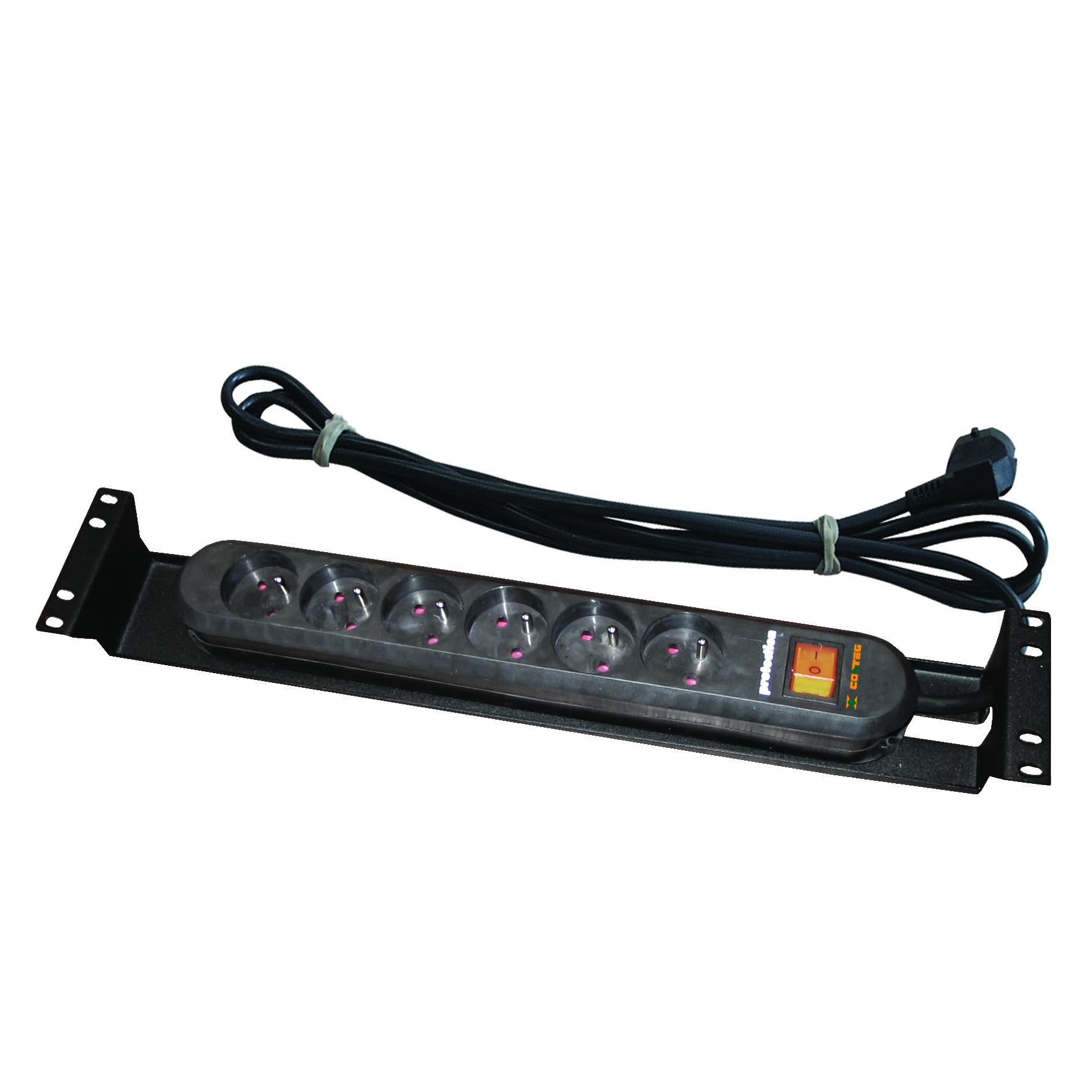

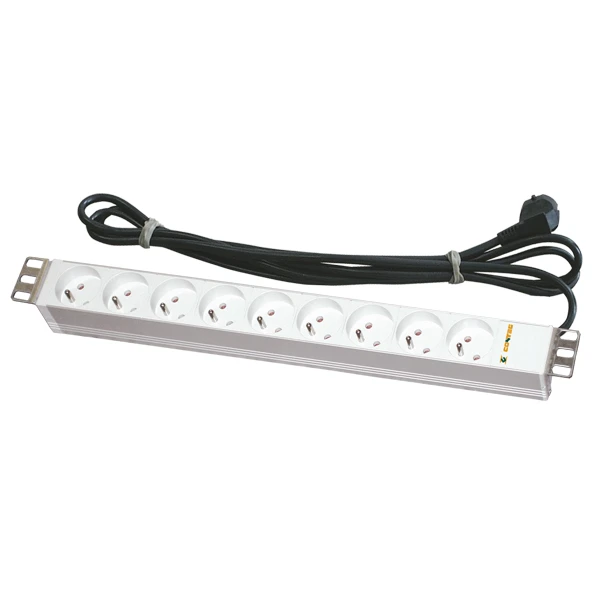

The power supply panels are placed in the cabinet either in a horizontal position on 19""/10"" rails, or in a vertical position. For vertical installations, we recommend ordering a universal holder (code DP-RP-VM-12).
| Height (mm) |
44
|
|---|---|
| Product line name |
Basic PDUs |
| Depth (mm) |
48, 50
|
| Technical information |
Types of sockets Max. load |
| Délka |
preset by type or configurable |
| Power |
1-phase 230V AC, or 3-phase 230/400V AC; 16A or 32A |
| Included in the package |
Power panel with inseparable power cable, 3m long with a plug |
| Material |
Anodized aluminum with a protective layer against oxidation, PA6 plastic |
A 1-phase or 3-phase inline power meter with a backlit display is suitable for measuring parameters at the input of the basic power supply panel.
The sensor detects the temperature and humidity inside the cabinet. It connects using a 2.5 m cable directly to a monitored or managed PDU.
Output power cables are used to transmit electrical energy between the power panel and the IT equipment located inside the cabinet.
1-phase 16A monitored and managed power panels are supplied without an input power cable.
The retention sleeve reduces the risk of the power cord being accidentally pulled out.
For vertical installations of power panels in cabinets, it is necessary to order the appropriate brackets for the basic, monitored or managed PDU, which is not included in the package.
