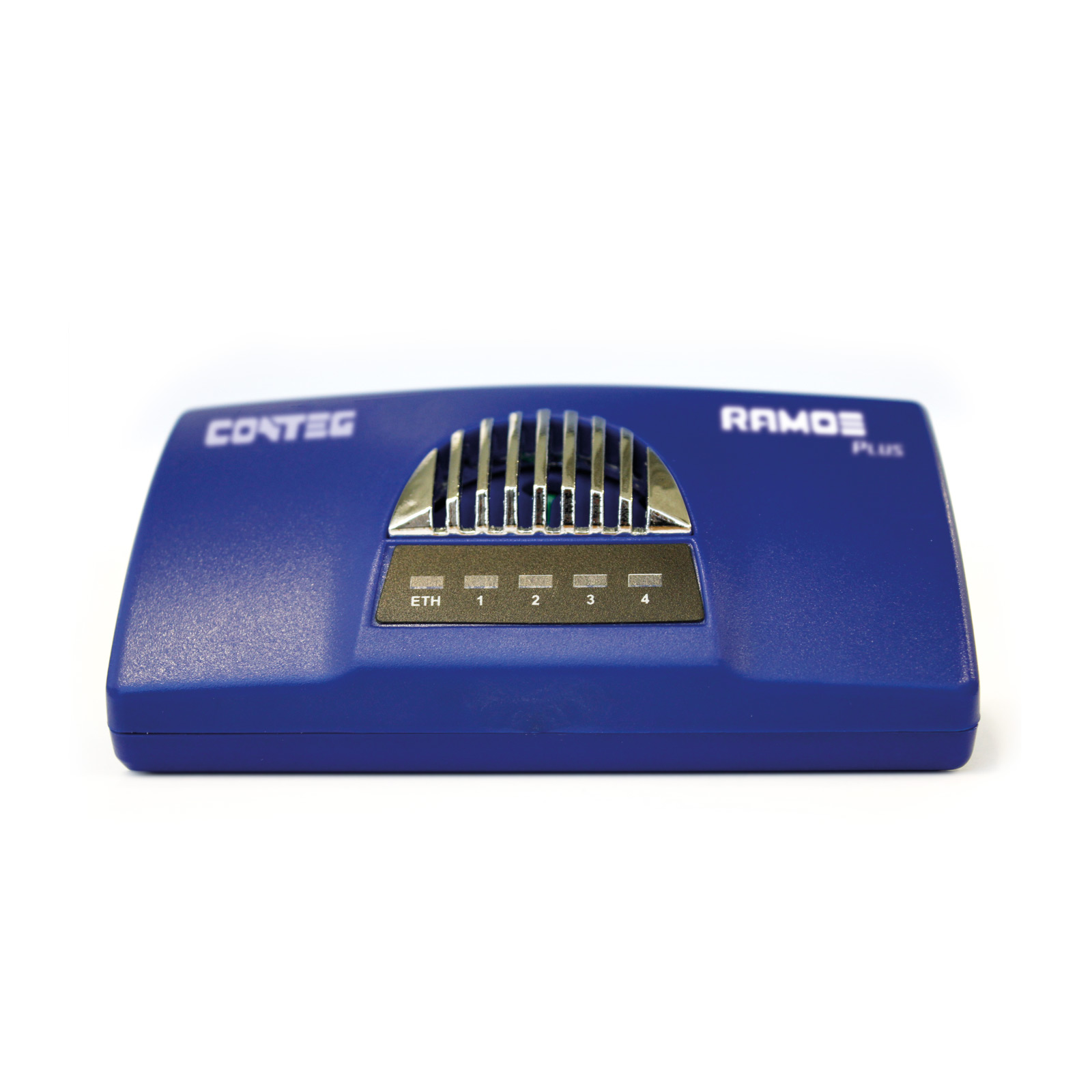

Ramos Plus is the smallest model from the RAMOS intelligent monitoring device series.
The RAMOS Plus main monitoring unit is the smallest model of the RAMOS intelligent monitoring devices, designed for use in IT rack cabinets as well as in outdoor cabinets. The device is available in two versions - standard and GSM with built-in GSM modem and external antenna. This version supports SMS notifications and can communicate over the GSM network. A built-in web server of the RAMOS Plus unit (GSM) enables convenient setting, control and management from any location. In the event of an alarm, the unit sends a notification by e-mail or SMS to predefined recipients.
Then unit features 4 intelligent ports with automatic detection that accommodate a wide range of intelligent sensors (to monitor temperature, humidity, water leakage, and access, to control relays, detect AC voltage, measure DC voltage, etc.). Sensors allow data collection and aggregation for presentation in charts to show trends in air flow, temperature, and humidity fluctuations. A full set of remote management features is supported, including secure SNMP v3.
The device also supports Modbus TCP and RADIUS. RAMOS Plus can also be integrated into the CONTEG Pro Server application for central management and supervision of the monitored environment.
Order code: RAMOS Plus and RAMOS Plus GSM
| Nom de la ligne de produits1 |
RAMOS Plus |
|---|---|
| Mean time between failures |
1,400,000 hours |
| Weight (kg) |
0.3 |
| Dimensions |
115 x 64 x 32 mm |
| Power |
5 V DC |
| Operating humidity |
Min. 20% - Max. 80% to 95% (non-condensing) |
| Included in the package |
RAMOS Plus - 5 V DC power supply with cable, mounting brackets, 1.5 m crossover cable for setup, mounting kit and installation CD |
| Operating temperature |
Min. -35 °C – Max. 80 °C |
Discontinued product Temperature sensor for placement inside cabinets. Up to 8 sensors can be chained to a single smart port.
The expander expands the intelligent port with 8 additional inputs/outputs.
Relay Box 8 creates 8 relay outputs from a single intelligent port.
The sensor detects the presence or absence of flowing air inside the cabinet.
A siren with a flashing light serves as a visual and acoustic alarm for the operator.
Smoke detector is an essential security element of data centers and server rooms.
A spot flooding detector indicates the presence of water in a given location.
Water rope sensor with 3 m long detection cable protects water-sensitive equipment inside the cabinet from potential destruction.
A water rope sensor-based flood detector with localization is able to detect the presence of water and determine the location of the leak.
Encased extendable sensor for placement inside cabinets, measures temperature and humidity.
Sensors for comprehensive monitoring of the environment inside cabinets. Helps detect hotspots and adjust IT hardware placement, cooling unit performance, etc.
The adapter enables connection of external analog sensors with an output signal of 0-10 V DC.
The display shows up to 8 parameters from any intelligent or virtual sensor, and measures 1 temperature.
