Boîtiers de table pour l'électronique

Serie 110

Suitable for control, test or inspection applications with a front display.

Fiche technique En savoir plus

Où nous trouver ?

Product introduction

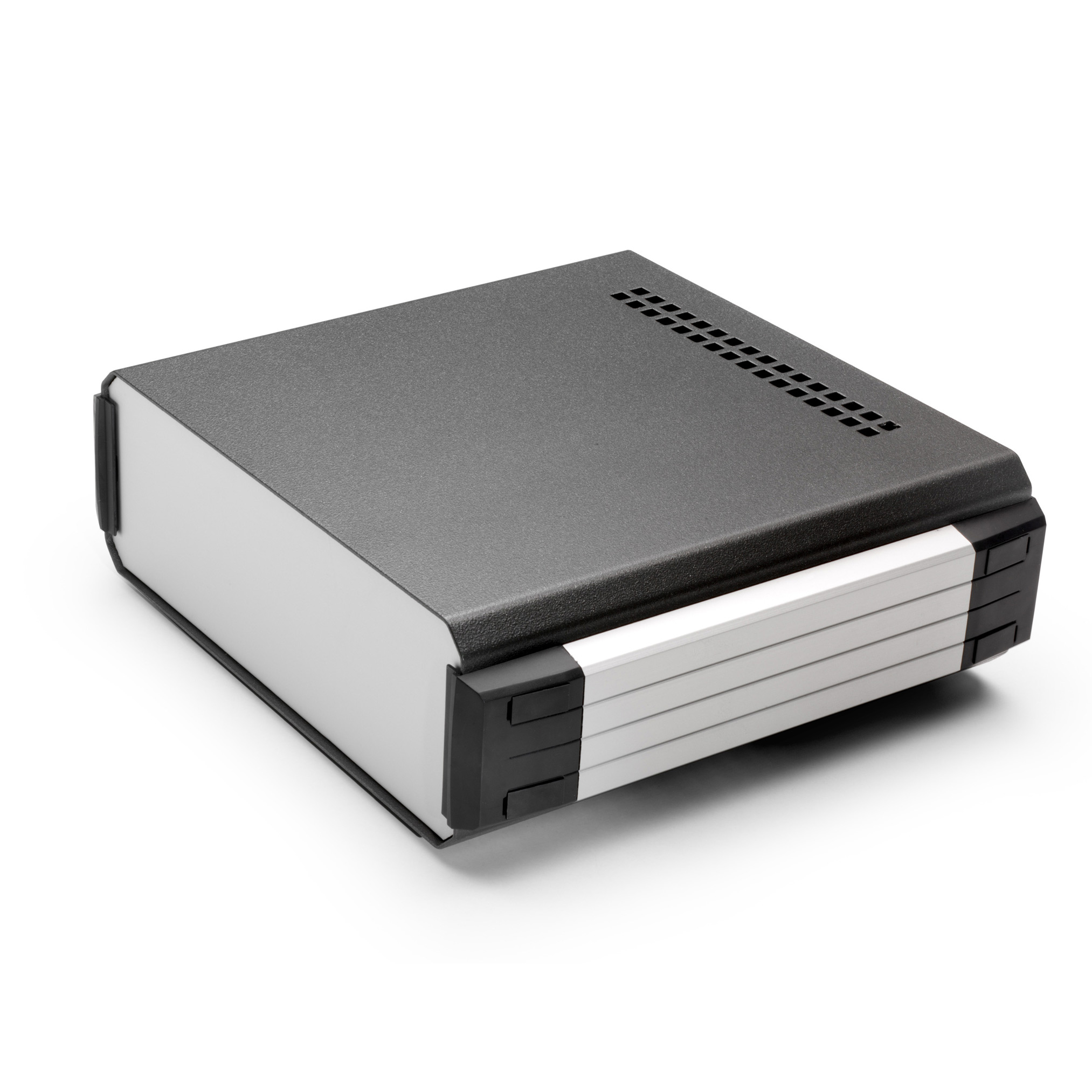

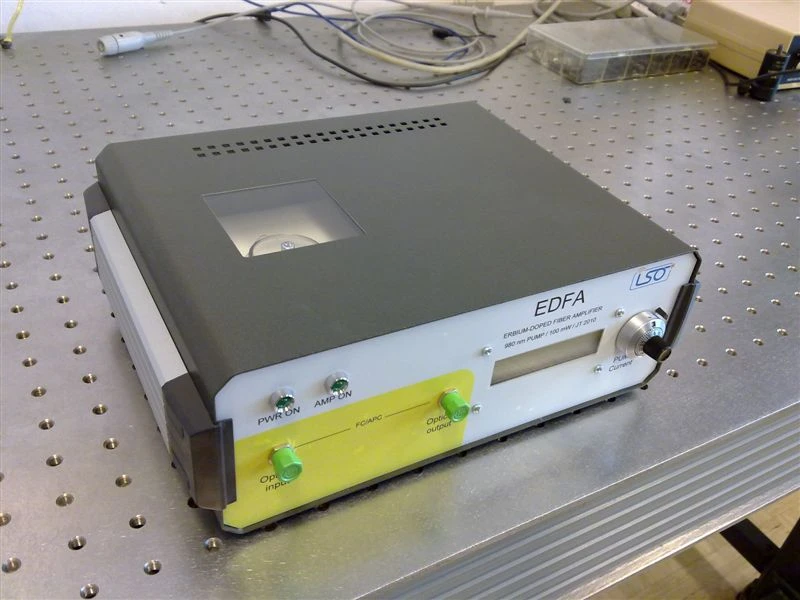

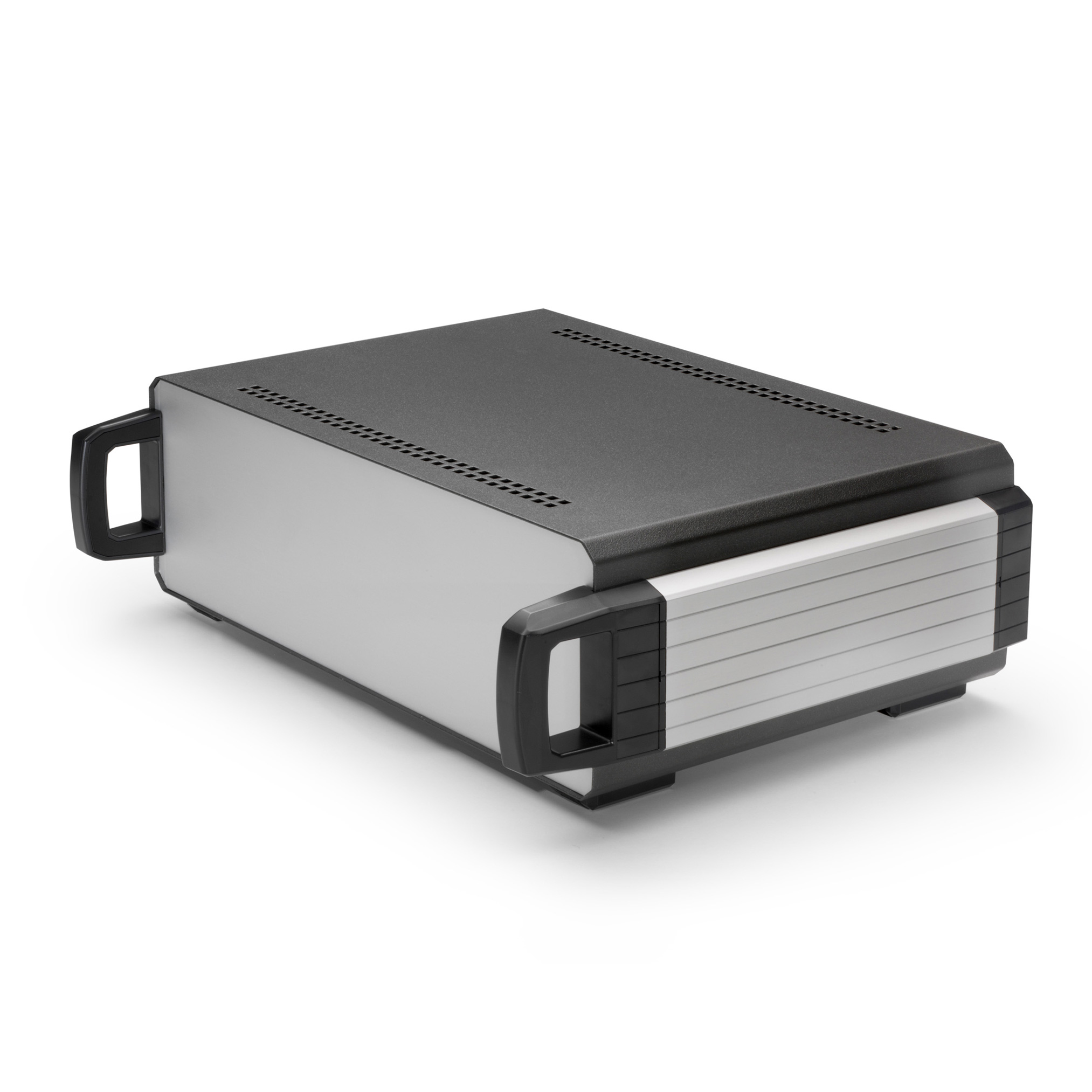

The Series 110 electronics desktop boxes are suitable for command, control or testing devices with a front display.

Information Pour télécharger

Information

Key features

Product line name	Serie 110
Technical information	DESCRIPTION Highly-functional modern design optimizing both the mounting of the box or equipment and the utilization of the internal space Basic cabinet construction using two side aluminum extrusions, steel lid/base and plastic brackets to which both panels are attached The side extrusions include rails for mounting of printed circuit boards or other components In types 5, 6 and 7, front brackets include mounts; lids that can be matched to corporate branding The lid and bottom cover can be removed independently There are ventilation holes on the back of the lid and base cover The four small sizes have four non-slip feet The three larger sizes come with hinged feet Resistant to temperatures up to 85 °C (plastic parts) MATERIALS AND SURFACE TREATMENT Lid and base - 1 mm sheet steel, textured epoxy paint, graphite gray color Side profiles - 6063 aluminum extrusion, matte silver anodized Front/Back Panels - 1070 Aluminum, 1mm (Types 1, 2, 3, 4) or 2mm (Types 5, 6, 7) thickness, silver anodized Feet - high-quality injection molded ABS; dark gray color similar to RAL7016 OPTIONAL Custom drilling, screen printing, other colors upon request

Product line name

Serie 110

Technical information

DESCRIPTION

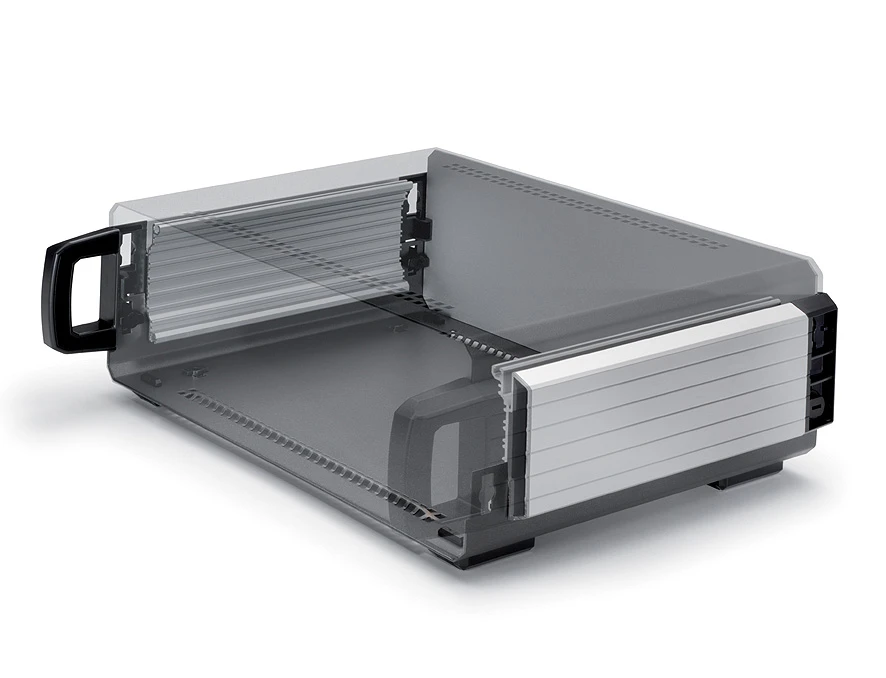

Highly-functional modern design optimizing both the mounting of the box or equipment and the utilization of the internal space

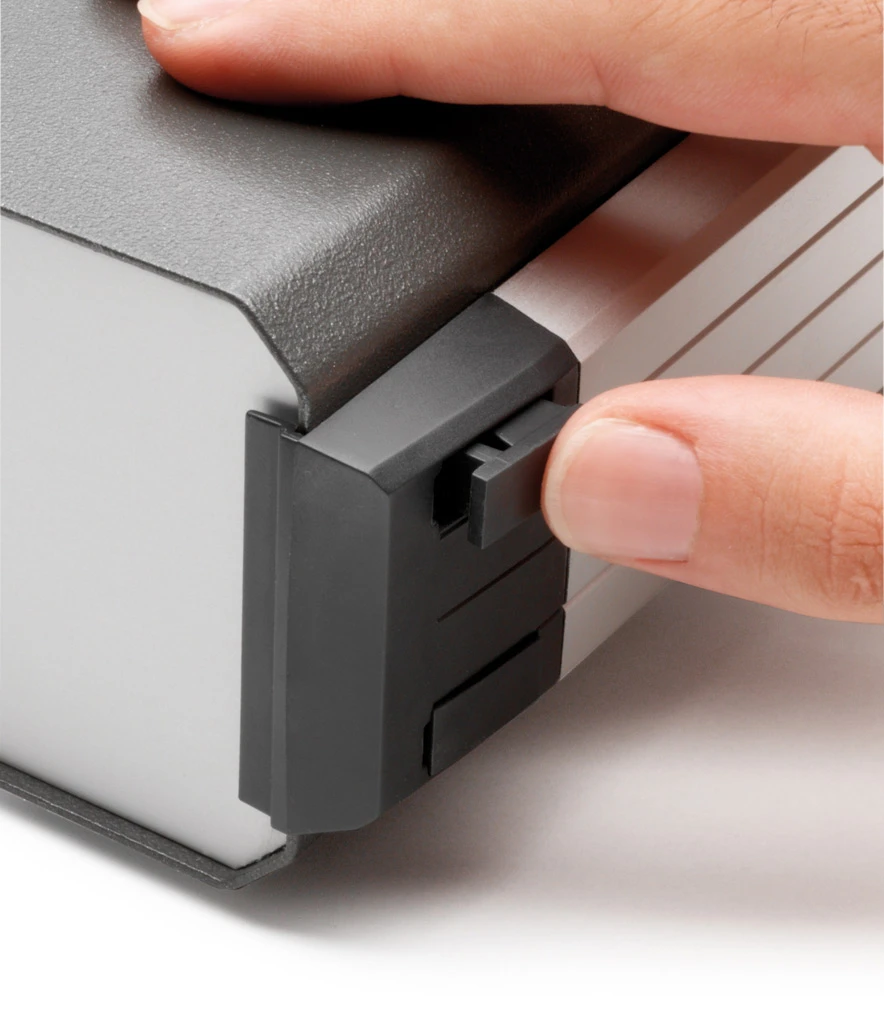

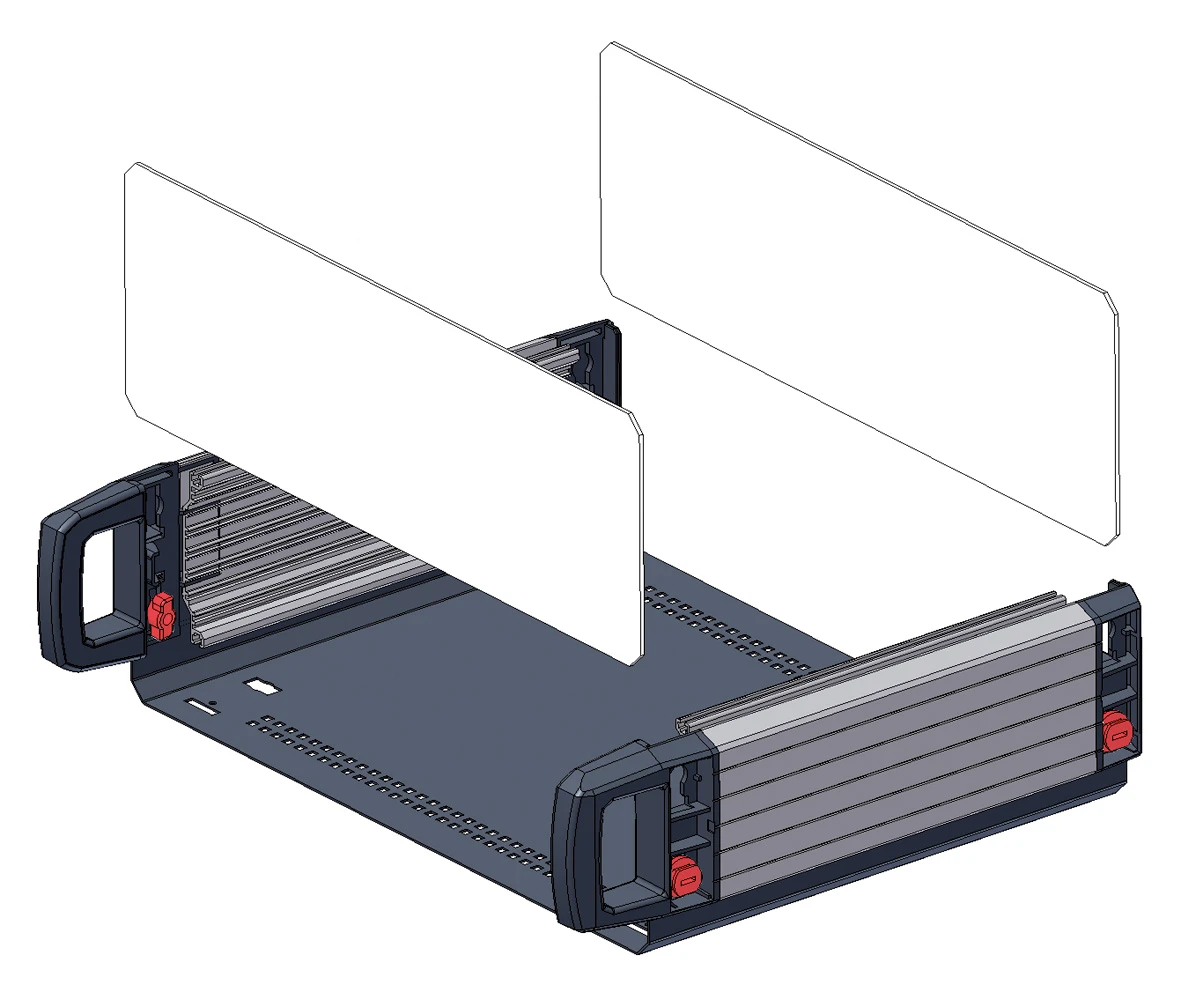

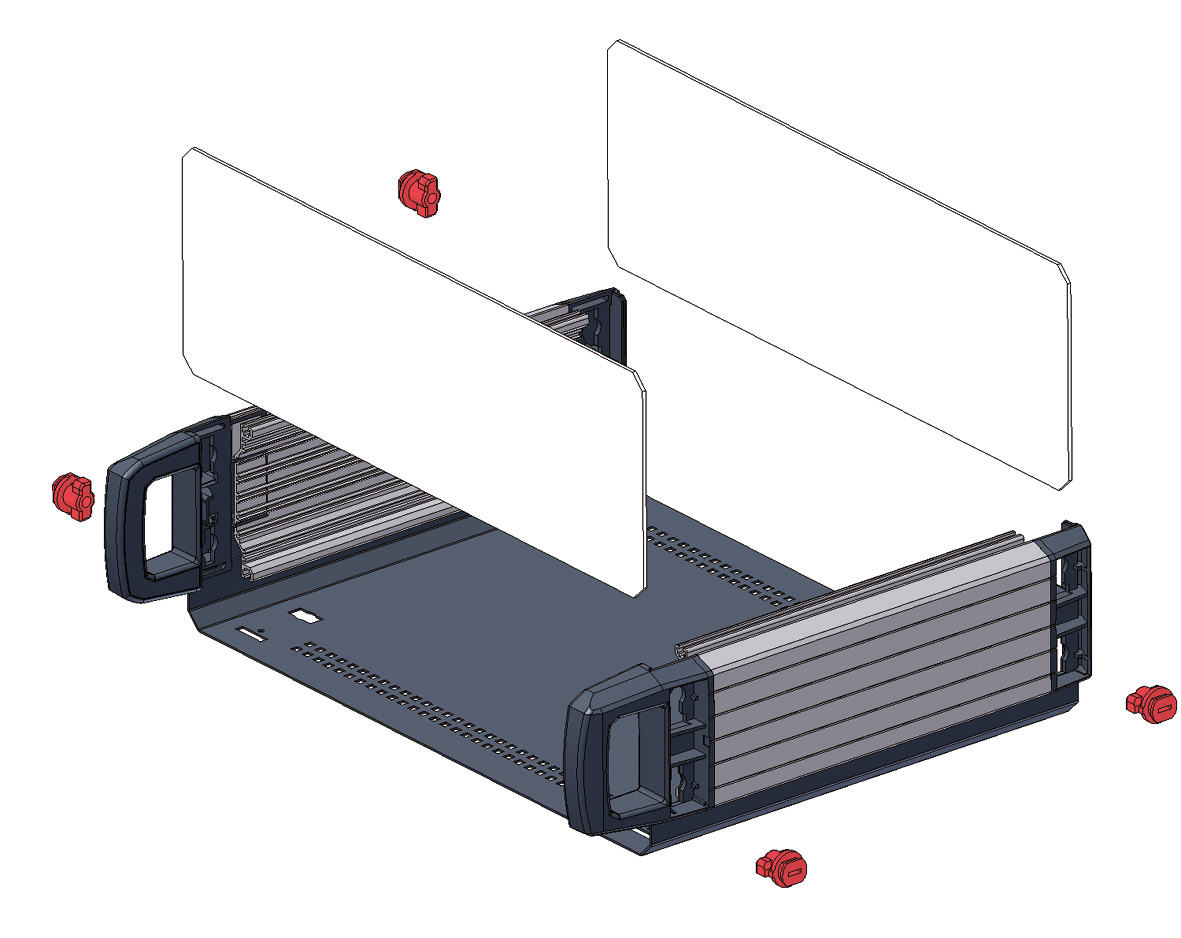

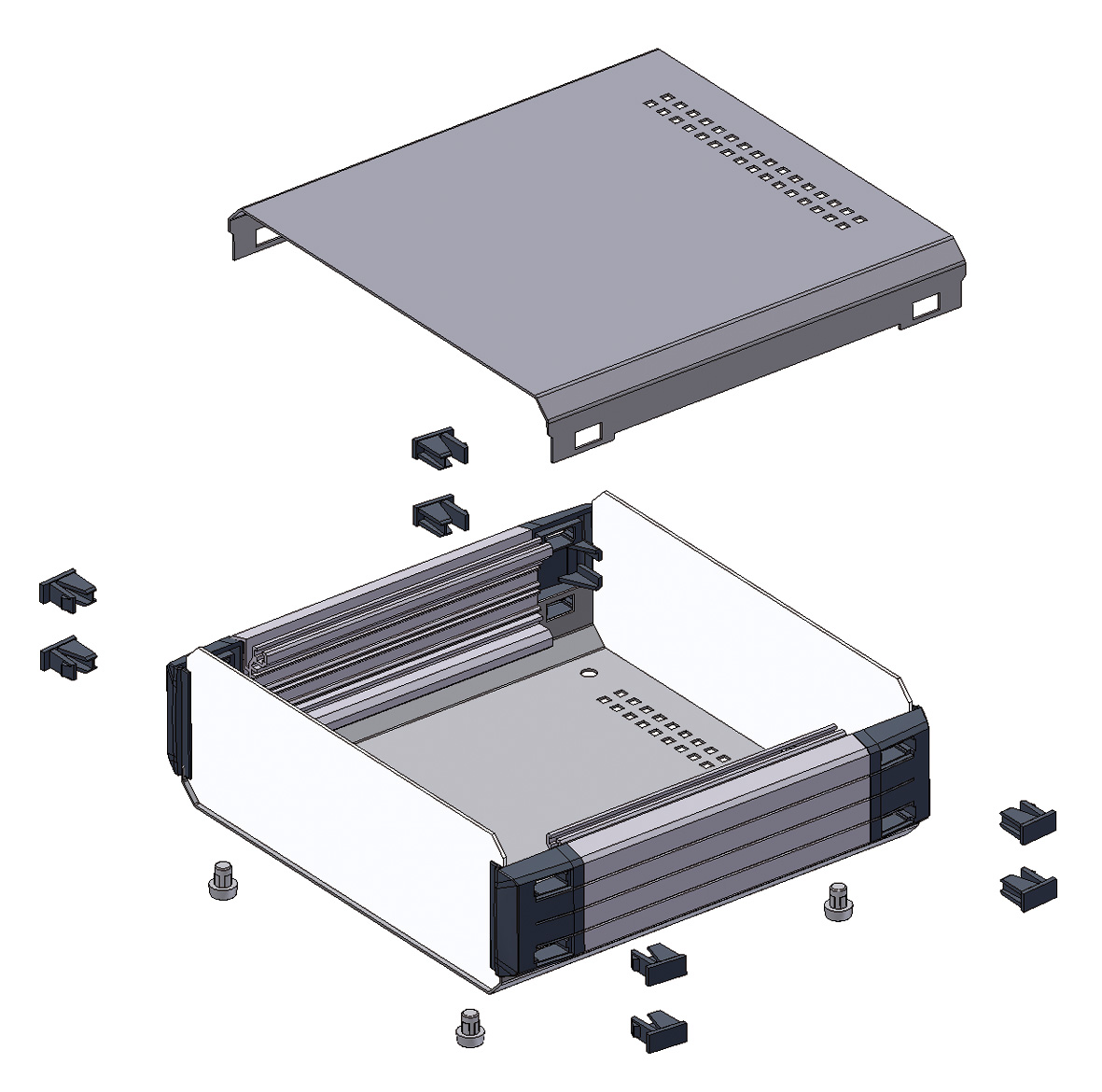

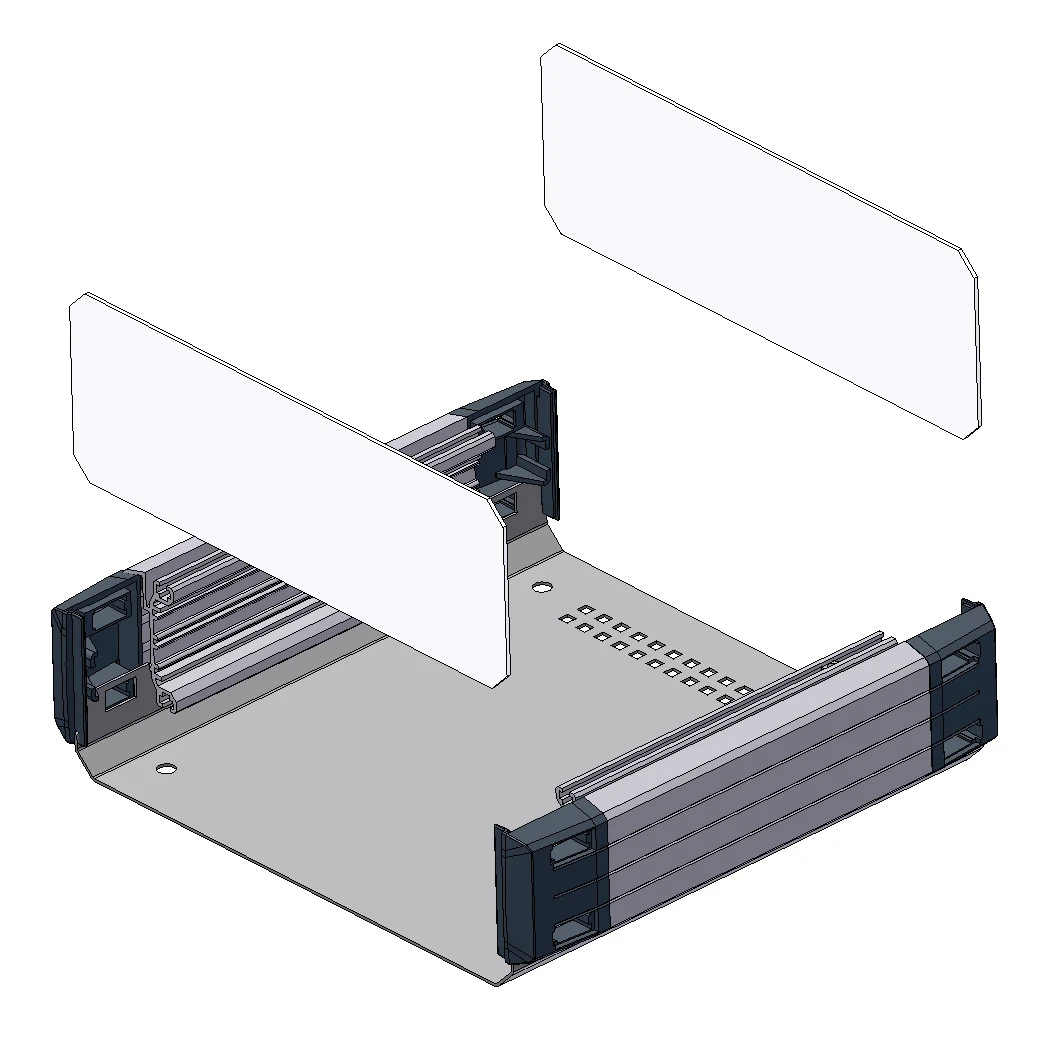

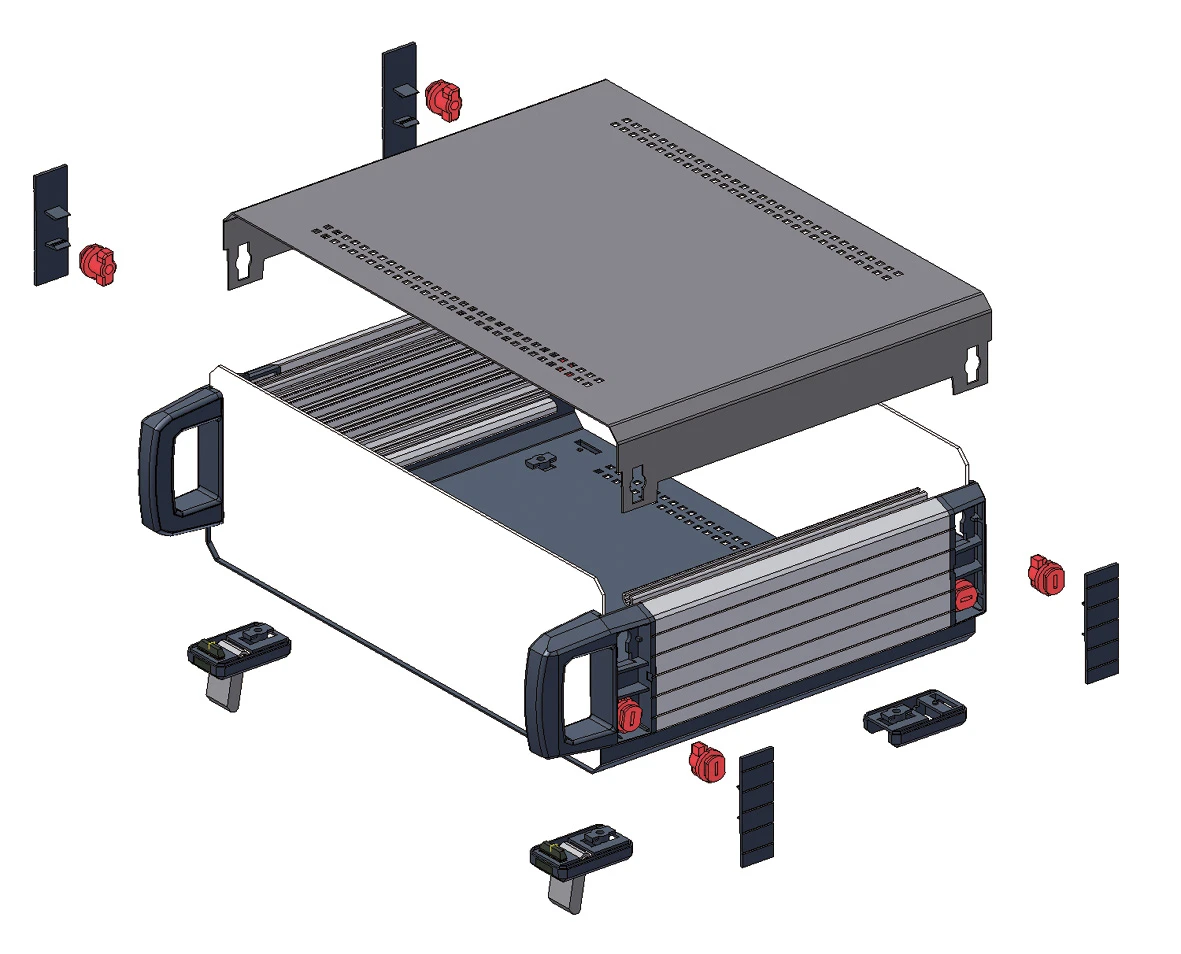

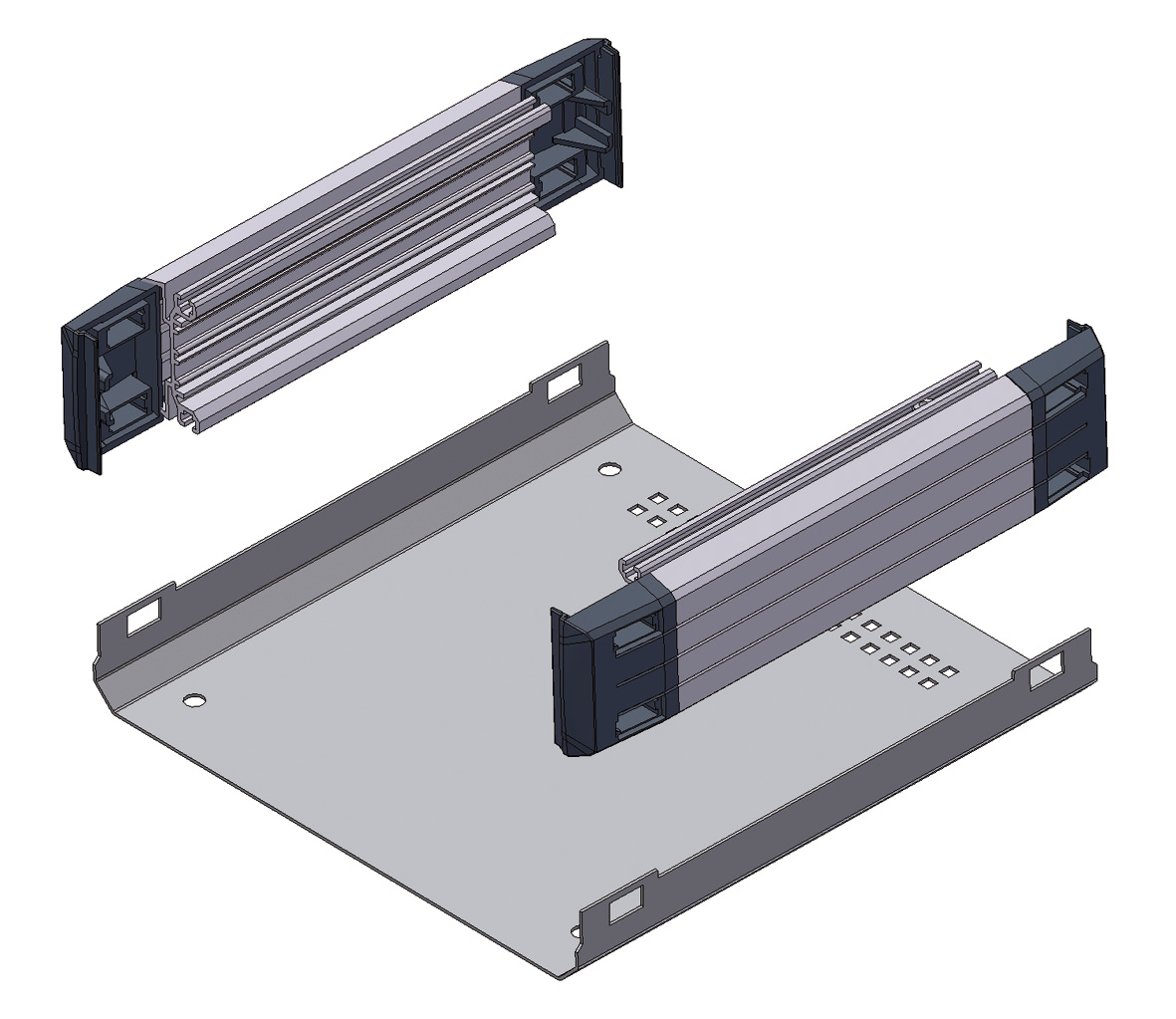

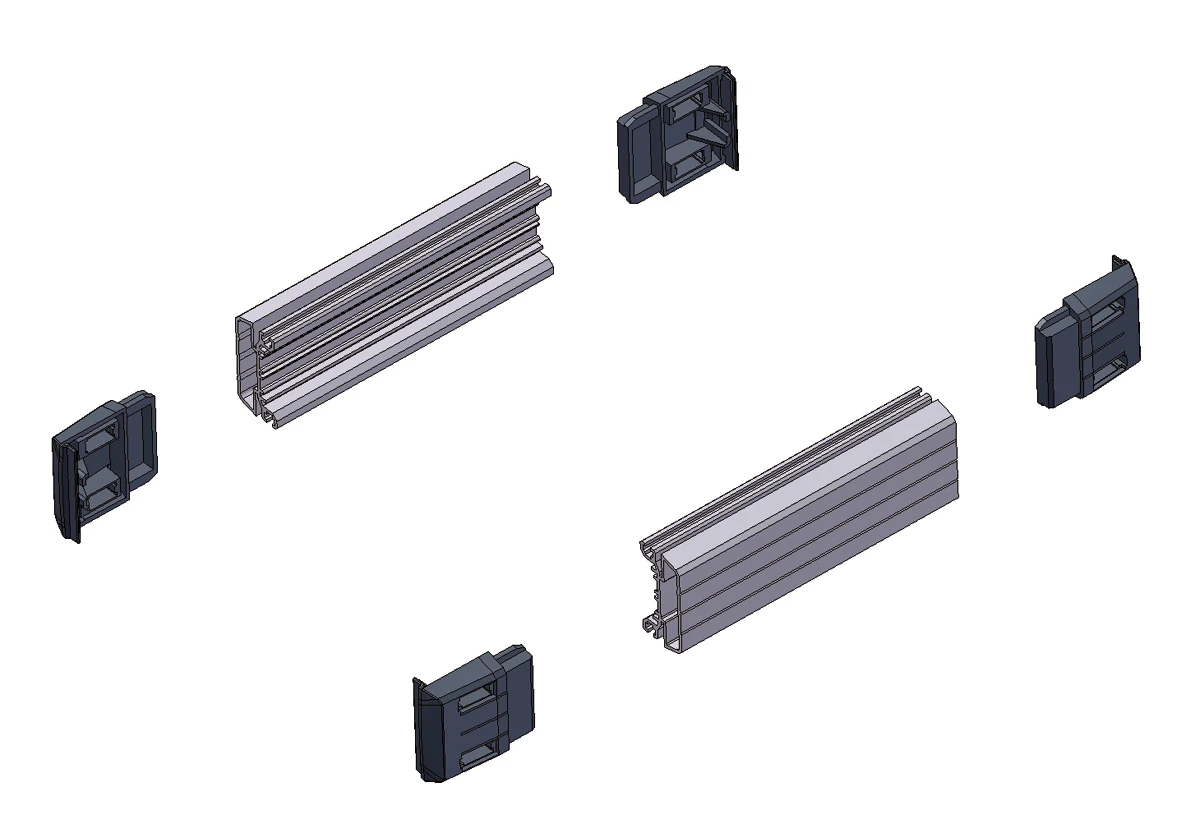

Basic cabinet construction using two side aluminum extrusions, steel lid/base and plastic brackets to which both panels are attached

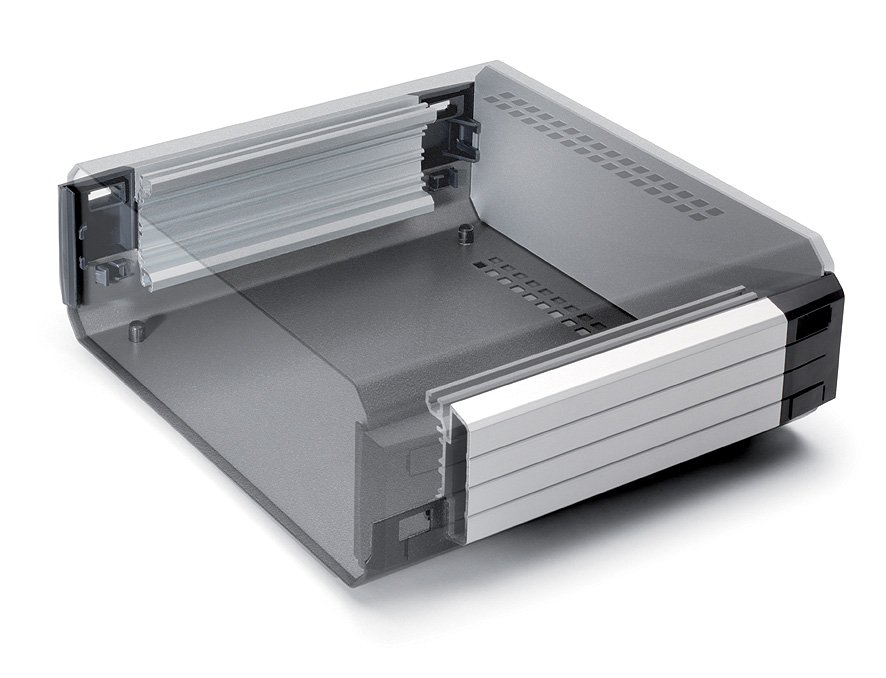

The side extrusions include rails for mounting of printed circuit boards or other components

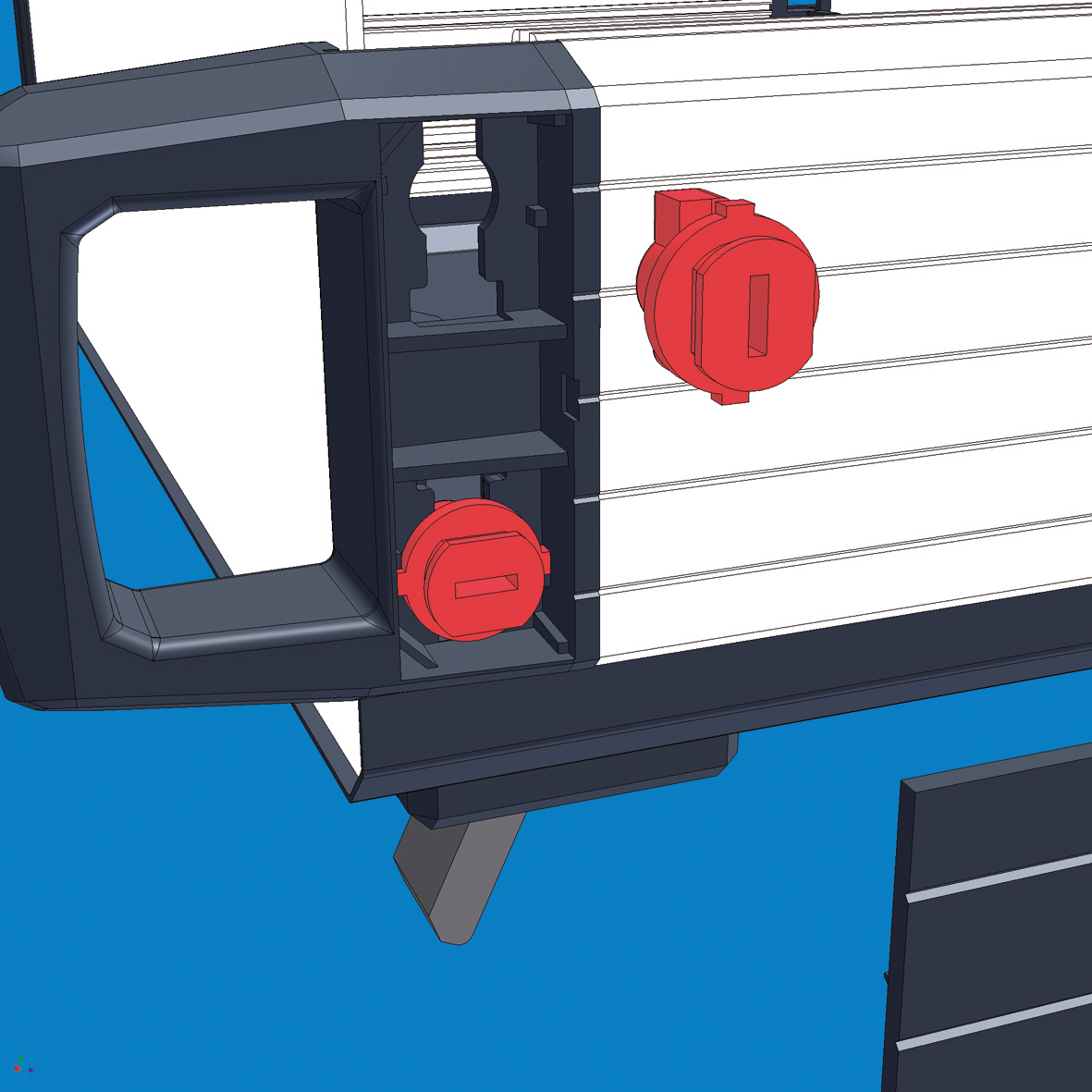

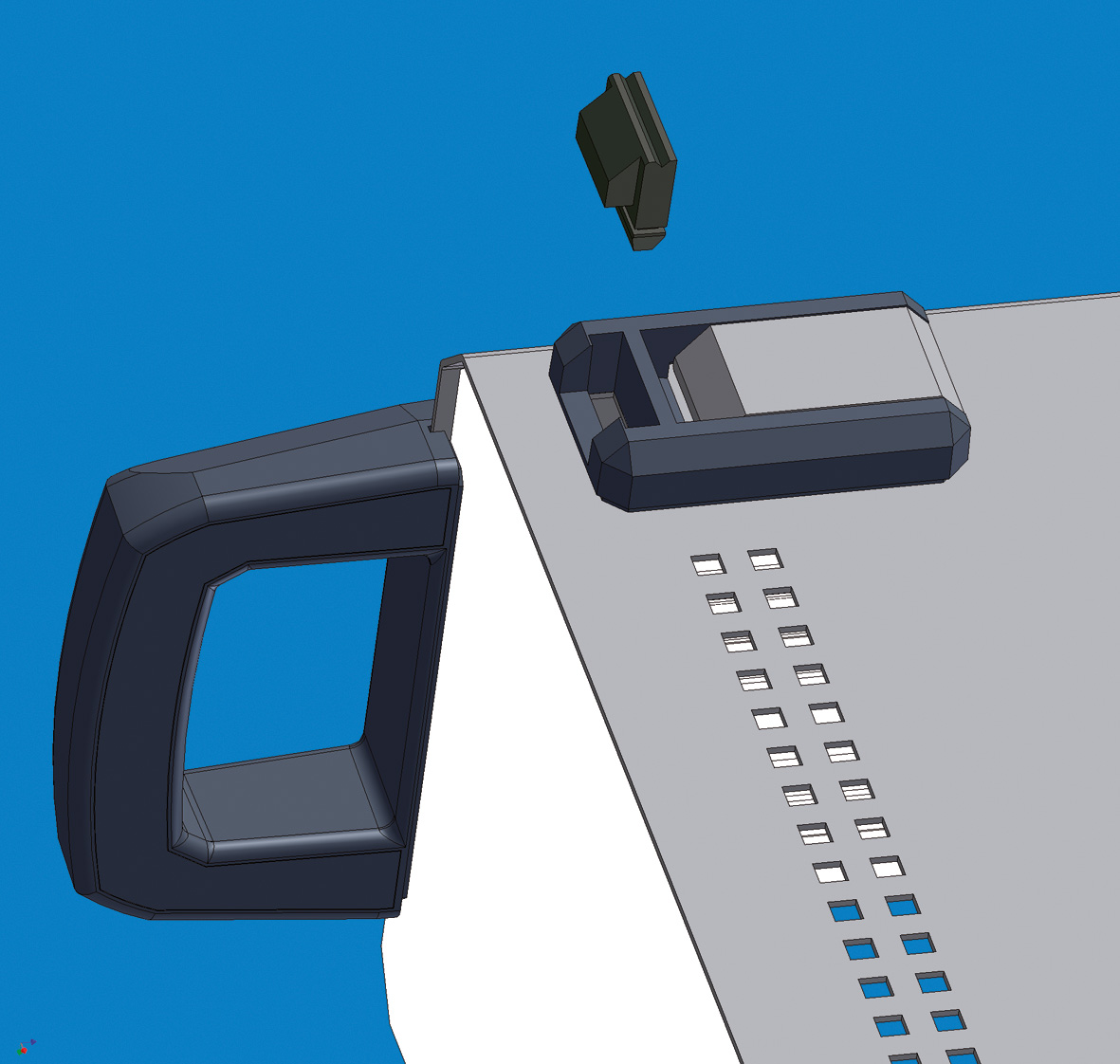

In types 5, 6 and 7, front brackets include mounts; lids that can be matched to corporate branding

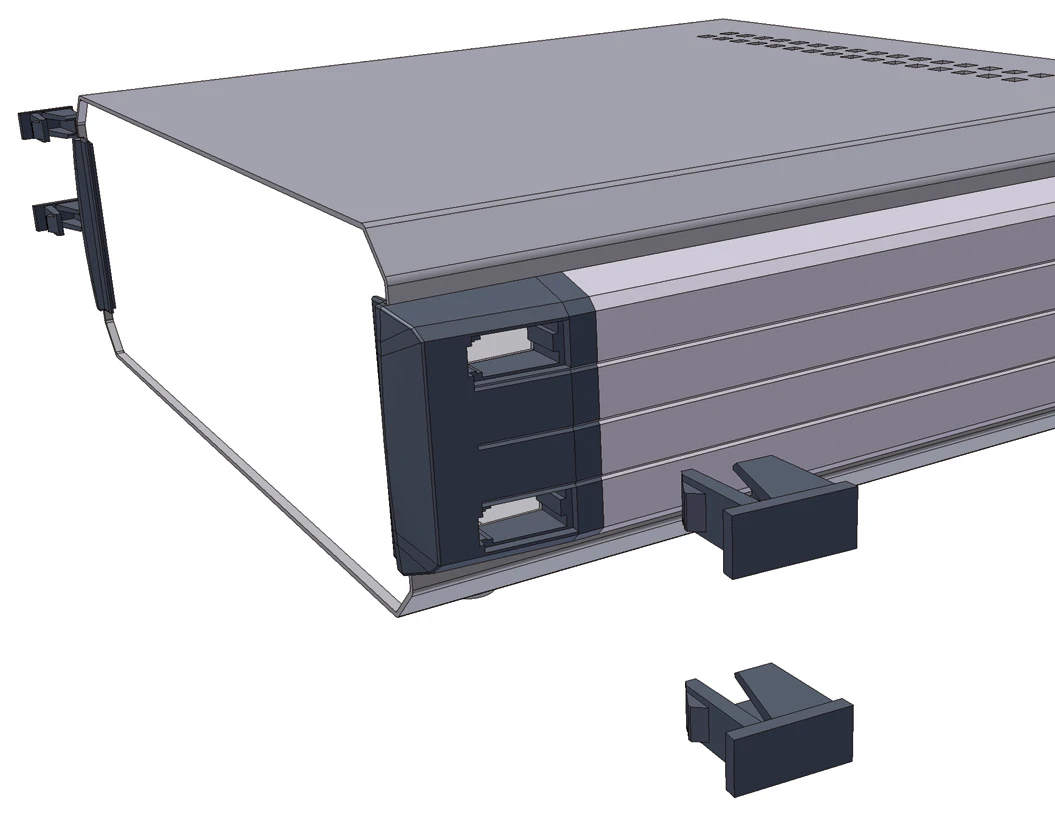

The lid and bottom cover can be removed independently
There are ventilation holes on the back of the lid and base cover
The four small sizes have four non-slip feet

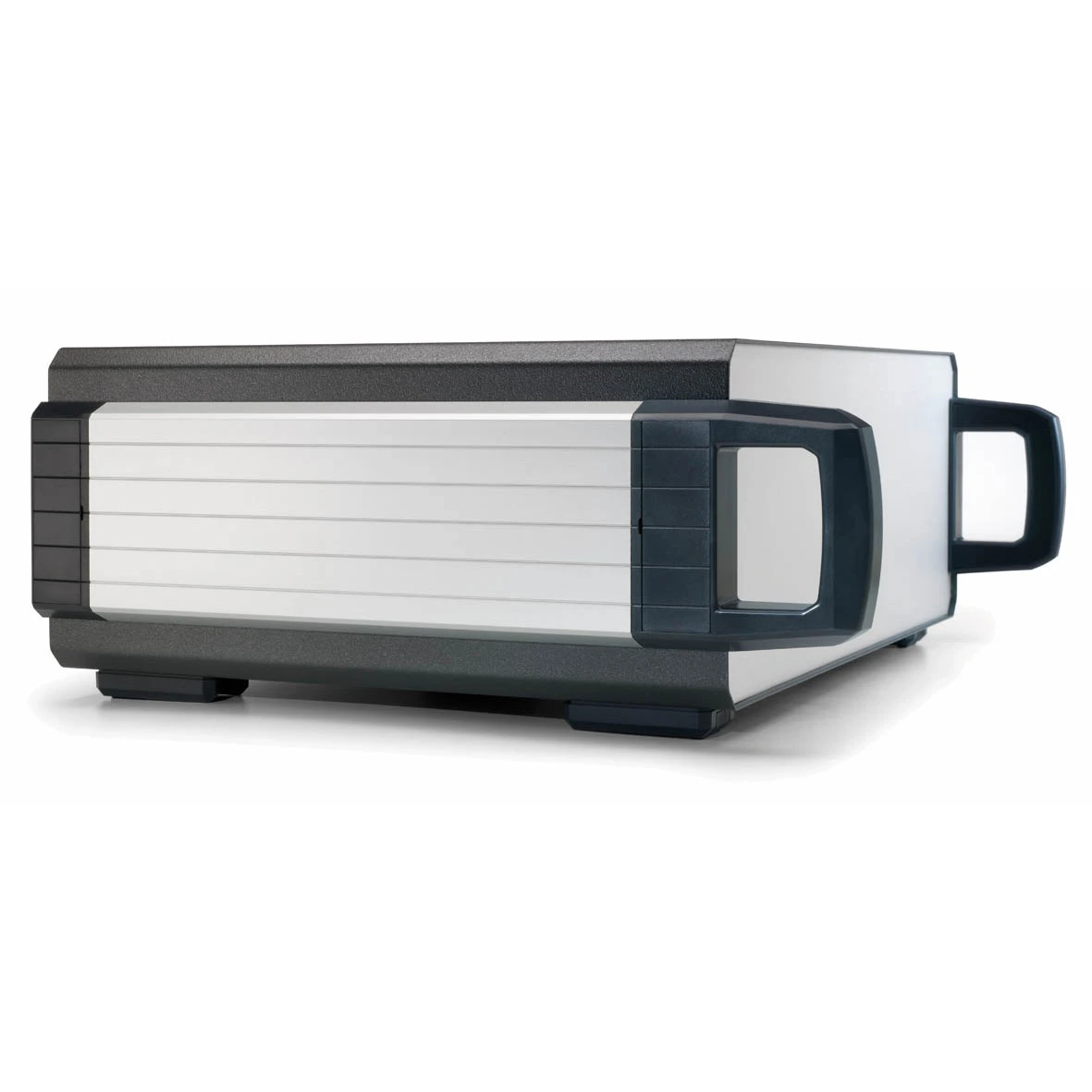

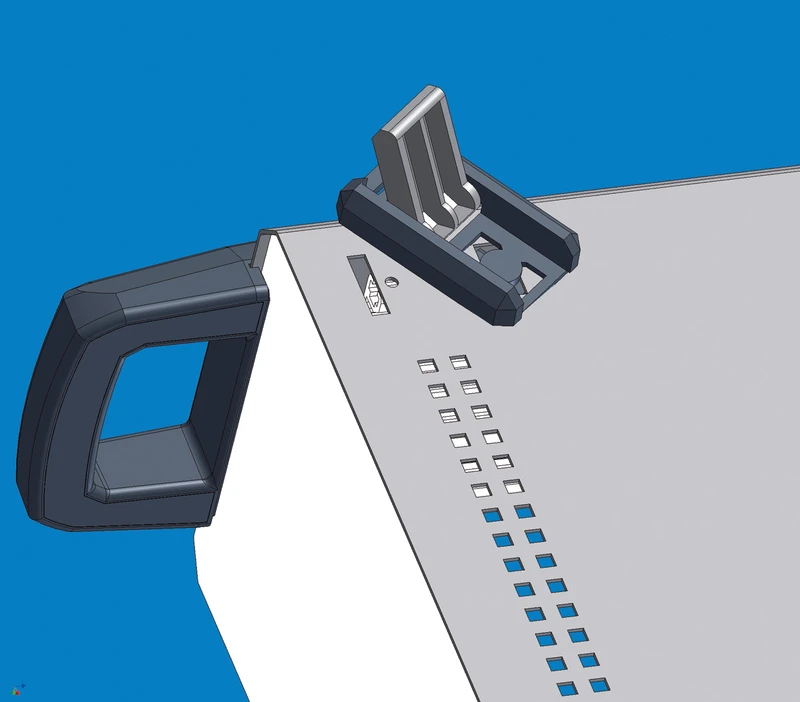

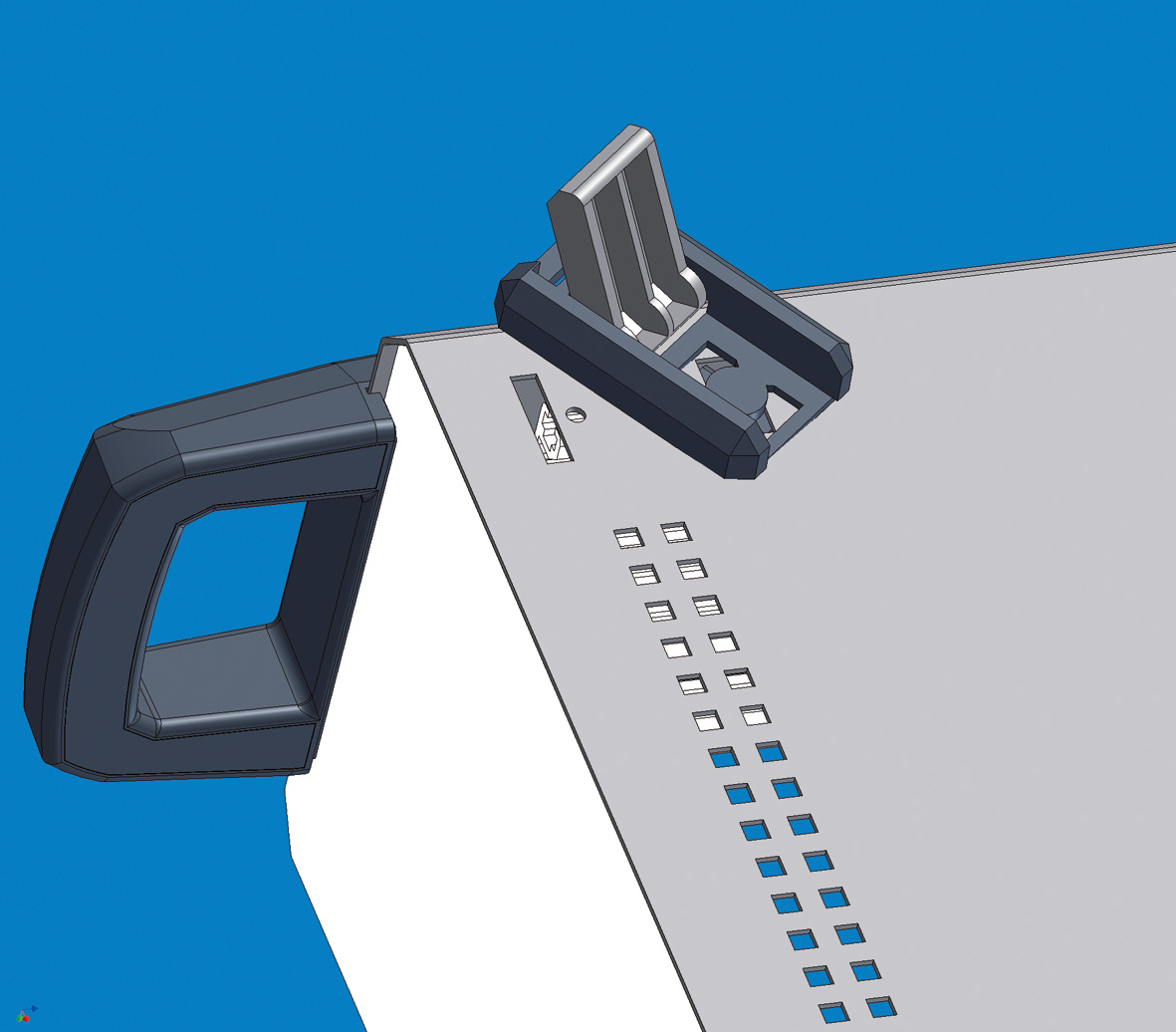

The three larger sizes come with hinged feet
Resistant to temperatures up to 85 °C (plastic parts)
MATERIALS AND SURFACE TREATMENT

Lid and base - 1 mm sheet steel, textured epoxy paint, graphite gray color

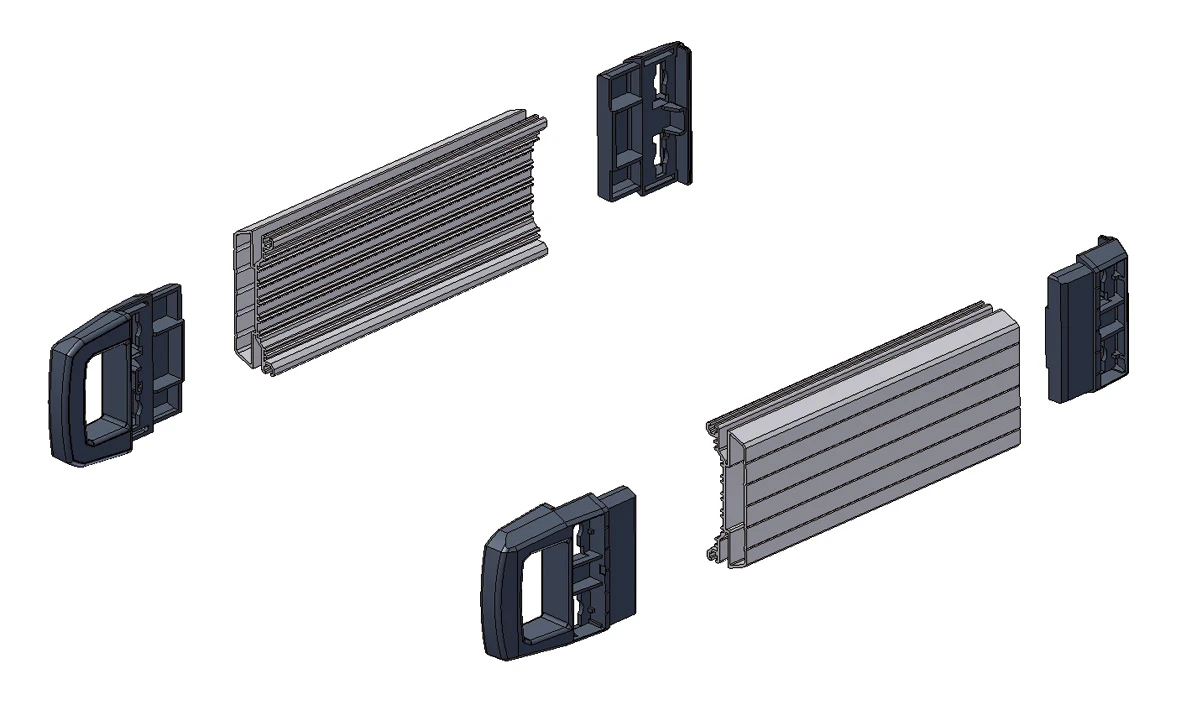

Side profiles - 6063 aluminum extrusion, matte silver anodized
Front/Back Panels - 1070 Aluminum, 1mm (Types 1, 2, 3, 4) or 2mm (Types 5, 6, 7) thickness, silver anodized
Feet - high-quality injection molded ABS; dark gray color similar to RAL7016
OPTIONAL

Custom drilling, screen printing, other colors upon request
