Serie 180

Designed for electronic devices and telecommunication equipment that can be installed in 19" racks. Manufactured according to IEC 297-2 (DIN 41 494).

Fiche technique En savoir plus

Où nous trouver ?

Product introduction

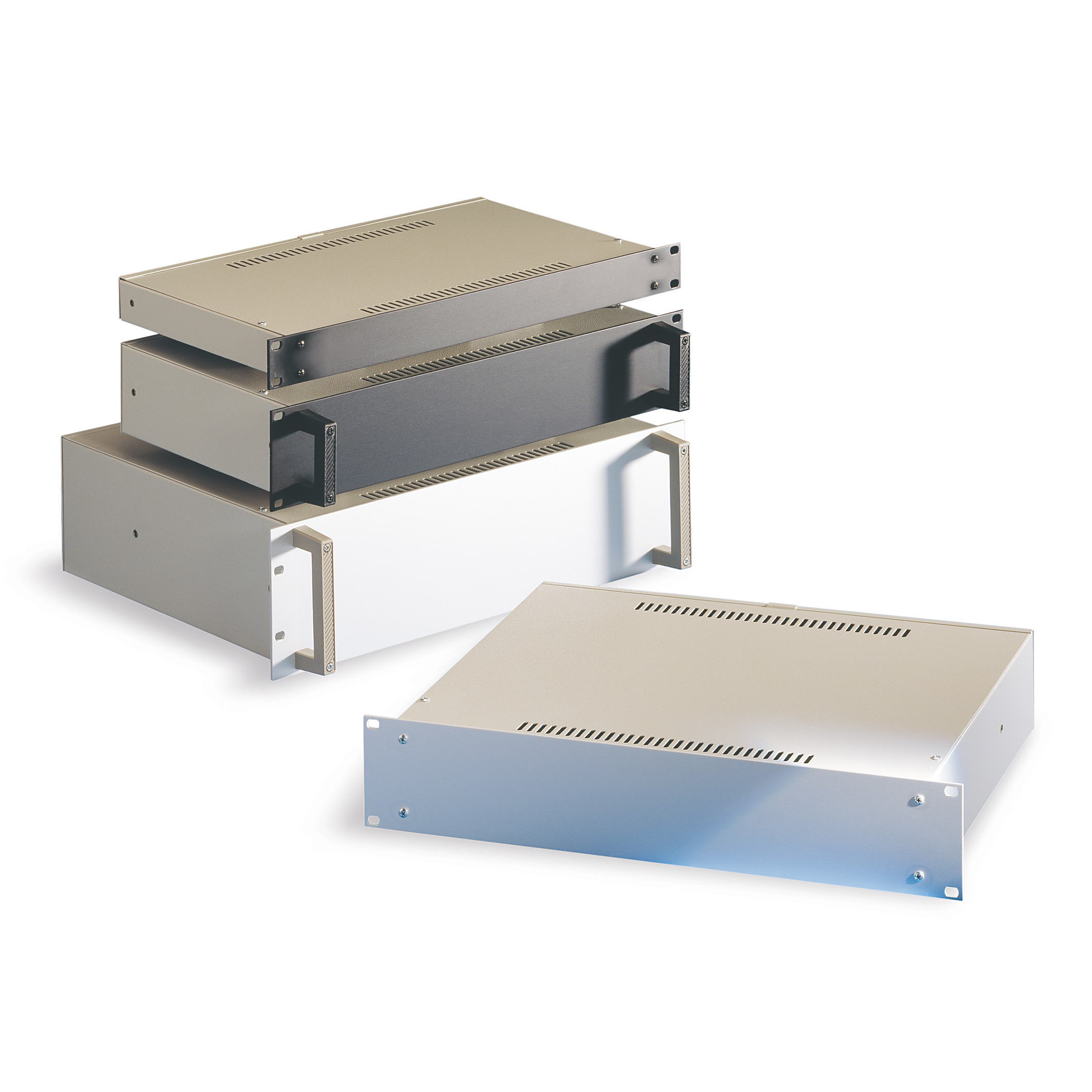

Serie 180 sub-rack and 19" electronics boxes designed for electronic devices and telecommunication equipment that can be installed in 19" racks. Manufactured according to IEC 297-2 (DIN 41 494). Their easy assembly, optimal accessibility and robust construction enable efficient installation of the equipment in a rack. Allows mounting in a 19" rack with standard telescopic guides (100% extension).

Information Pour télécharger

Information

Key features

Product line name	Serie 180
Technical information	DESCRIPTION Height: 1, 2 and 3U Width: 263 and 363 mm Mounting: using ten M4 screws (eight for 1U) Front and rear internal supports for mounting trays or circuits, except for 1U The basic unit includes: front panel, frame, back and top cover MATERIALS AND SURFACE TREATMENT Front panel – 3 mm thick silver or black anodised aluminium Frame - 1 mm thick steel, light gray epoxy paint similar to RAL 9002 OPTIONAL Custom drilling, screen printing, special dimensions

Product line name

Serie 180

Technical information

DESCRIPTION

Height: 1, 2 and 3U
Width: 263 and 363 mm
Mounting: using ten M4 screws (eight for 1U)
Front and rear internal supports for mounting trays or circuits, except for 1U

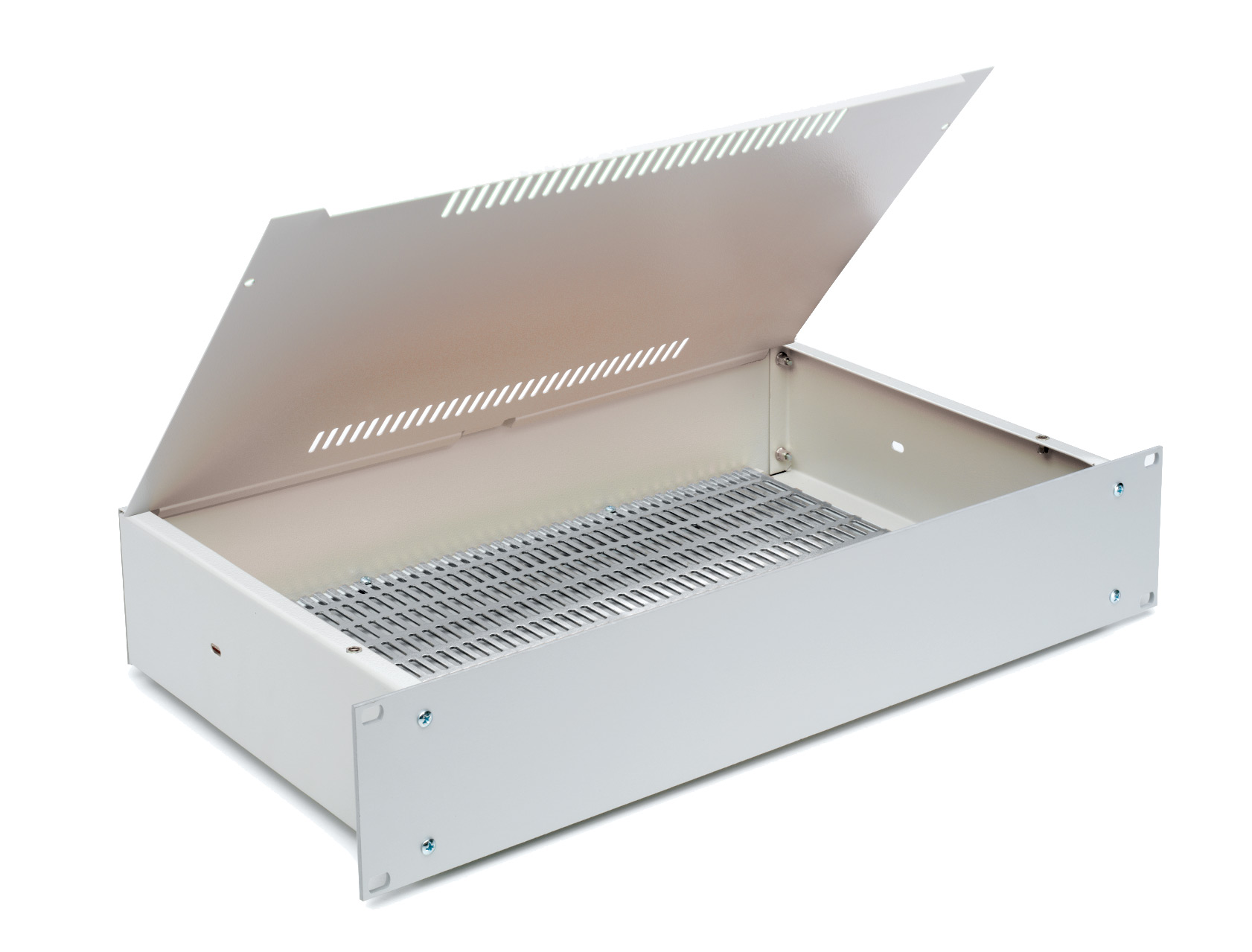

The basic unit includes: front panel, frame, back and top cover

MATERIALS AND SURFACE TREATMENT

Front panel – 3 mm thick silver or black anodised aluminium
Frame - 1 mm thick steel, light gray epoxy paint similar to RAL 9002

OPTIONAL

Custom drilling, screen printing, special dimensions
