Boîtiers portatifs pour l'électronique

Serie 32

Can be used for control boxes in four sizes for medium-sized control solutions.

Fiche technique En savoir plus

Où nous trouver ?

Product introduction

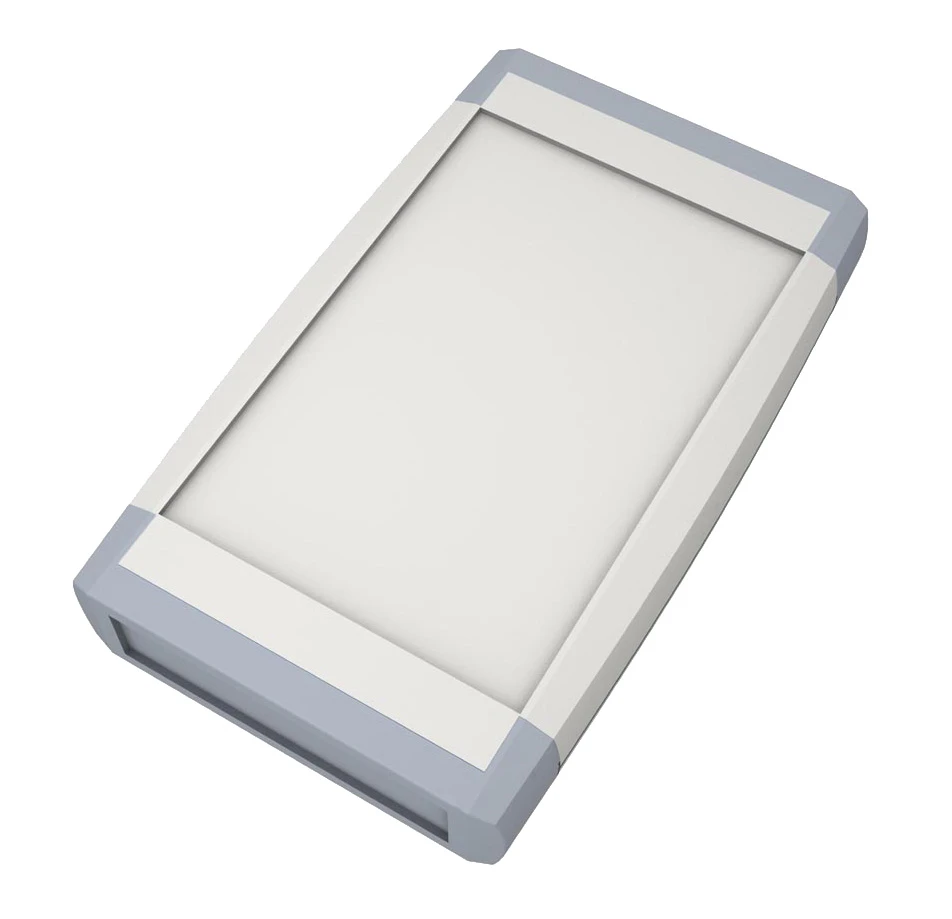

The Series 32 range of portable electronics boxes in four sizes is suitable as control boxes for medium-sized control solutions with IP65 protection.

Information Pour télécharger

Information

Key features

Product line name	Serie 32
Technical information	DESCRIPTION New box design with screwless snap-on cover Designed for functionality with multiple membrane keyboard mounting options Recessed areas in the lid, base, and front and back panels for keyboard mounting Easy snap-together assembly of the base, lid and front and back panels. Battery cover attached with screws Mounts on the base and lid for fixing printed circuit boards with self-tapping screws Optional EPDM seals for IP65 protection Temperature resistance up to 85 °C The basic unit includes: lid, base and panels. Larger sizes include also battery cover and screws Accessories: EPDM joint seal MATERIALS AND SURFACE TREATMENT Base and cover - high quality injection molded 3mm thick ABS; light gray color similar to RAL 7032 or dark gray color similar to RAL 7021 Panels – gray color similar to RAL 7001 or black color similar to RAL 9004 OPTIONAL Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request

Product line name

Serie 32

Technical information

DESCRIPTION

New box design with screwless snap-on cover
Designed for functionality with multiple membrane keyboard mounting options
Recessed areas in the lid, base, and front and back panels for keyboard mounting

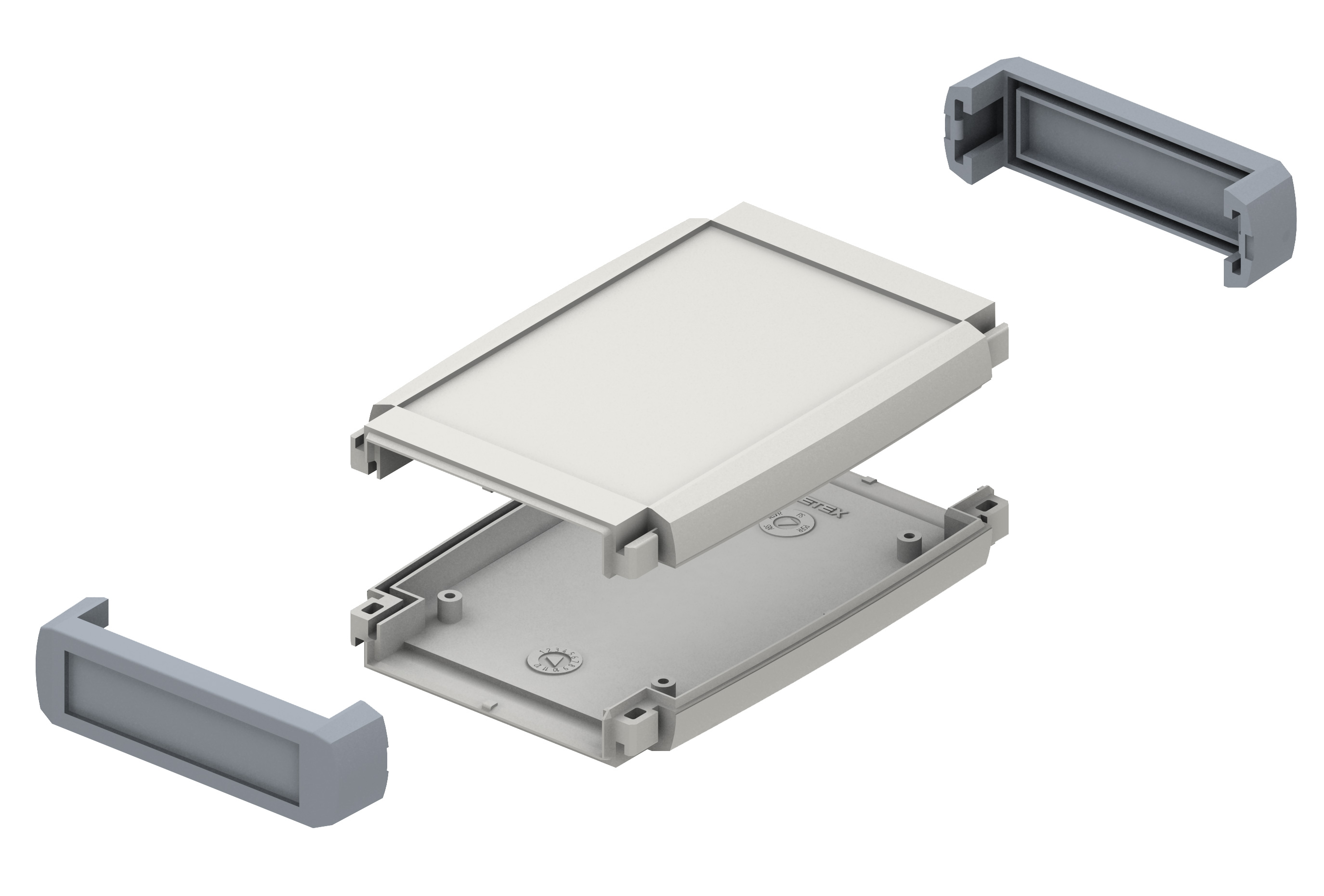

Easy snap-together assembly of the base, lid and front and back panels. Battery cover attached with screws
Mounts on the base and lid for fixing printed circuit boards with self-tapping screws
Optional EPDM seals for IP65 protection
Temperature resistance up to 85 °C
The basic unit includes: lid, base and panels. Larger sizes include also battery cover and screws
Accessories: EPDM joint seal

MATERIALS AND SURFACE TREATMENT

Base and cover - high quality injection molded 3mm thick ABS; light gray color similar to RAL 7032 or dark gray color similar to RAL 7021

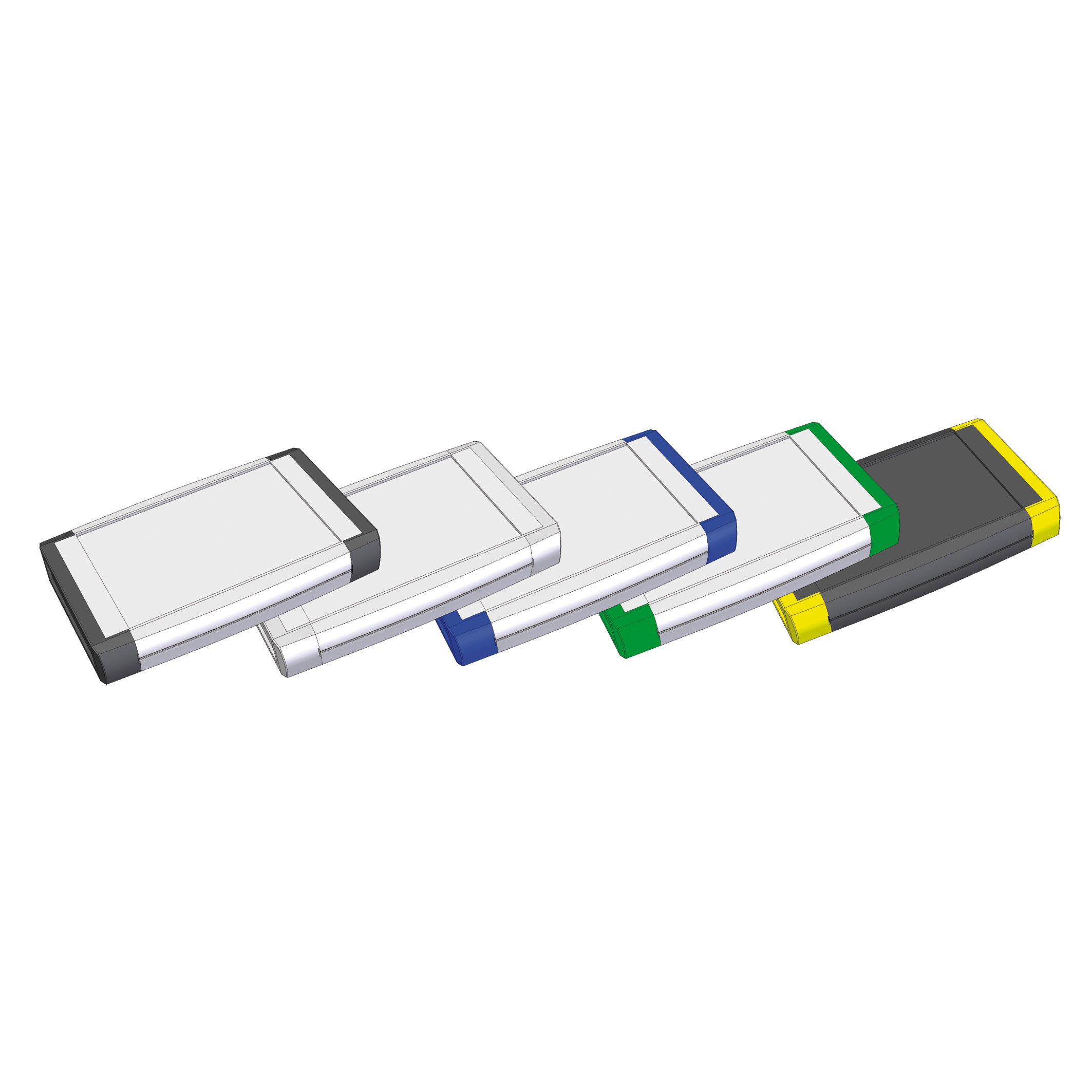

Panels – gray color similar to RAL 7001 or black color similar to RAL 9004

OPTIONAL

Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request
