Boîtiers universels pour l'électronique

Serie 68

A rugged design for demanding mechanical conditions, resistance to temperatures up to 85 °C. Sealing with EPDM O-ring ensures IP65 protection.

Fiche technique En savoir plus

Où nous trouver ?

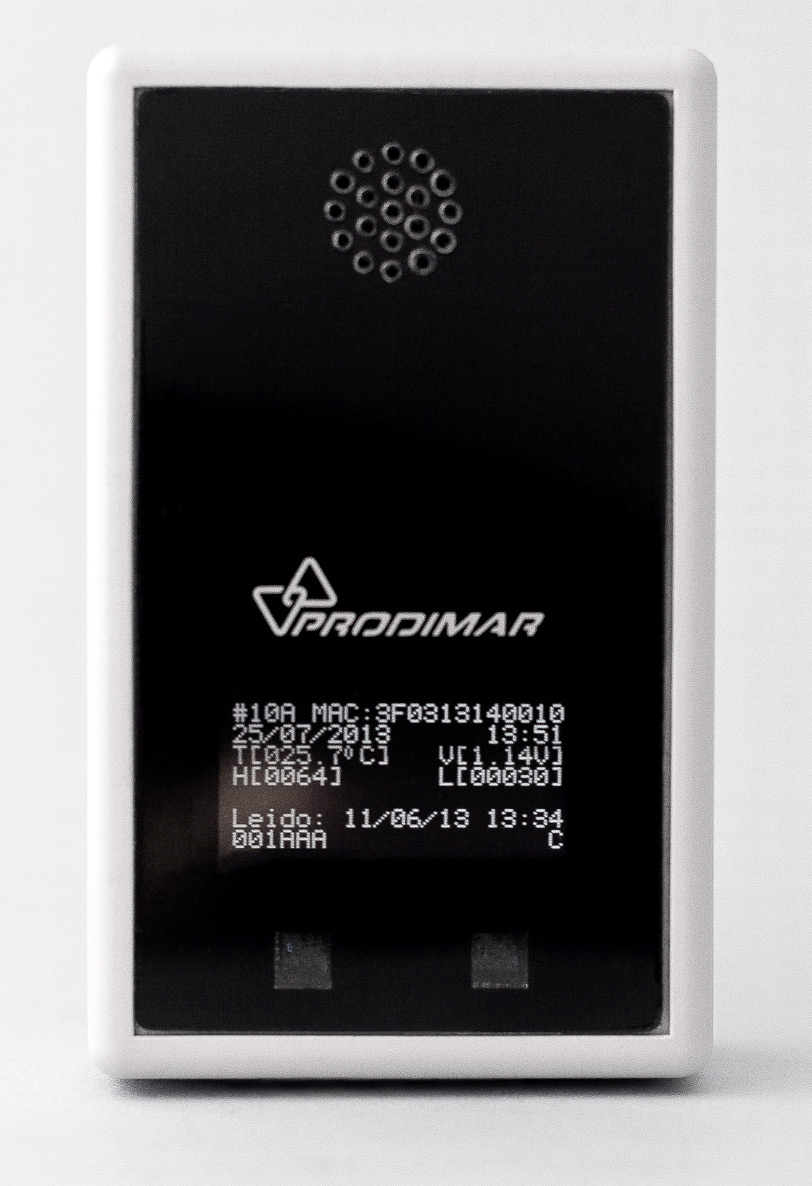

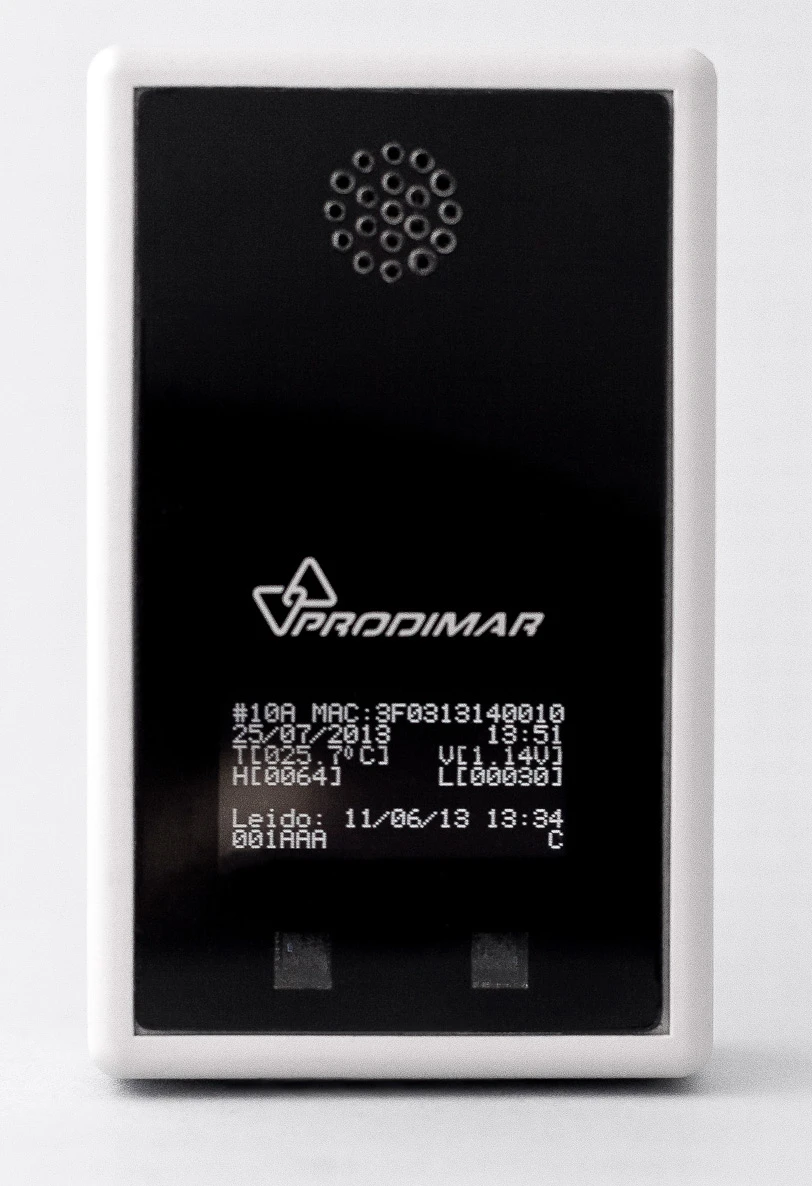

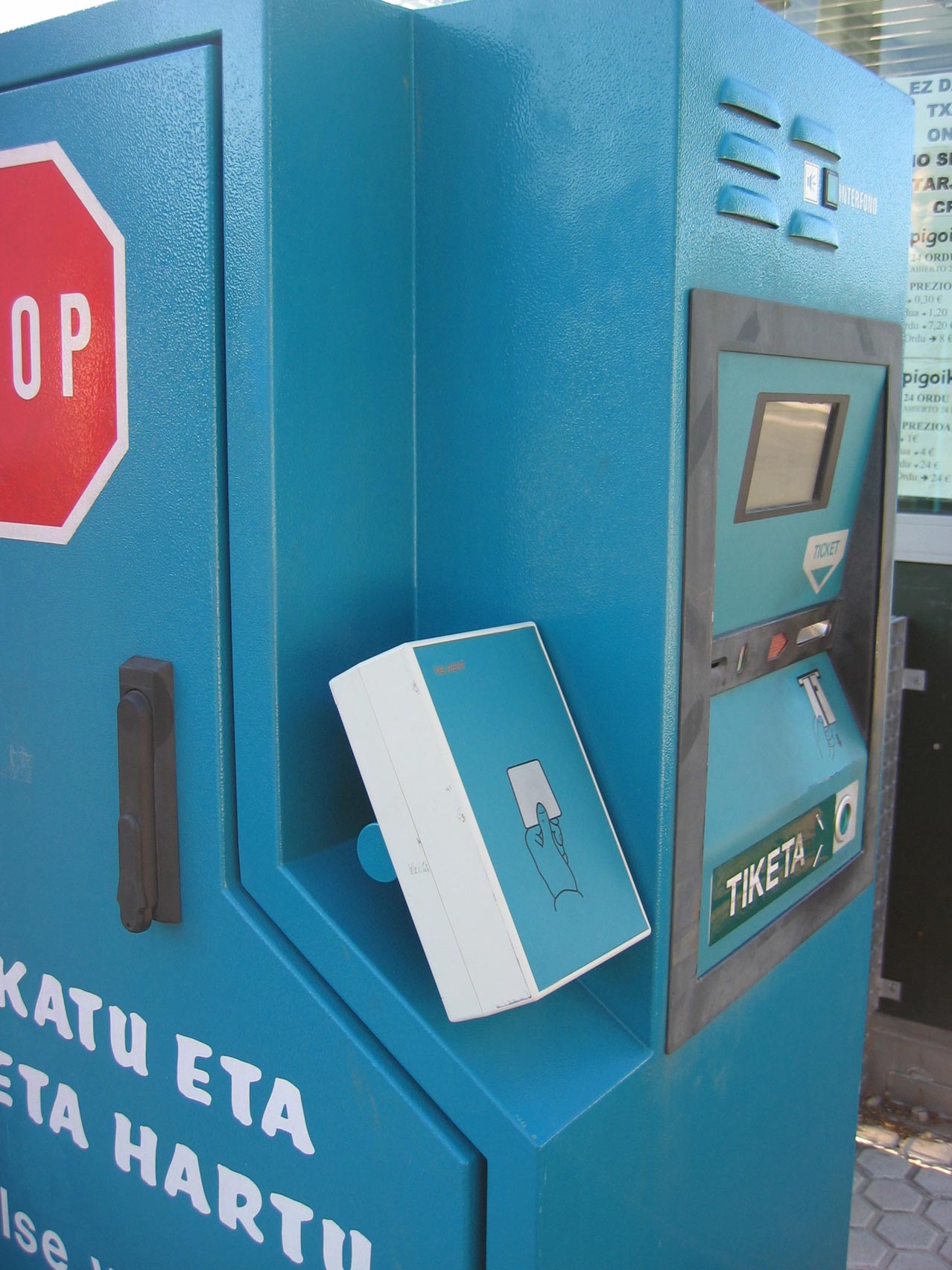

20230815172320serie70-customized--datalogger-con-tecnologia-de-tag-activo-y-multitud-de-sensores.jpg


Product introduction

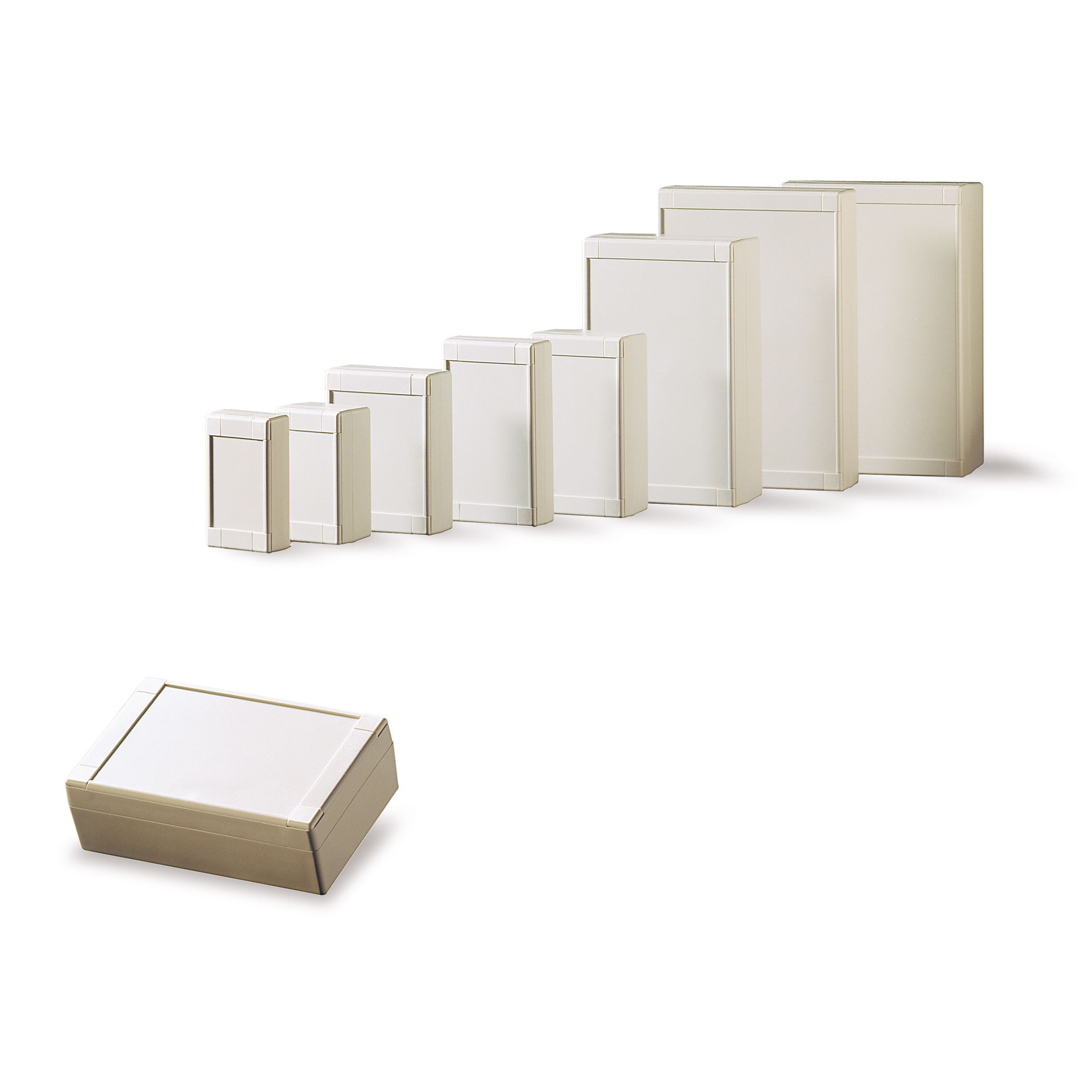

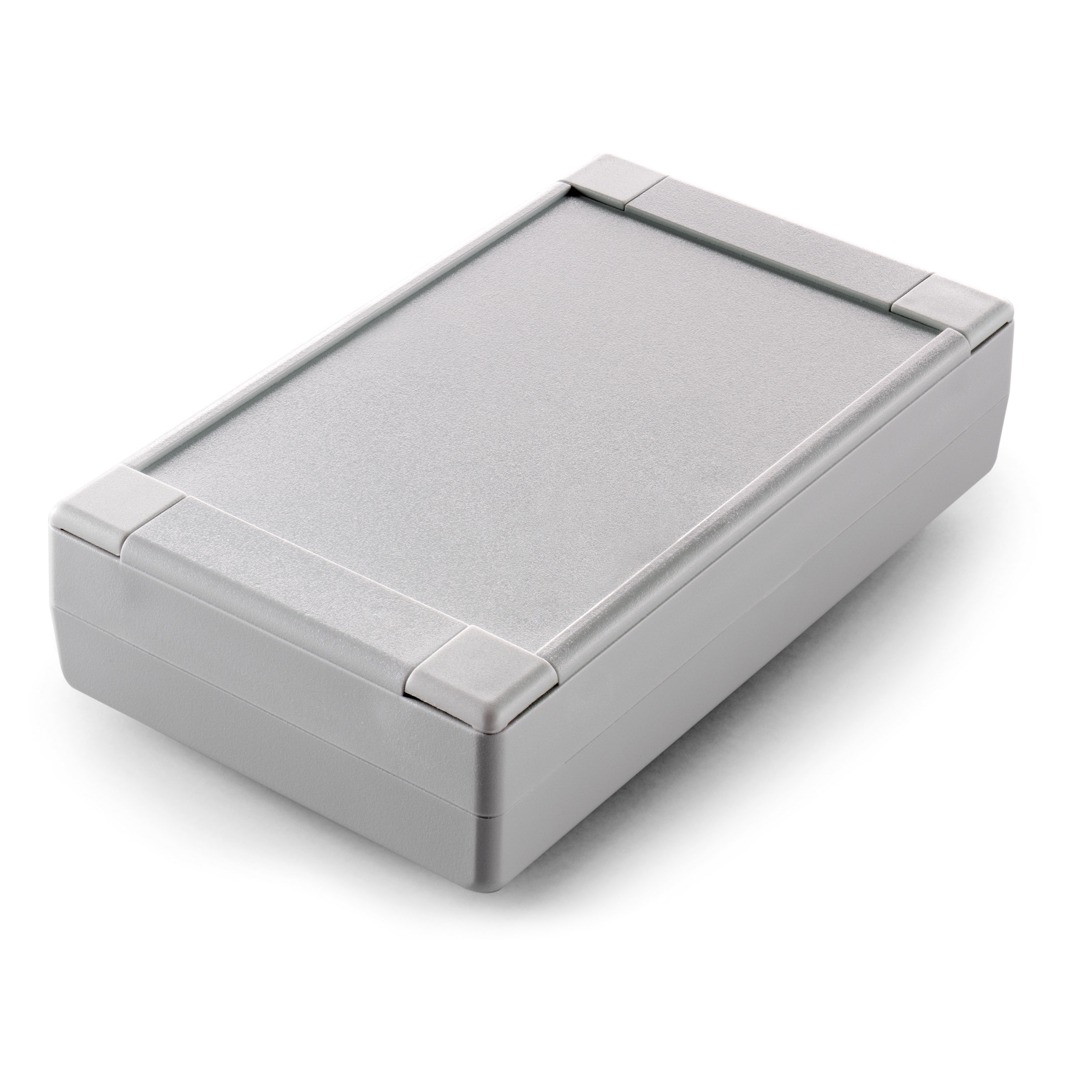

Series 70 universal electronics boxes with a highly resistant design meet various requirements for use in industry, electronics and office automation. Made of high-quality, highly resistant ABS, they withstand mechanical strain and temperatures up to 85 °C. EPDM O-ring seal provides IP65 protection against dust and moisture.

Information Pour télécharger

Information

Key features

Product line name	Serie 70
Technical information	DESCRIPTION Protection class: IP65 The two halves of the boxes are fixed together with metric screws in M3 inserts. These screws are covered by plastic caps Protrusions in all lids and base parts (except lids -01 and -02) for circuit board mounting Resistance to temperatures up to 85 °C Space for keyboards of various sizes is available on both the top and bottom of the box, which further increases its versatility Two wall mounting options: either by means of separate feet or using pre-drilled holes in the base Circuit board guides in vertical orientation are built into the base and lid along with 5mm high screws for horizontal mounting Basic unit includes: lid, base, 4 screws and 4 caps Accessories: Seal with O-ring, EPDM rubber; multi-position wall mounting kit MATERIALS AND SURFACE TREATMENT Highly durable ABS plastic, excellent for machining Standard color: light gray - similar to RAL 7035, black - similar to RAL 9004 OPTIONAL Custom drilling, screen printing, internal EMI/RFI shielding, ABS UL94V0, other colors

Product line name

Serie 70

Technical information

DESCRIPTION

Protection class: IP65
The two halves of the boxes are fixed together with metric screws in M3 inserts. These screws are covered by plastic caps

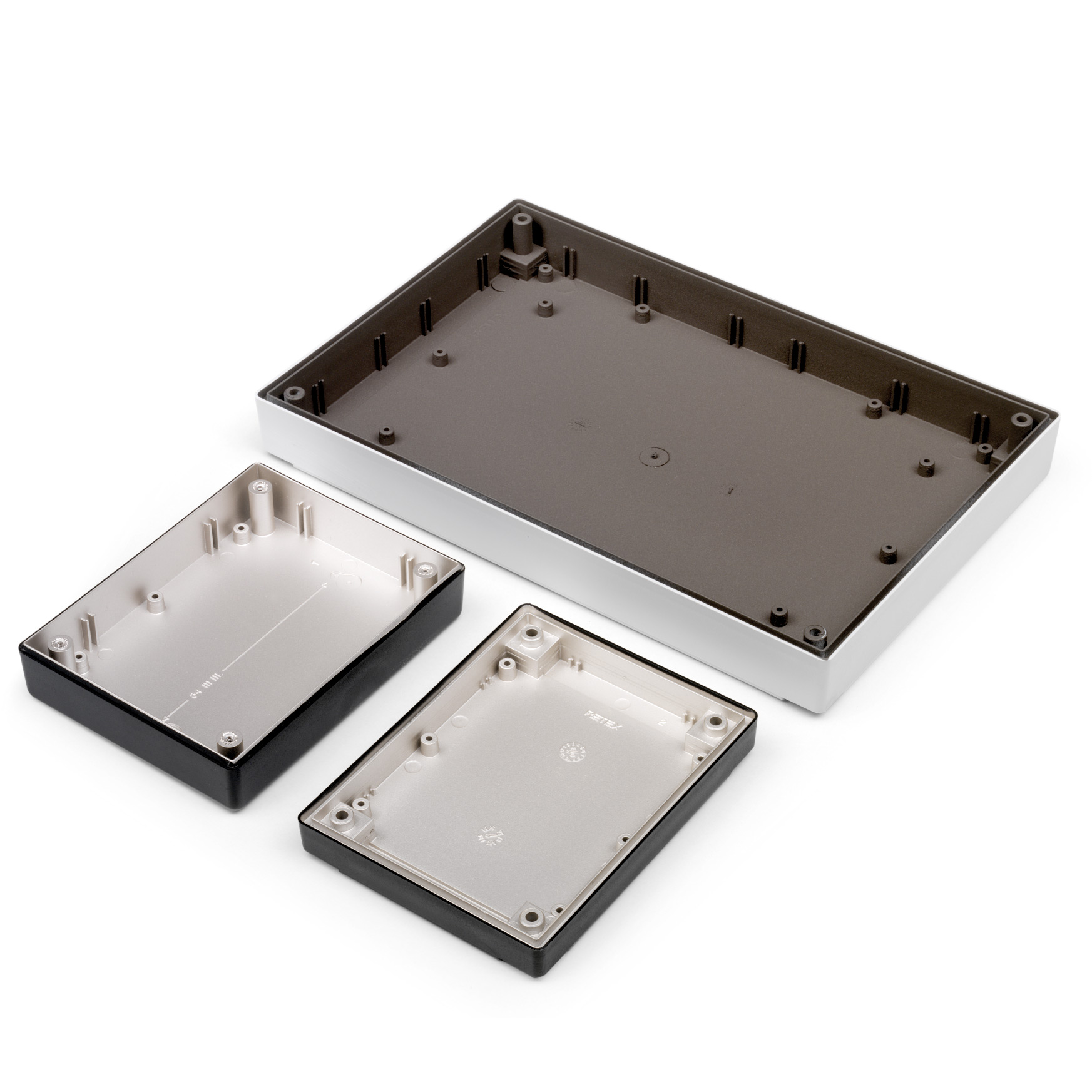

Protrusions in all lids and base parts (except lids -01 and -02) for circuit board mounting
Resistance to temperatures up to 85 °C

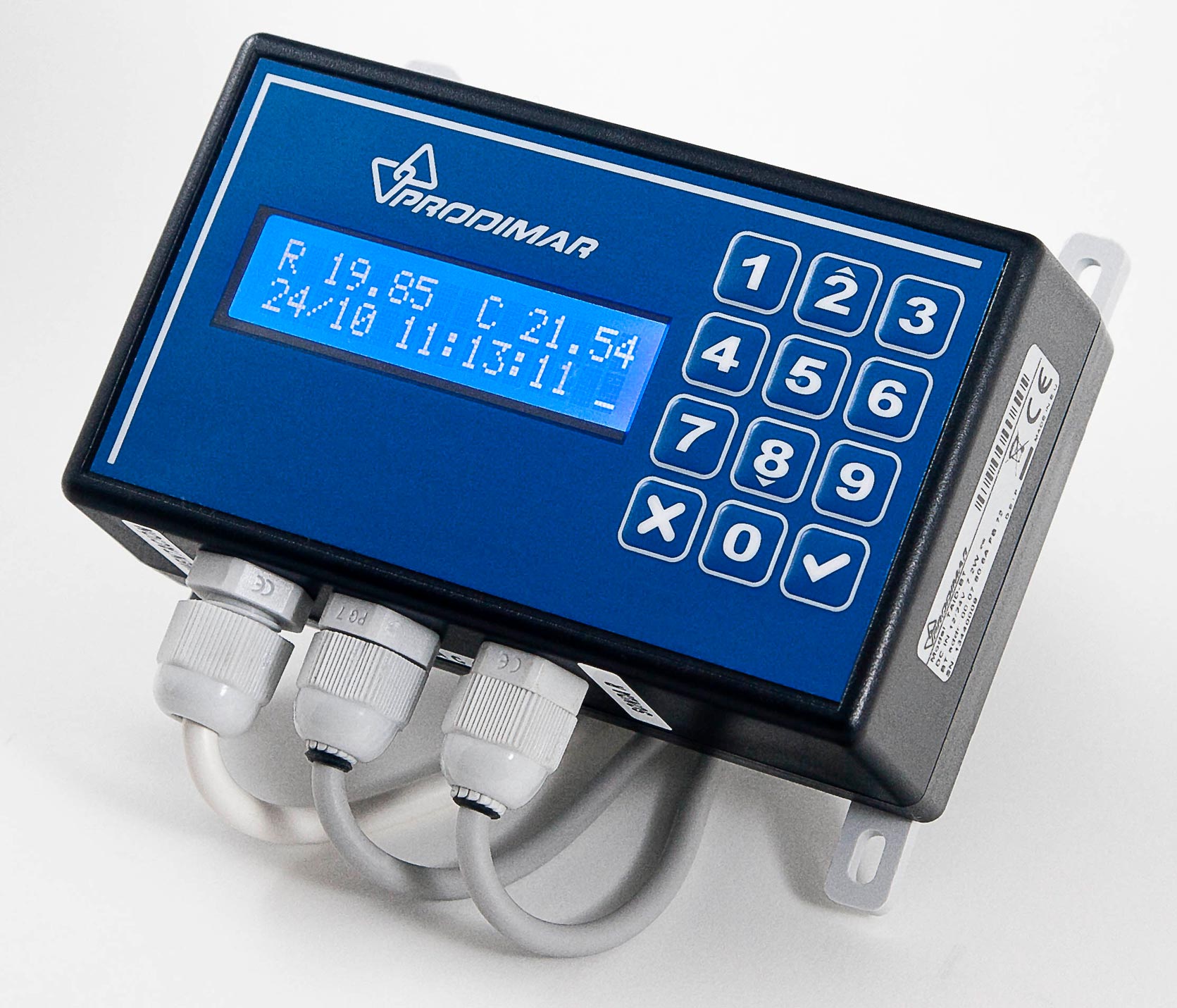

Space for keyboards of various sizes is available on both the top and bottom of the box, which further increases its versatility

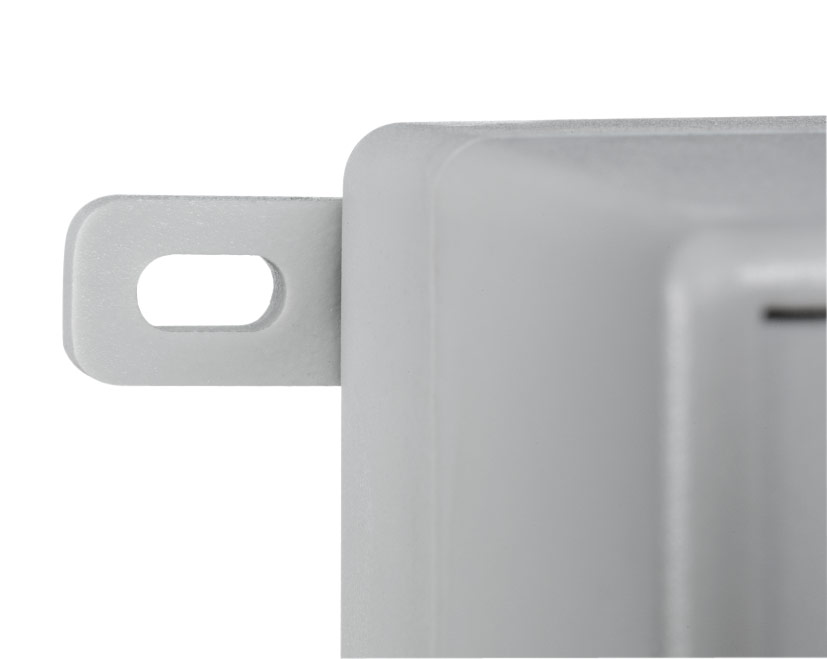

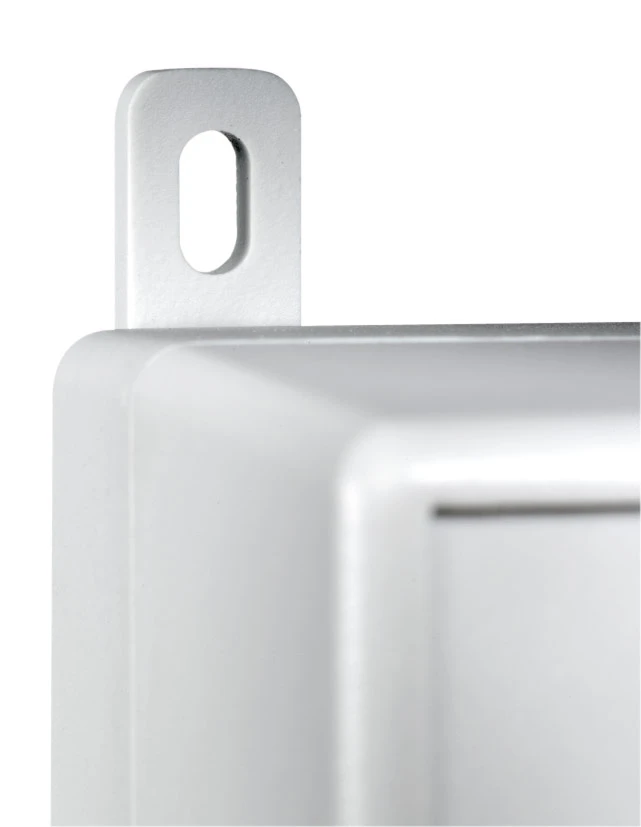

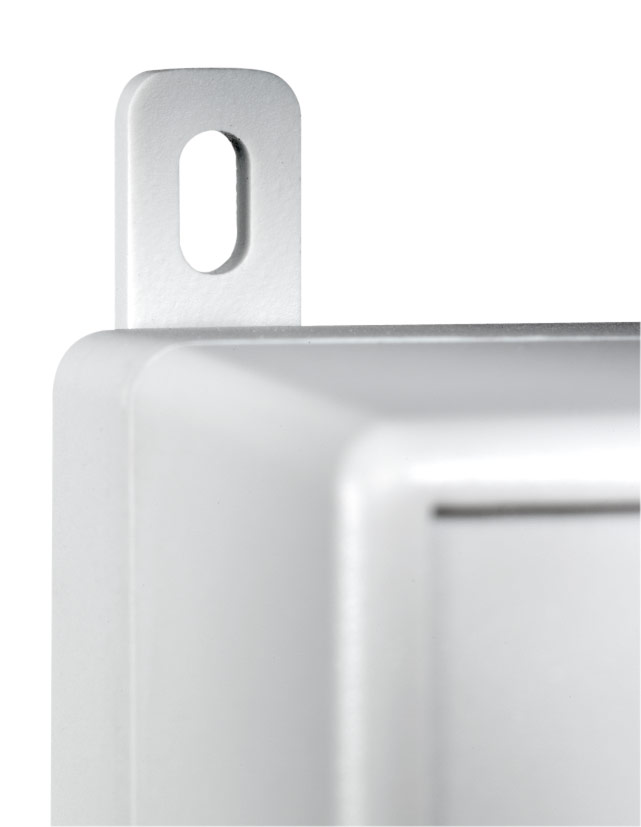

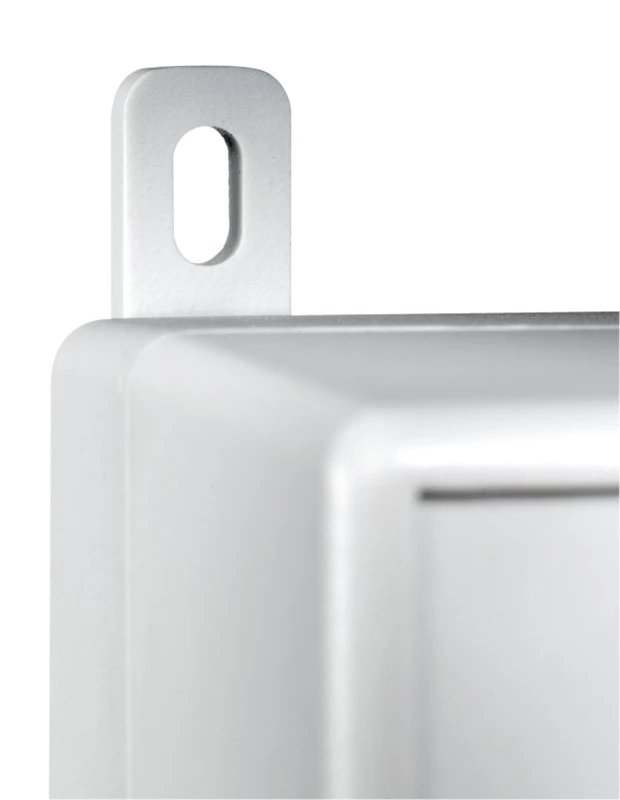

Two wall mounting options: either by means of separate feet or using pre-drilled holes in the base
Circuit board guides in vertical orientation are built into the base and lid along with 5mm high screws for horizontal mounting

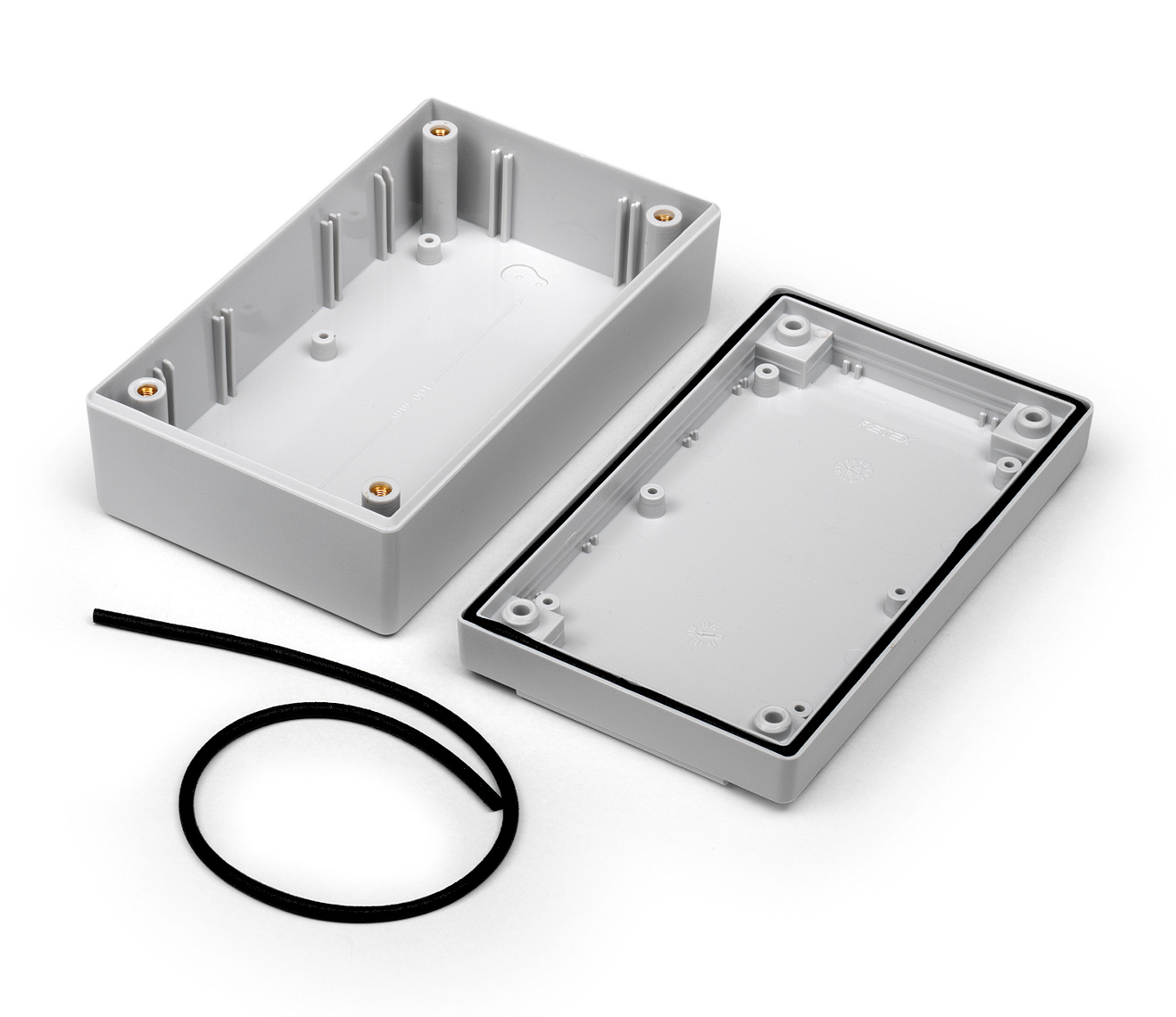

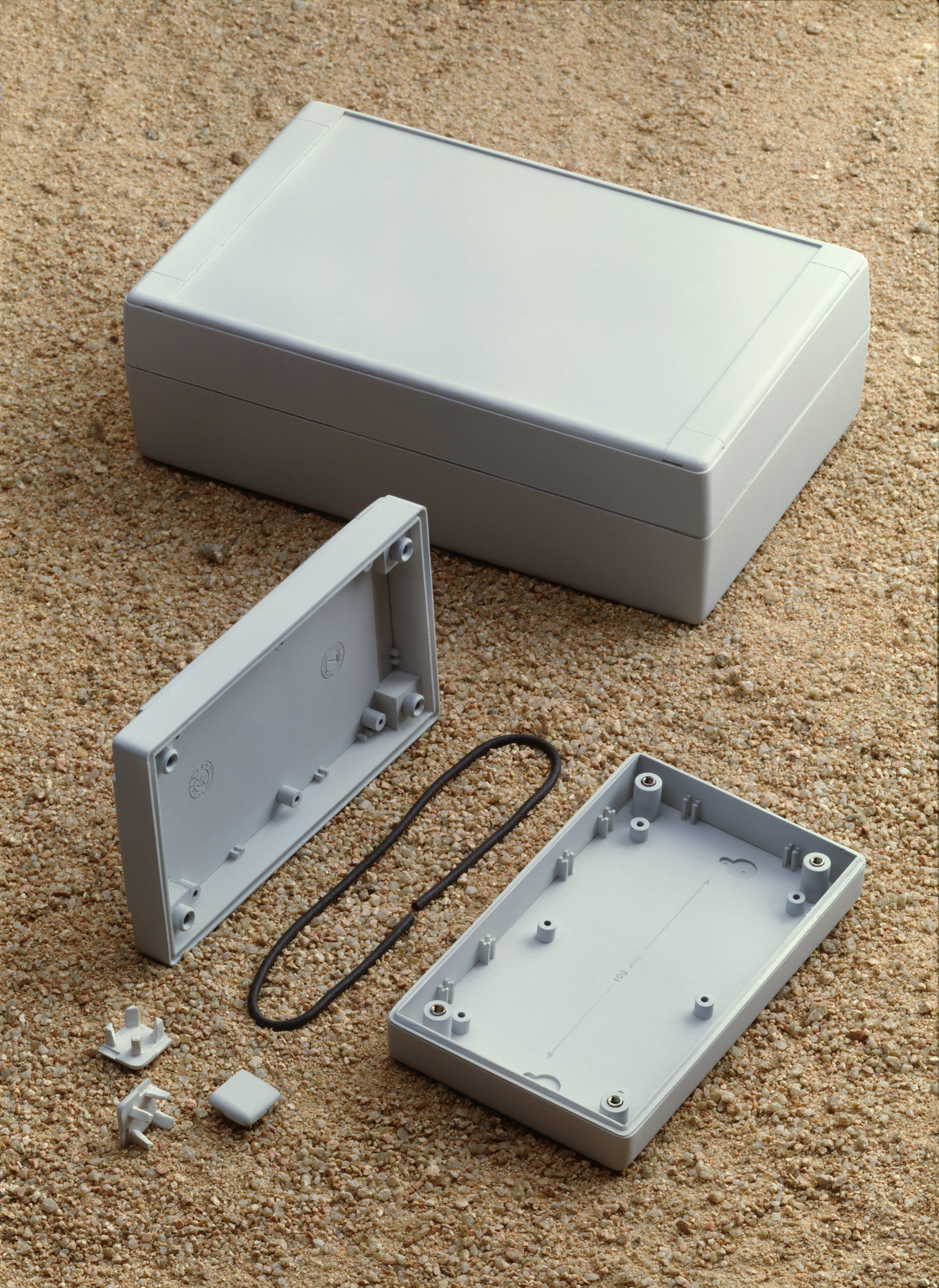

Basic unit includes: lid, base, 4 screws and 4 caps

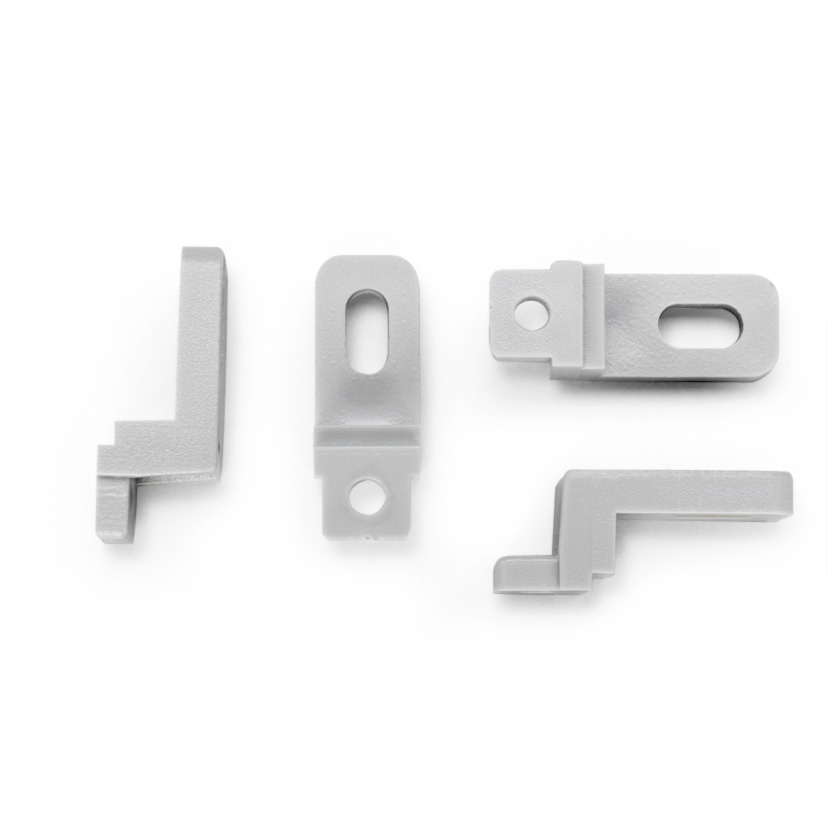

Accessories: Seal with O-ring, EPDM rubber; multi-position wall mounting kit

MATERIALS AND SURFACE TREATMENT

Highly durable ABS plastic, excellent for machining
Standard color: light gray - similar to RAL 7035, black - similar to RAL 9004

OPTIONAL

Custom drilling, screen printing, internal EMI/RFI shielding, ABS UL94V0, other colors
