Sub-rack & 19" boîtiers pour l'électronique

Serie EP

Complies with IEC 60 297 and DIN 41 494 standards.

Fiche technique En savoir plus

Où nous trouver ?


Product introduction

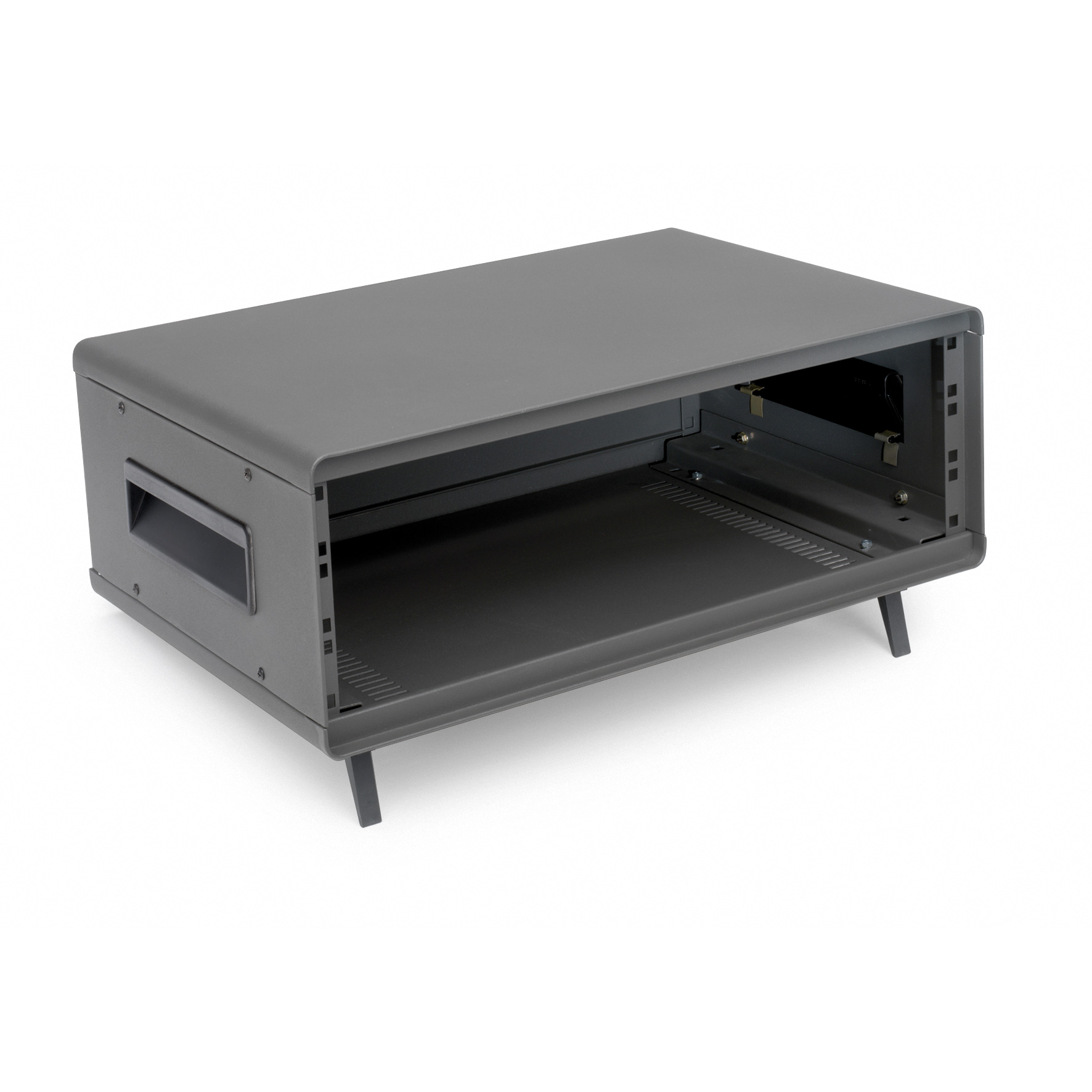

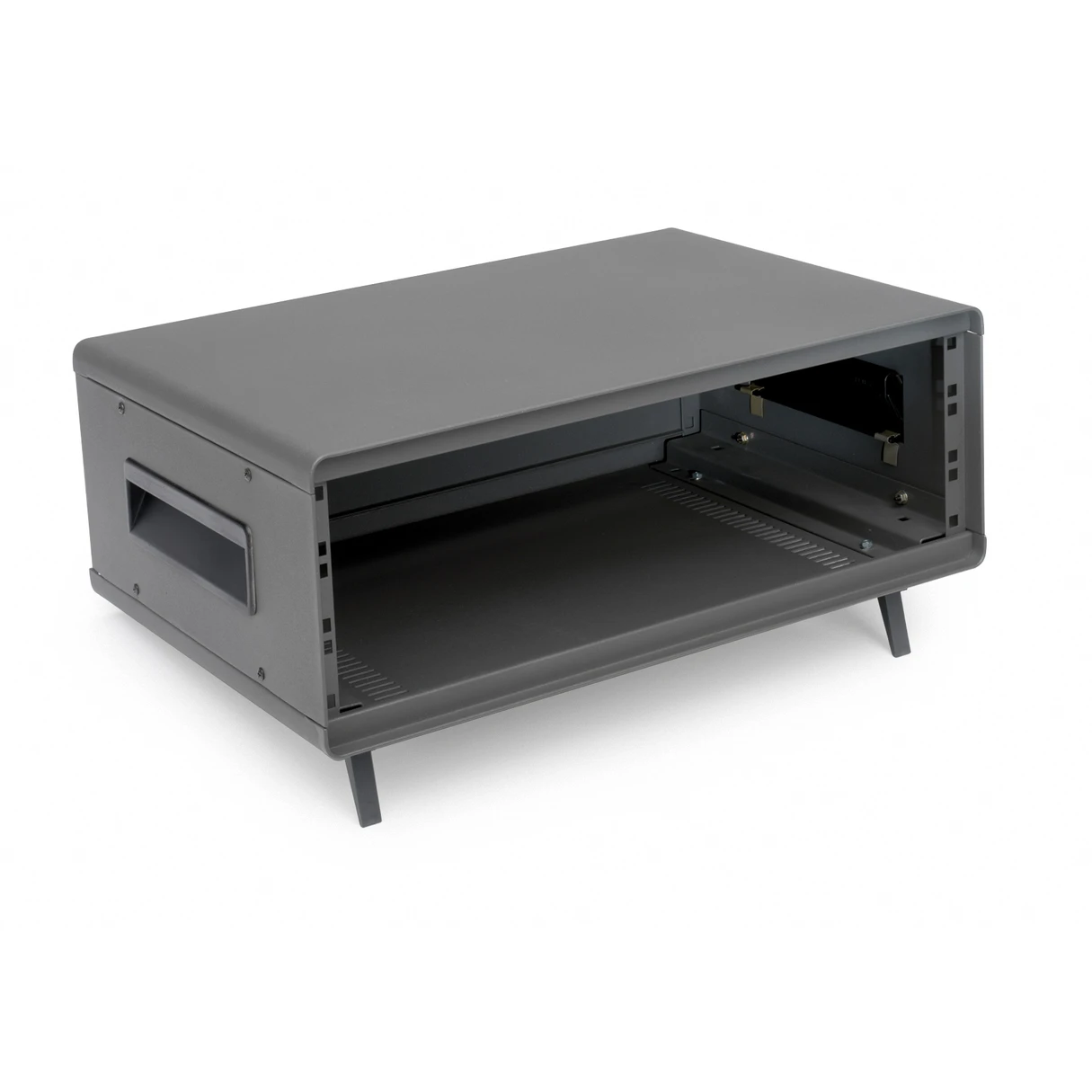

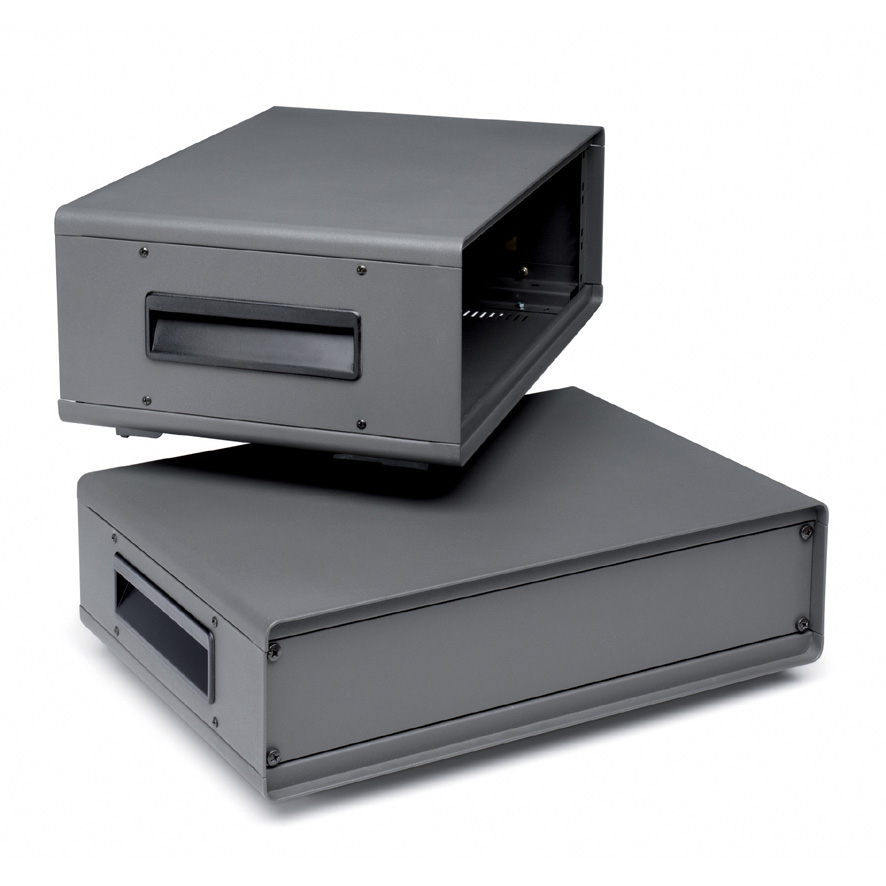

Robust and lightweight Sub-rack and 19" electronics box Serie EP. They are designed to meet IEC 60 297 and DIN 41 494 standards and can accommodate sub-cabinets and 84E full-width cabinets.

Information Pour télécharger

Information

Key features

Nom de la ligne de produits1	Serie EP
Technical information	DESCRIPTION Available in 3U and 6U format Supplied with ABS plastic feet, hinged at the front and fixed at the rear Ventilation openings in the base and back panel The side panels have recessed ABS grips, ergonomically positioned for comfort and easy transport Base unit includes: top cover and base cover, two side panels, one rear panel, four feet (two hinged feet in front), brackets, mounts, and mounting hardware. Comes in a flat pack MATERIALS AND SURFACE TREATMENT Made completely from 1 mm thick steel Top and bottom cover and side panels - graphite gray epoxy paint Handles - high-quality injection molded ABS; black color similar to RAL 9004 Feet - high-quality injection molded ABS; dark gray color similar to RAL7016 OPTIONAL Custom dimensions, custom drilling, optional castors

Nom de la ligne de produits1

Serie EP

Technical information

DESCRIPTION

Available in 3U and 6U format
Supplied with ABS plastic feet, hinged at the front and fixed at the rear
Ventilation openings in the base and back panel
The side panels have recessed ABS grips, ergonomically positioned for comfort and easy transport
Base unit includes: top cover and base cover, two side panels, one rear panel, four feet (two hinged feet in front), brackets, mounts, and mounting hardware. Comes in a flat pack

MATERIALS AND SURFACE TREATMENT

Made completely from 1 mm thick steel
Top and bottom cover and side panels - graphite gray epoxy paint
Handles - high-quality injection molded ABS; black color similar to RAL 9004
Feet - high-quality injection molded ABS; dark gray color similar to RAL7016

OPTIONAL

Custom dimensions, custom drilling, optional castors
