Plinths are used as an aesthetic and stabilizing element of rack cabinets. This is an alternative to the standard height-adjustable legs or optional castors.

Fiche technique En savoir plus

Où nous trouver ?

Product introduction

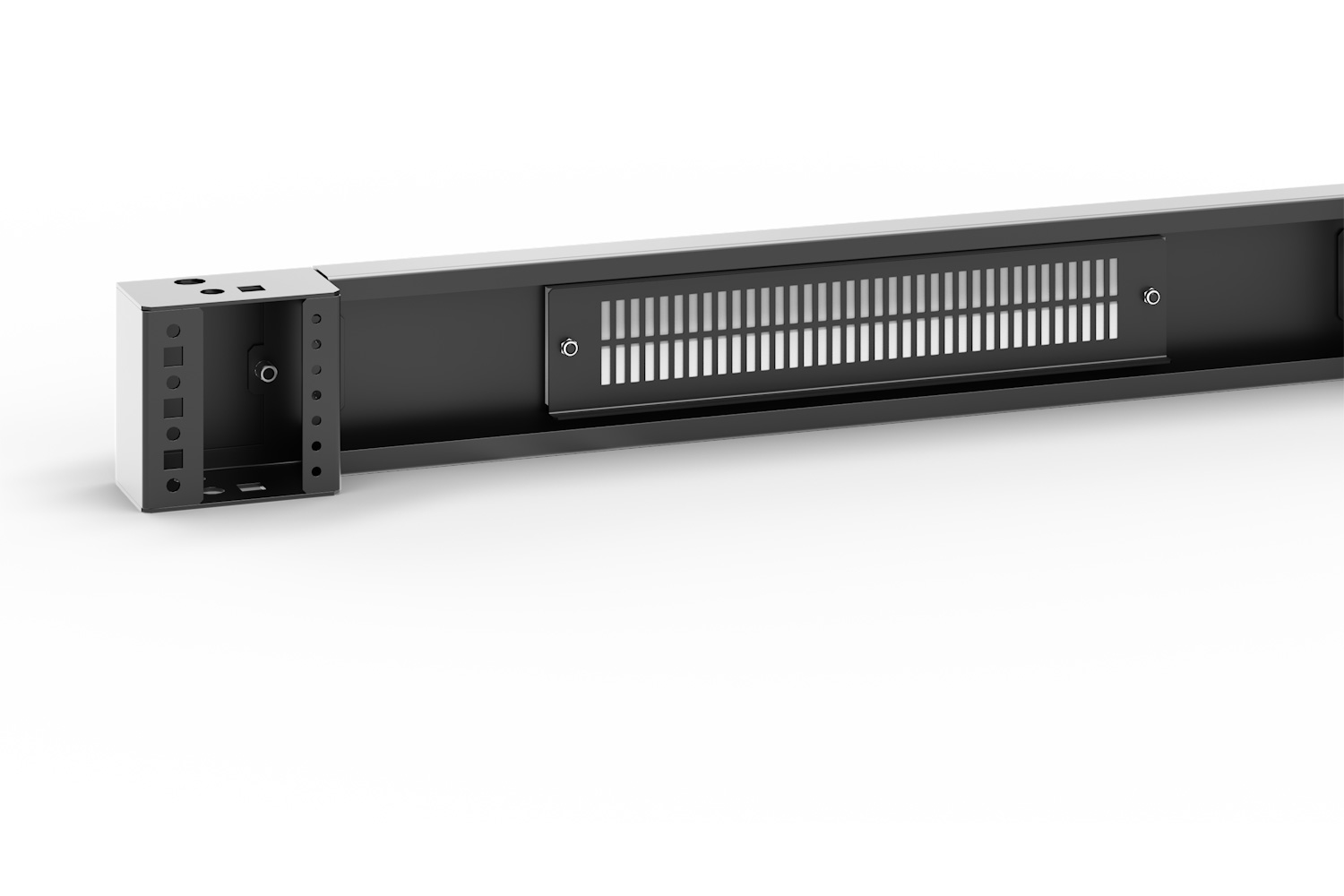

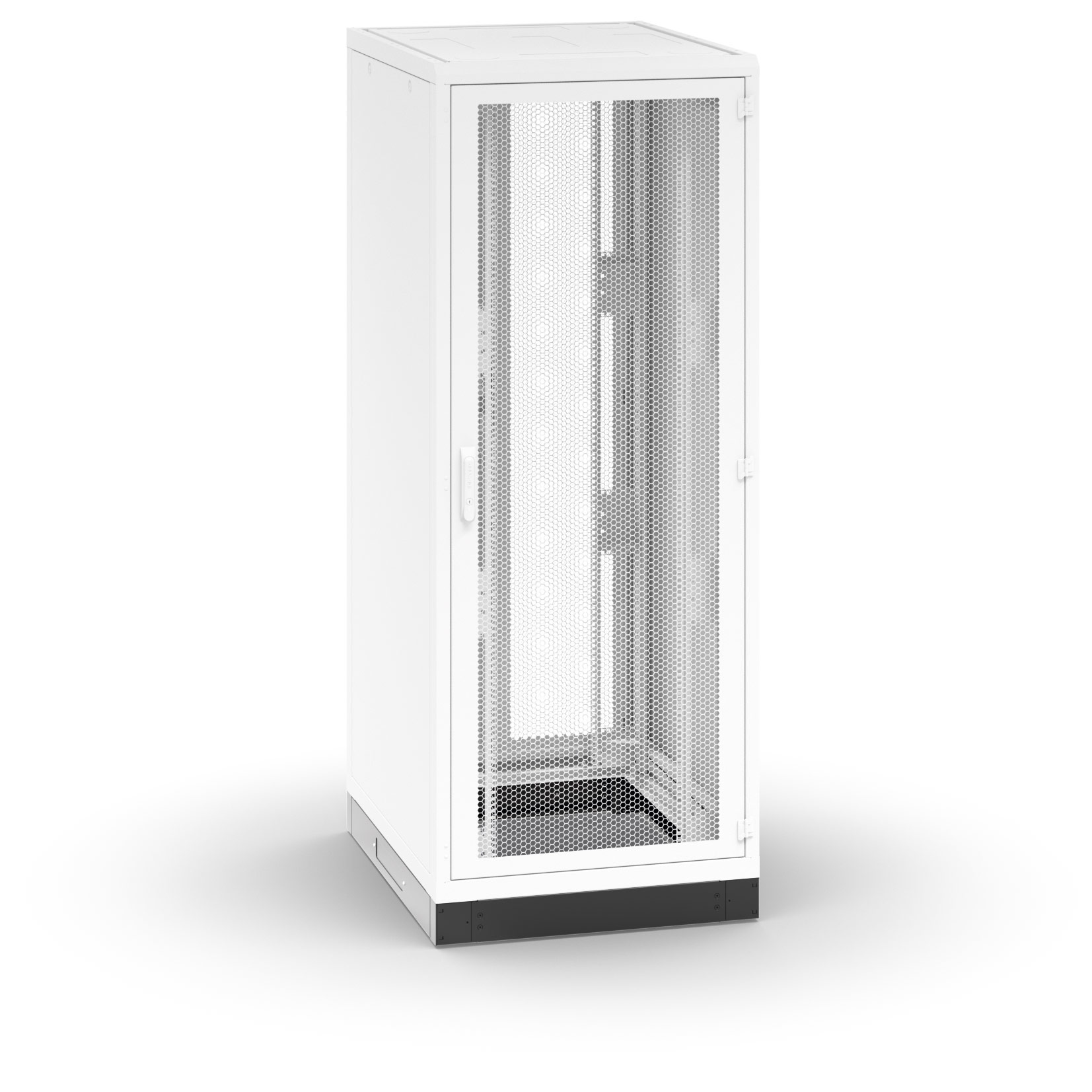

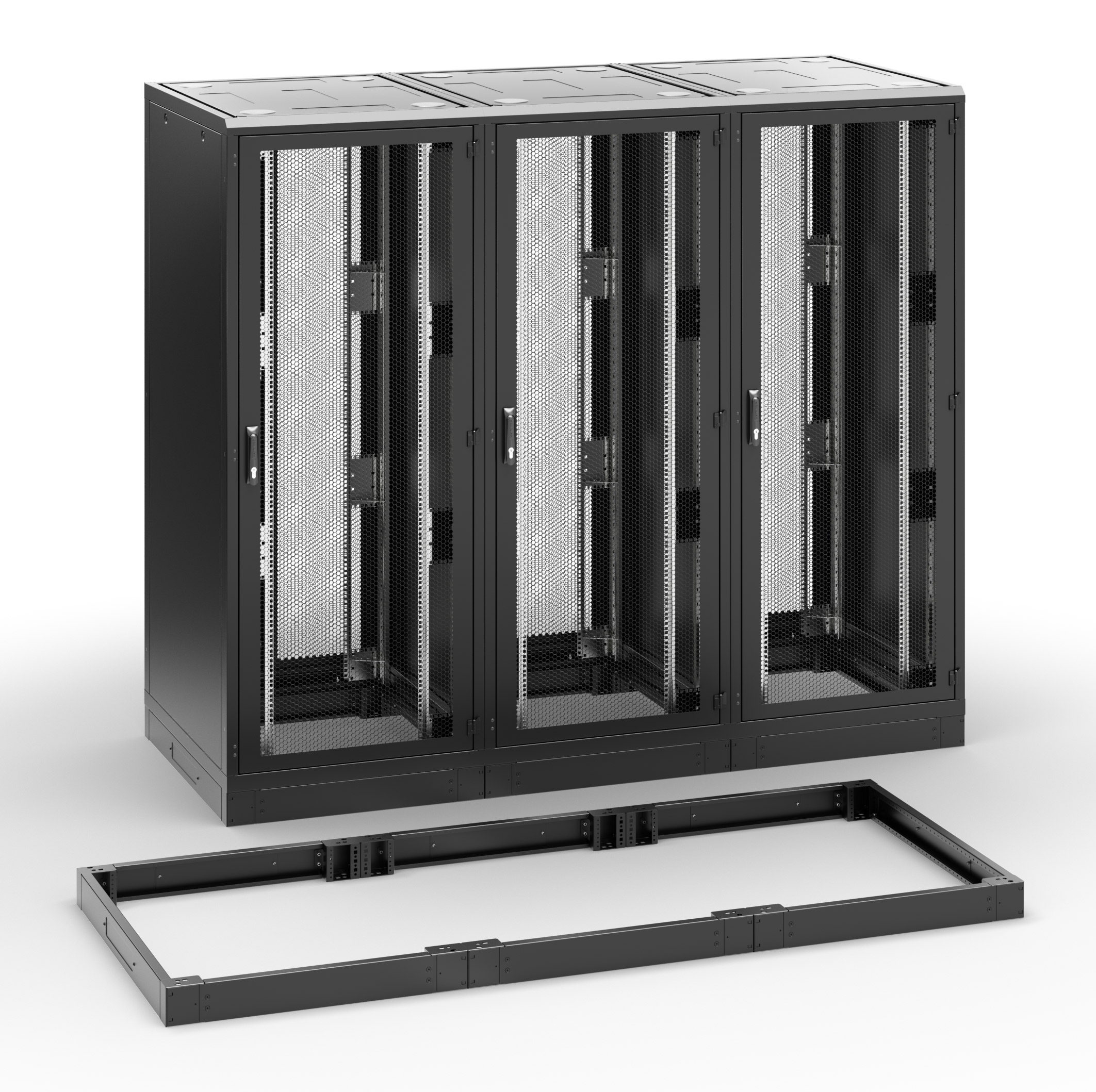

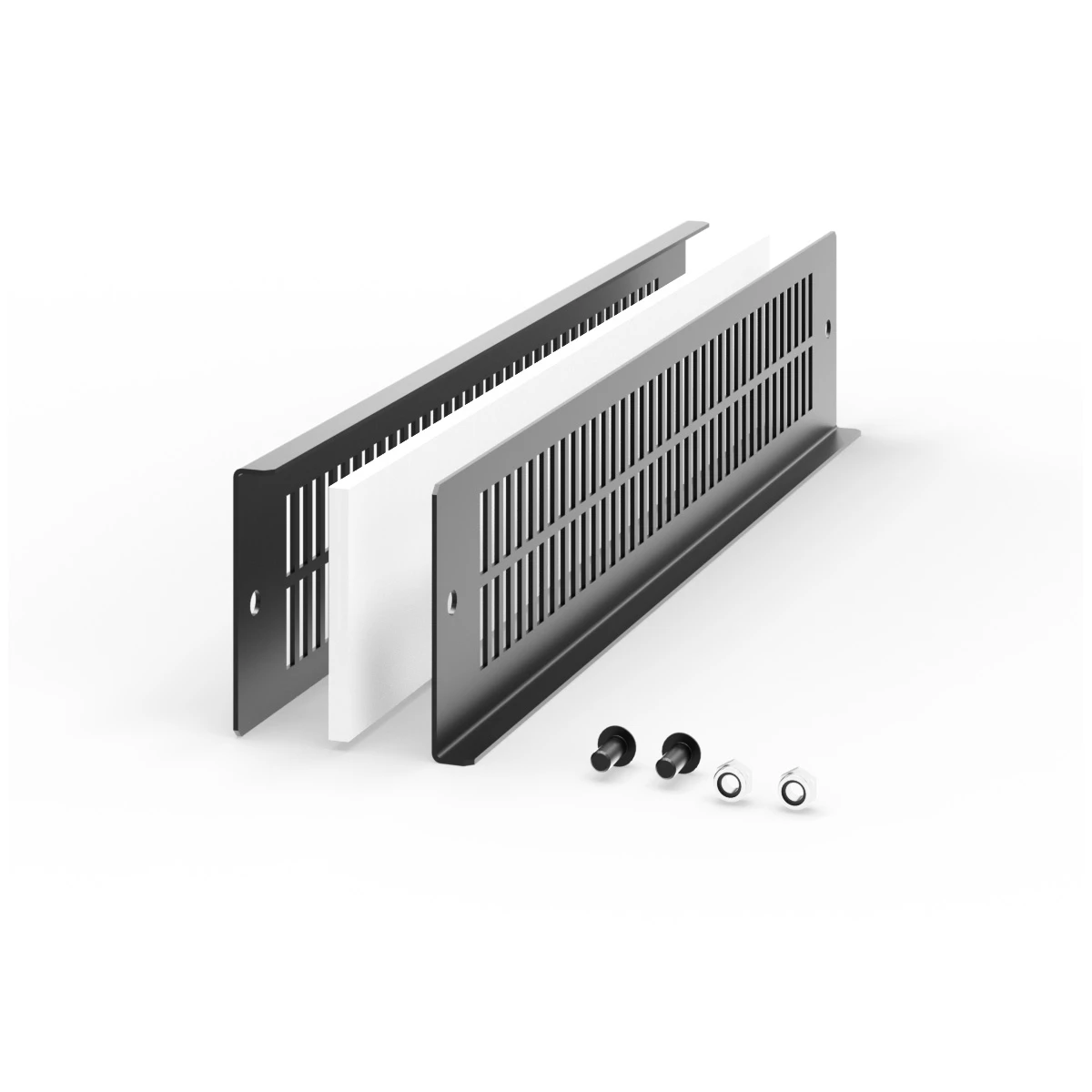

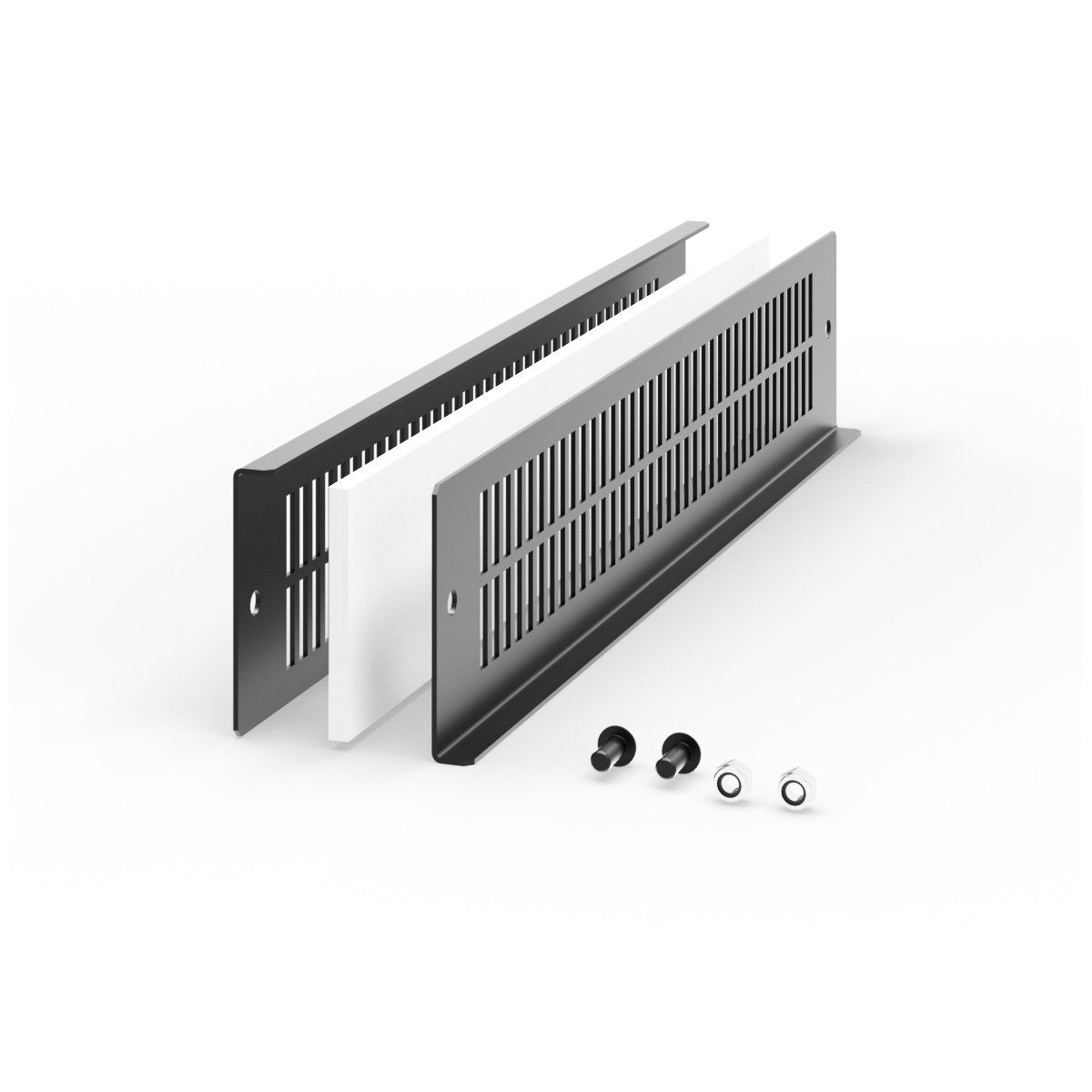

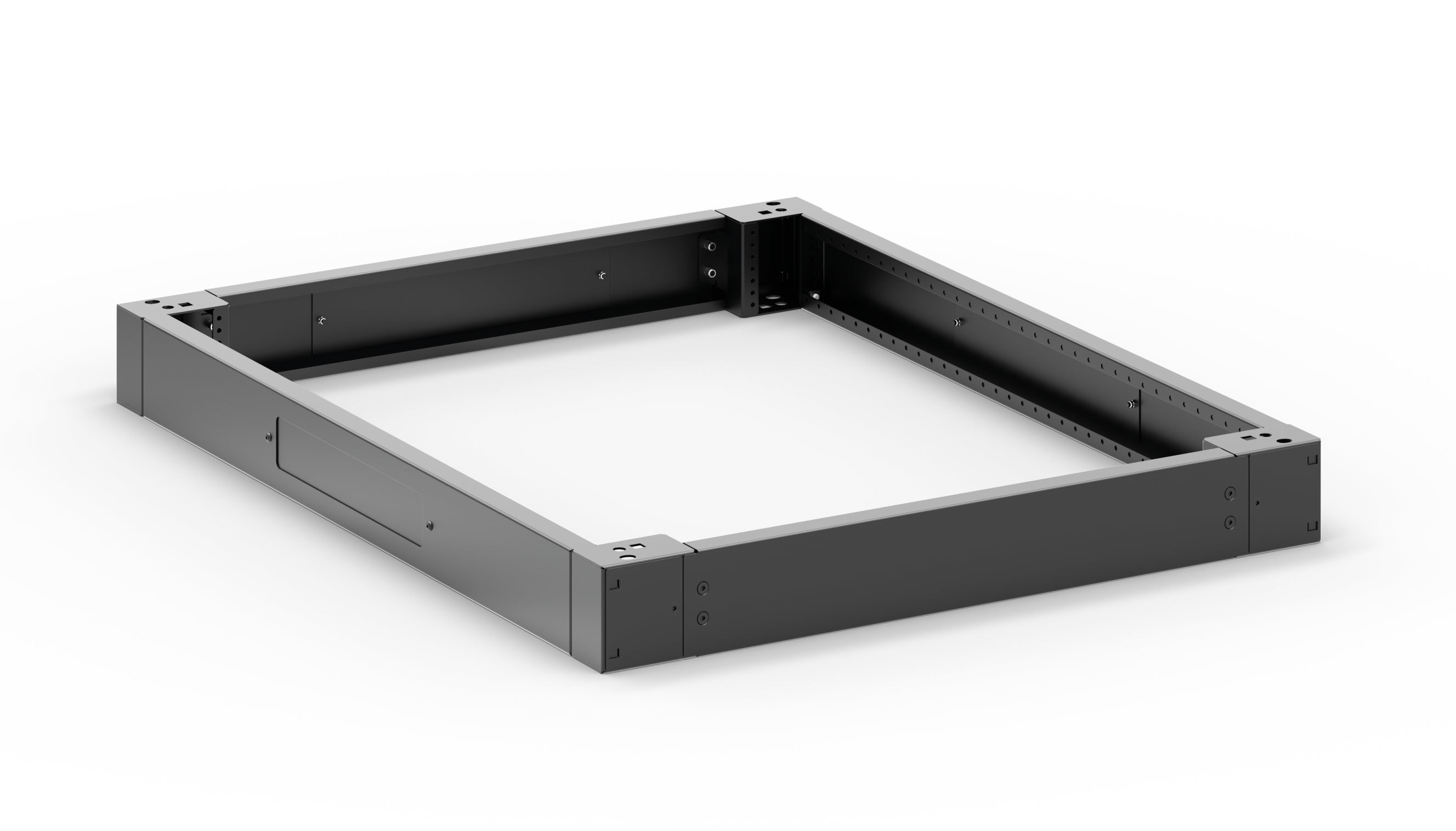

Modular plinths are used as an aesthetic and stabilizing element instead of feet or castors. If a filter is used, the plinth ensures a sufficient flow of filtered air. Can also be used to lay cables.

Applicable for the PREMIUM and iSEVEN cabinet series (RDF, RSF, RSB, RI7 and RM7)
Height: 100 mm
Comes unassembled; fasteners and instructions are part of the delivery
Includes: set of corners, front and back panels, and a set of side panels
Color: RAL 9005, RAL 7035

Information Pour télécharger

Information

Key features

Product line name	Modular plinths

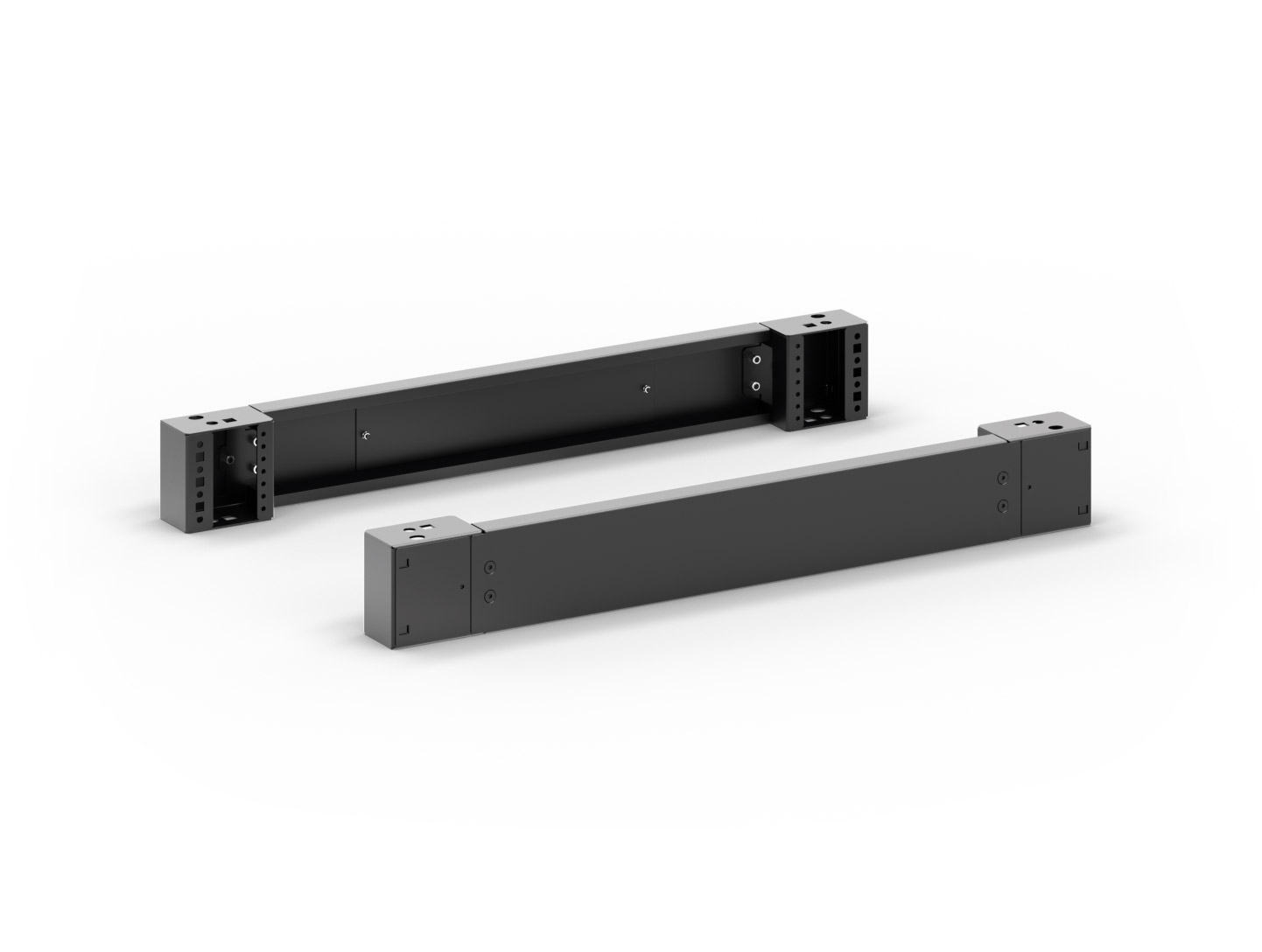

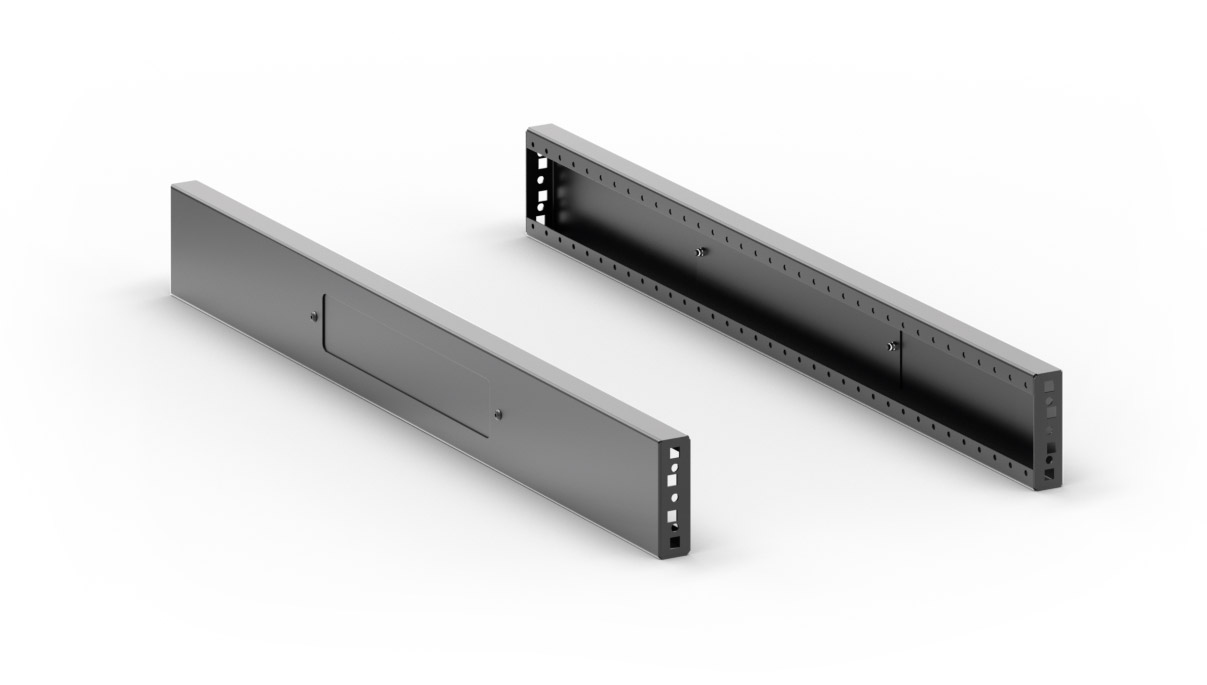

Technical information	SET OF CORNERS WITH FRONT AND BACK PANELS Set of two panels with corners for all cabinets The dimensions correspond to the width of the cabinet and the CoolTeg inter-cabinet cooling unit Load capacity: 1,700 kg Height: 100 mm SIDE PANEL SET Set of two plinth panels for all cabinets The dimensions correspond to the width of the cabinet and the CoolTeg inter-cabinet cooling unit Height: 100 mm
