Holders are intended for holding a keyboard or monitor. A drawer is designed to store drawings, technical documentation, etc. directly in the cabinet.

Fiche technique En savoir plus

Où nous trouver ?

Product introduction

The holders are designed to hold a keyboard. A drawer is designed to store drawings, technical documentation, etc. directly in the cabinet.

Information Pour télécharger

Information

Key features

Product line name	Drawers and holders
Technical information	Document drawer – DP-DD-03 Made of 1.25 and 1.5 mm sheet metal Height 3U Max. extension 280 mm Load capacity max. 10 kg (even load) Flip-up keyboard holder – DP-PV-01 Designed for placement of a keyboard in the space in front of the 19"" rails Max. external dimensions of the keyboard 480x175 mm Height 1U Keyboard to be fastened with self-adhesive Velcro Extendable keyboard holder – DP-PV-02 Made of 1.5 mm sheet metal Max. keyboard width 400 mm and height 36 mm Shelf width 480 mm Max. extension 330 mm Rear supports included

Product line name

Drawers and holders

Technical information

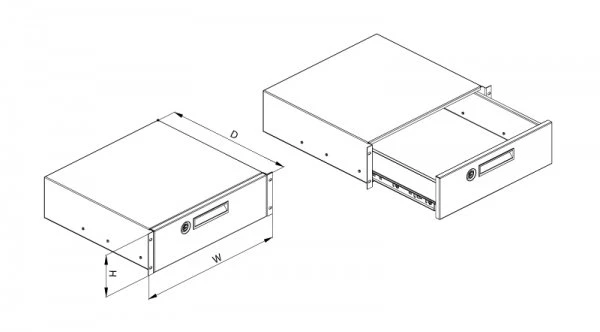

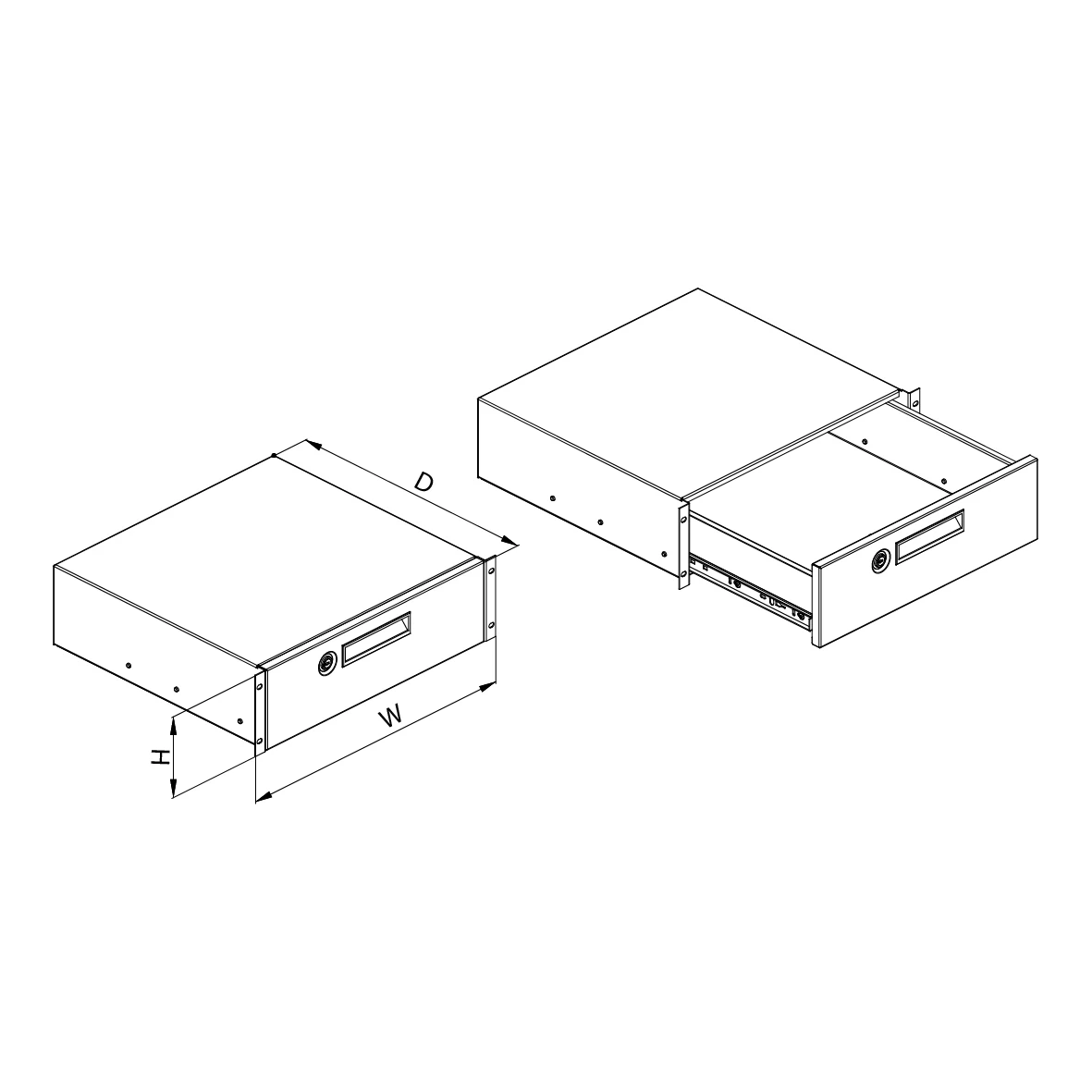

Document drawer – DP-DD-03

Made of 1.25 and 1.5 mm sheet metal
Height 3U
Max. extension 280 mm
Load capacity max. 10 kg (even load)

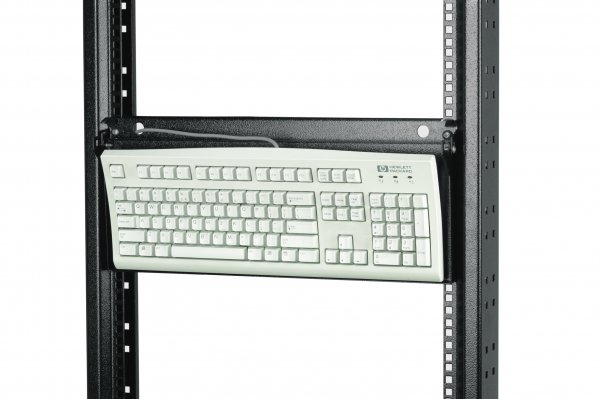

Flip-up keyboard holder – DP-PV-01

Designed for placement of a keyboard in the space in front of the 19"" rails
Max. external dimensions of the keyboard 480x175 mm
Height 1U
Keyboard to be fastened with self-adhesive Velcro

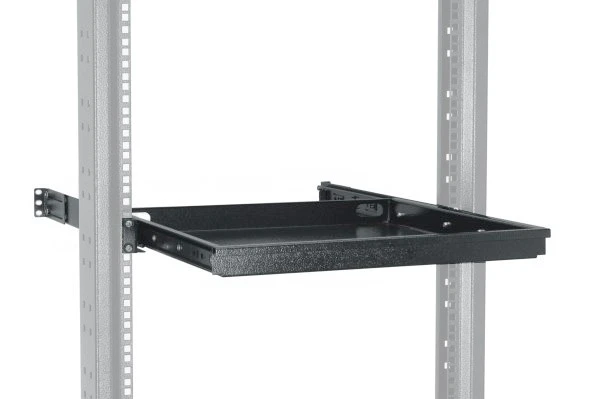

Extendable keyboard holder – DP-PV-02

Made of 1.5 mm sheet metal
Max. keyboard width 400 mm and height 36 mm
Shelf width 480 mm
Max. extension 330 mm
Rear supports included
