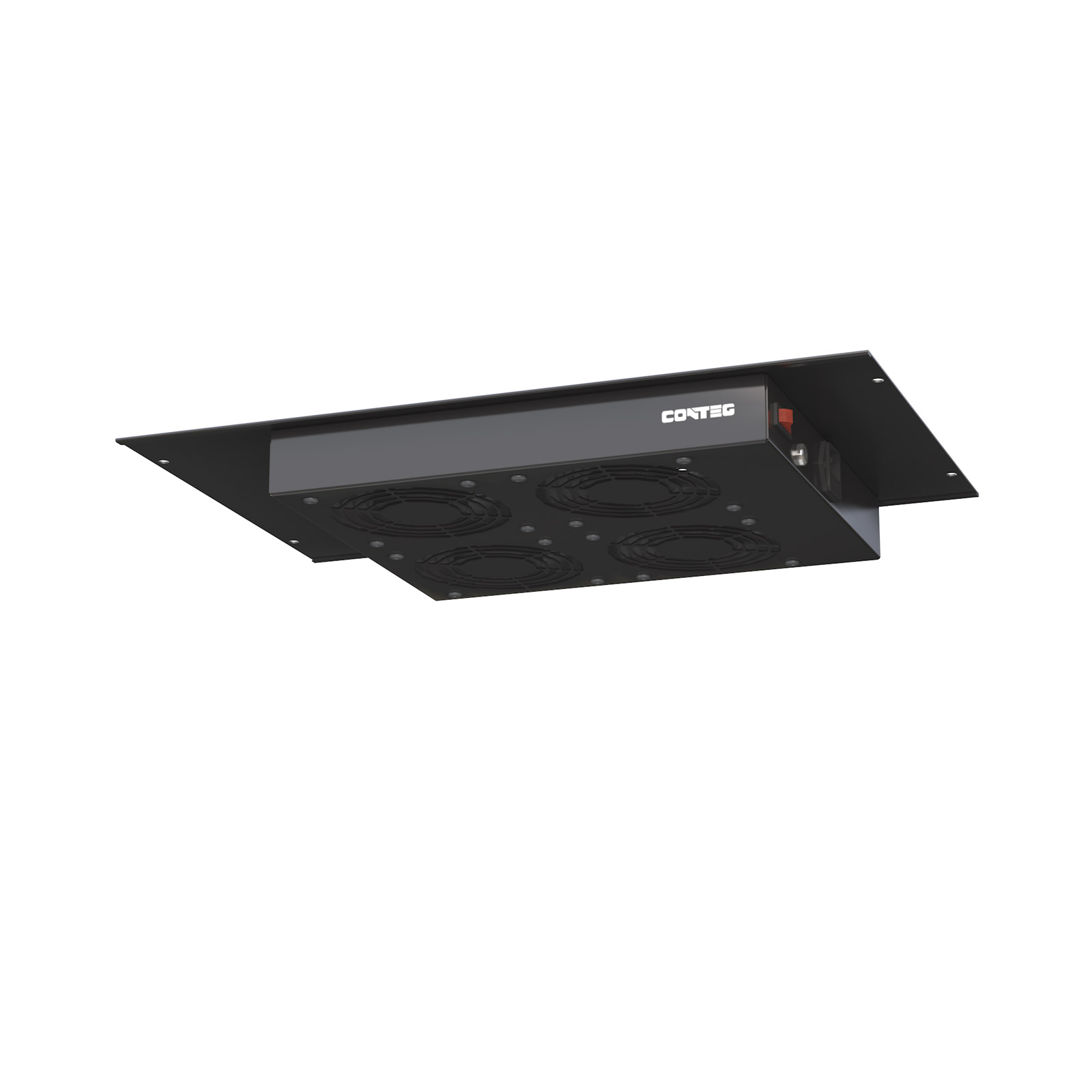

Unités de ventilation LITE
Ventilation units are used to cool the equipment in the cabinet using air drawn from the room.
Product introduction
Ventilation units are used to cool the equipment installed in the cabinet using air drawn from the room. They mount either on 19" vertical rails (horizontally) or in the upper or lower frame of the cabinet (installation frame required). Units with up to 4 fans available.
Information
Pour télécharger
Pour ajouter un produit à votre panier, vous devez Se connecter / S'inscrire
Information
Key features
| Nom de la ligne de produits1 |
LITE ventilation units |
|---|---|
| Power |
230 V / 50–60 Hz |
| IP rating |
EN 60529, IP20 |
| Color design |
powder color RAL 9005 |
| Instalace |
Can be installed in the upper or lower frame of the rack cabinet |
| Termostat |
0 °C to +60 °C |
| Application |
Forced air flow through the cabinet to aid cooling |
| Included in the package |
Ventilation unit with mounting plate, thermostat (if included with the model), power cable, installation kit: 4x screw, 4x nut |
| Operating temperature |
-10 °C to +55 °C |
| Number of fans |
Two or four AC drive-fans |
Pour télécharger
Catalogue produits : Solutions et baies data et télécoms
Catalogues et brochures
Taille du fichier : 53.9 MB
Téléchargé : 17. 6. 2025
Fiche technique : Unités de ventilation
Fiche technique
Taille du fichier : 347.54 kB
Téléchargé : 8. 6. 2025
