Product introduction

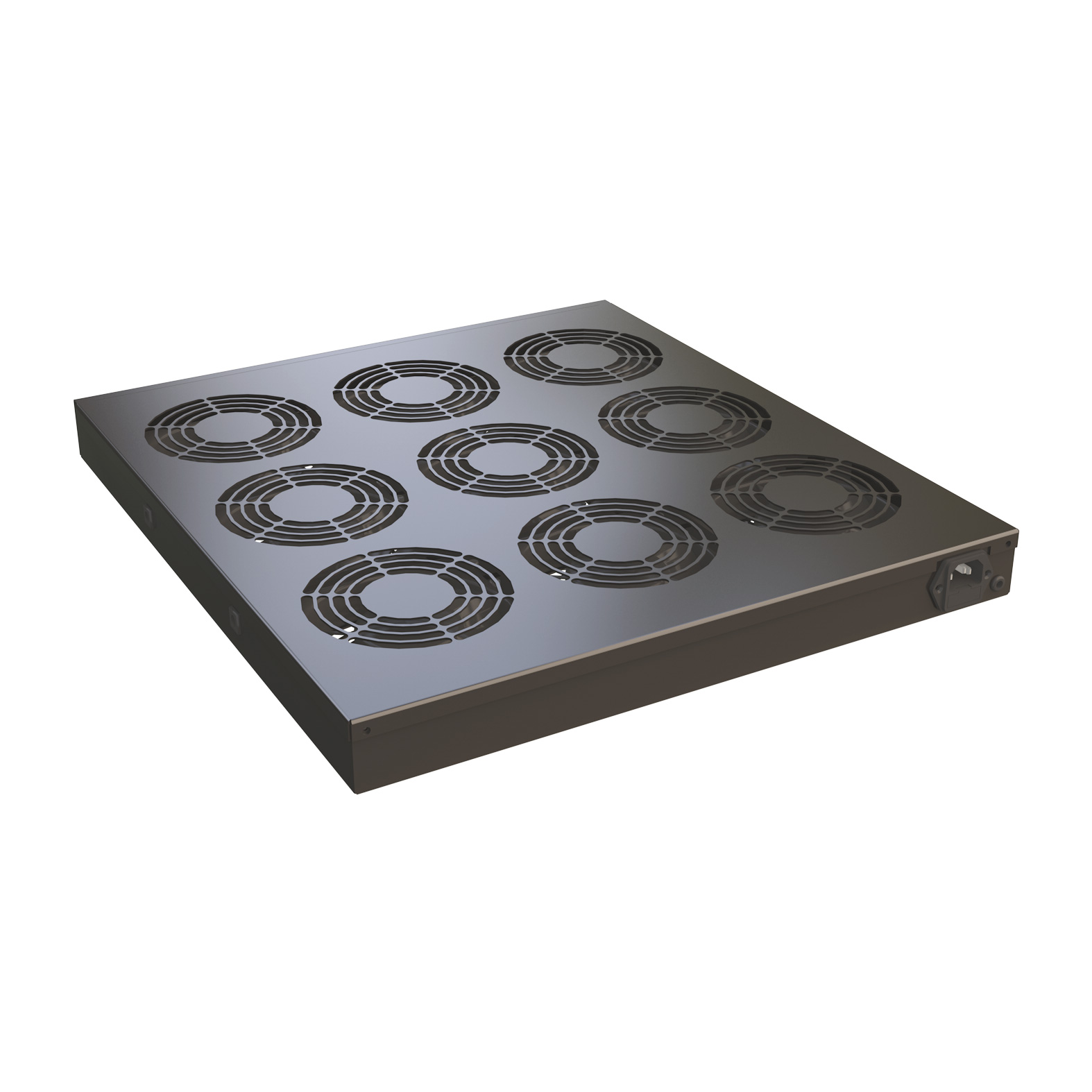

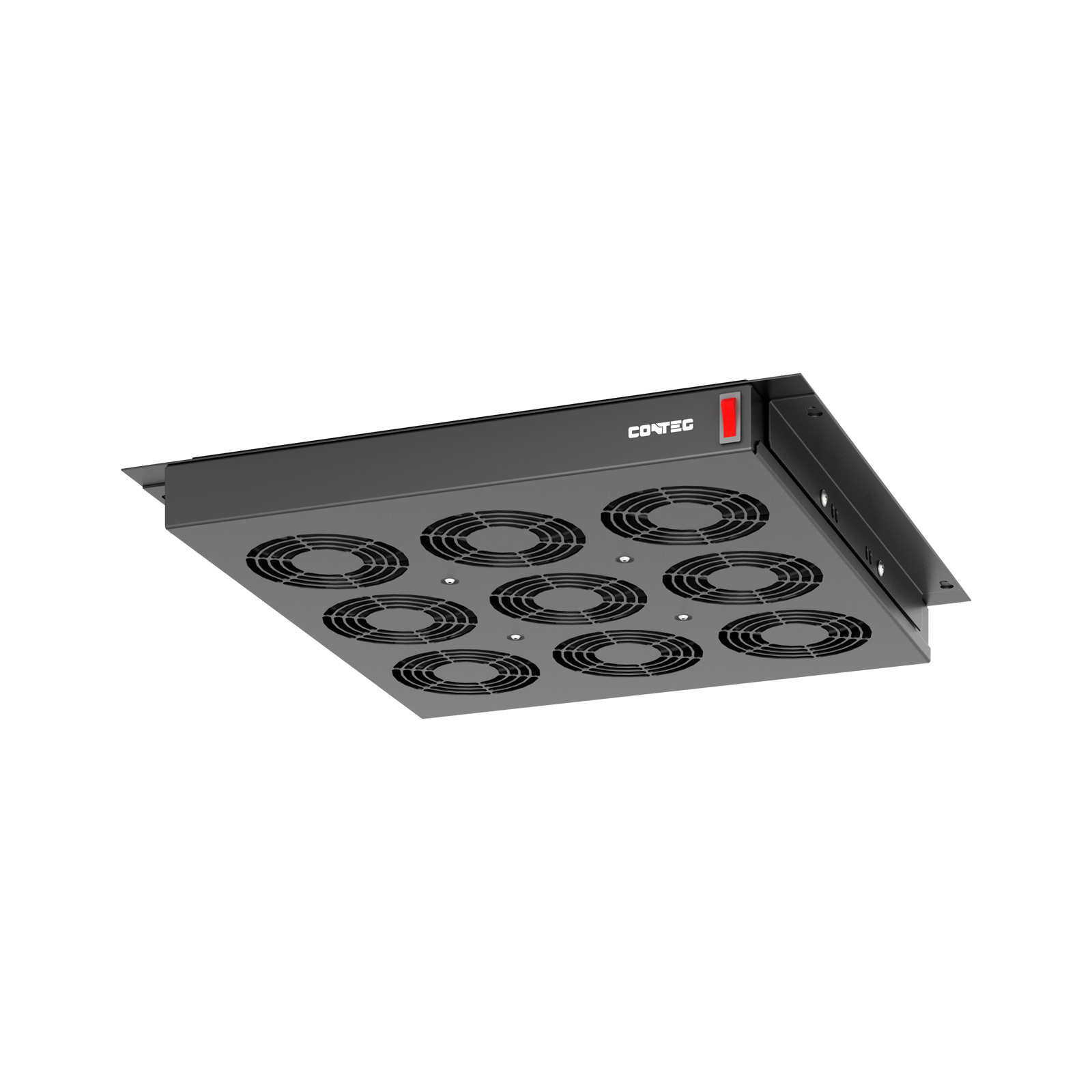

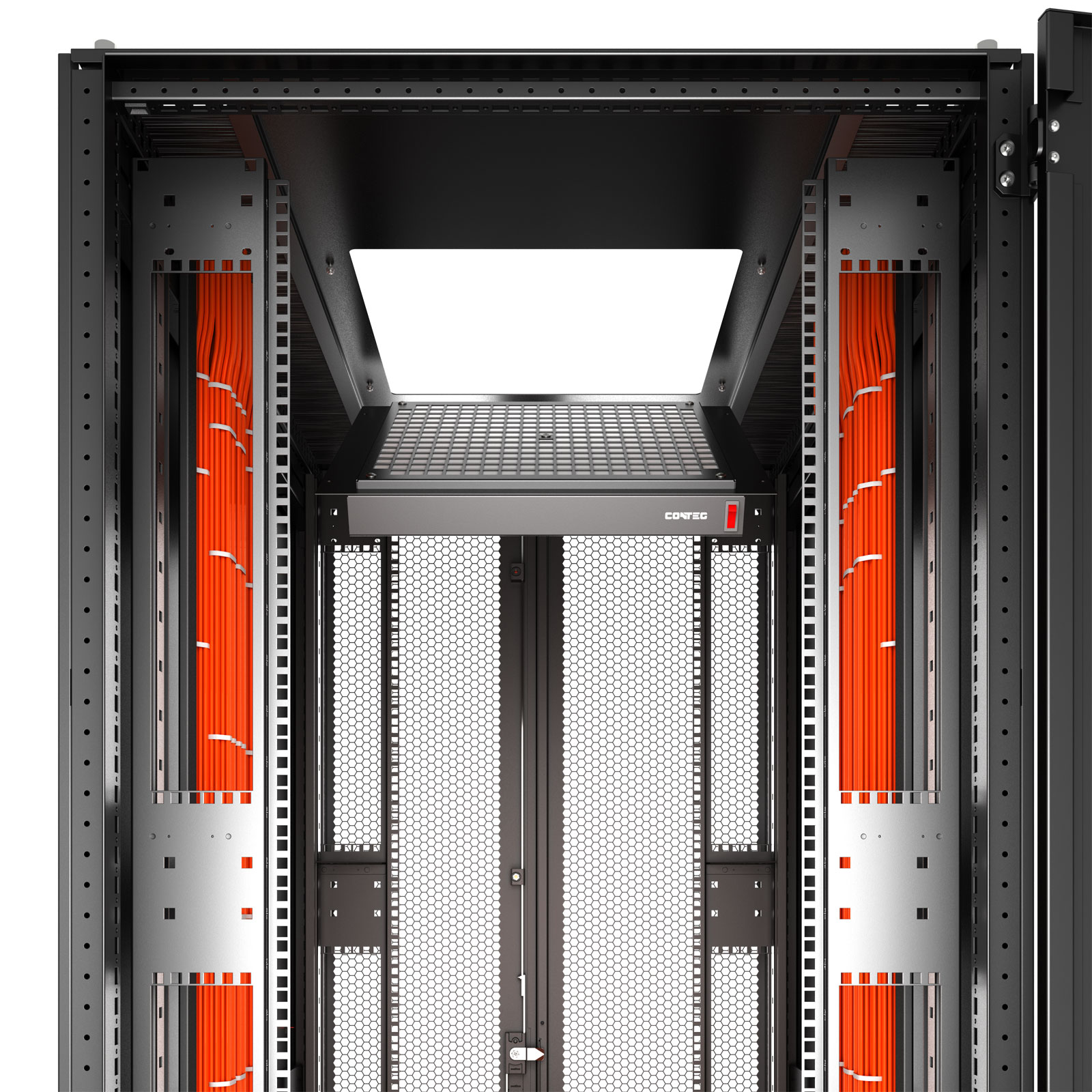

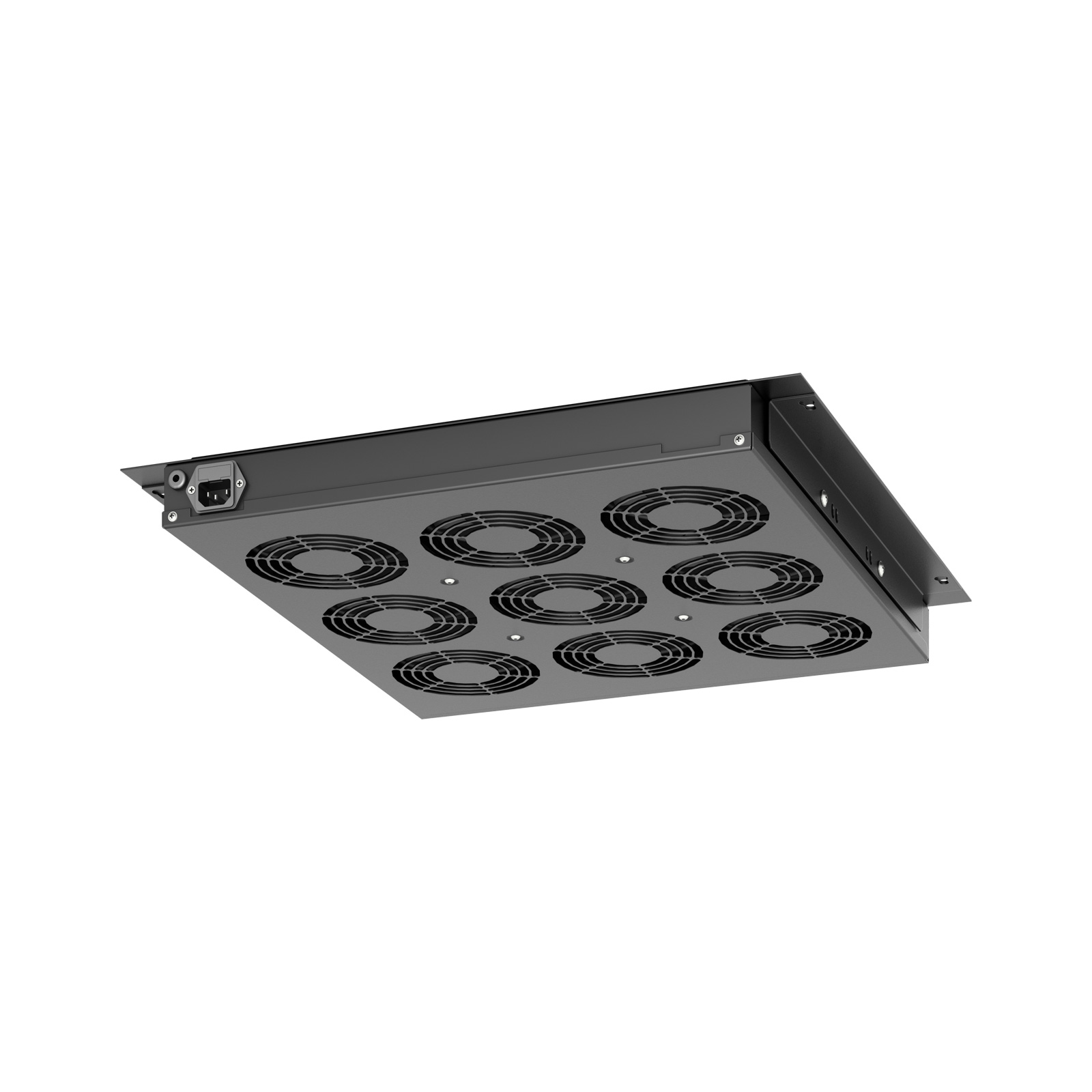

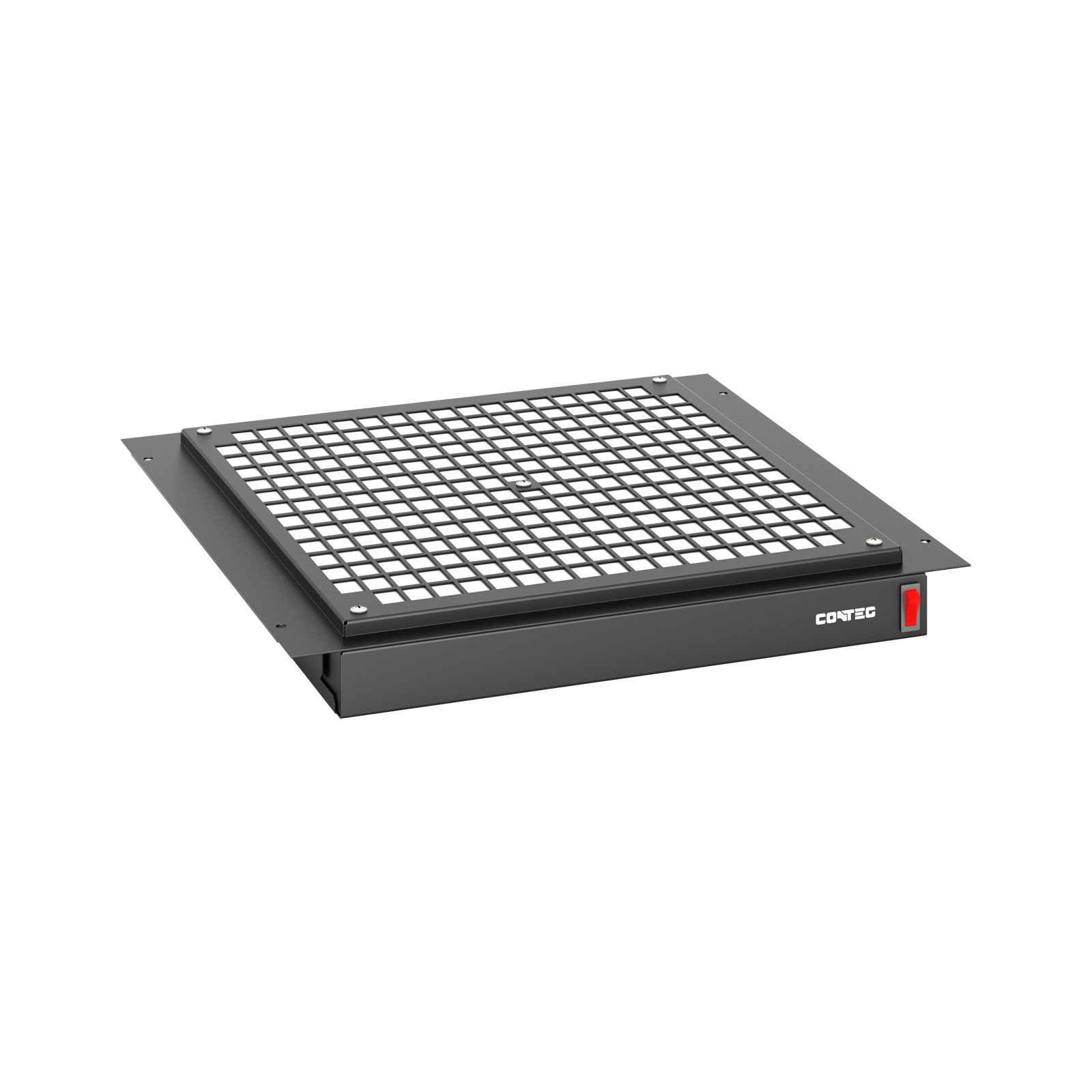

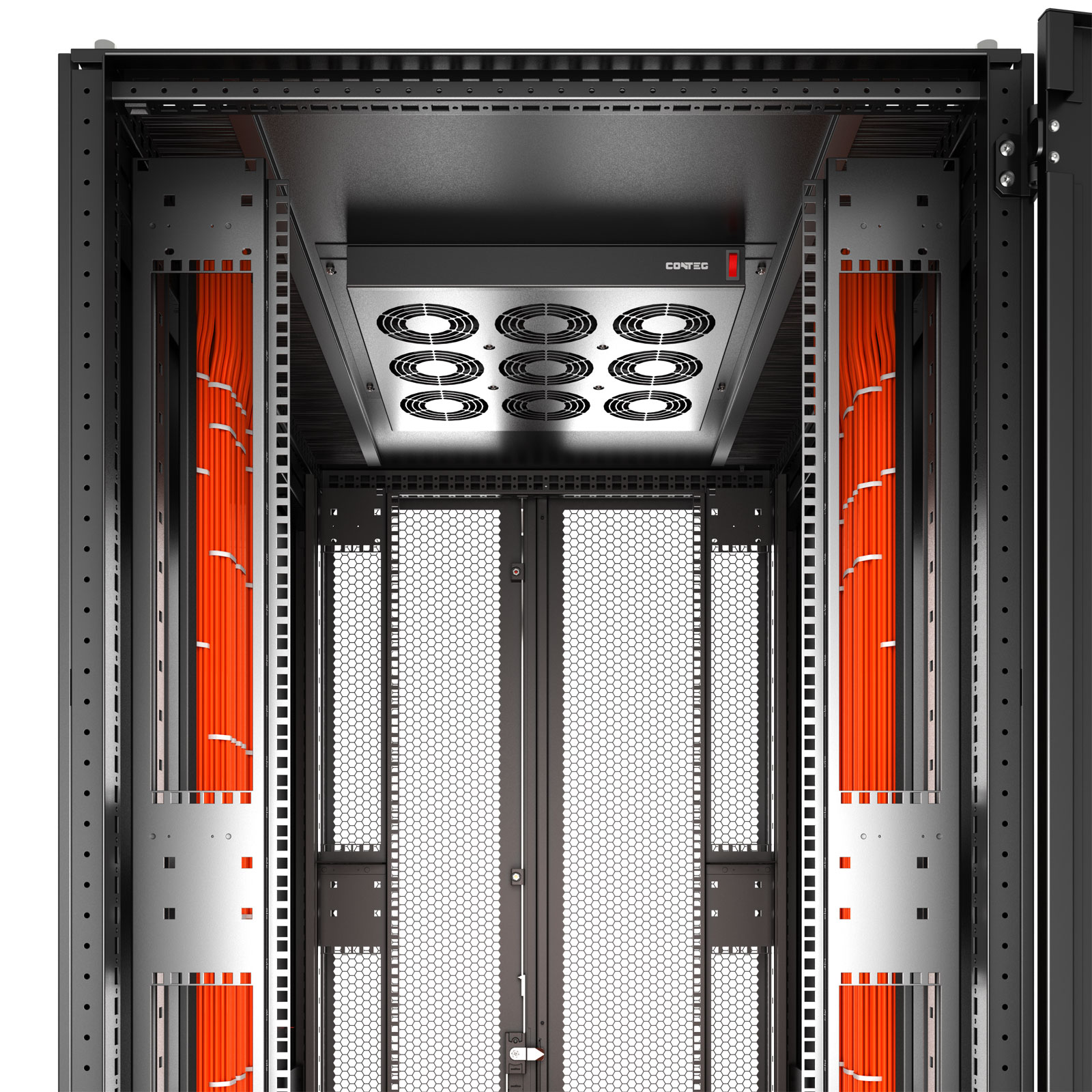

Ventilation units and fans are used to cool the equipment installed in the cabinet using air drawn from the room. They mount either on 19"" vertical rails (horizontally) or in the upper or lower frame of the cabinet (installation frame required). Units with up to 9 fans available.

Specific fan power (SFP) = 611 W / (m3/s)

Information Pour télécharger

Information

Key features

Product line name	Standard fans with AC drives
Technical information	Ventilation units: DP-VEN-02, DP-VEN-03, DP-VEN-04, DP-VEN-06, DP-VEN-09 Ventilation units force air to flow through the cabinet to improve cooling Two to nine fans Installation options: a) to 19"" rails – horizontally; b) In the upper or lower frame of the rack cabinet A connection kit is required to install the ventilation unit in the upper or lower frame Temperature range: -10 °C to +55 °C A thermostat with a range of 0-60 °C is included (no optional thermostat) Voltage range 230 V / 50-60 Hz (48 V DC optional) Protection: according to EN 60529, IP20 Color: powder paint RAL 9005 Standard solution with AC drive-fans DP-VEN-XX Package includes: ventilation unit with 19"" brackets, thermostat, power cable, installation kit DP-MO-01 Fans: DP-VE-01, DP-VEN-01 Forced airflow through the cabinet Two versions with thermostat and metal casing – DP-VEN-01 (for VC perforation), without thermostat and metal casing – DP-VE-01 (for VH or TH perforation) Can be installed in the side or top of the wall-mounted cabinet, Special perforation required - order code needs to be extended: a) VH for 2x side perforation or TH for 2x top cover perforation; both for DP-VE-01 only; b) VC for 2x centrally oriented openings for DP-VEN-01 Perforated panel DP-VE-ROV2 or DP-VE-ROV4 is required in the upper or lower cabinet frame Includes: DP-VE-01: fan with grid, power cable, 8x screw, 8x nut; DP-VEN-01: encapsulated fan, power cable, thermostat, 4x screw, 4x nut

Product line name

Standard fans with AC drives

Technical information

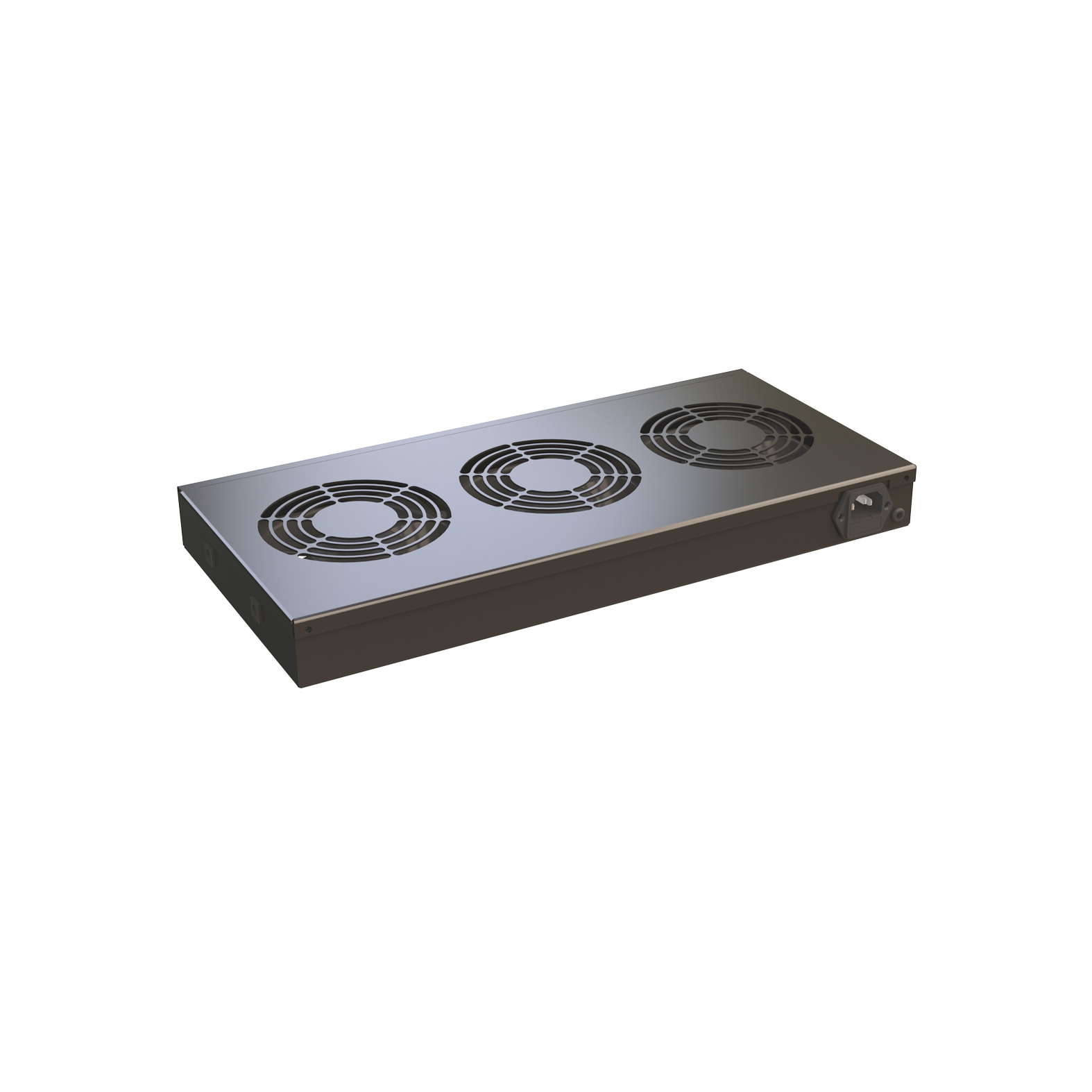

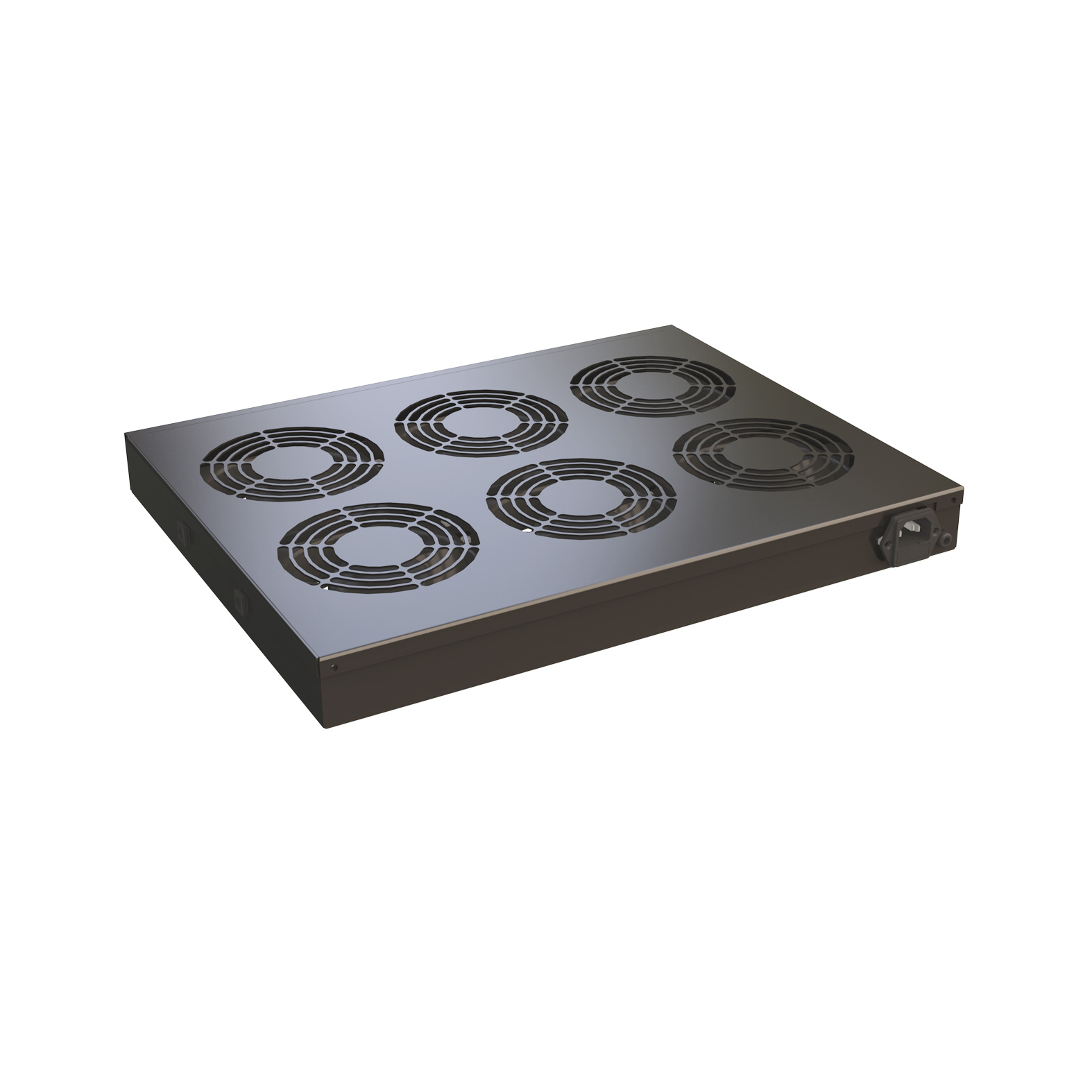

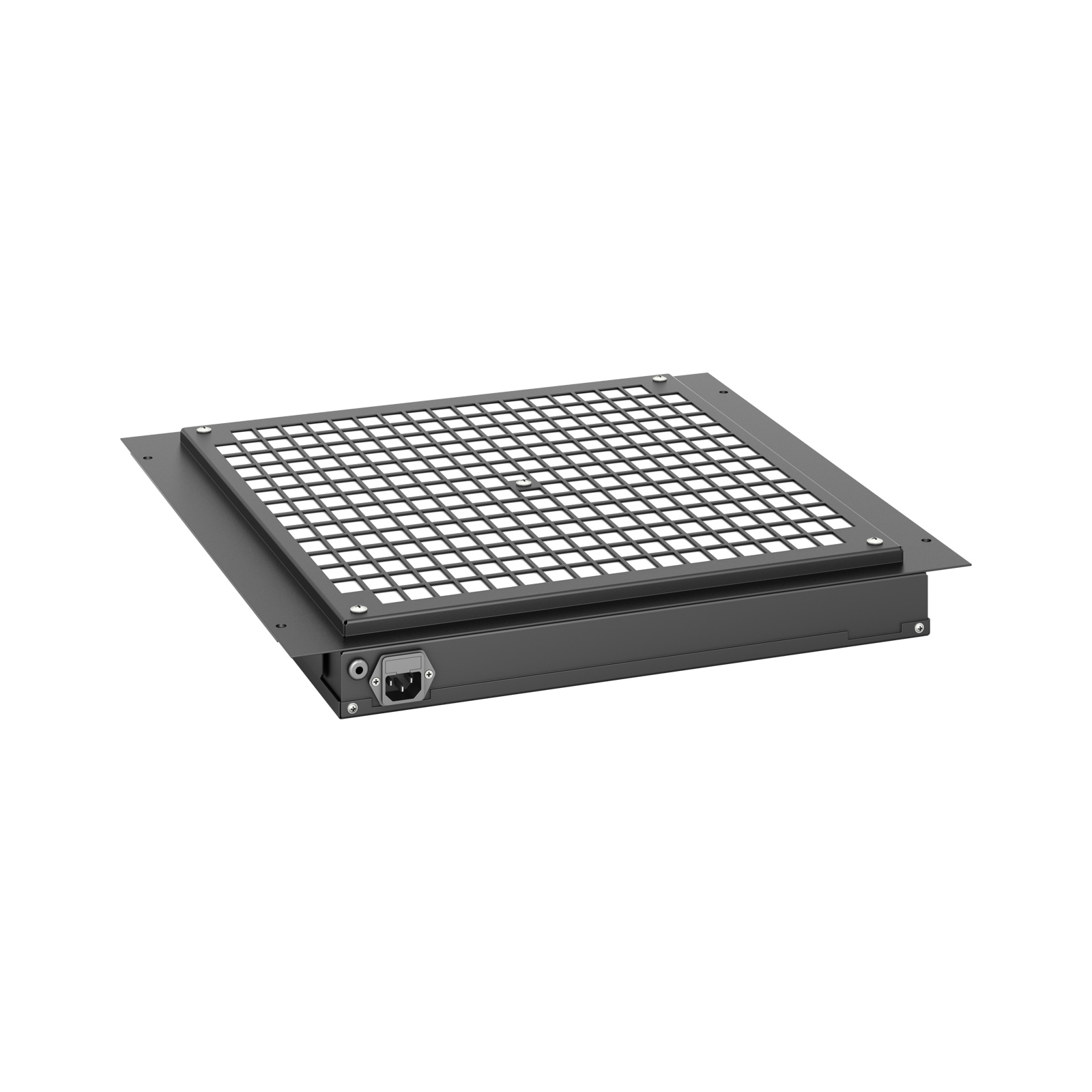

Ventilation units: DP-VEN-02, DP-VEN-03, DP-VEN-04, DP-VEN-06, DP-VEN-09

Ventilation units force air to flow through the cabinet to improve cooling
Two to nine fans

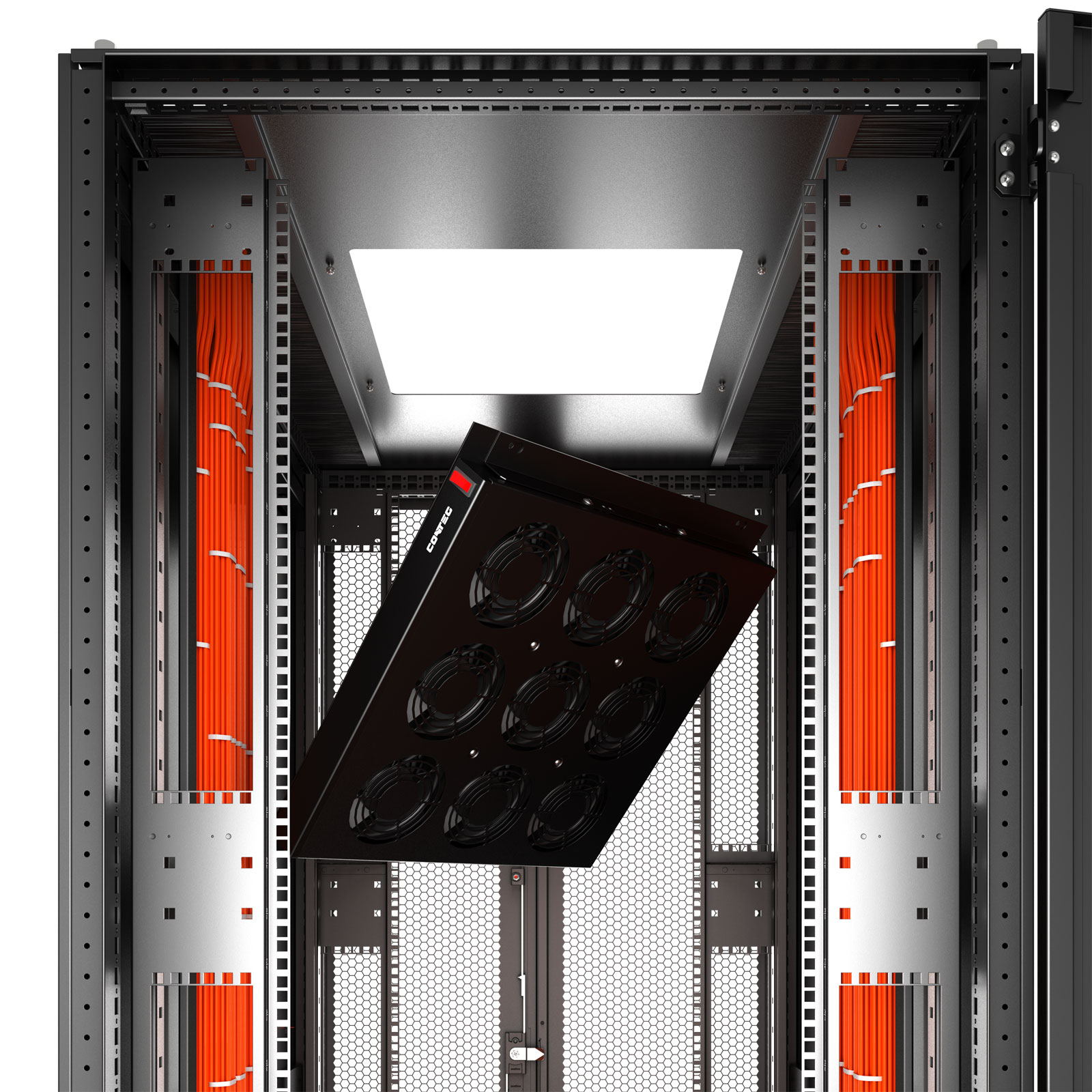

Installation options: a) to 19"" rails – horizontally; b) In the upper or lower frame of the rack cabinet
A connection kit is required to install the ventilation unit in the upper or lower frame
Temperature range: -10 °C to +55 °C
A thermostat with a range of 0-60 °C is included (no optional thermostat)
Voltage range 230 V / 50-60 Hz (48 V DC optional)
Protection: according to EN 60529, IP20
Color: powder paint RAL 9005
Standard solution with AC drive-fans DP-VEN-XX
Package includes: ventilation unit with 19"" brackets, thermostat, power cable, installation kit DP-MO-01

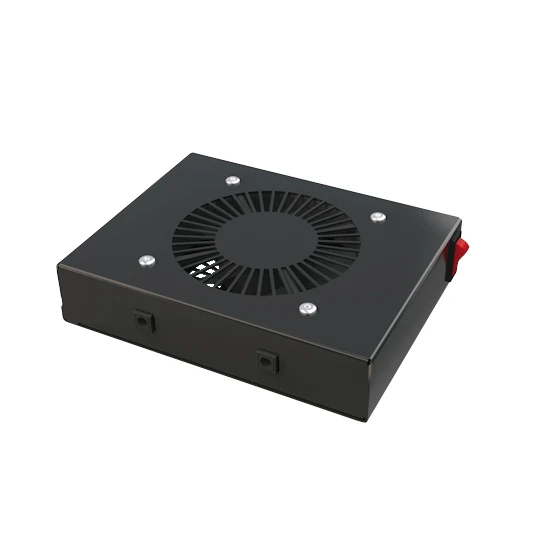

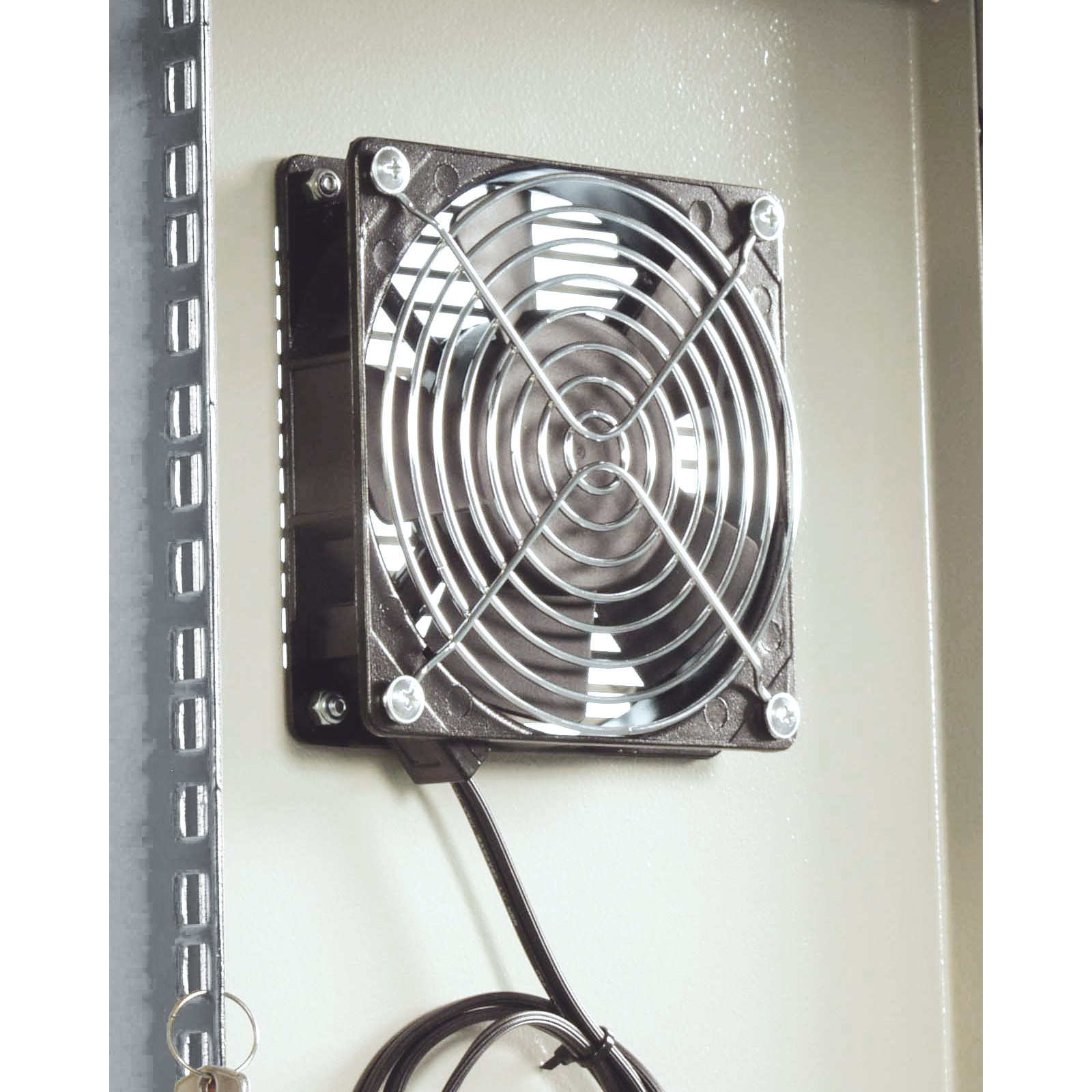

Fans: DP-VE-01, DP-VEN-01

Forced airflow through the cabinet

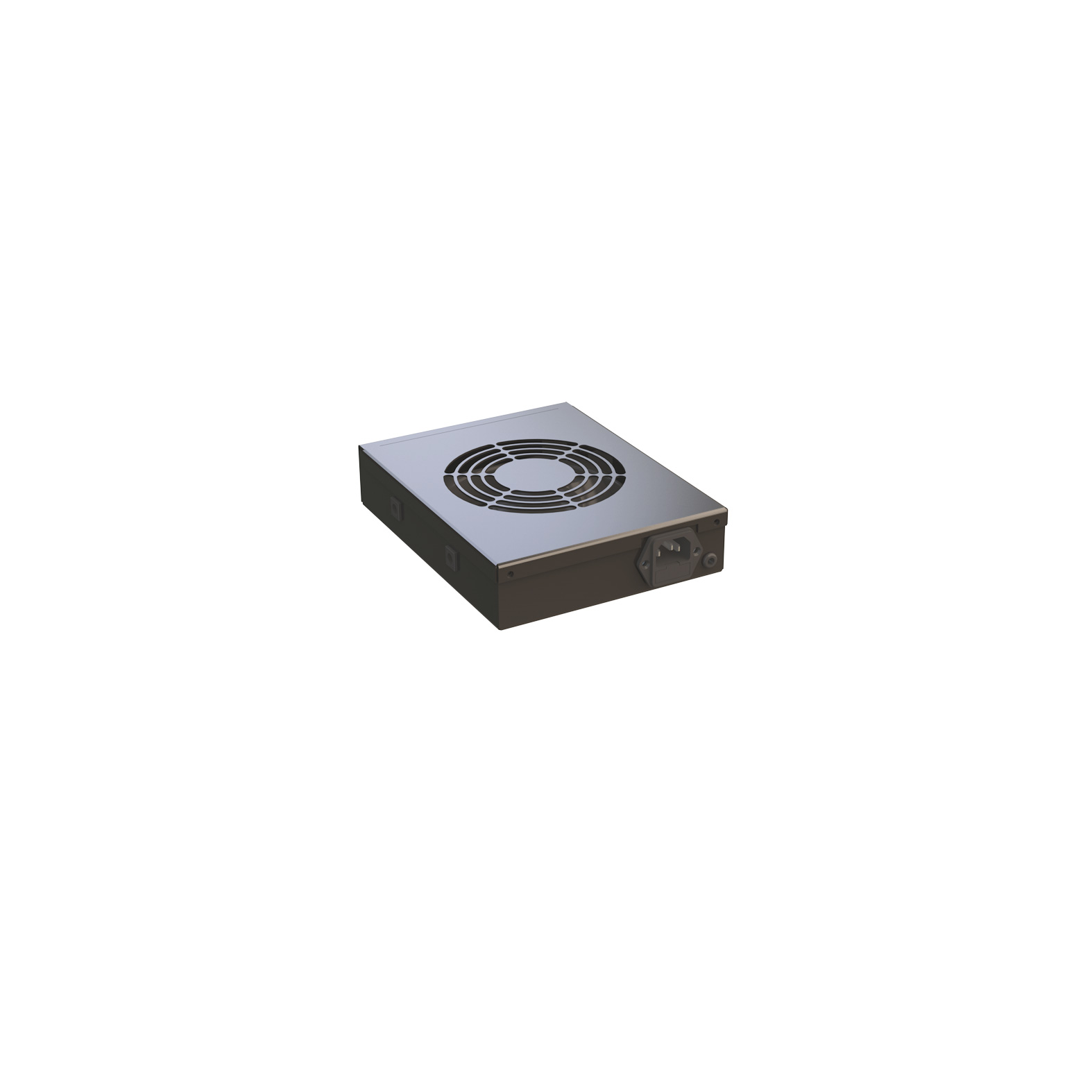

Two versions with thermostat and metal casing – DP-VEN-01 (for VC perforation), without thermostat and metal casing – DP-VE-01 (for VH or TH perforation)
Can be installed in the side or top of the wall-mounted cabinet,
Special perforation required - order code needs to be extended: a) VH for 2x side perforation or TH for 2x top cover perforation; both for DP-VE-01 only; b) VC for 2x centrally oriented openings for DP-VEN-01
Perforated panel DP-VE-ROV2 or DP-VE-ROV4 is required in the upper or lower cabinet frame
Includes: DP-VE-01: fan with grid, power cable, 8x screw, 8x nut; DP-VEN-01: encapsulated fan, power cable, thermostat, 4x screw, 4x nut
