RAMOS Ultra

Smart port expander

The expander expands the intelligent port with 8 additional inputs/outputs.

Product introduction

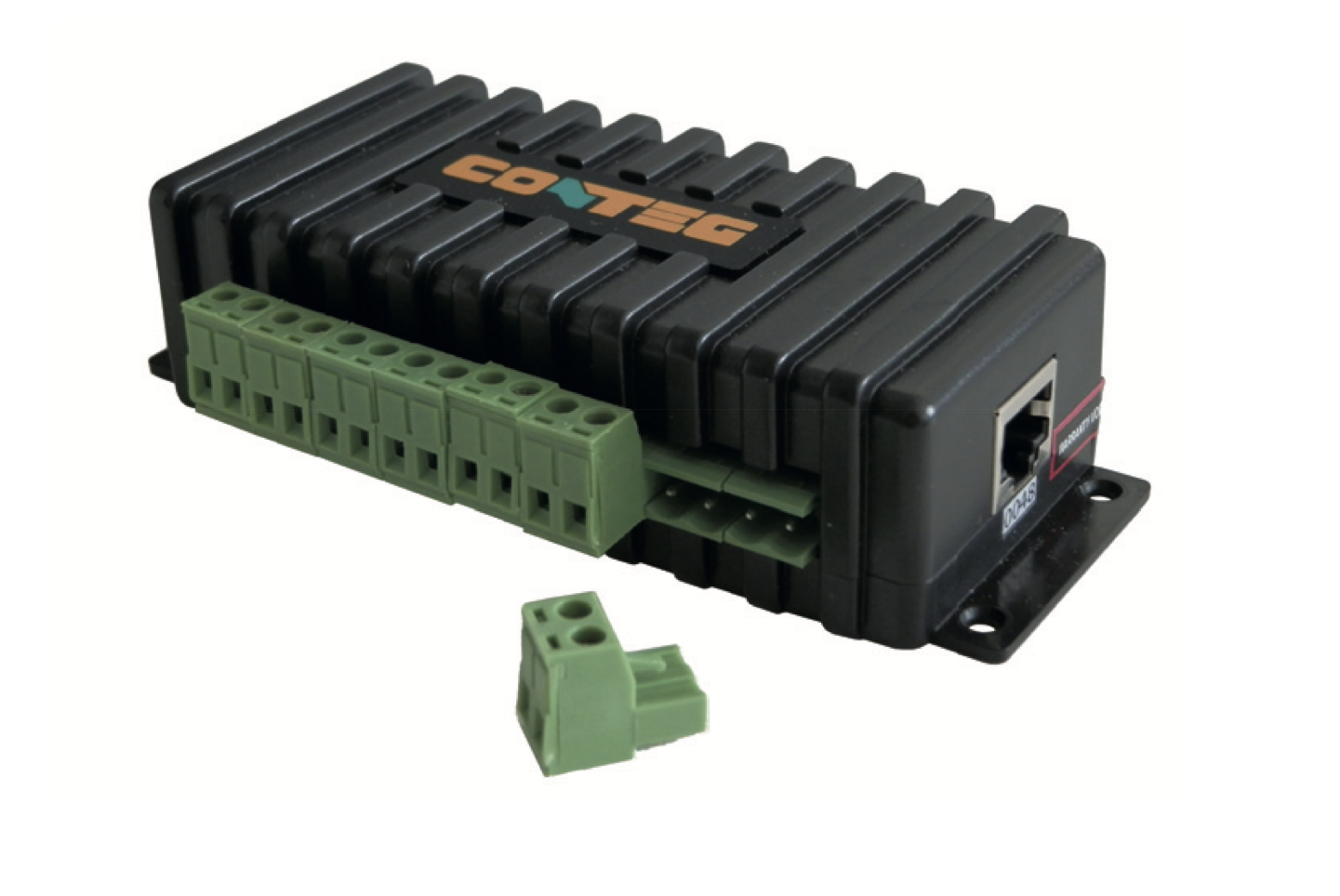

The D8-8 expander makes it possible to create 8 potential-free inputs / outputs on a single intelligent port of the control and monitoring unit. Each can be set as input or output (output up to 20 mA). Any type of switching door contact (e.g. RMS - MK -01) can be connected to the input of this expander.

The device can be used with RAMOS Ultra, RAMOS Plus, EX-I8 expander, RAMOS Ultra ACS, RAMOS Optimax.

Information Pour télécharger

Information

Key features

Product line name	Smart port expander
Ostatní	Two-state detection (closed/open) Automatic device recognition The expander is powered by the main device A 1.5 m patch cable for connecting the sensor is included Connection with a standard CAT5/6 patch cable The maximum length of the cable extension is 300 m
Technical information	Ordering code RAMOS Ultra-EX-D8-8
Porty	The expander allows to connect up to 8 inputs/outputs to a single intelligent port
Ideal for	This expander can only be connected to RAMOS Plus, RAMOS Ultra, EX-I8 expander, RAMOS Utra ACS, RAMOS Optimax
Vstupní napětí	Two-state 0V or 5V
Výstupní napětí	0-5 V

Pour télécharger

Expandér pro inteligentní port
