Mini Data Center

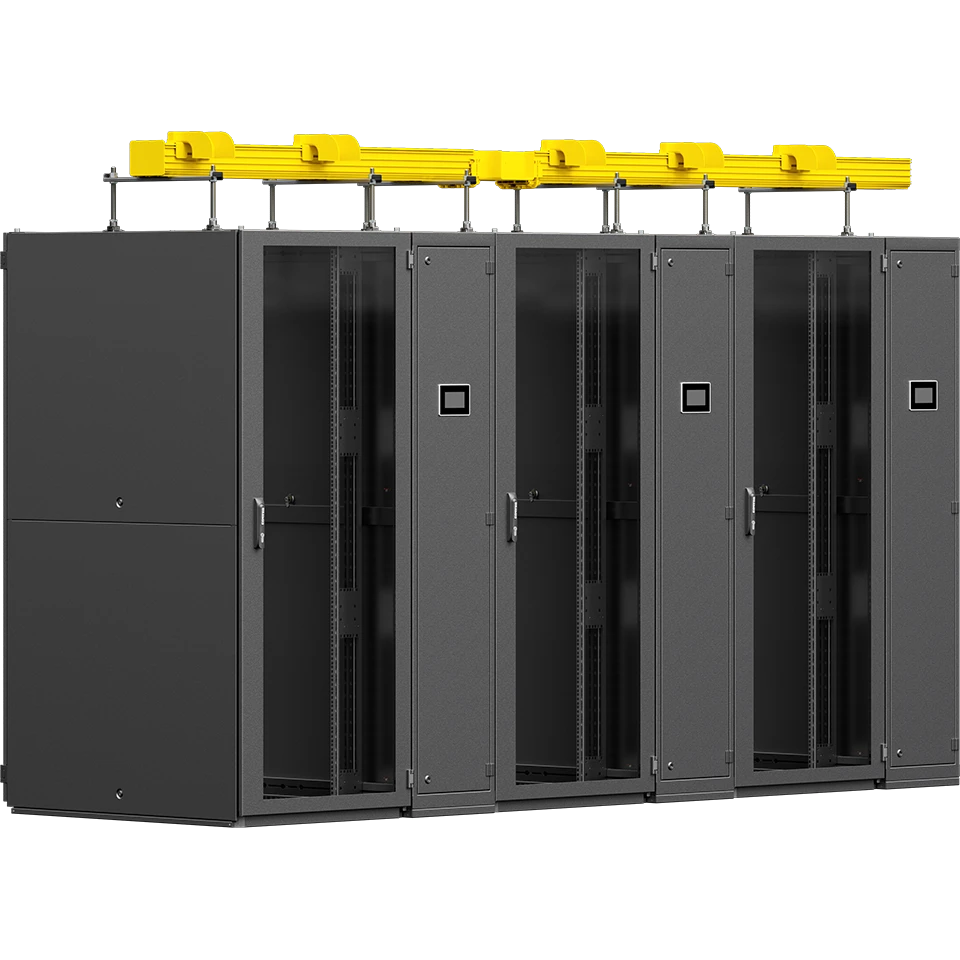

Scalable Mini Data Center solution with CoolTeg Plus cooling
The CONTEG Mini Data Center is designed for applications with cooling capacities up to 40 kW, ideal for relatively high heat outputs of IT devices, or as an option for expanding an existing installation.
It consists of one or more PREMIUM Server RF1 cabinets and CoolTeg Plus in-row cooling units.
Scalable solution with CoolTeg Plus cooling
Circulation of hot and cold air takes place only between the cabinets and CoolTeg Plus cooling units. The front and rear doors of the cabinets are glazed or all-metal, creating a closed space for air circulation between the servers and the cooling unit.
Just tell us what you need. We are always ready to cater to your unique needs.
We are the only data center supplier with whom you can easily agree on very specific conditions.
Our products will help you reduce your energy consumption and carbon footprint.
Solutions
We will provide a comprehensive range of technologies for your data centerKey technologies will be preassembled at CONTEG’s production plant. This allows us to test their functionality and compatibility in advance and significantly reduce the construction time on site.

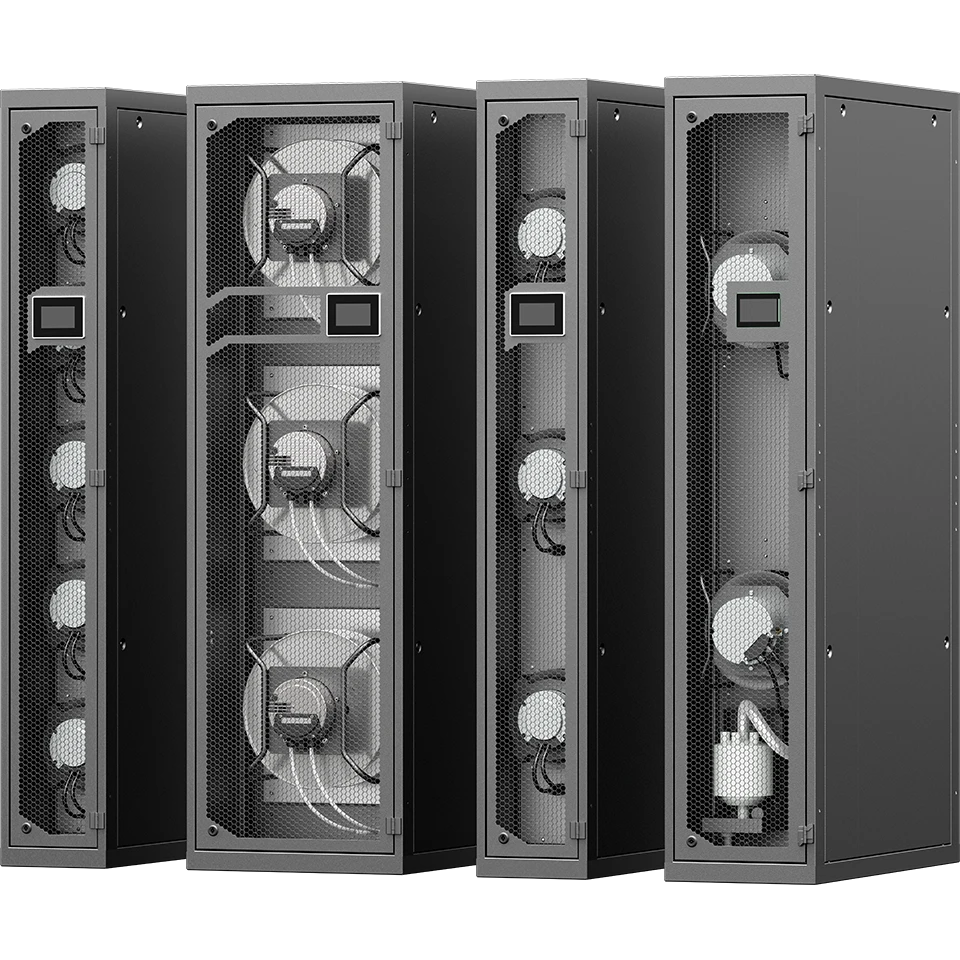

CoolTEG Plus units
Fully compatibile with CoolTeg Plus cooling units
- CW (cold water) with an output up to 40 kW,
- DX (direct evaporation) with an output of 7, 12, 18 or 22 kW,
- XC (direct evaporation with integrated compressor) with an output of 22 kW.
The basic assembly may include
- PREMIUM Server RF1 free-standing rack. Height 42U, width 800 mm, depth 1,200 mm
- Full rear doors, glazed front doors
- Load capacity 2,000 kg, IP54 protection
- Ordering code:RF1-42-80/12A-GWSWM-MCL-4-E
- Indoor air conditioning unit CoolTeg Plus DXSmall — direct evaporation cooling with 3-7 kW cooling capacity
- Outdoor air conditioning unit with inverter-controlled compressor
- Ordering code: AC-TDS-42-30/100-BCD-01000000AC-PUHZ-ZRP71V
- Basic PDU for powering all installed IT components: 11 kW, 0U, 24× C13 and 3× C19 type sockets, separate by phase 8× C13 and 1× C19, total input power 3× 16 A, 3 m long non-separable supply cable with EN 60309 input plug.*
- Ordering code:IP-BA-324C33C911
*The outdoor air conditioning unit is powered independently; the indoor unit can be powered either independently or from one phase of the PDU.
- Monitoring system Ramos Plus
- Temperature monitoring in the front and rear of the cabinet
- Automatic door opening control in the event of overheating - emergency opening system (EOS)
- Ordering Code:RAMOS Plus
