Inline meter

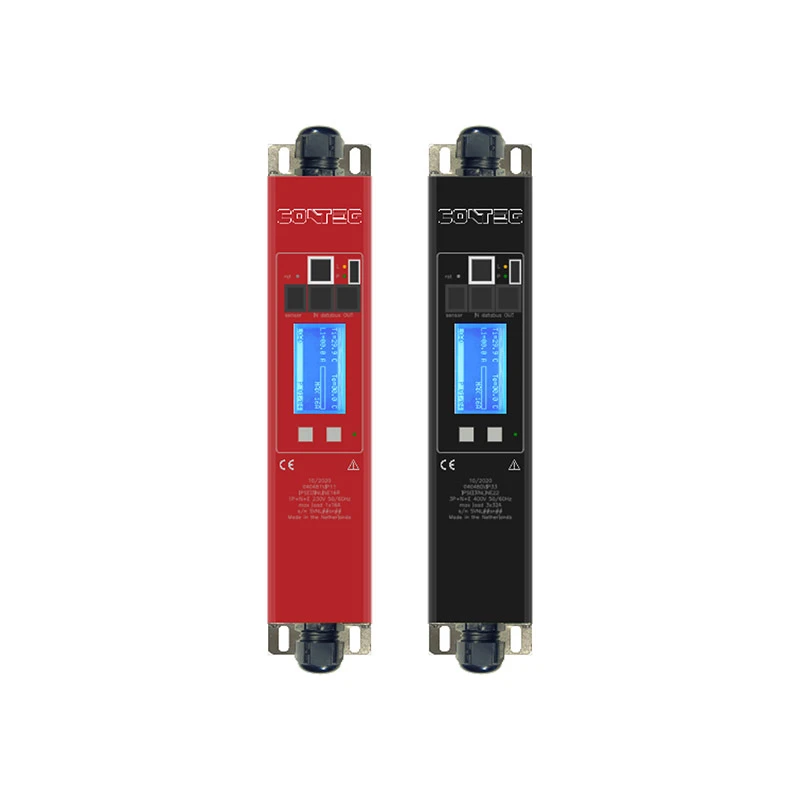

A 1-phase or 3-phase inline power meter with a backlit display is suitable for measuring parameters at the input of the basic power supply panel.
Product introduction
The 1-phase or 3-phase inline power meter with backlit display is suitable for measuring parameters at the input of the basic power panel. Easily plugs into existing circuits.
A built-in web server allows to remotely monitor real-time output, current (A), voltage (V), power consumption (kWh) and load power factor.
In addition, the device can connect a temperature and humidity sensor (IP-S-PDU-SENSOR).
Information
Key features
| Product line name |
Inline meter |
|---|---|
| Color design |
Black, red |
| Height (mm) |
65
|
| Depth (mm) |
52.5
|
| Included in the package |
Inseparable 3m input cable with EN60309 plug, inseparable 0.5m output cable with EN60309 socket. |
| Porty |
Data bus: 2x RJ45 data bus connectors RS-485 |
| Ideal for |
Basic PDUs |
| Display |
Backlit LCD |
| Napětí |
1-phase 230V AC, or 3-phase 230/400V AC; 16A or 32A |
| Assembly/Installation |
Vertical |
| Material |
1.5mm anodized aluminum with anti-oxidation coating with stainless steel brackets |
| Délka |
280 mm |
