RAMOS ACS

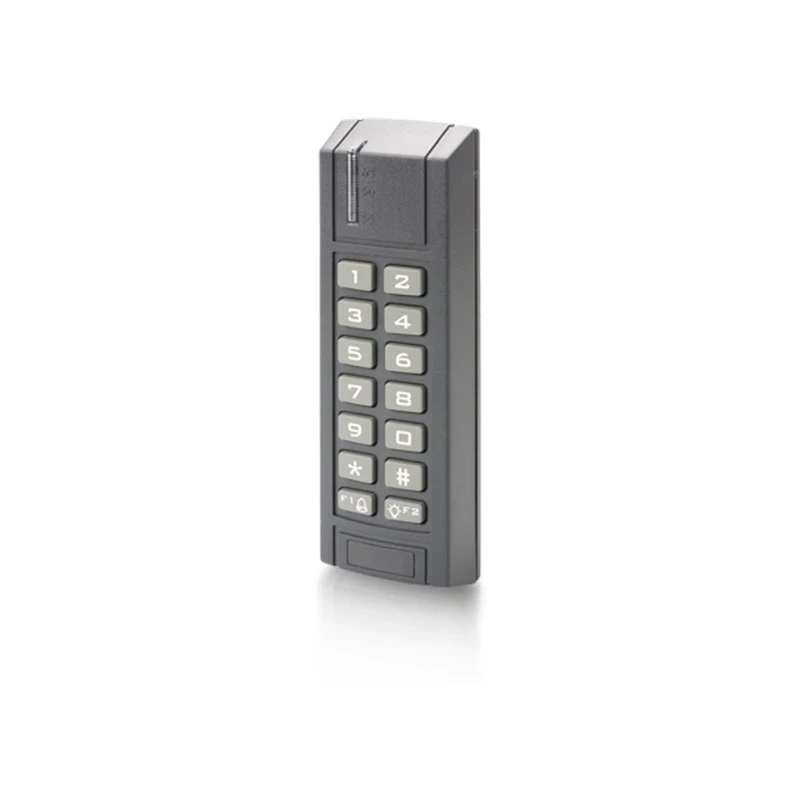

Keyboard with card reader

Keyboard with built-in card reader (EM format) for RAMOS ACS access system.


Product introduction

The backlit keyboard with a built-in card reader (EM format) enables authorization using the card at 125 kHz or a combination of a card and a 4-digit PIN code.

Easy connection to the RDU door access unit with a cable with a color-coded RJ-45 connector. The reader is equipped with a buzzer and LED for status indication.

Suitable for indoor installation.

Ordering code: RMS-ACS-U-KER

Information Pour télécharger

Information

Key features

Product line name	Keyboard with card reader
Technical information	Supports 125 kHz EM cards Reading distance from 15 cm Communicates via the Wiegand 26b protocol Backlit keyboard The reader is equipped with a buzzer and LED indicator for status information Power consumption: standard operation 65 mA Powered from the control unit (12 V DC) 3 mounting holes for screws A 4.5 m cable with a green cap on the RJ-45 connector is included for correct connection Operating temperature: min. -25 °C max. 60 °C Operating humidity: 10 - 90% RH Dimensions: 152x46x25 mm Weight: 0.15 kg

Product line name

Keyboard with card reader

Technical information

Supports 125 kHz EM cards
Reading distance from 15 cm
Communicates via the Wiegand 26b protocol
Backlit keyboard
The reader is equipped with a buzzer and LED indicator for status information
Power consumption: standard operation 65 mA
Powered from the control unit (12 V DC)
3 mounting holes for screws
A 4.5 m cable with a green cap on the RJ-45 connector is included for correct connection
Operating temperature: min. -25 °C max. 60 °C
Operating humidity: 10 - 90% RH
Dimensions: 152x46x25 mm
Weight: 0.15 kg
