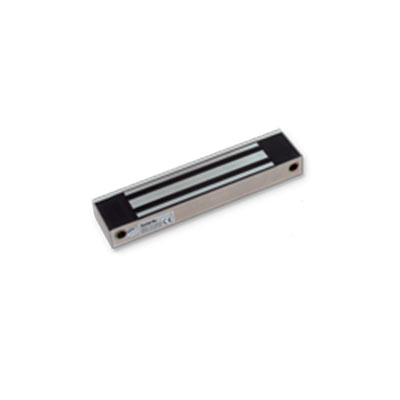

Electromagnetic lock - large
Electromagnetic lock (large and waterproof) for the RAMOS ACS access and monitoring system.
Product introduction
The waterproof electromagnetic door lock with a holding force of 3500 N, an equivalent of 350 kg, is suitable for installation on the entrance door.
A LED indicator shows the status - unlocked / locked / open / intrusion. Powered by the main unit.
Order code: DP-ZM-EML-LW
Information
Pour télécharger
Pour ajouter un produit à votre panier, vous devez Se connecter / S'inscrire
Information
Key features
| Product line name |
Electromagnetic lock - large |
|---|---|
| Included in the package |
Mounting screws |
| Dimensions |
273x44x28 mm |
| Provozní prostředí |
190x45x11 mm |
| Spotřeba |
480 mA at 12 VDC |
| Power |
Powered from the control unit (12V DC), waterproof |
| Přídržná síla |
up to 350 kg |
| Délka kabelu |
3 m long, with a red cap on the RJ-45 connector for correct connection |
| Operating temperature |
+10 °C to +55 °C |
| Weight (kg) |
2.5 |
