RAMOS ACS

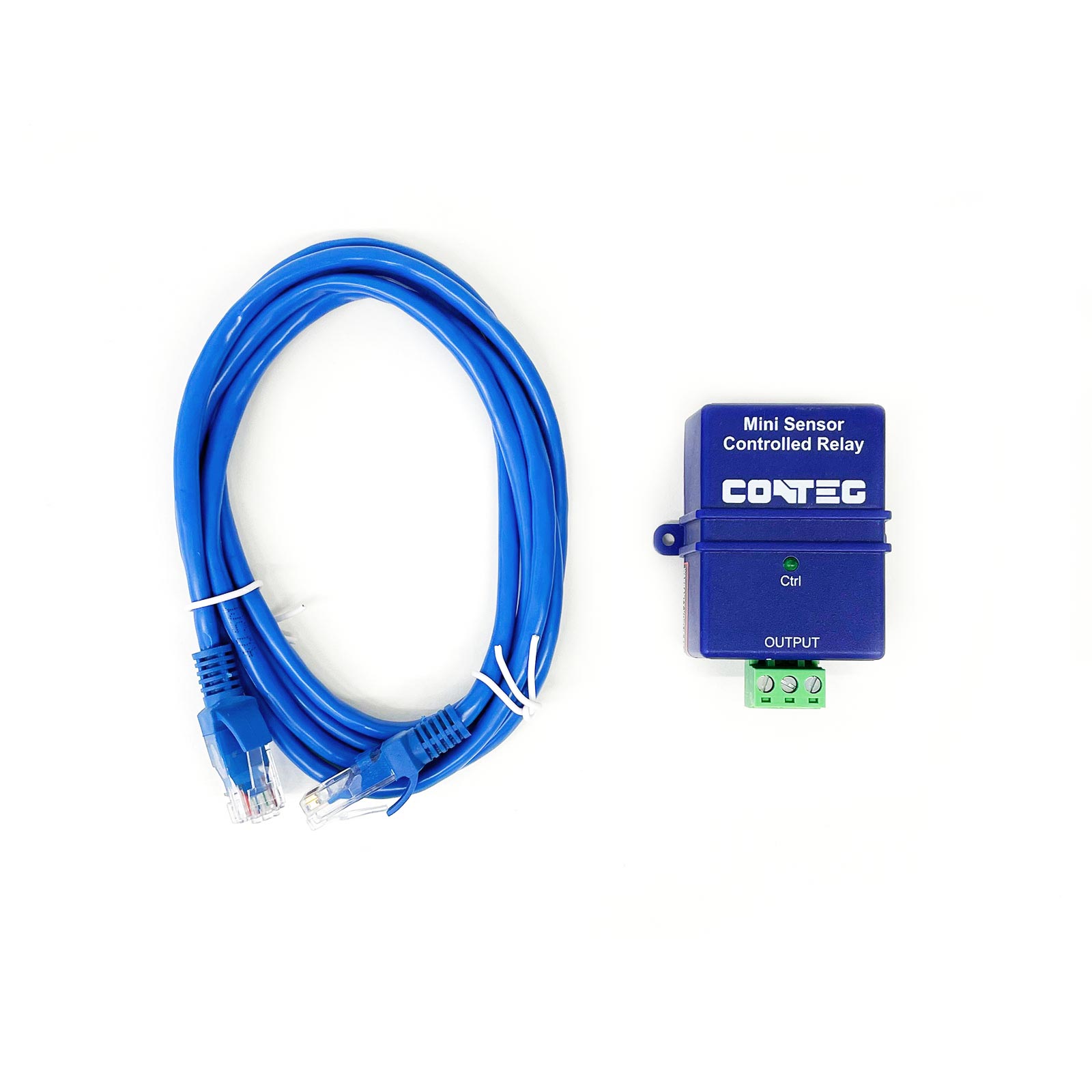

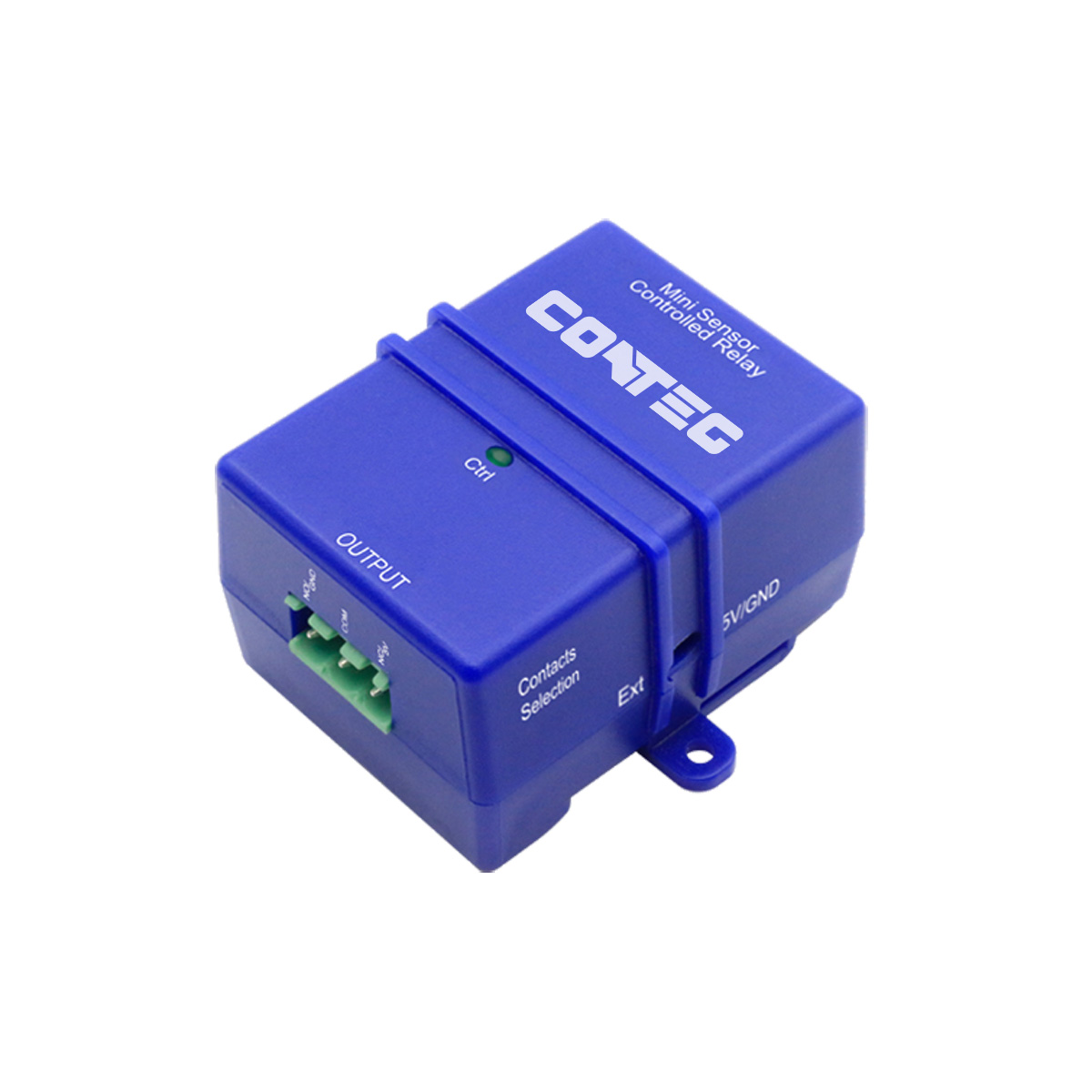

Mini relay box with selectable voltage output

The device allows to adjust the voltage level of the signal.

Où nous trouver ?

Product introduction

The mini relay box with selectable voltage output can be connected to the RAMOS Optimax or RAMOS Optima main monitoring units. This device can adjust the voltage level of the signal; for example, a device with a relay can be switched based on the sensor input, in such case, sensor output will be 200mA - 5V DC.

Order code: RMS-P-RB

Information Pour télécharger

Information

Key features

Product line name	Mini relay box with selectable voltage output
Technical information	Coil input: 150 mW Switching power: 120VA, 24W Contact material: AgNi alloy Minimum contact load: 1mA @ 1V DC Initial contact resistance: 50m? at 100mA, 6V DC Contact load: 1A, 120 VAC / 24V DC Mechanical resistance: 10x10e6 operations Electrical resistance: 1A, 120 VAC, resistance, 100x10e3 operations
