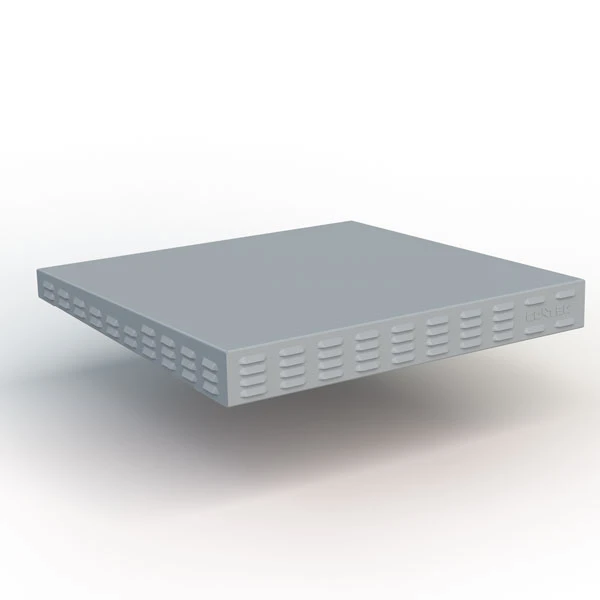

Perforated Roof outTEG
The perforated roof improves outflow of warm air from the outTEG OMR outdoor cabinets.
Product introduction

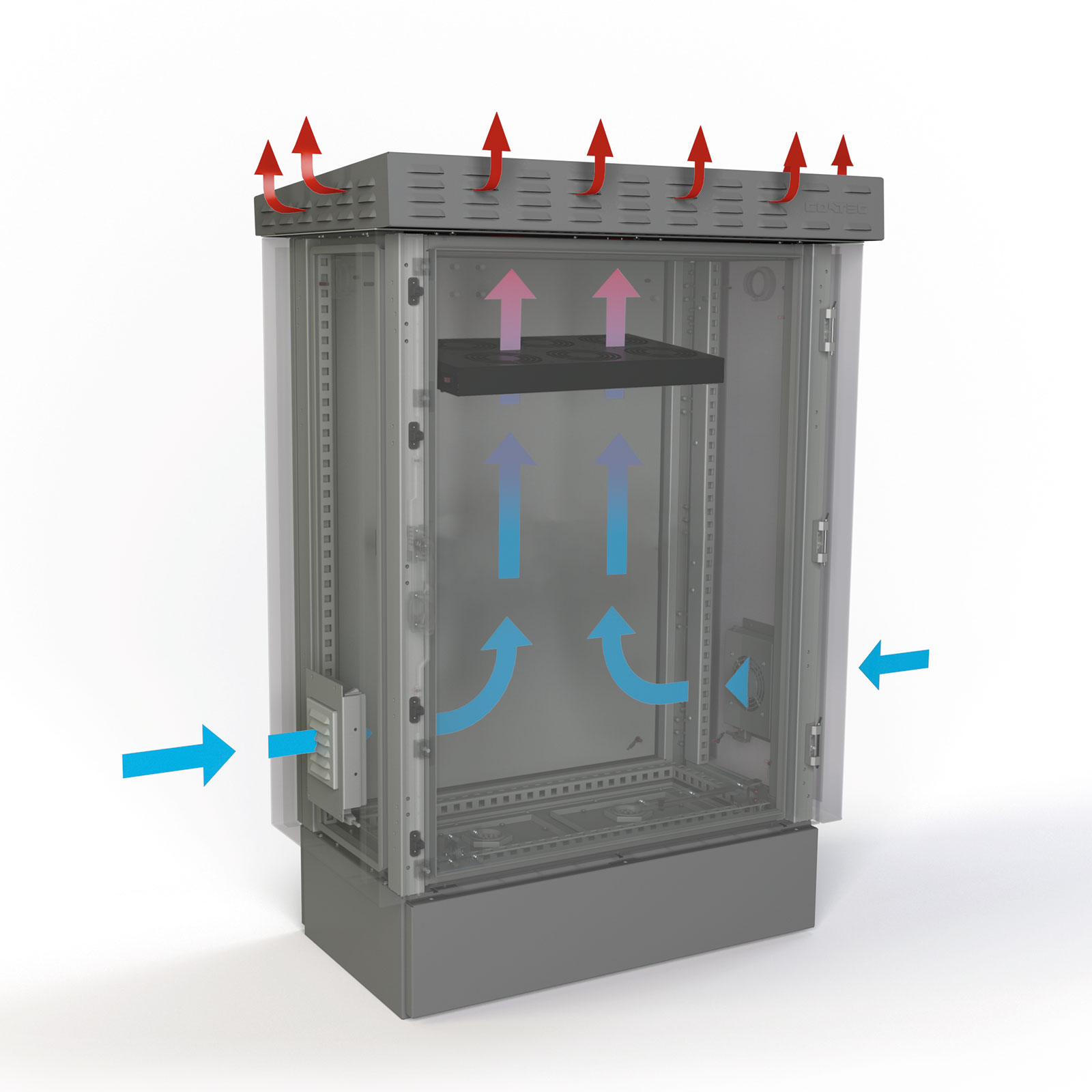

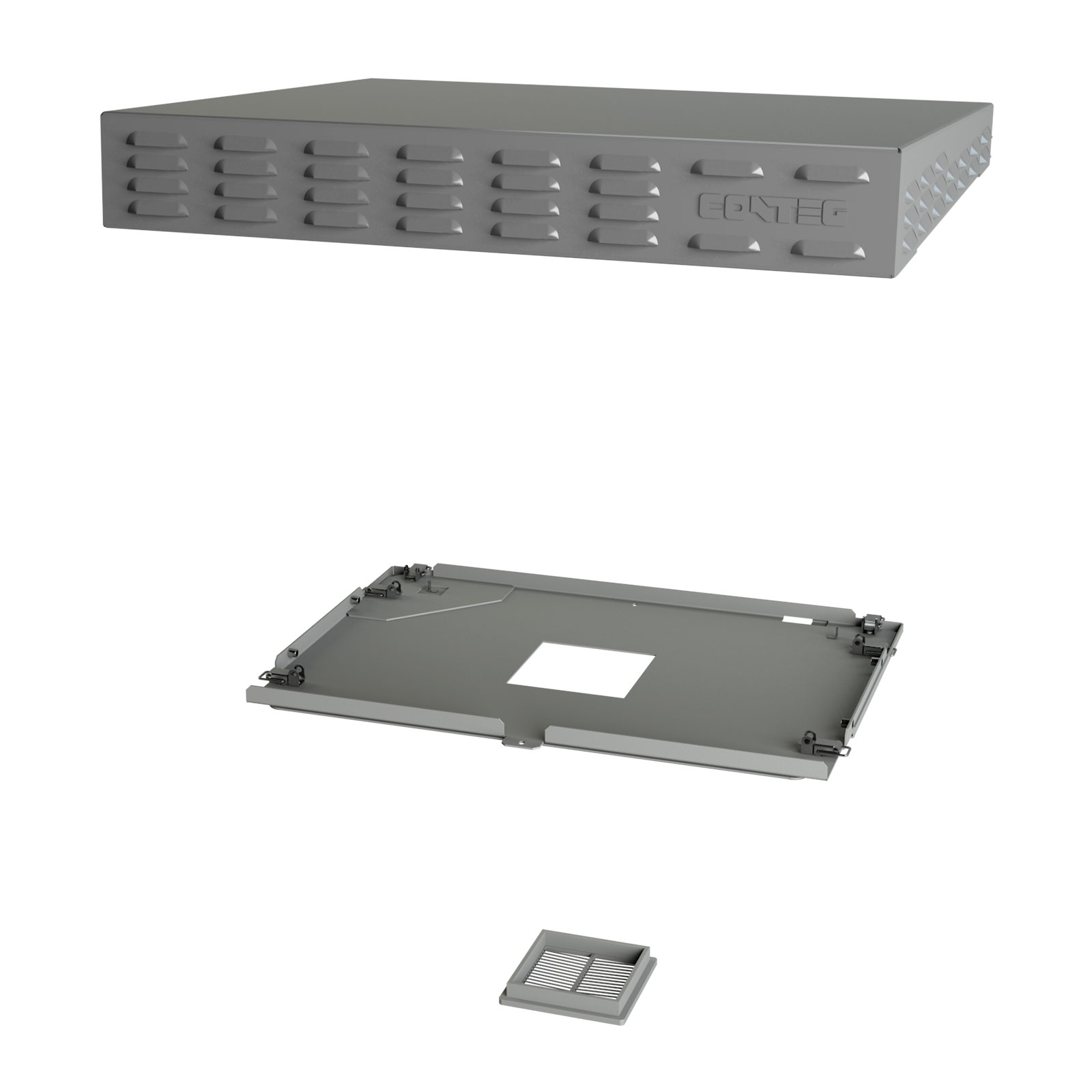

The perforated roof, in combination with a 19"" ventilation unit with a modification cover with outlet grate, and the side panels with filter grids, together ensure highly effective forced ventilation that removes warm air from the outTEG OMR outdoor cabinet.
Order code:

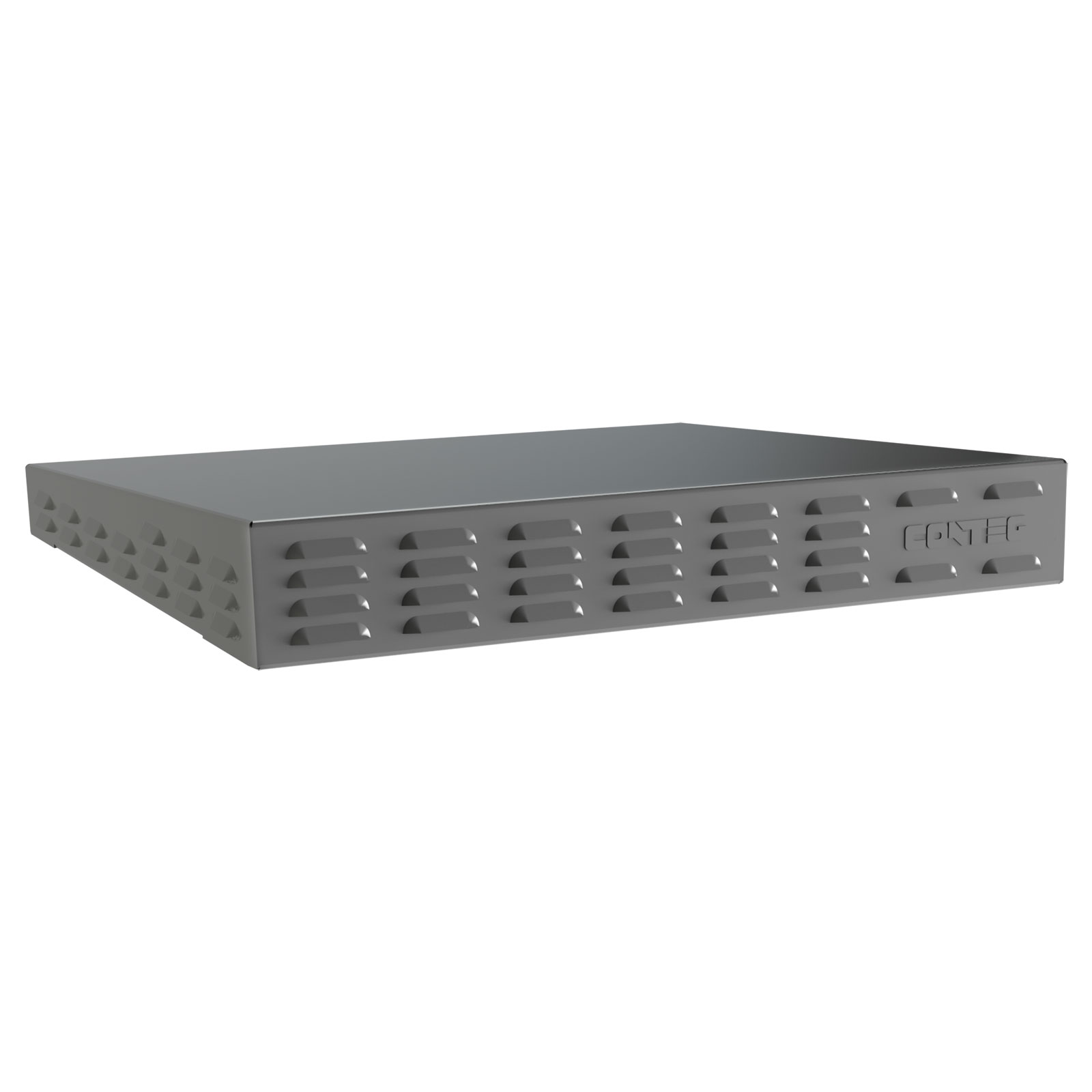

OMR-DV-R xxxx (Perforated roof)
OMR-DV-S xxxx-54 (2 pcs of side panels with outlet filter grid)
OMR-DV-T xxxx (Perforated roof with roof fan 540m3/h)
Information
Key features
| Product line name |
outTEG rerforated roof |
|---|---|
| IP rating |
IP protection of side panels: IP55 |
| Color design |
Roof color: RAL 7046 (dark grey, outdoor use, with UV protection) |
| Konstrukce |
double-shelled |
| Material |
2 mm AlMg3 aluminum sheet |
| Application |
in combination with the OMR-DN-xxxxxx-R cabinet |
| Rozsah dodávky |
Roof: perforated roof including mounting accessories |
