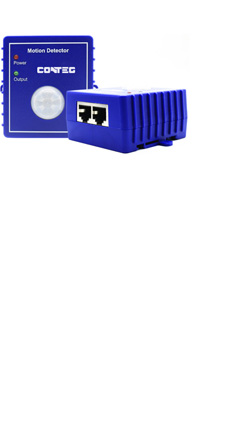

PIR motion detector
A motion sensor is a security element detecting movement in the monitored area.
Product introduction
The motion detector, with a detection angle of 60° and a detection distance of 3 m, is used to secure rooms or objects and notify of intrusions into the monitored zone.
LED indication of the device’s status. Up to 10 sensors can be daisy-chained to a single smart port. The maximum total cable length for 10 sensors is 46 m. The maximum cable length between sensors is 6 m. The maximum cable length for a single sensor is 300 m.
The detector is automatically recognized and powered by the main unit.
Included: 1.5 m patch cable.
Order code: RMS-I-DE-02
Information
Key features
| Product line name |
PIR motion detector |
|---|---|
| Technical information |
Detection angle 60° |
