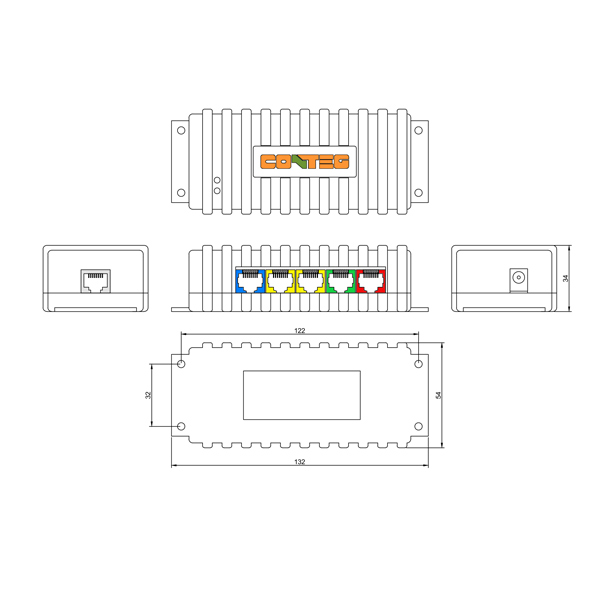

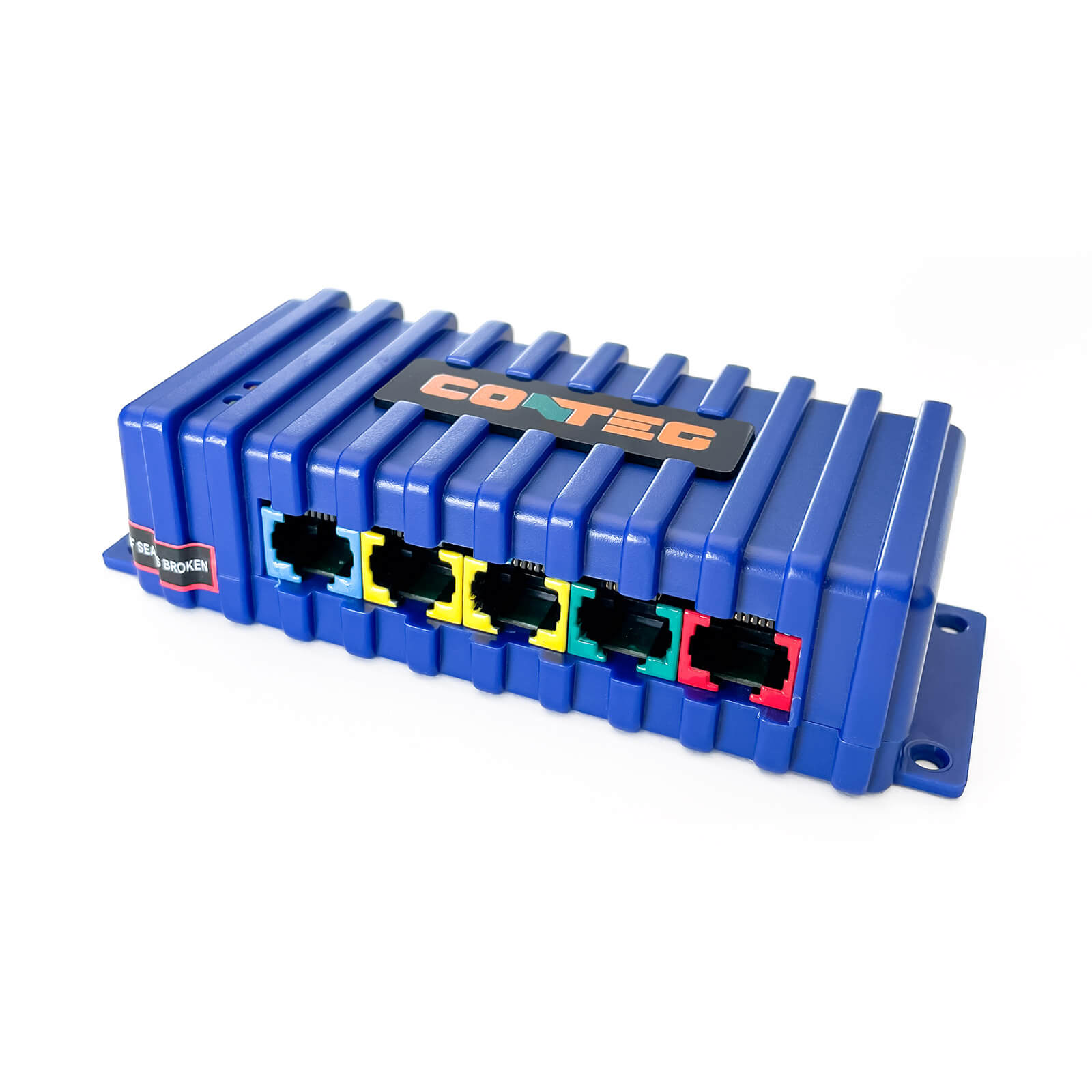

RDU door access unit
Device for daisy-chaining to the to the expansion ports of the main control and monitoring unit.
Product introduction
This expander (so-called RDU) is connected in a chain to the expansion ports of the RAMOS Ultra ACS or RAMOS Ultra main control and monitoring unit. It allows full access to cabinets while displaying information about people and time of access.
One reader and one electromagnetic lock or two electronic handles can be connected to each RDU door access unit using a hub (RMS-CON-ACS)
25 RDUs in a line can be connected to each expansion port of the main control and monitoring unit. The length of the connecting cable (LAN category 5/6) for communication between the door access units and the main control and monitoring unit must not exceed 300 meters.
Ordering code: RMS-ACS-U-RDU
Information
Key features
| Product line name |
RDU door access unit |
|---|---|
| Technical information |
1 (green) reader or keyboard port (communicates over the Wiegand 26 b protocol and powers the reader) |
