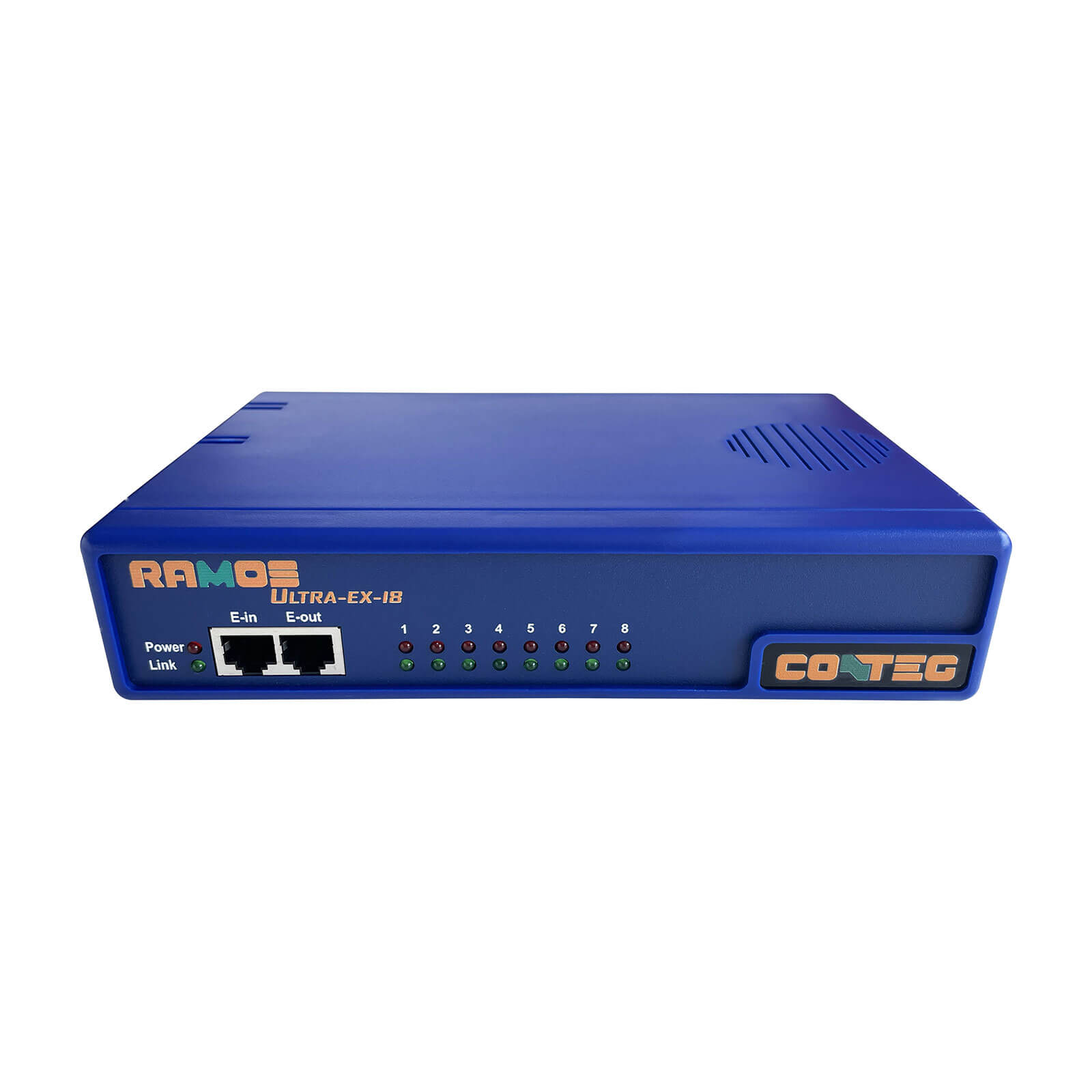

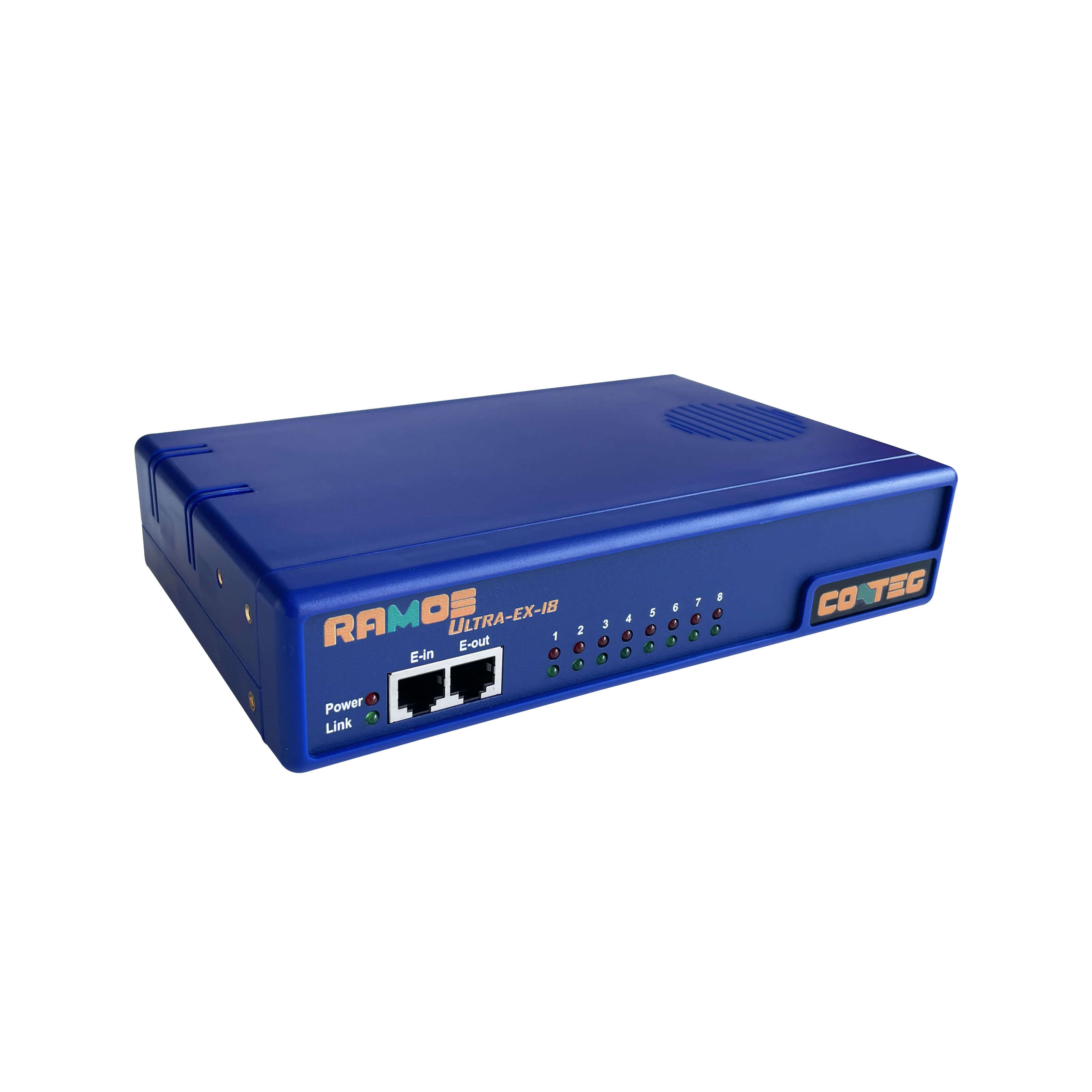

RAMOS Ultra-EX-I8 Expansion module
Expander enabling an easy addition of 8 intelligent ports to the RAMOS Ultra, RAMOS ACS and RAMOS Optimax monitoring solutions.
Product introduction

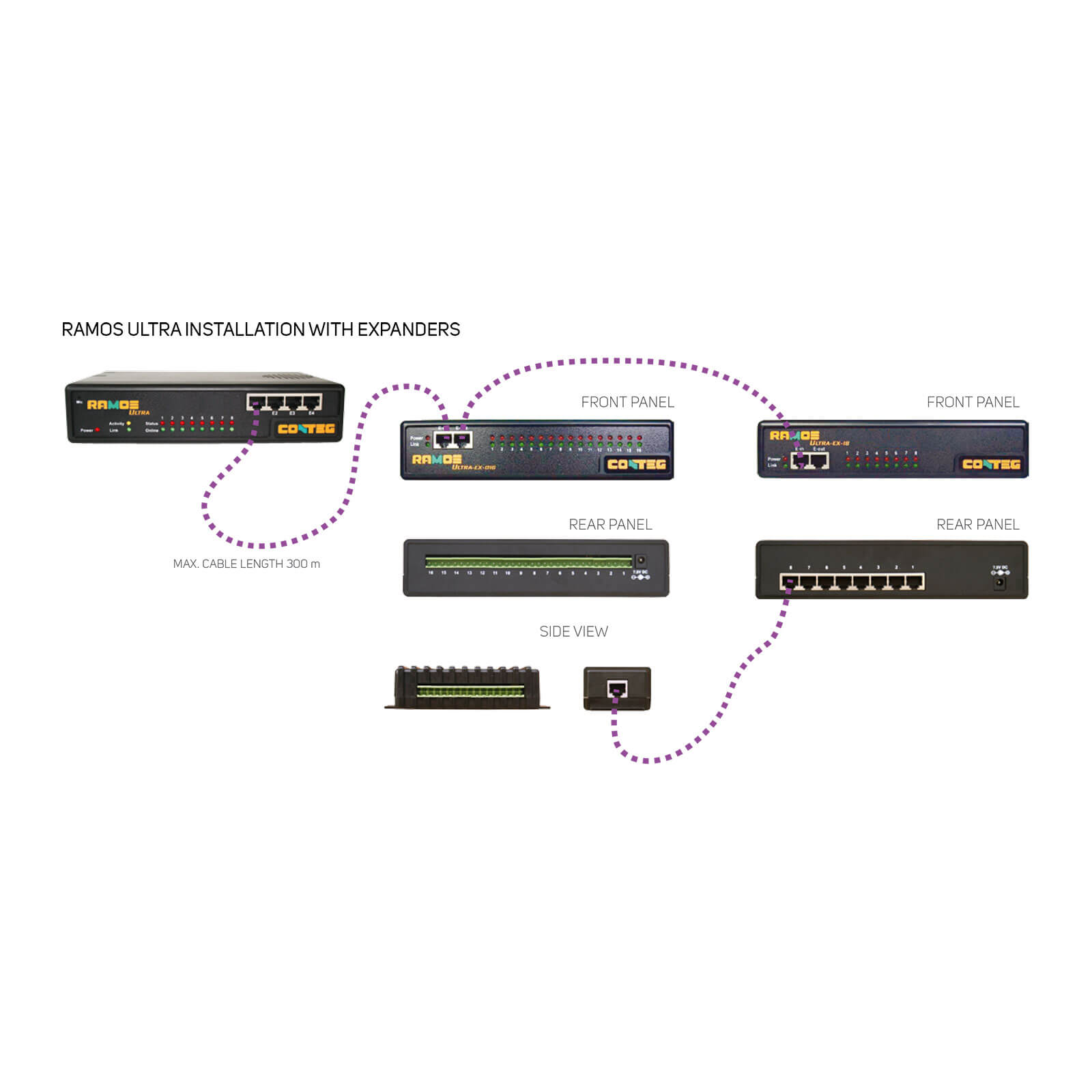

RAMOS ULTRA-EX-I8 is an expansion module with 8 intelligent accessory ports. Can be connected to any of the expansion ports located on the front panel of the RAMOS ULTRA, RAMOS ULTRA ACS or RAMOS Optimax main monitoring units. Connects with a standard CAT5/6 patch cable.
The expander can also be linked using the E-Out/E-In ports on other expanders. The maximum length of expansion cable between units is 300 m.
Compatible with RAMOS Ultra, RAMOS Ultra ACS E* standard expansion ports and RAMOS Optimax EXP/MOD port.

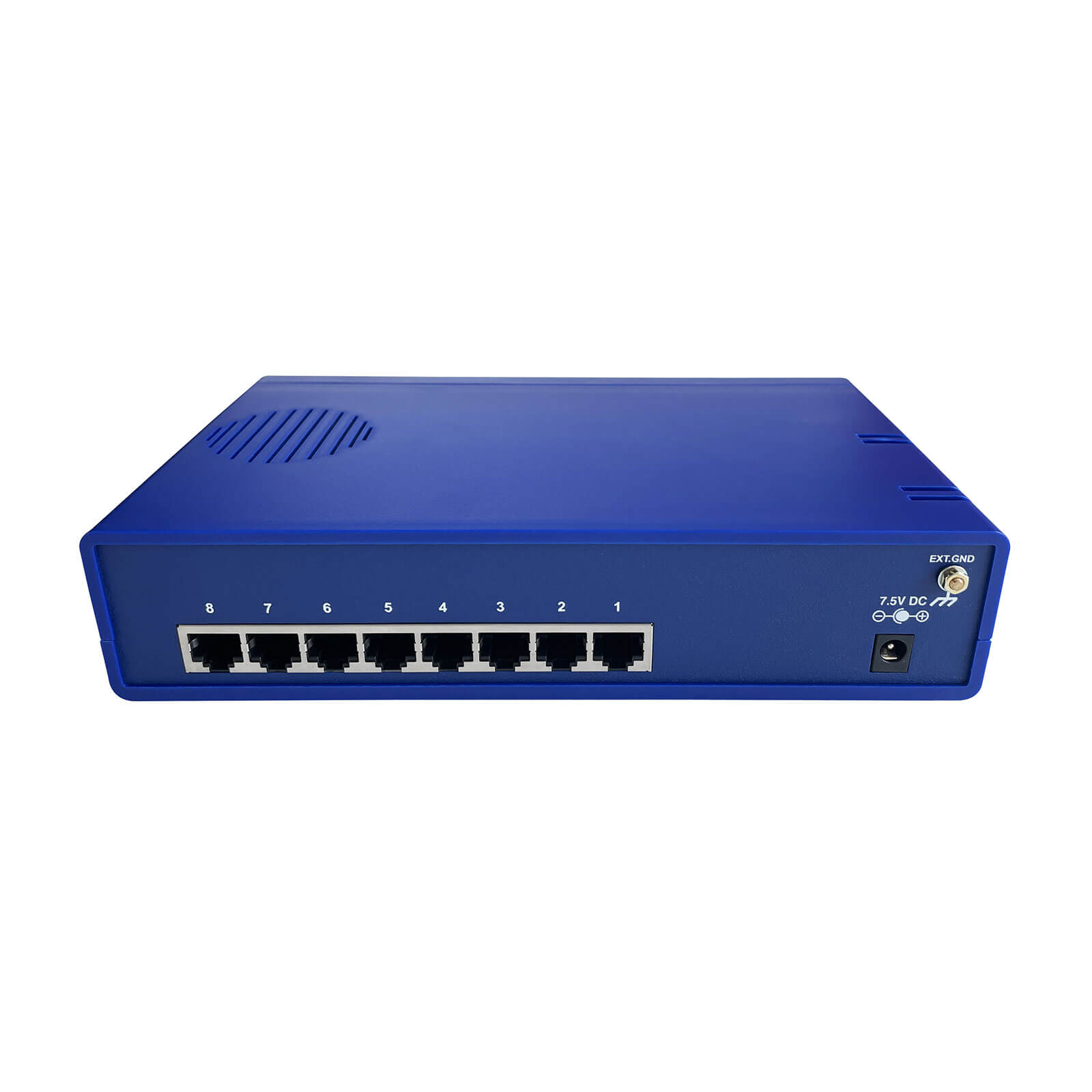

Two LEDs at each of the 8 smart ports indicate the status of the respective connected devices.
Order code: RAMOS Ultra-EX-I8
Information
Key features
| Product line name |
RAMOS Ultra-EX-I8 Expansion module |
|---|---|
| Included in the package |

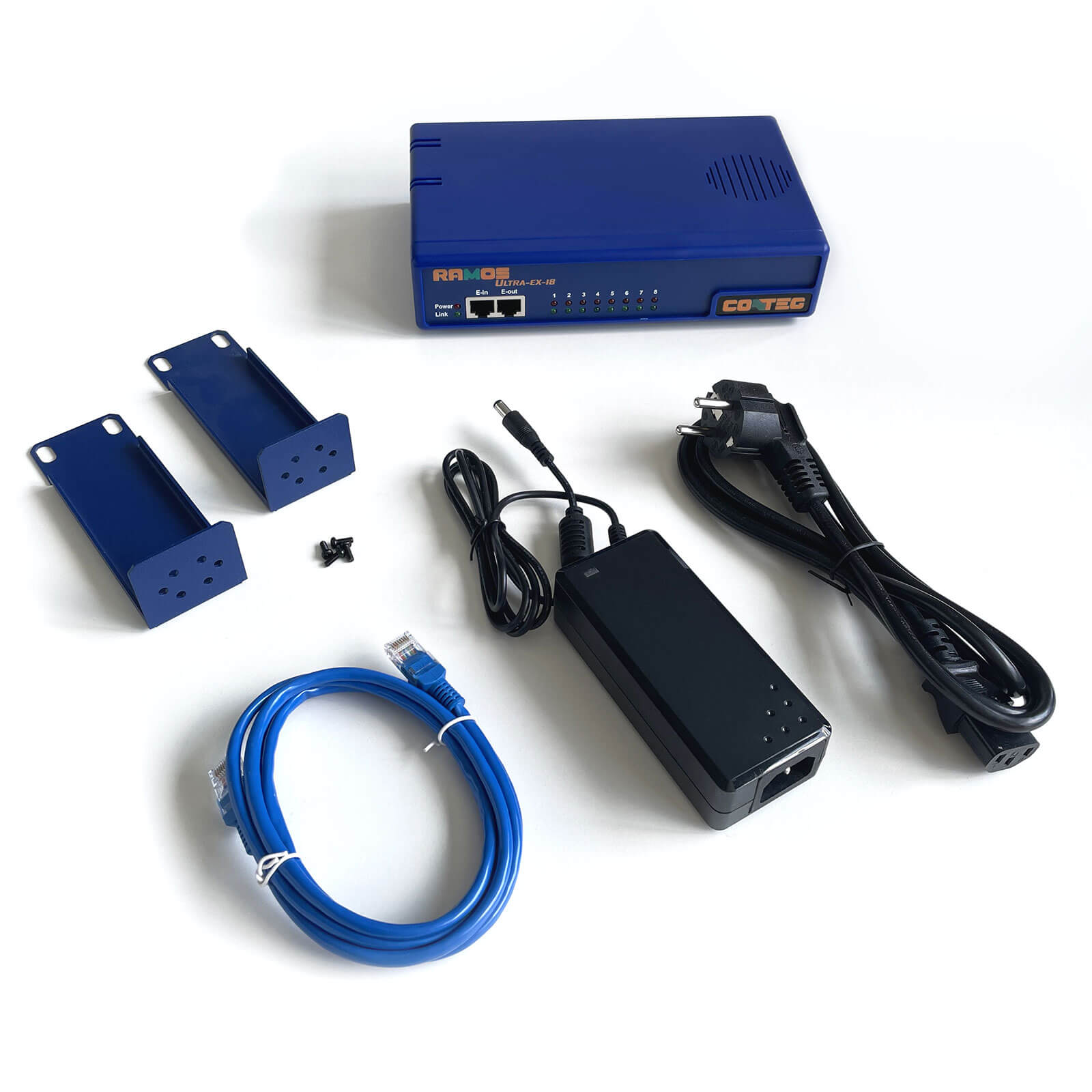

7.5 V DC power supply with replaceable cable, brackets and screws |
| Porty |
2 expansion ports (connection with patch cables) |
| LED Indikátor |
Power, activity, 8x status and 8x accessory connections |
| Dimensions |
46 x 216 x 138 mm |
| Provozní prostředí |
Temperature: min. -35 °C – max. +55 °C |
| Ideal for |
RAMOS Ultra, RAMOS Ultra ACS, RAMOS Optimax |
