Expansion module RAMOS-Ultra-EX-O16
Expander enabling easy addition of 16 optically isolated inputs to the RAMOS Ultra, RAMOS ACS and RAMOS Optimax monitoring solutions.
Product introduction

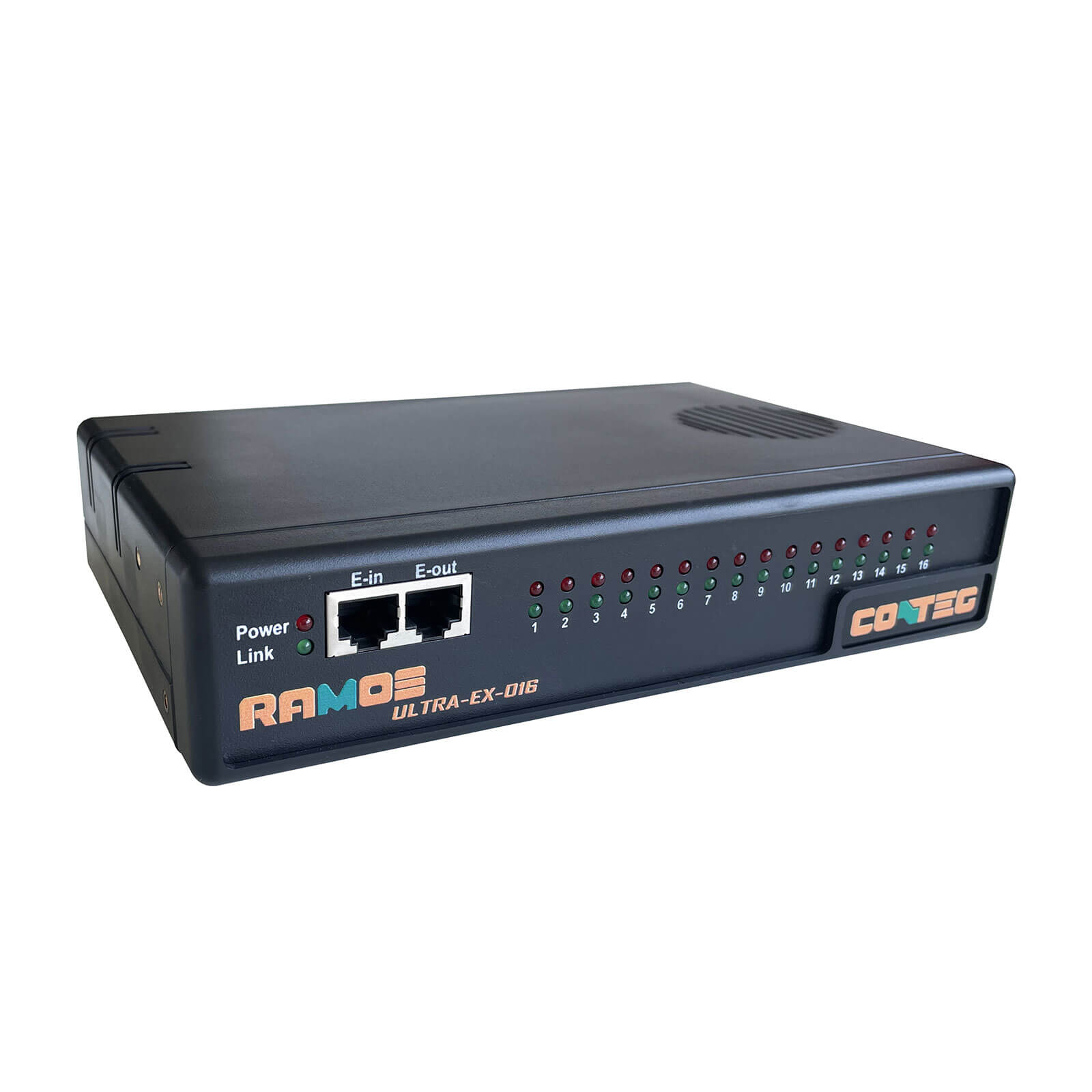

RAMOS ULTRA EX-O16 is an expansion module with 16 optically isolated inputs. Can be connected to any of the expansion ports located on the front panel of the RAMOS ULTRA, RAMOS ULTRA ACS or RAMOS Optimax main monitoring units. Connects with a standard CAT5/6 patch cable.

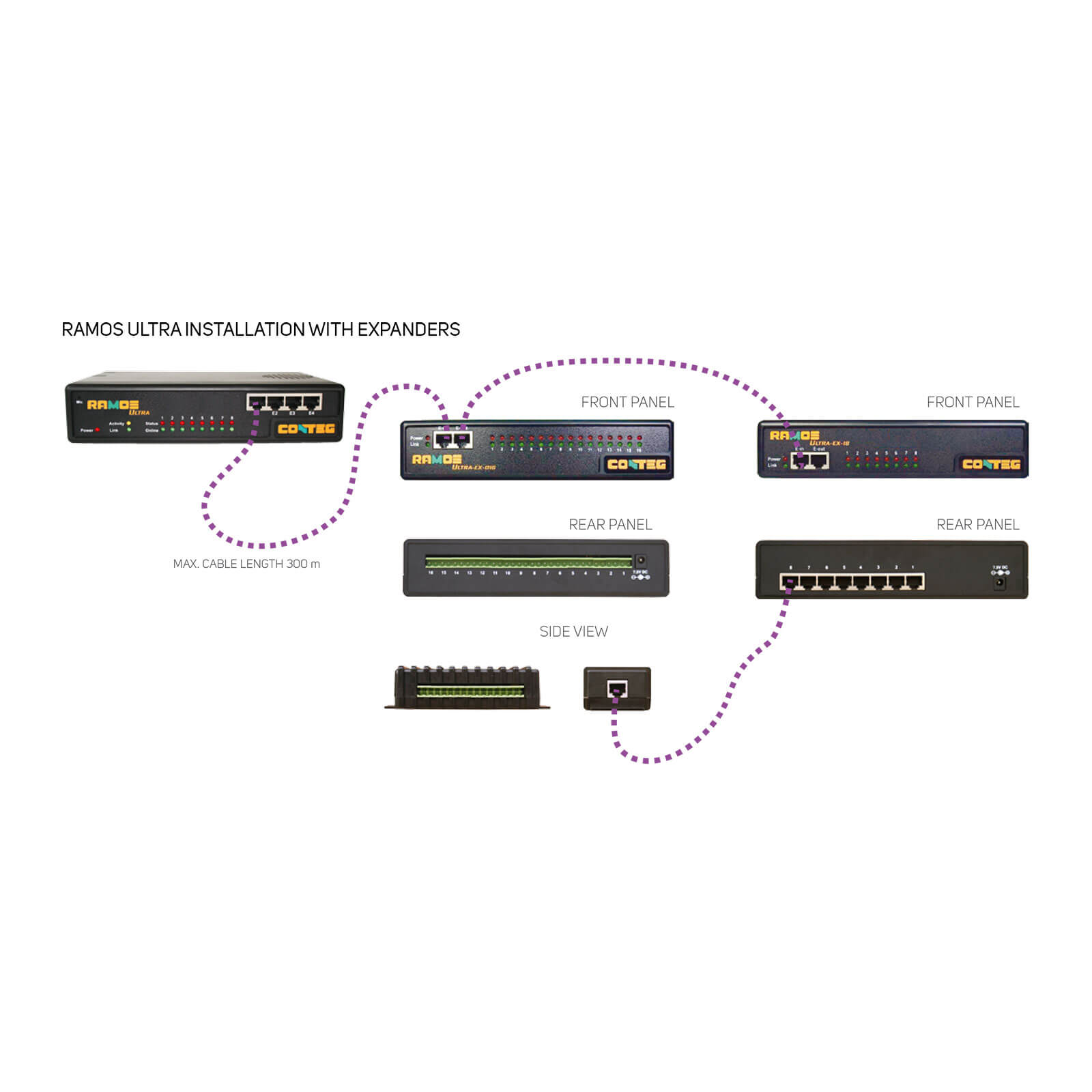

The expander can also be linked using the E-Out/E-In ports on other expanders. The maximum length of expansion cable between units is 300 m.

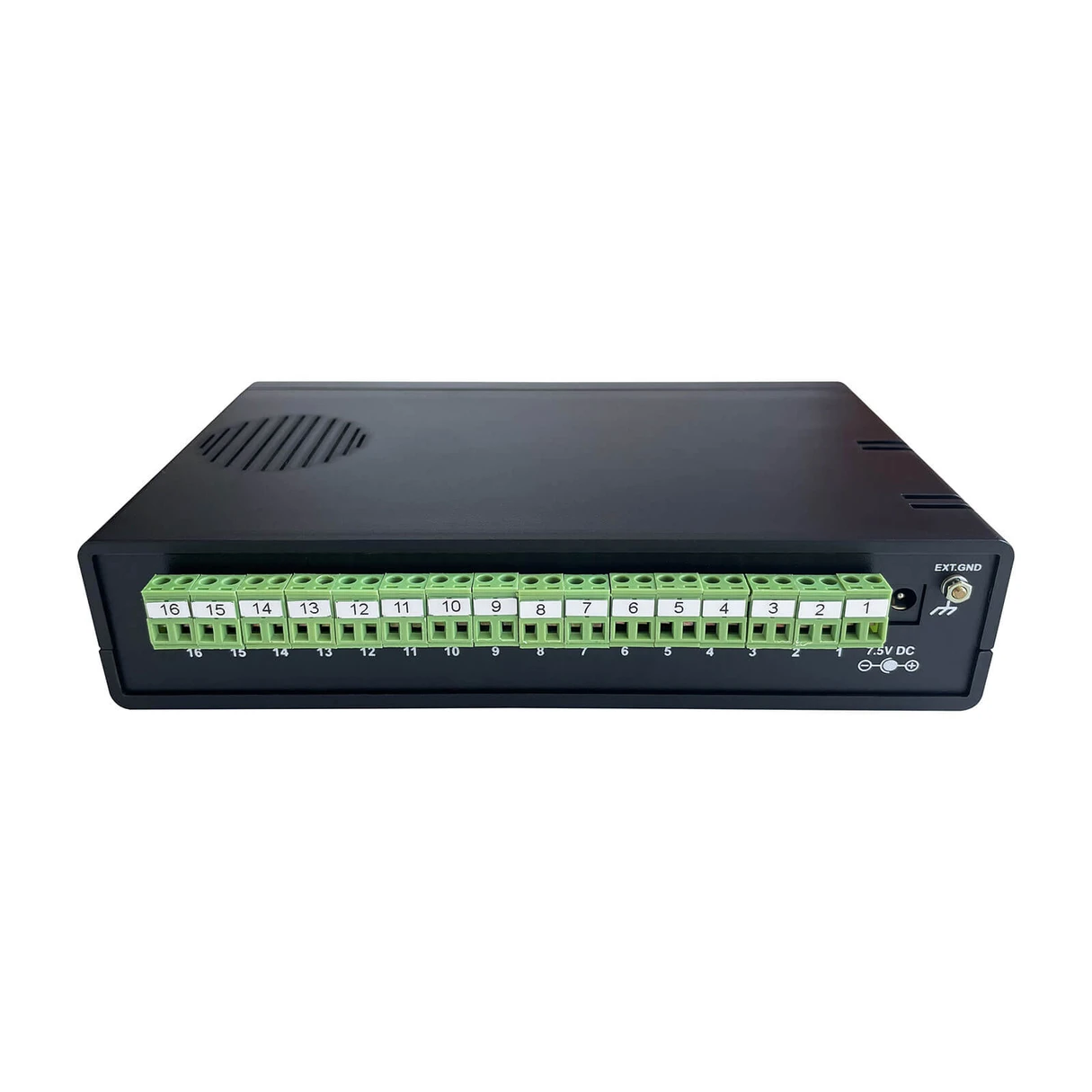

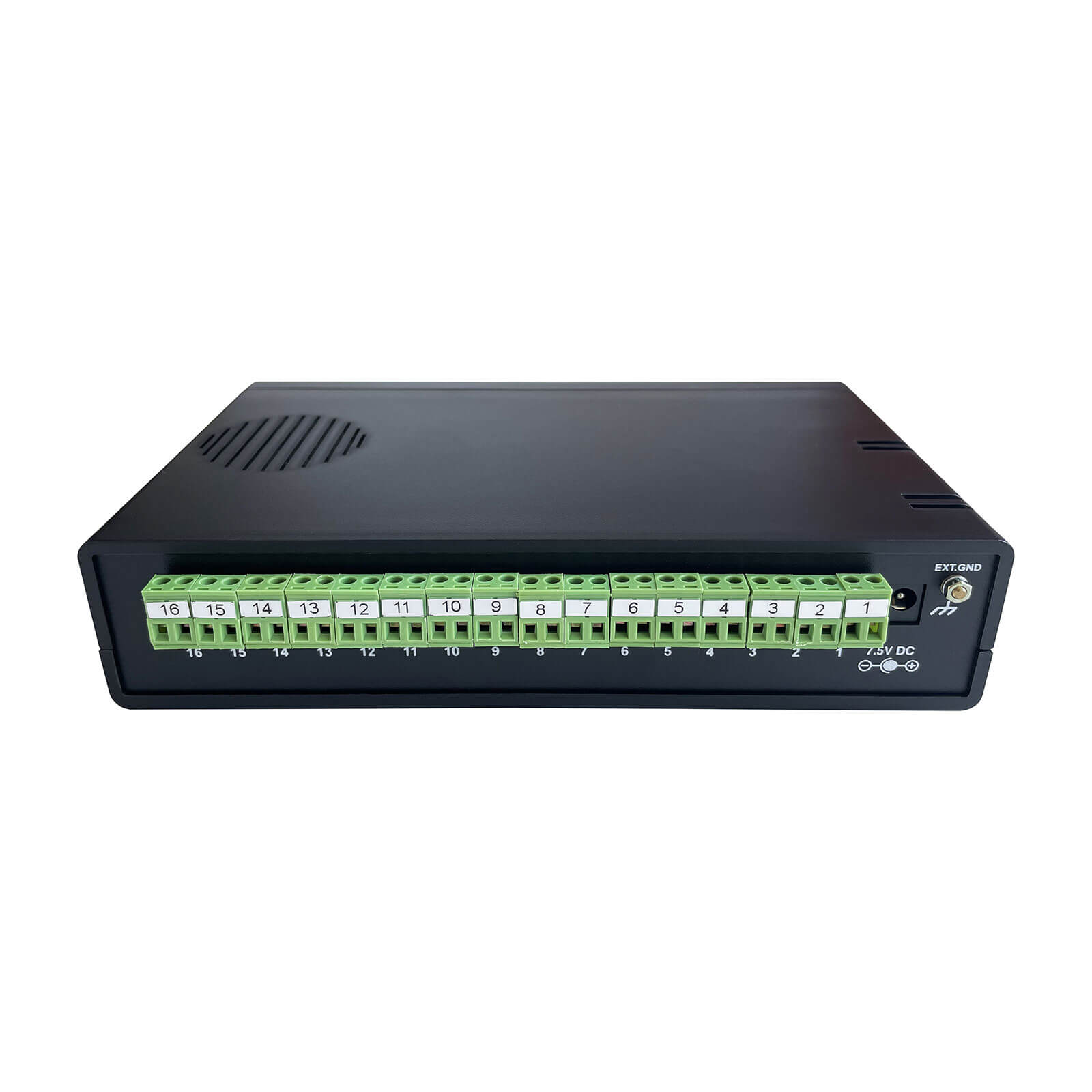

A wide range of devices that generate an output signal or voltage can be connected to each 2-wire input located on the back of the module.
Compatible with standard Ramos Ultra, Ramos Ultra ACS E* expansion ports and Ramos Optimax EXP/MOD port.

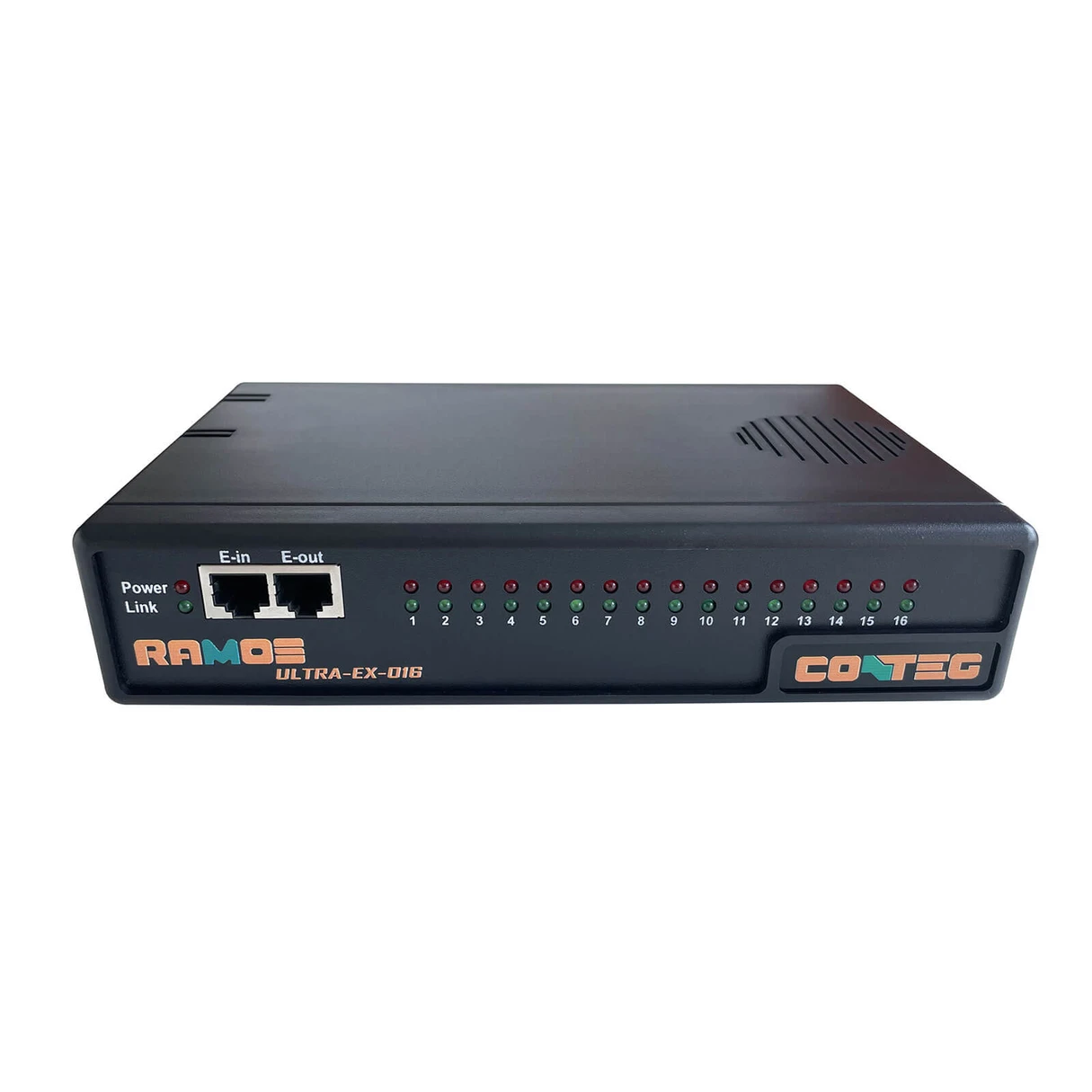

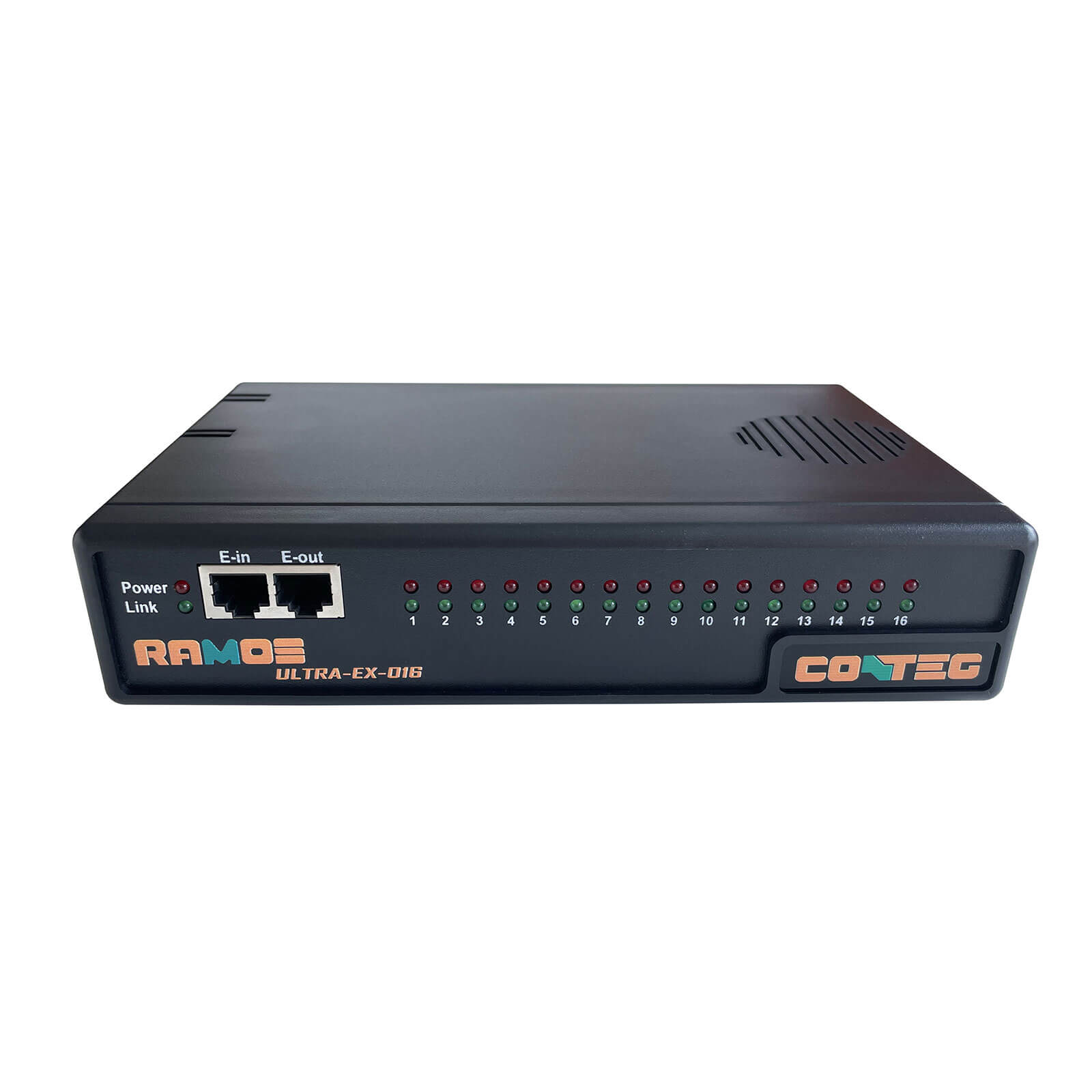

Two LEDs at each of the 16 inputs indicate the status of the respective connected devices.
Order code: RAMOS Ultra-EX-O16
Information
Key features
| Product line name |
Expansion module RAMOS-Ultra-EX-O16 |
|---|---|
| Included in the package |

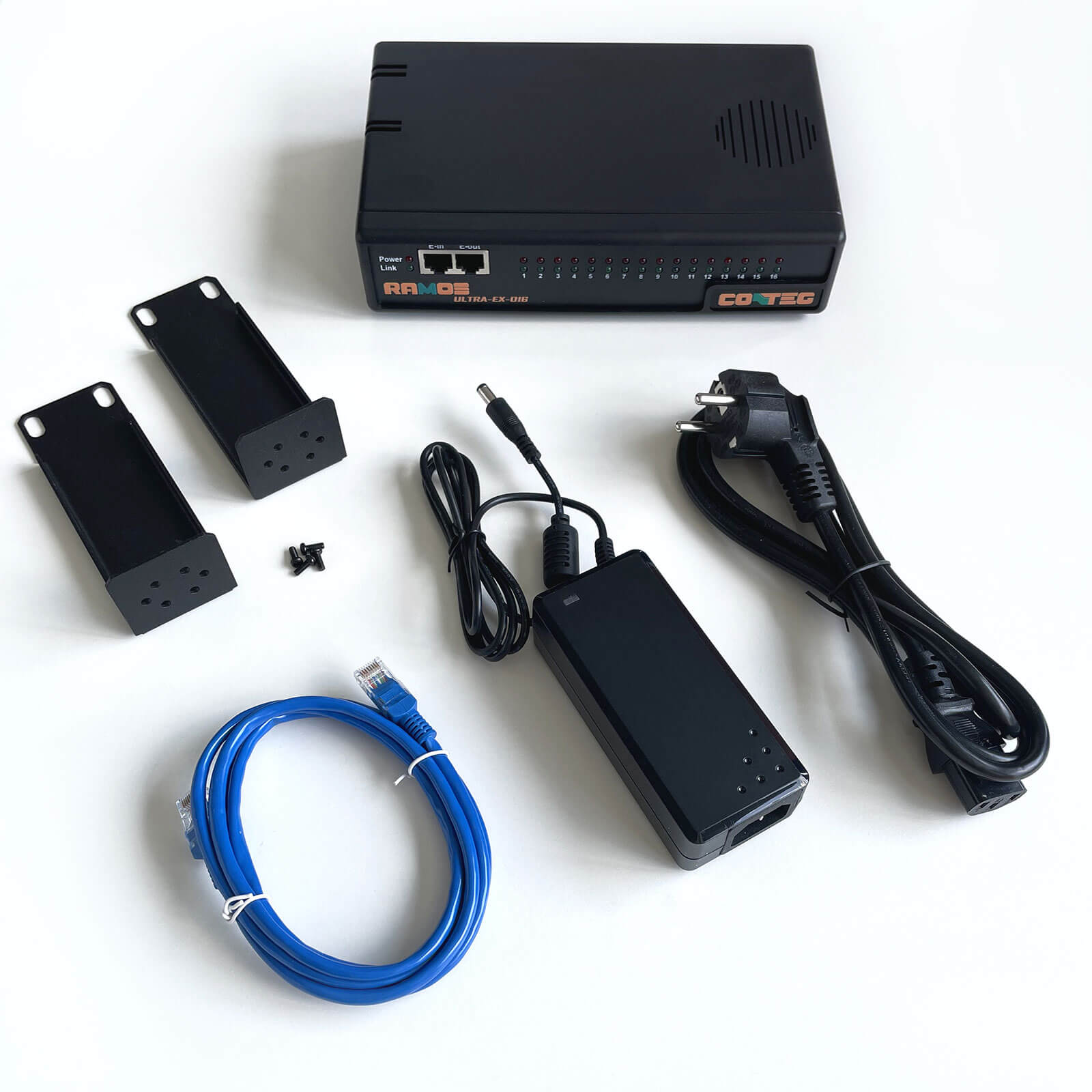

7.5 V DC power supply with replaceable cable, brackets and screws |
| Porty |
2 expansion ports (connection with patch cables |
| LED Indikátor |
Power, activity, 16x status and 16x input connections |
| Dimensions |
46 x 216 x 138 mm |
| Provozní prostředí |
Temperature: min. -35 °C – Max. +55 °C |
| Ideal for |
RAMOS Ultra, RAMOS Ultra ACS, RAMOS Optimax |
