Relay Box 8

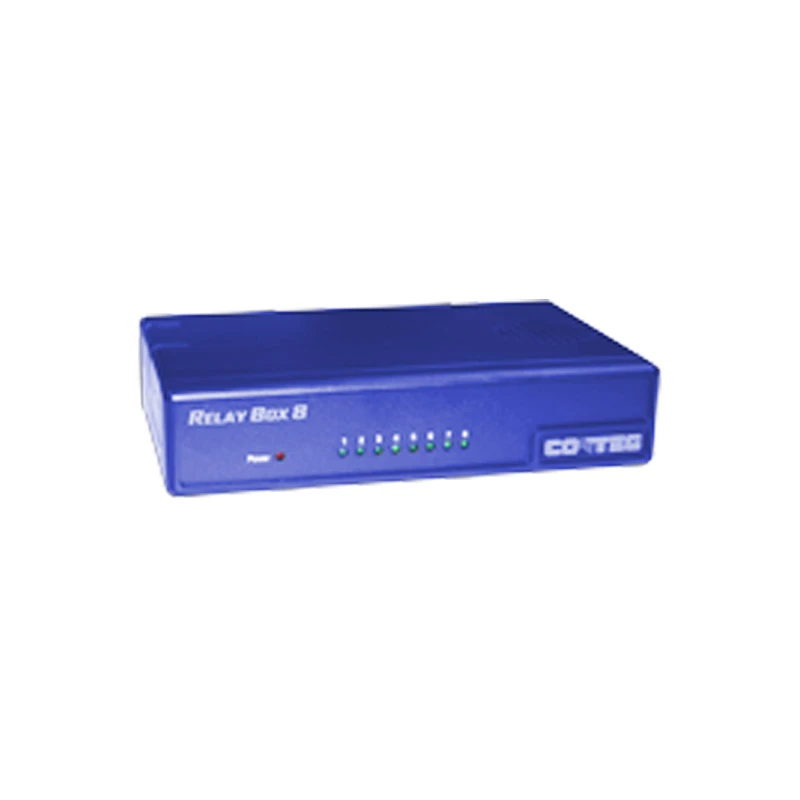

Relay Box 8 creates 8 relay outputs from a single intelligent port.
Product introduction
Relay Box 8 is a multi-port relay designed specially for advanced process control with 8 changeover relay contacts for manual control or control through notifications. Relay Box 8 is easy to control using sensors or detectors. The relay can respond automatically to changes of the sensor state. Relay Box 8 is simple to set up with built-in auto detection capability and a user-friendly web interface.
Automatic response to sensor signals gives users more flexibility in responding to changes in the environment. Automatic response eliminates the need for user intervention in emergency, as it can prevent damage, e.g., by activating relevant safety devices.
Power control
On/Off control of cooling devices
Alarm activation
Process management
Power management systems
The device is suitable for RAMOS Ultra, RAMOS Plus and RAMOS Optimax.
Requires external 7.5 VDC (RMS-UPW) power supply.
Information
Key features
| Product line name |
Relay Box 8 |
|---|---|
| Ostatní |

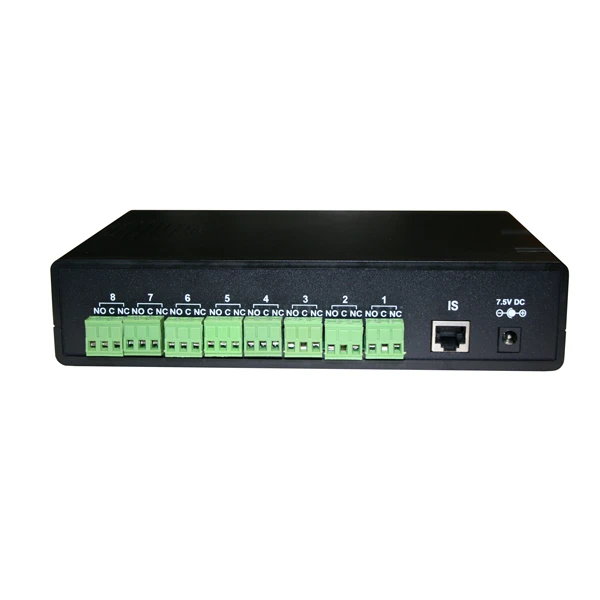

Each relay has 3 terminals (NO - closing, NC - opening and COM - common contact) |
| Technical information |
Ordering code RMS-U-RB-8 |
| Included in the package |
1.5 m CAT 5 patch cable, brackets for mounting in a 19" cabinet |
| Porty |
8 switching relay contacts |
| LED Indikátor |
8 LED relay status indicators and 1 LED power indicator |
| Dimensions |
216x138x46 mm |
| Ideal for |
RAMOS Ultra, RAMOS Plus and RAMOS Optimax |
| Max. provozní napětí |
380 VAC, 125 VDC |
| Spotřeba |
Typical 2.475 Watt, 0.495 A |
| Max. spínací výkon |
4,000 VA, 480W with resistive load 2,000 VA, 240 W with inductive load ( PF = 0.4 ) |
| Skladovací teplota |
-40 °C - 85 °C |
| Operating temperature |
-40 °C - 85 °C |
| Maximum current |
16 A |
