Boîtiers portatifs pour l'électronique

Betabox

Suitable for various types of handheld devices.

Fiche technique En savoir plus

Où nous trouver ?


Product introduction

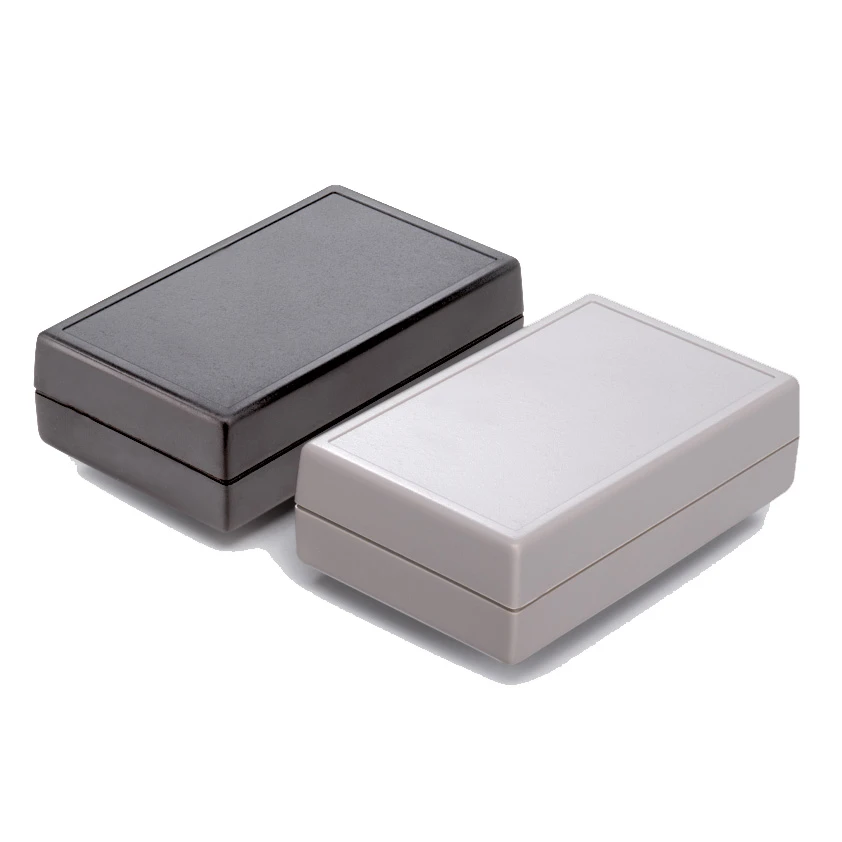

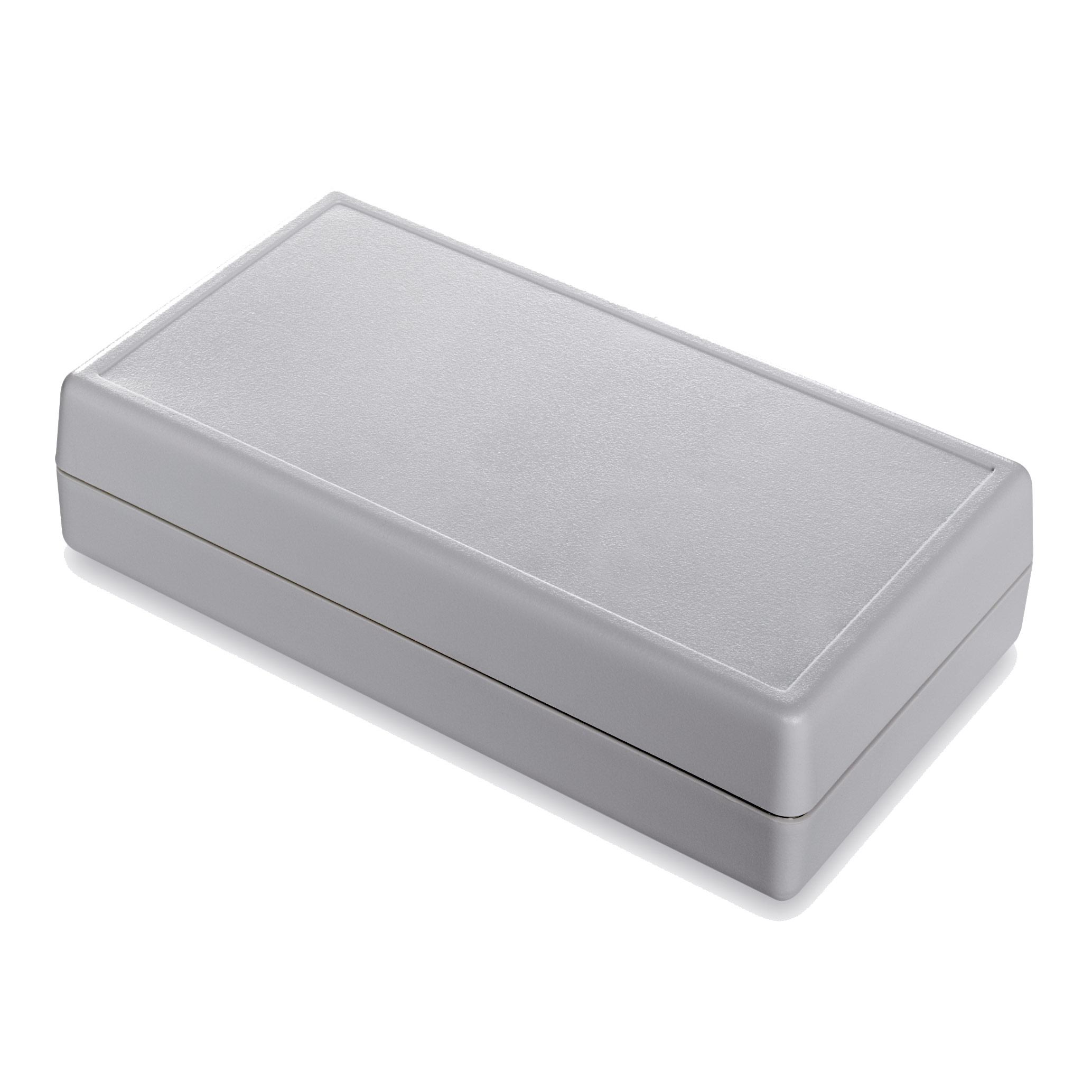

Betabox small portable electronics boxes are suitable for various portable or handheld devices.

Information Pour télécharger

Information

Key features

Product line name	Betabox
Technical information	DESCRIPTION Two sizes of ABS boxes with 3 mm thick walls that ensure high impact resistance The base includes a battery compartment that is accessible via a snap-on lid at the back. Both box sizes hold two AA batteries, two AAA batteries or one PP3 battery Integrated holes in the base for mounting printed circuit boards; screws are included Resistance to temperatures up to 85 °C Basic unit includes: lid, base, battery compartment cover, box screws and printed circuit board screws MATERIALS AND SURFACE TREATMENT Lid and base made of high-quality injection-molded ABS with a thickness of 3 mm Standard color: light gray - similar to RAL 9004, black - similar to RAL 7032 OPTIONAL Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request

Product line name

Betabox

Technical information

DESCRIPTION

Two sizes of ABS boxes with 3 mm thick walls that ensure high impact resistance

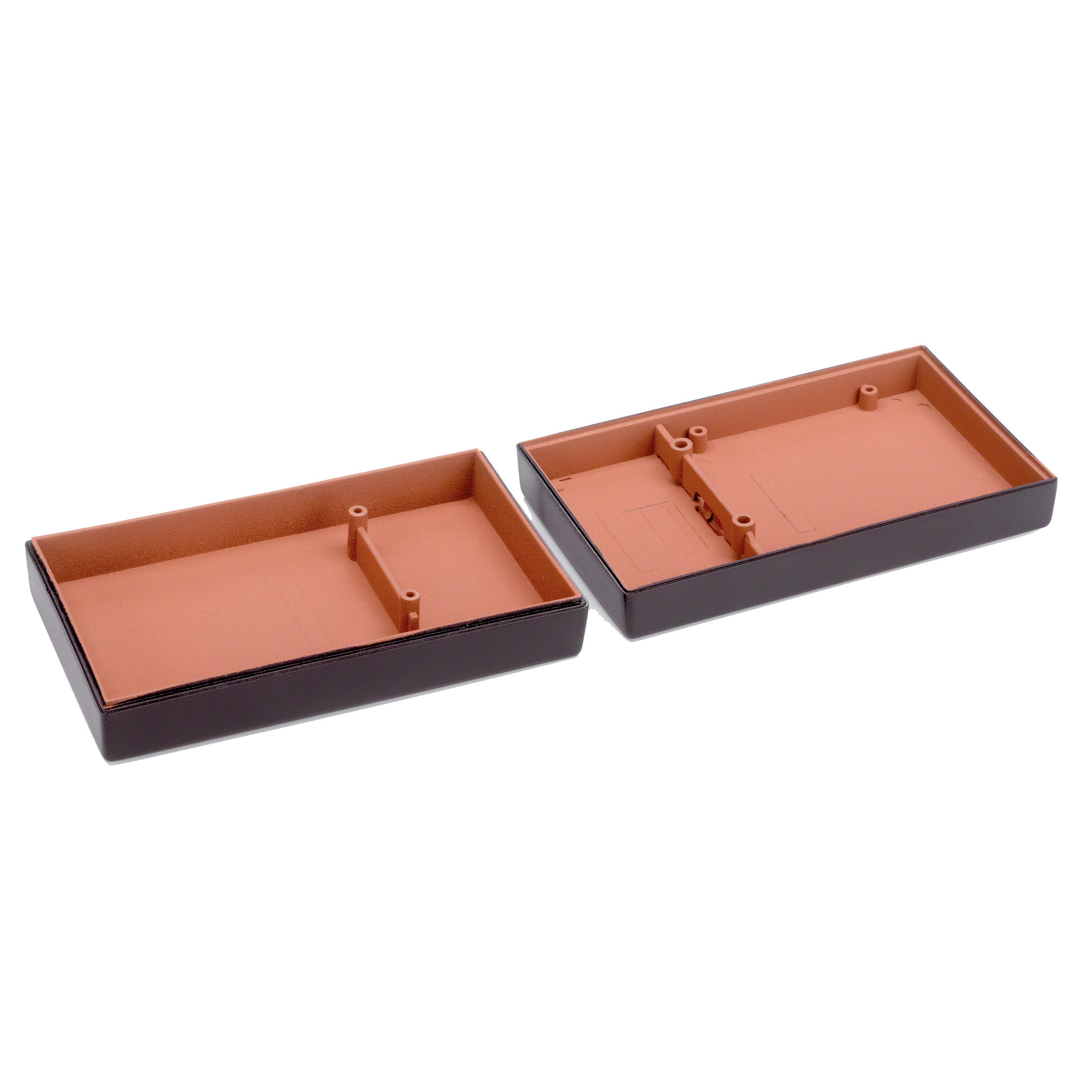

The base includes a battery compartment that is accessible via a snap-on lid at the back. Both box sizes hold two AA batteries, two AAA batteries or one PP3 battery
Integrated holes in the base for mounting printed circuit boards; screws are included
Resistance to temperatures up to 85 °C
Basic unit includes: lid, base, battery compartment cover, box screws and printed circuit board screws

MATERIALS AND SURFACE TREATMENT

Lid and base made of high-quality injection-molded ABS with a thickness of 3 mm
Standard color: light gray - similar to RAL 9004, black - similar to RAL 7032

OPTIONAL

Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request
