A monitoring device with a height of 1U supporting up to 150 sensors, suitable for multiple cabinets or server rooms. Also available in a GSM version.
The Ramos Optimax main monitoring unit provides remote monitoring capability for server rooms using sensors that measure temperature and humidity and detect intrusion, the presence of harmful gases or chemicals, or other potentially dangerous conditions.

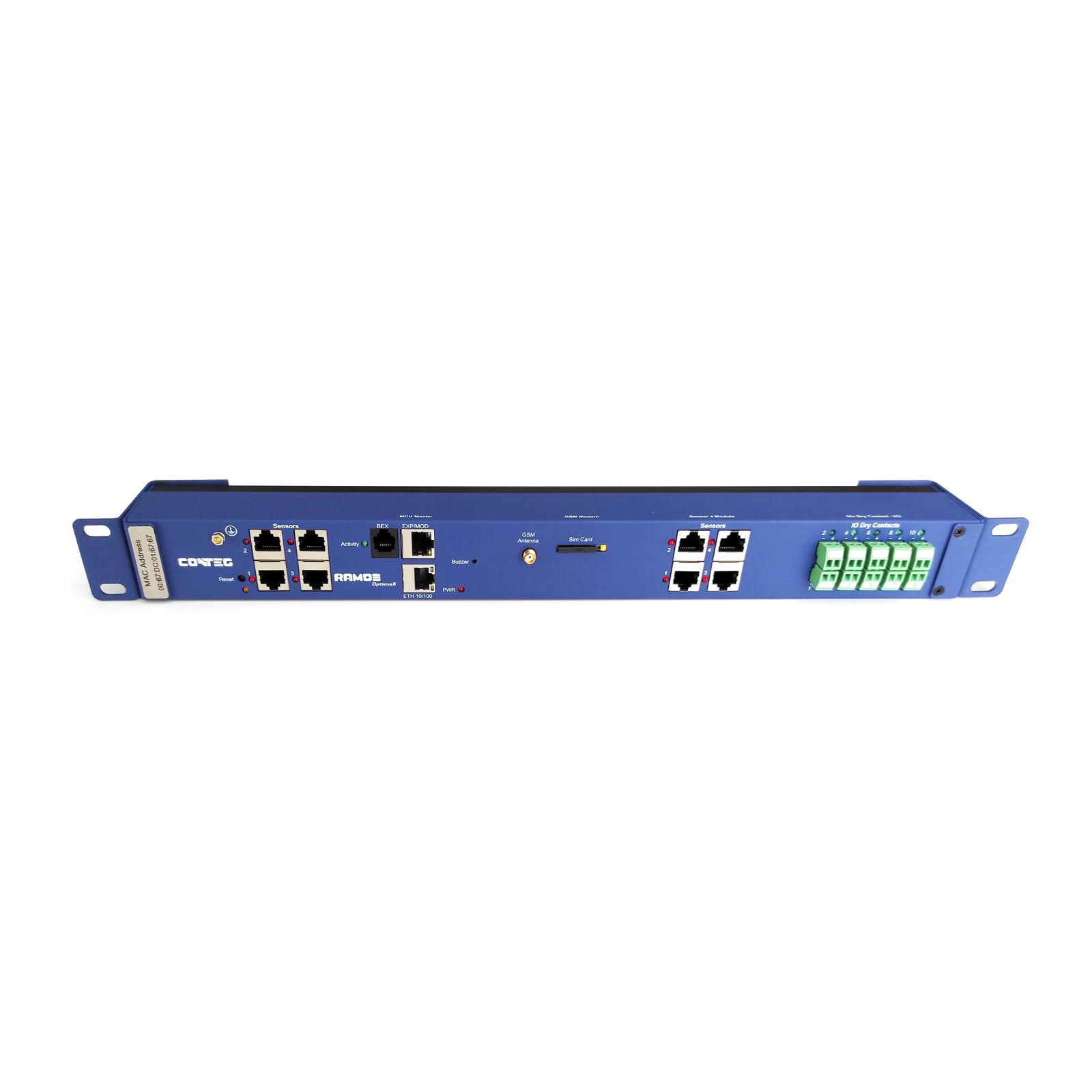

The device features a very low profile, occupying only 1U of height in a rack cabinet when placed horizontally on rails, yet it supports up to 150 sensors. RAMOS Optimax can be expanded in 2 ways - either using basic BEX expanders (RAMOS-BEX-I8-D10) with a maximum total cable length of 10 m in one line, or using standard expansion modules (RAMOS Ultra O16, I8, D64, D128, D192, RMS-ACS-U-RDU).

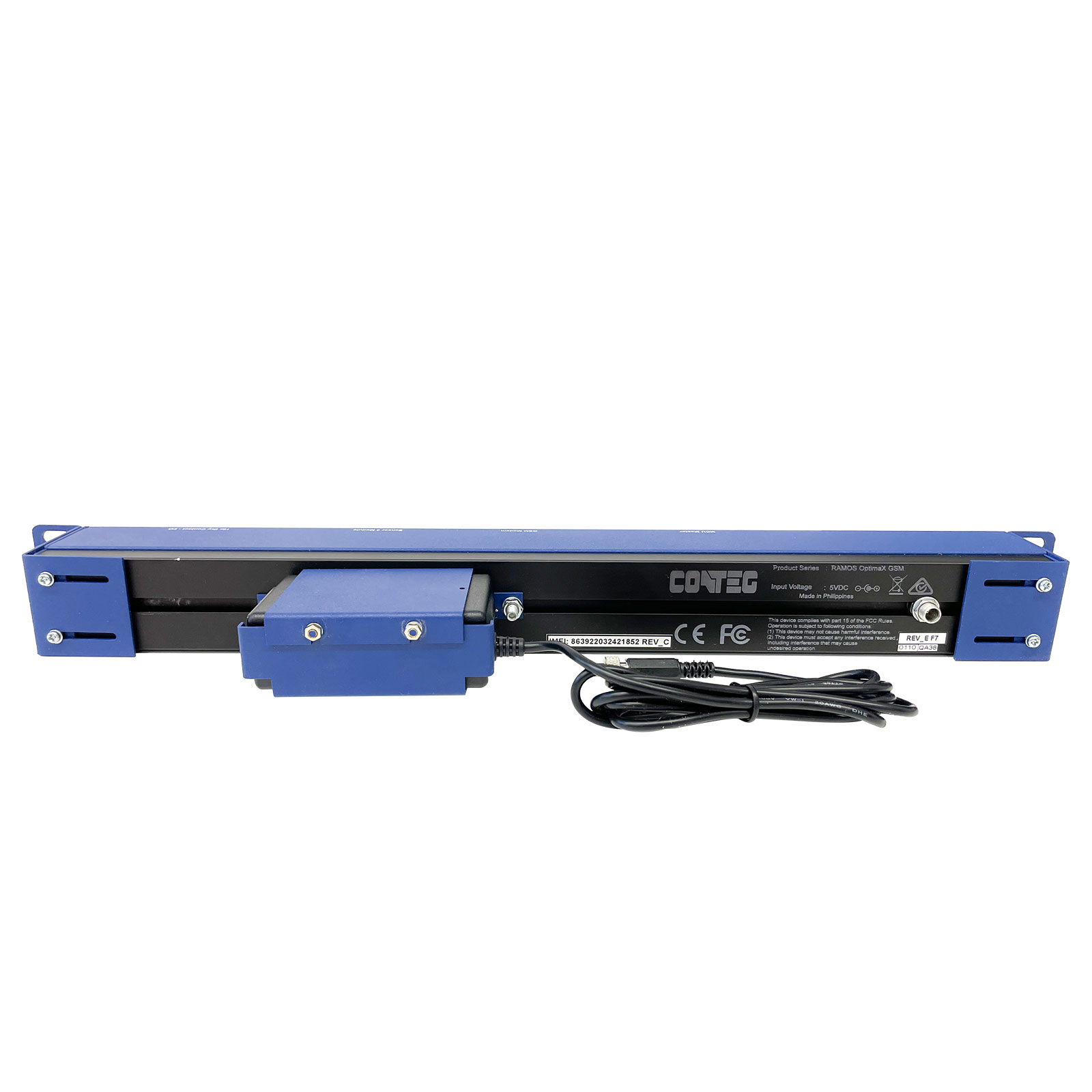

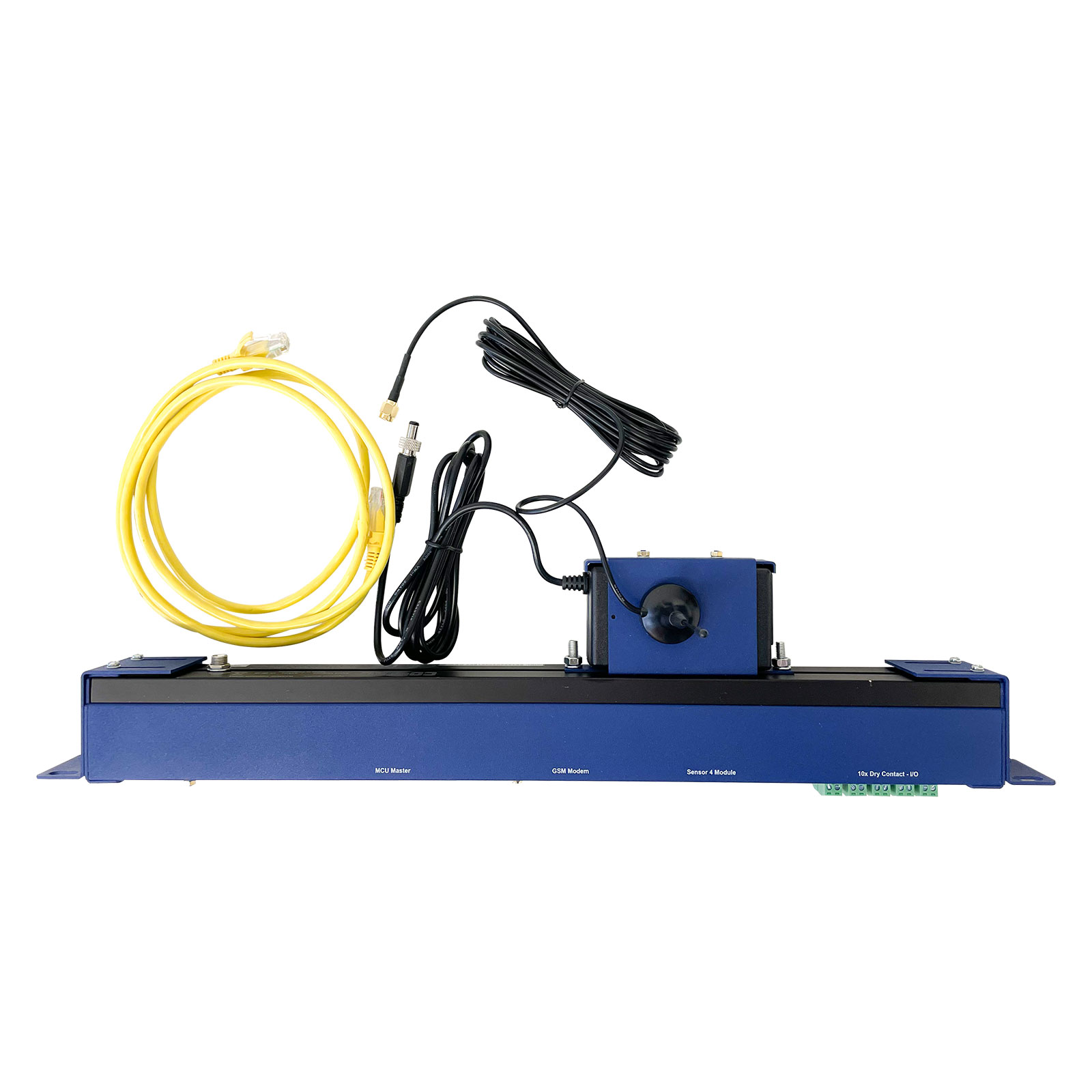

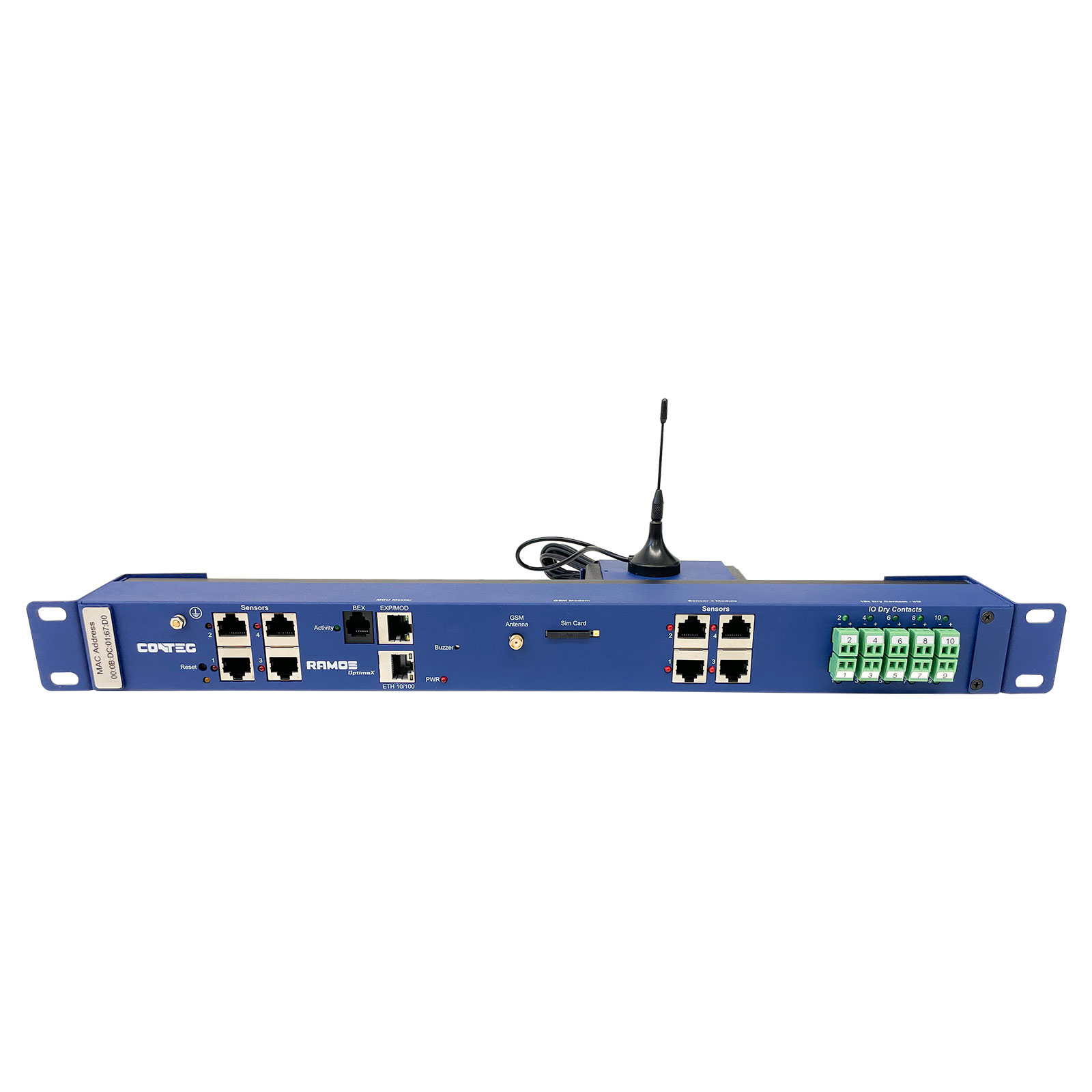

Also available is a RAMOS Optimax GSM version with a built-in 4G modem and an external antenna. This version supports SMS notifications and can communicate over the GSM network. A built-in web server of the RAMOS Optimax unit (GSM) enables convenient setting, control and management from any location. In the event of an alarm, the unit sends a notification by e-mail or SMS to predefined recipients (GSM version).
RAMOS Optimax can also be integrated into the CONTEG Pro Server application for central management and supervision of the monitored environment. A wide range of accessories are available for the main monitoring unit, such as detectors, sensors, sirens, magnetic door contacts, expansion modules, etc.
The RAMOS Optimax monitoring system is suitable for multiple cabinets or server rooms.
Order code: RAMOS Optimax RAMOS Optimax GSM
| Nom de la ligne de produits1 |
RAMOS Optimax |
|---|---|
| Oznamovací funkce |
e-mail, SNMP traps, SMS and calls for the GSM version |
| Kompatibilita |
Compatible with RAMOS Ultra EXP expansion modules/ RDU door units via a single expansion port |
| Dimensions |
44 x 432 x 50 mm (19" x 1RU) |
| Operating humidity |
Min. 20% - Max. 80% (without condensation) |
| Ostatní |
Compatible with RAMOS Ultra EXP expansion modules/ RDU door units via a single expansion port |
| Included in the package |
5V DC 3A power supply with cable, 19" brackets, crossover cable for setup and a mounting kit |
| Operating temperature |
Min. -35 ° C - Max. +70 ° C |
| Porty pro senzory |
Support for up to 150 sensors (including expansion unit and virtual sensors) |
