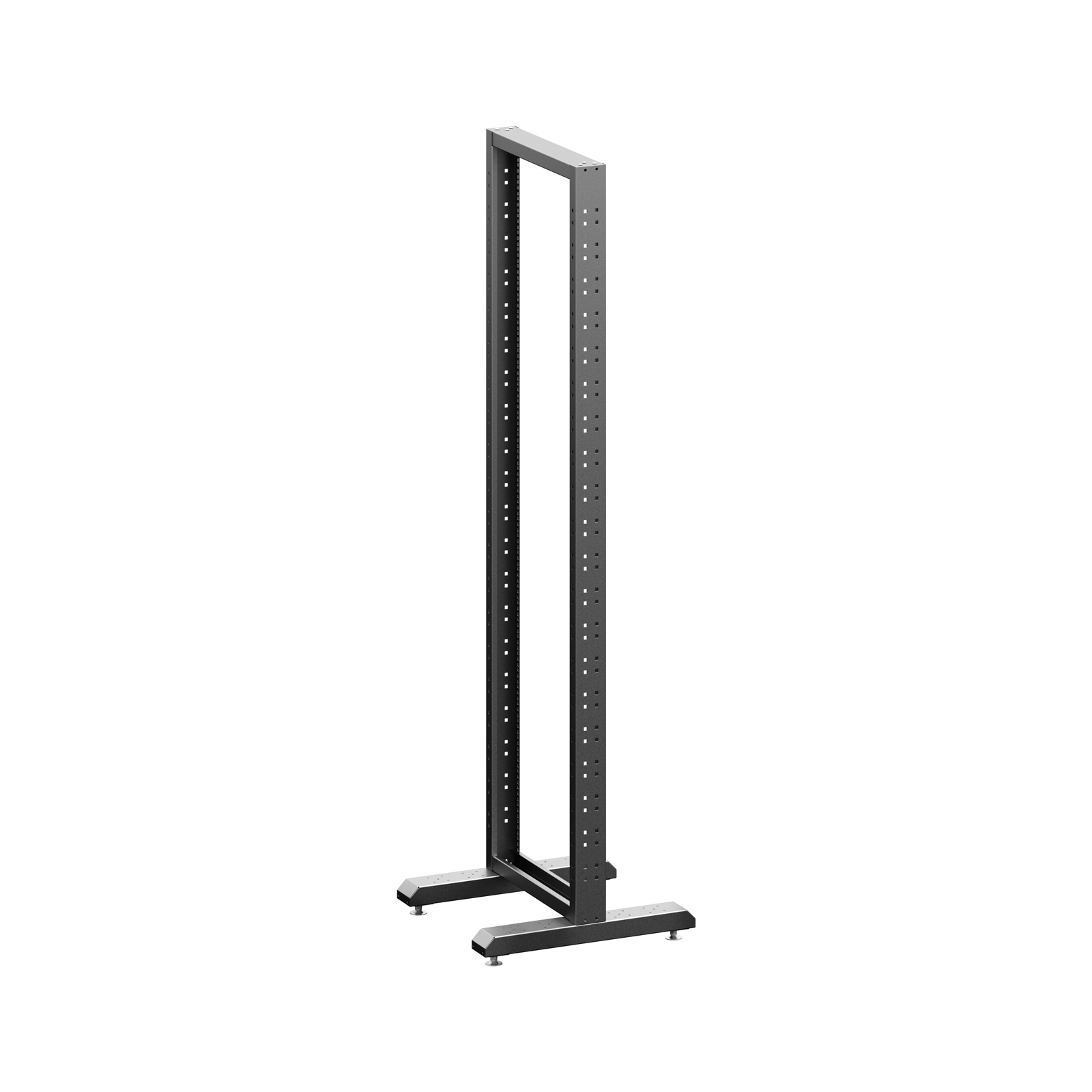

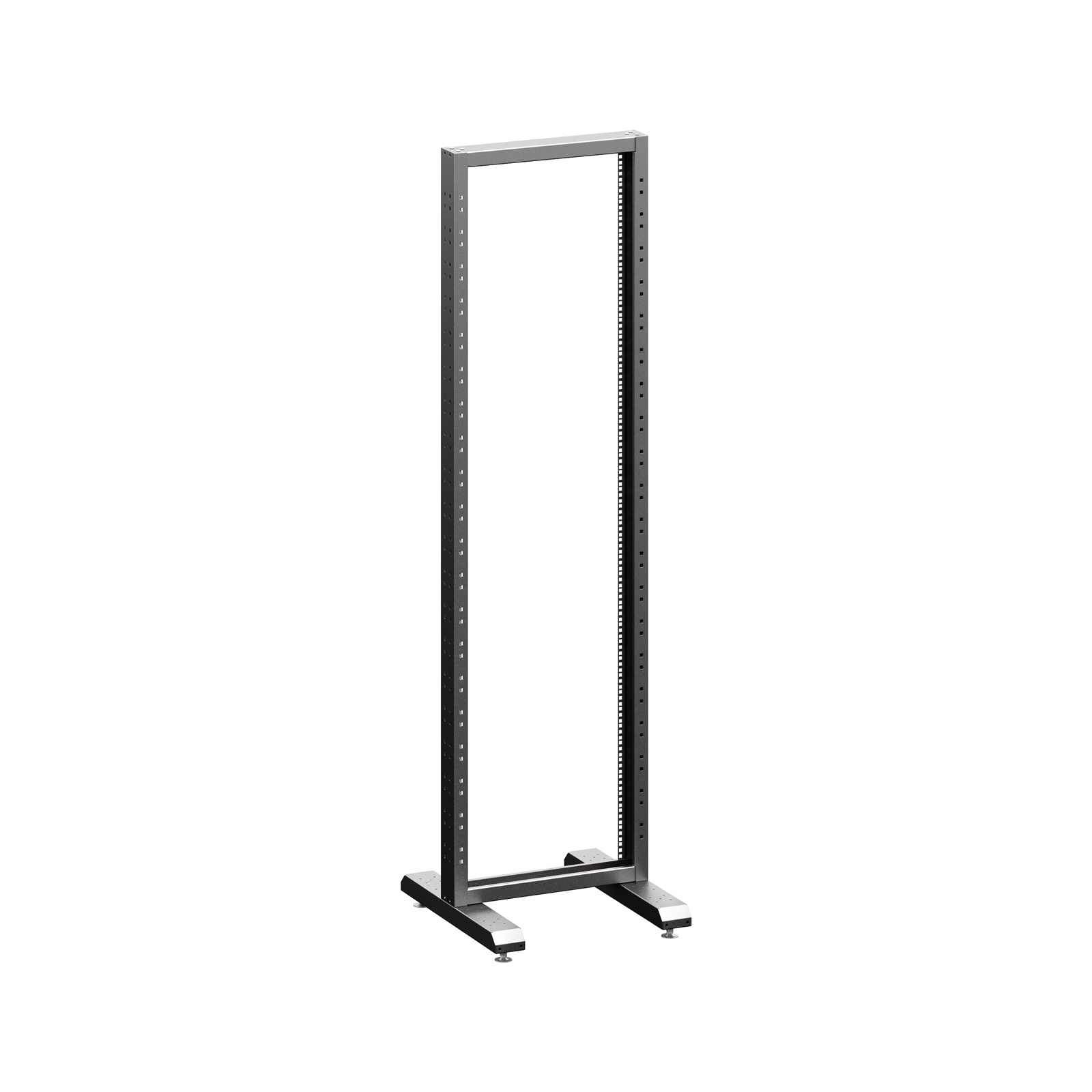

RS series open frames are suitable for undemanding use cases. The advantage of the RS frame is its lightweight construction. It is ideal for presentation and exhibition purposes, but can also be used for the operation of IT technology.
The frames of the RS series are ideal for in closed rooms with access control and a suitable operating environment for the installed components, or wherever it is not possible to use rack cabinets for any reason.
| Nom de la ligne de produits1 |
Open RS frames |
|---|---|
| Hauteur (U) |
27, 42, 45, 36
|
| Largeur (mm) |
559
|
| Profondeur (mm) |
600 mm (base)
|
| Load capacity (kg) |

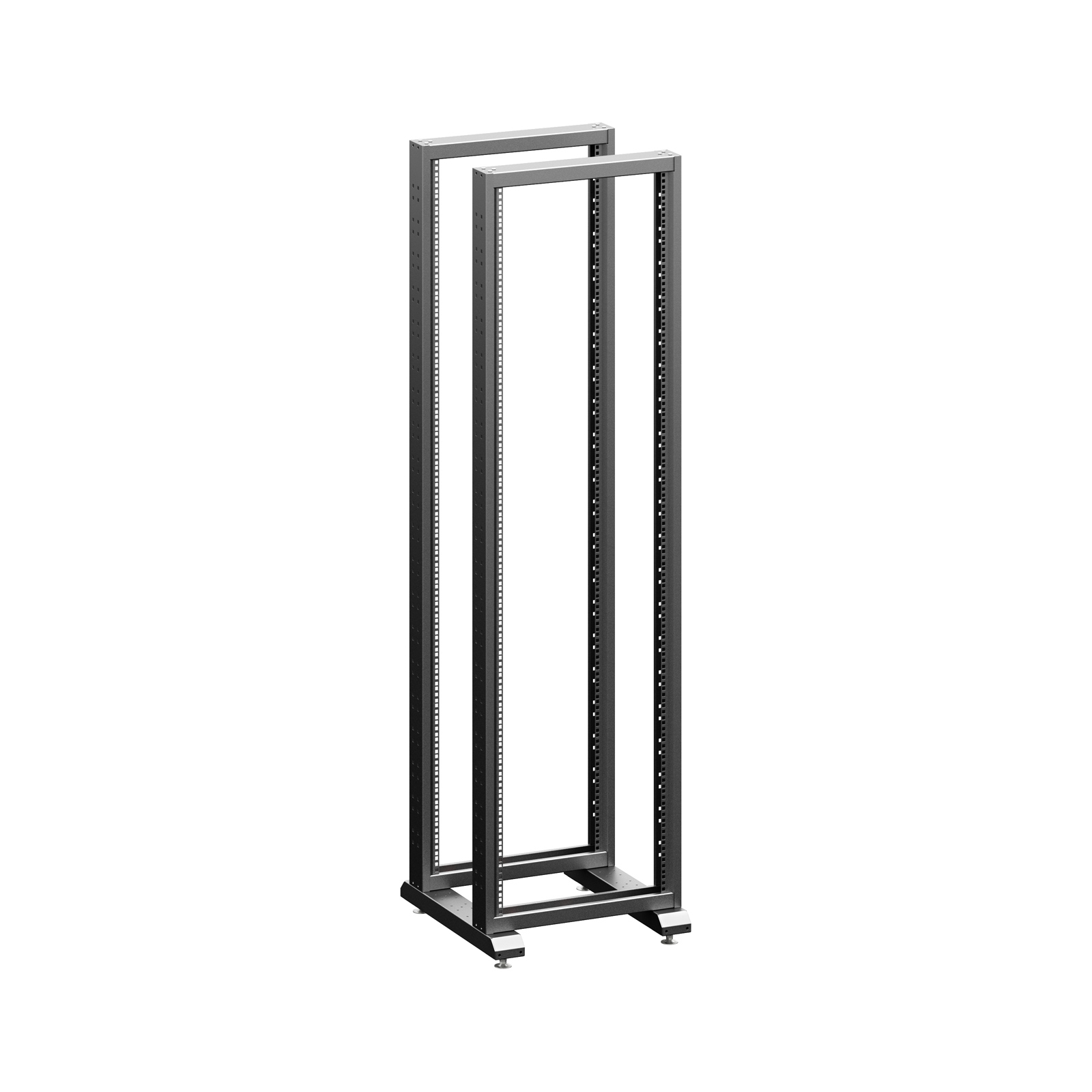

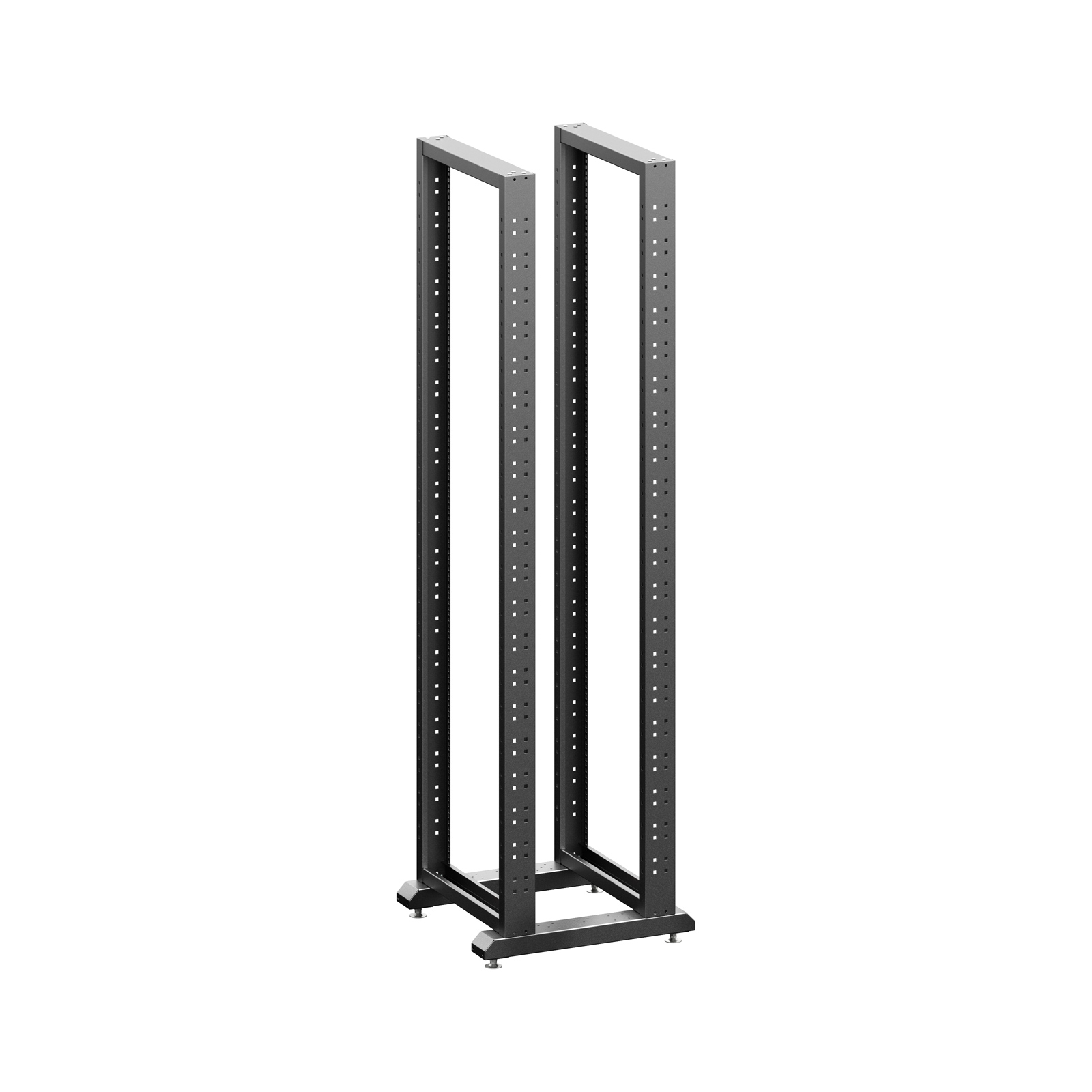

200 single frame, 400 double frame |
| IP rating |
IP00 – the frame does not provide any protection to the installed equipment |
| Color design |
powder color RAL 9005 |
| Standard configuration |
Frame - number (1 or 2) must be specified in the order, base with height-adjustable feet (can be replaced with castors - ordered separately), mounting material |
Binding panels with plastic loops are used for installation and horizontal routing of cables within the cabinet.
Plastic binding ducts are intended for placement and horizontal routing of cables in rack cabinets, wall-mounted and SOHO cabinets.
Binding panel with metal loops, single-sided design only
Basic power panels are used for power supply and its distribution to individual IT devices in cabinets.
Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow.
Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow.
Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow.
Pull-out shelves can hold equipment without 19" mounts. The pull-out system makes the equipment easily accessible. The shelves are perforated over their entire surface for effective air flow.
Pull-out shelves can hold equipment without 19" mounts. The pull-out system makes the equipment easily accessible. The shelves are perforated over their entire surface for effective air flow.
Holders are intended for holding a keyboard or monitor. A drawer is designed to store drawings, technical documentation, etc. directly in the cabinet.
Optical trays are used to terminate optical cables in the cabinet. We also offer various types of modular panels and other optical accessories.
In the standard configuration, CONTEG rack cabinets are supplied with height-adjustable feet. Optionally, the feet can be replaced with castors or plinths.
The mounting kit is used to attach 19" technology to vertical rails with this spacing.
Patch panels are attached to 19" vertical rails and allow the termination of data or telephone cables to different types of modules.
Cross beam for frames with four posts - 2mm sheet metal.
Binding panel for four-post frames to route and secure cables between two pairs of 19" rails.
Stabilizer for two- and four-post frames
3 types of patch panels
Accessories for SOHO Mini REH - binding panel.
